ASTM A194 Grade 8 Nuts
Reliable stockist of ASME SA194 Grade 8 Hex Nuts in wide range of sizes
Table of Content
ASTM A194 Grade 8 Nuts Specification
ASTM A194 gr 8 Nuts Standard
ASME B18.2.2
SA 194 gr 8 Nuts Size
M3 – M56 | 3/6″ to 2″
SA 194 gr 8 material Condition
Threading / Cold Drawn
ASTM A194 gr 8 Nut Material
Type 304
SA 194 gr 8 material Proof Load
261,100 lbf
ASTM A194 gr. 8 Hex Nuts Tensile Strength
500 J/kg·K
ASTM A194 grade 8 Heavy Hex Nut Threads
BSF / METRIC / UNF / BSW / UNC
SA 194 gr 8 Flange lock nut Standards
DIN 933, 931, 7991, 934, 976, 125 / ASME B18.2.1, B18.3
Custom Sizes
Trusted ASTM A194 Grade 8 Nuts Manufacturer in India in various sizes.
Origin
Indian / Korean / Russian / European
Manufacturing Technique
Hot forging / Cold forging
SA194 gr 8 nut Finish
Phosphating / Passivation / HDG
Certificate
- Raw Materials Certificate
- 100% Radiography Test
- EN 10204/3.1B
- UT and PMI Test
Packaging
- Wooden Cases
- Wooden Pallet
- Carton Box
- Blister Packs
Value Added Services
- Color Coding
- Head Painting
- Head Shank Drilling
- Laser Etching
Raw material of SA194 Gr 8 Heavy Hex Nuts
| Raw material | AISI 304 Stainless Steel |
|---|
ASME SA194 Grade 8 Hex Nuts Price list
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 5/8" UNC, Hex Nut, A194 gr 8, ANSI B18.2.2 | US $1.34 | 4.92 AED | € 1.14 |
| Heavy hex nuts, M24, SA 194 gr 8, UNF | US $1.24 | 4.56 AED | € 1.06 |
| Property | ASTM A194 Grade 8 | ASTM A194 Grade 8M |
|---|---|---|
| Material | Type 304 | Type 316 |
| Corrosion Resistance | Good | Better |
| Crevice Resistance | Moderate | Superior |
| Marking | “8” | “8M” |
| Chromium | 18% | 16–18% |
SA 194 gr 8 chemical composition
Carbon
0.08 (Max.)
Silicon
1.0 (Max.)
Manganese
2.0 (Max)
Phosphorus
0.045
Chromium
18.0 To 20.0
Sulfur
0.03 (Max.)
Nickel
8.0-11.0
Hardness of A194 gr 8 material
| Hardness | 223 HBW |
|---|
ASTM A194 Grade 8 mechanical properties
Proof Load
517 MPa
Elongation
≥ 30%
Temperature Range
1500°F
Proof load of A194 grade 8 Hex Nuts
| Nominal Size, inch | Stress Area inch | Threads per inch | Proof Load, lbf | |
|---|---|---|---|---|
| Hex | Heavy Hex | |||
| 1/4" | 0.0316 | 20 | 4770 | 5570 |
| 5/16" | 0.0524 | 18 | 7860 | 9170 |
| 3/8" | 0.0774 | 16 | 11620 | 13560 |
| 7/16" | 0.1063 | 14 | 15940 | 18600 |
| 1/2" | 0.1419 | 13 | 21280 | 24830 |
| 9/16" | 0.182 | 12 | 27300 | 31850 |
| 5/8" | 0.226 | 11 | 33900 | 39550 |
| 3/4" | 0.334 | 10 | 50100 | 58450 |
| 7/8" | 0.462 | 9 | 69300 | 80850 |
| 1" | 0.606 | 8 | 90900 | 106000 |
| 1 1/8" | 0.79 | 8 | 118500 | 138200 |
| 1 1/4" | 1 | 8 | 150000 | 175000 |
| 1 3/8" | 1.233 | 8 | 185000 | 215800 |
| 1 1/2" | 1.492 | 8 | 223800 | 261100 |
Types of ASTM A194 Grade 8 Nuts
ASTM A194 gr 8 Square nut

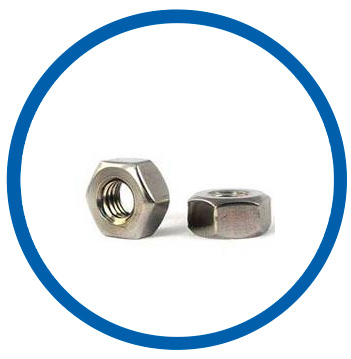

ASTM A194 grade 8 Heavy Hex Nut

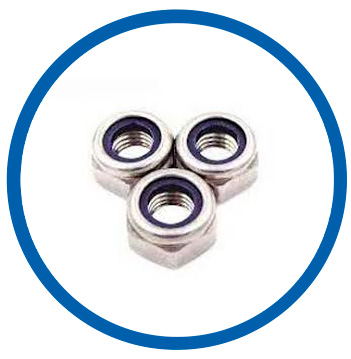

SA194 gr 8 Lock nut

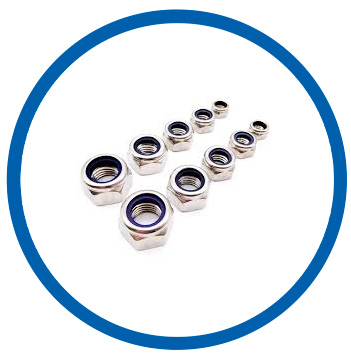

A194 gr 8 Nylon lock nuts

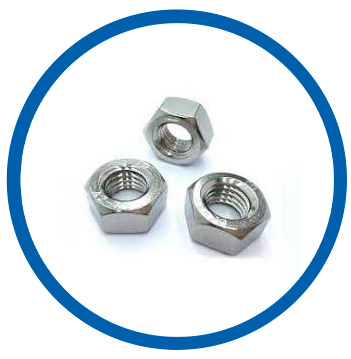

ASTM A194 gr b8 Hex Nut

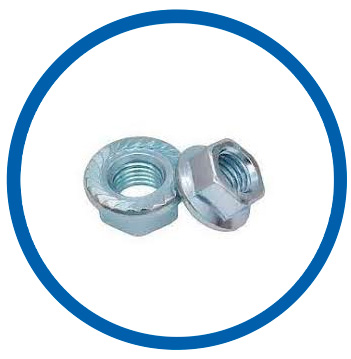

SA 194 gr 8 Flange lock nut
SA 194 gr 8 material Inspection and Testing

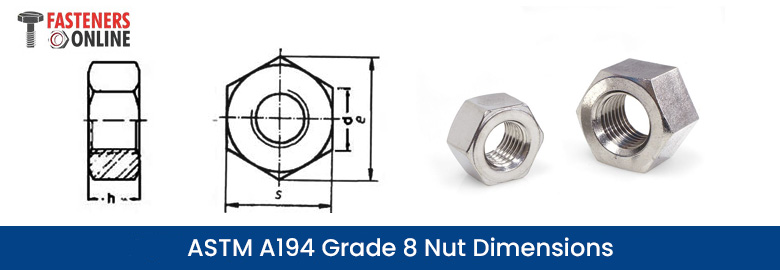

ASTM A194 grade 8 nut dimensions
| d | h | e min | s | Pitch |
|---|---|---|---|---|
| M12 | 10 | 23.91 | 22 | 1.75 |
| M16 | 13 | 29.56 | 27 | 2 |
| M20 | 16 | 35.03 | 32 | 2.5 |
| M22 | 18 | 39.55 | 36 | 2.5 |
| M24 | 19 | 45.2 | 41 | 3 |
| M27 | 22 | 50.35 | 46 | 3 |
| M30 | 24 | 55.37 | 50 | 3.5 |
| M36 | 29 | 66.44 | 60 | 4 |
| Grade Type | Nuts Machined from Bar Stock | Hot Forged or Cold Punched Nuts |
|---|---|---|
| 8 | 8B | 8 |
