Stainless Steel 410 Fasteners

PED approved AISI 410 Hex bolt and Nut manufacturer in India

Table of Content

Fasteners Types

Stainless Steel 410 Fasteners Specification

Hex Nuts Size

SS 410 Nuts Size

M3 – M56 | 3/6″ to 2″

Bolt Size

EN 1.4006 Bolt Sizes

M2 to M24

Washers Size

AISI 410 Washers Size

M3 – M56 | 3/6″ to 2″

Melting Point

SS 410 stud bolt Melting Point

1425–1510 °C

Thermal Conductivity

SUS 410 hex cap screws Thermal Conductivity

24 W/m·K

Length

ASTM B625 Type 410 fasteners Length

3 mm to 200 mm

Origin

Origin

Korean / Indian / Russian / European

Condition

Stainless Steel 410 Fasteners Condition

Threading / Cold Drawn

Studs Type

SUS 410 Studs Type

Double-End / Tap-End / Fully or Fine threaded

Thread Pitch

ASTM B625 UNS S41000 Bolts Thread Pitch

Coarse Threads / Fine Threads

Surface finish

SS 410 threaded rod Finish

Phosphating / HDG / Passivation

Manufacturing Technique

Manufacturing Technique

Hot forging / Cold forging / CNC Machined

Threads

Stainless steel 410 self drilling screws Threads

UNF / METRIC / BSF / BSW / UNC

Custom Sizes

Custom Sizes

Buy Stainless steel 410 fasteners in custom sizes and threads at best price.

Standards

ASTM B625 UNS S41000 plain washer Standards

DIN 7991, 933, 976, 931, 125, 934 / ASME B18.2.1, B18.3

Certificate

Certificate

  • EN 10204/3.1B
  • UT and PMI Test
  • Raw Materials Certificate
  • 100% Radiography Test

Packaging

Packaging

  • Blister Packs
  • Wooden Cases
  • Carton Box
  • Wooden Pallet

Value Added Services

Value Added Services

  • Head Shank Drilling
  • Color Coding
  • Laser Etching
  • Head Painting

Head Types

AISI 410 hex head bolts Head Types

  • Phillips Drive
  • Flat
  • Slotted hex washer
  • Slotted Drive
  • Socket cap head
  • Hex washer head
  • Button head

Bolt Size

EN 1.4006 screws Thread Class

  • 3G
  • 5 ONF
  • 4G
  • Class 2A (Medium fit)
  • Class 1A (Loose fit)
  • 2G
  • Class 3A (Tight fit)

Drive Style

Type 410 Stainless Steel Bolt Drive Style

  • Torx
  • Oval
  • Hex
  • Truss
  • Round
  • Pan
  • Cross

Type 410 Stainless Steel self-drilling screws are widely used in low to moderate corrosion resistance environments, refer price list of UNS S41000 dowel pins

AISI 410 Hex Bolts Manufacturing Range

Diameters Length Thread Types Standards Manufacturing Process Head Types
M5 – M72 3 mm – 200 mm Metric coarse/fine
UNC
UNF
BSW
BSF		 ASME B18.2.3.6M
DIN 6914		 Cold or hot forging
CNC machining		 Heavy hex (ASME B18.2.3.6M)

We keep ready stock of SS 410 U Bolts in different finishes, Purchase DIN 1.4006 fasteners directly from exporter at factory price

Stainless Steel 410 Fasteners Price list

Product Price in USD
(10 Pcs)		 Price in Dirham
(10 Pcs)		 Price in Euro
(10 Pcs)
Hex Bolt M12 x 40mm, AISI 410, UNF US $8.98 32.98 AED € 7.70
Heavy Hex Nut M5, Stainless Steel 410 US $2.42 8.89 AED € 2.07

410 Stainless Steel Hex Nuts Chemical composition

Carbon

0.15 (Max.)

Silicon

1 (Max.)

Manganese

1.0 (Max)

Phosphorus

0.04

Chromium

11.5 To 13.5

Sulfur

0.03 (Max.)

Nickel

0.75

DIN 1.4006 Stud bolts Mechanical properties

Tensile Strength

480 MPa

Yield Strength

275 MPa

Hardness

400 Max HB

Elongation

16 % Min

ASTM B625 Type 410 Washer equivalent

Grade UNS No Euronorm Old British Japanese JIS Swedish SS
No Name BS En
410 S41000 1.4006 X12Cr13 410S21 56A SUS 410 2302

SUS 410 Threaded Rod Physical properties

Elastic Modulus (GPa) Density (kg/m3) Electrical Resistivity (nΩ.m) Specific Heat 0-100 °C (J/kg.K)
200 7800 570 460

Various types of Stainless Steel 410 Fasteners

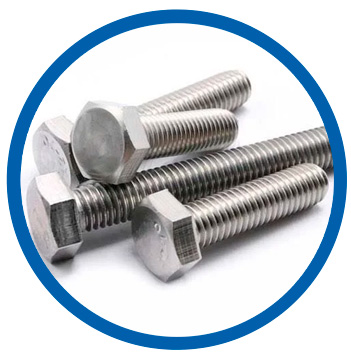

Stainless steel 410 heavy hex bolt

Stainless steel 410 heavy hex bolt

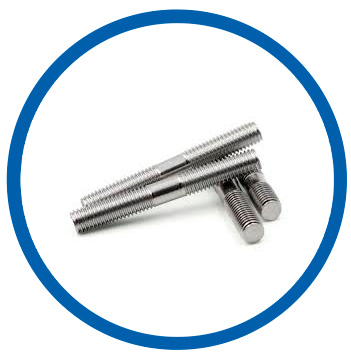

SS 410 stud bolt

SS 410 stud bolt

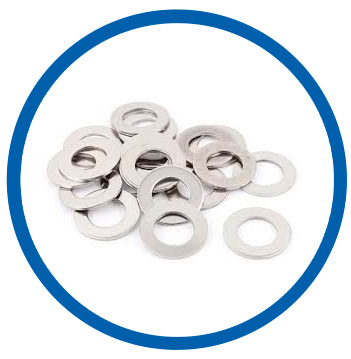

ASTM B625 Type 410 flat washer

ASTM B625 Type 410 flat washer

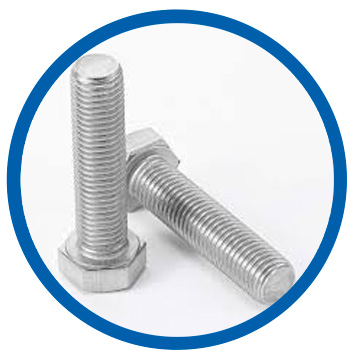

Type 410 Stainless Steel hex bolts

Type 410 Stainless Steel hex bolts

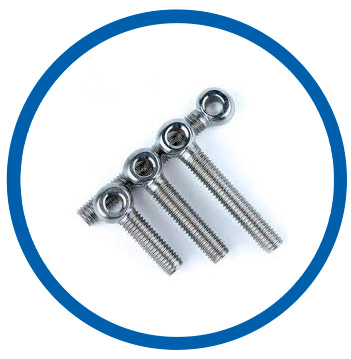

EN 1.4006 eye bolts

EN 1.4006 eye bolts

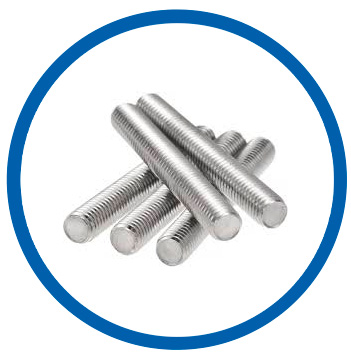

SS 410 threaded rod

SS 410 threaded rod

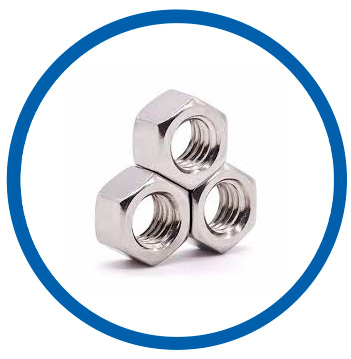

ASTM B625 UNS S41000 hex nuts

ASTM B625 UNS S41000 hex nuts

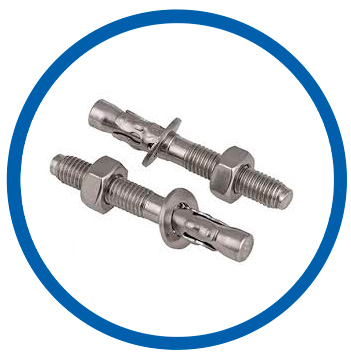

410 Stainless Steel anchor bolts

410 Stainless Steel anchor bolts

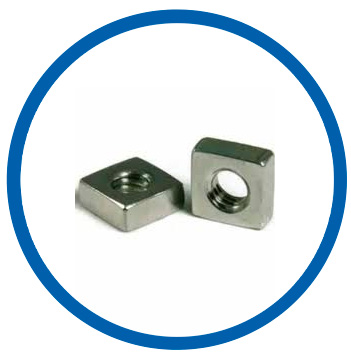

410 SS square nut

410 SS square nut

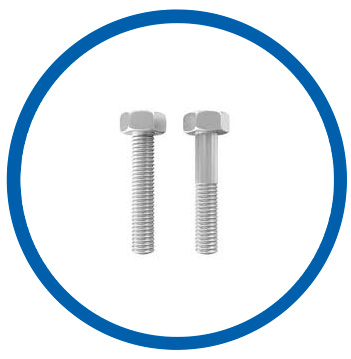

SUS 410 heavy hex bolts

SUS 410 heavy hex bolts

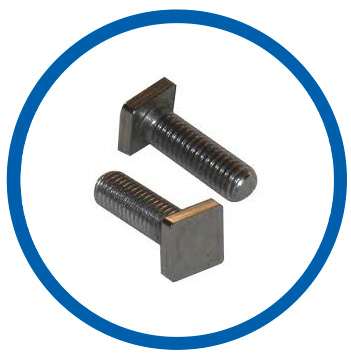

DIN 1.4006 square bolts

DIN 1.4006 square bolts

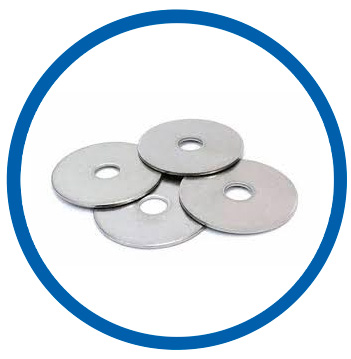

ASTM B625 UNS S41000 plain washer

ASTM B625 UNS S41000 plain washer

Check sizes and dimensions of 410 SS Stud Bolts and 410 stainless steel concrete screws

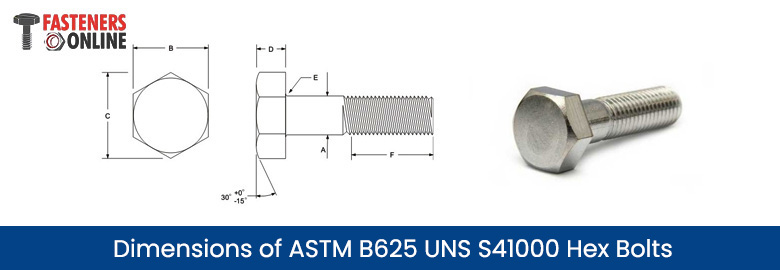

Dimensions of ASTM B625 UNS S41000 Hex Bolts

Dimensions of ASTM B625 UNS S41000 Hex Bolts
Bolt Size D C (min) B A (max) F
Thread Length
for Bolt Length
 E
6 and
shorter		 over 6 max min
4 2-11/16 6.612 6 4.111 8.25 8.5 0.19 0.06
3-3/4 2-1/2 6.198 5-5/8 3.858 7.75 8 0.19 0.06
3-1/2 2-5/16 5.786 5-1/4 3.589 7.25 7.5 0.19 0.06
3-1/4 2-3/16 5.372 4-7/8 3.335 6.75 7 0.19 0.06
3 2 4.959 4-1/2 3.081 6.25 6.5 0.19 0.06
2-3/4 1-13/16 4.546 4-1/8 2.837 5.75 6 0.19 0.06
2-1/2 1-21/32 4.133 3-3/4 2.559 5.25 5.5 0.19 0.06
2-1/4 1-1/2 3.719 3-3/8 2.305 4.75 5 0.19 0.06
2 1-11/32 3.306 3 2.039 4.25 4.5 0.12 0.04
1-3/4 1-5/32 2.893 2-5/8 1.785 3.75 4 0.12 0.04
1-1/2 1 2.48 2-1/4 1.531 3.25 3.5 0.09 0.03
1-3/8 29/32 2.273 2-1/16 1.404 3 3.25 0.09 0.03
1-1/4 27/32 2.066 1-7/8 1.277 2.75 3 0.09 0.03
1-1/8 3/4 1.859 1-11/16 1.149 2.5 2.75 0.09 0.03
1 43/64 1.653 1-1/2 1.022 2.25 2.5 0.09 0.03
7/8 37/64 1.447 1-5/16 0.895 2 2.25 0.06 0.02
3/4 1/2 1.24 1-1/8 0.768 1.75 2 0.06 0.02
5/8 27/64 1.033 15/16 0.642 1.5 1.75 0.06 0.02
1/2 11/32 0.826 3/4 0.515 1.25 1.5 0.03 0.01
7/16 19/64 0.687 5/8 0.452 1.125 1.375 0.03 0.01
3/8 1/4 0.62 9/16 0.388 1 1.25 0.03 0.01
5/16 7/32 0.552 1/2 0.324 0.875 1.125 0.03 0.01
1/4 11/64 0.484 7/16 0.26 0.75 1 0.03 0.01

UNS S41000 Threaded Rod Size Chart

Size (MM) Weight per Metre Size (MM) Weight per Metre
M2 0.0187 M18 1.65
M2.5 0.03 M20 2.08
M3 0.044 M22 2.54
M3.5 0.06 M24 3
M4 0.078 M27 3.85
M5 0.124 M30 4.75
M6 0.177 M33 5.9
M8 0.319 M36 6.9
M10 0.5 M39 8.2
M12 0.725 M42 9.4
M14 0.97 M45 11
M16 1.33 M48 12.4
We manufacture and supply 410 stainless steel tapcon screws and SUS 410 threaded rods in ANSI / DIN / ISO standards

Possible Alternative Grades of 410 SS Nuts

Grade Reasons
416 High machinability is required
420 Higer hardened strength

Heat Treatment of Type 410 Stainless Steel Washer

Heat Treatment 815 to 900 °C
