ASTM A193 B6 Bolts
Reliable SA 193 Grade B6 Studs Manufacturer in India
How does chromium affects corrosion resistance of A193 B6?
Chromium content forms a thin chromium oxide layer on the surface of SA193 B6 Bolts, This layer helps to prevents moisture and oxygen to reach the underlying steel and provide corrosion protection.
Table of Content
ASTM A193 B6 Bolts Sepcification
ASME SA193 B6 Bolt Sizes
M2 to M24
ASTM A193 Gr B6 Nuts Size
M3 – M56 | 3/6″ to 2″
A193 Grade B6 Screw Size
3/6″ to 2″
A193 B6 Screw Density
7.75 g/cm³
Standards
ASME B1.1 or B1.13M
ISO Standard
ISO 3506-1
SA193 gr B6 fasteners Length
3 mm to 200 mm
ASTM A193 gr B6 Weldability
Excellent
A193 Gr B6 Studs Specific Heat
460 J/kg·K
A193 B6 Studs Type
Fully or Fine threaded / Tap-End / Double-End
Origin
Korean / Indian / Russian / European
ASTM A193 B6 bolts Condition
Threading / Cold Drawn
SA193 Gr B6 Threaded Rod Standards
DIN 931, 934, 7991, 933, 976, 125 / ASME B18.2.1, B18.3
ASTM A193 grade B6 Nuts Threads
UNF / BSW / BSF / METRIC / UNC
Custom Sizes
Leading ASTM A193 B6 bolts Manufacturer in India in custom sizes
SA 193 Grade B6 Self Tapping Screw Finish
Passivation / Phosphating / HDG
Manufacturing Technique
Hot forging / CNC Machined / Cold forging
A193 B6 Screws Thread Pitch
Coarse Threads / Fine Threads
Certificate
- UT and PMI Test
- Raw Materials Certificate
- EN 10204/3.1B
- 100% Radiography Test
Packaging
- Carton Box
- Wooden Pallet
- Blister Packs
- Wooden Cases
Value Added Services
- Laser Etching
- Head Shank Drilling
- Color Coding
- Head Painting
A193 Grade B6 Bolt Drive Style
- Truss
- Torx
- Cross
- Round
- Pan
- Hex
- Oval
ASME SA193 B6 hex head bolts Head Types
- Socket cap head
- Flat
- Button head
- Phillips Drive
- Slotted Drive
- Slotted hex washer
- Hex washer head
ASTM A193 B6 screws Thread Class
- 5 ONF
- 3G
- 4G
- 2G
- Class 1A (Loose fit)
- Class 2A (Medium fit)
- Class 3A (Tight fit)
Refer latest price list of SA193 B6 nuts, SA193 B6 Material have minium tensile strength of 760MPa
ASTM A193 gr B6 Bolts Price list
| Product | Price in USD (100 Pcs) |
Price in Dirham (100 Pcs) |
Price in Euro (100 Pcs) |
|---|---|---|---|
| 1/2 IN 13 UNC X 95 MM STUDBOLTS ASTM A193 GR B6 | US $2.65 | 9.04 AED | € 2.19 |
| 5/8 IN 11 UNC X 120 MM BOLTS ASTM A193 B6, ASME B18.31.2 | US $2.49 | 9.15 AED | € 2.22 |
| 3/4 IN 10 UNC X 150 MM STUDBOLTS ASTM A193 B6 | US $2.46 | 9.04 AED | € 2.19 |
For detailed price list of SA 193 B6 Hex Bolt, Contact us on sales@rishabhsteelindustries.com. We are ASTM A193 B6 Bolts stockist and supplier in M1.2 to M24 Size Range
Different Types of SA 193 Grade B6 Bolts

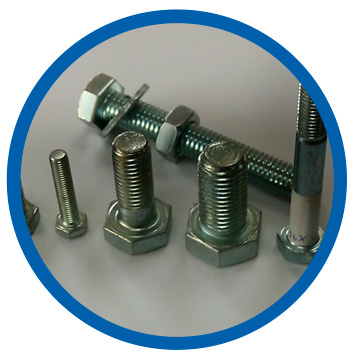

ASME SA193 Grade B6 Bolts

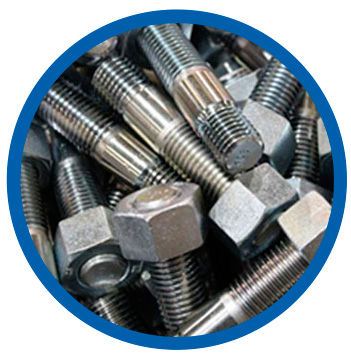

Grade B6 Studs

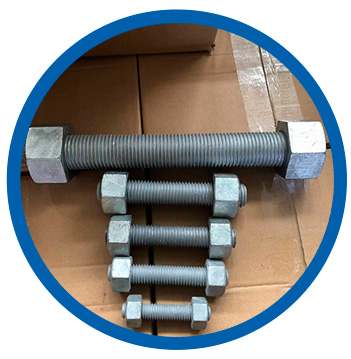

SA 193 B6 Stud Bolts

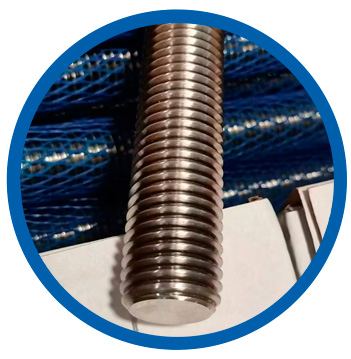

A193 Gr B6 Threaded Rod

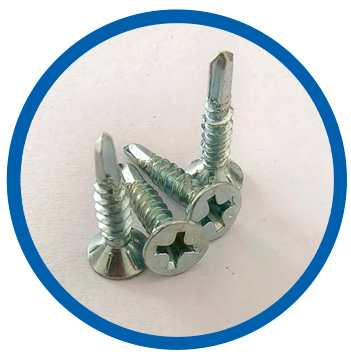

SA 193 B6 Screw

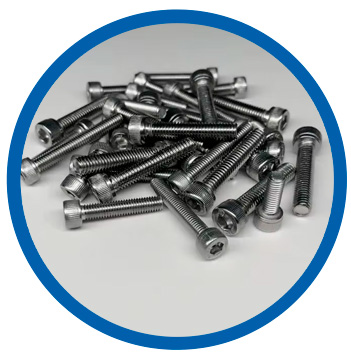

Grade B6 Socket Cap Screws

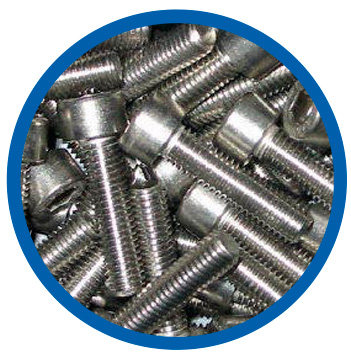

A193 Gr B6 Allen Bolt

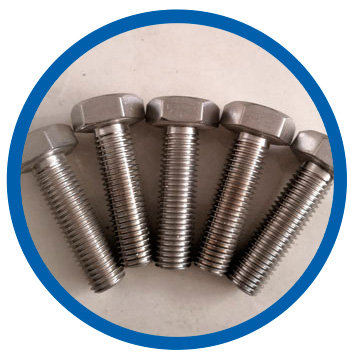

A193 B6 Hex Head Bolt
We are trusted ASTM A193 Hex Bolts Manufacturer in India in different finishes and diameters. We are exporting these products in Europe, UAE, Malaysia, Brazil and Qatar.
Raw Material of SA193 B6 Bolts
| Grade | Description |
|---|---|
| B6 | 13% Chromium Steel (410 SS) |
We are reliable Manufacturer of ASTM A193 B6 Bolts in India, Which we manufacture using high quality raw materials of Indian origin. We can manufacutre SA193 Gr B6 Studs in other origins on demand.
SA193 gr B6 Studs Chemical composition
Carbon
0.08-0.15
Manganese
1.00
Phosphorus
0.040
Sulfur
0.030
Chromium
11.5 - 13.5
Silicon
1.00 max
SA193 B6 Material Mechanical properties
Tensile Strength
760 MPa
Yield Strength
585 MPa
Reduction
50
Elongation
15 % Min
| STANDARD | DIN | JIS | UNS | EN | BS |
|---|---|---|---|---|---|
| B6 | 1.4006 | SUS 410 | S41000 | X12Cr13 | 410S21 |
Check SA193 Gr B6 Bolts dimensions and sizes, Supplier of A193 B6 heavy hex Nut in Zinc plated finish
Size Chart of ASME SA193 B6 Hex Bolt
| Diameter | Yield strength loads for shoulder studs as per ISO 3506 | |
|---|---|---|
| M30 | 117810 | 140250 |
| M27 | 96390 | 114750 |
| M24 | 74130 | 88250 |
| M20 | 51450 | 110250 |
| M16 | 32970 | 70650 |
| M12 | 17700 | 37935 |
| M10 | 12180 | 26100 |
| M8 | 7685 | 16470 |
| M6 | 4220 | 9045 |
| M5 | 2980 | 6390 |
Strength Chart of SA 193 B6 Stud Threaded Rods
| Diameter | Yield strength loads for shoulder studs as per DIN EN ISO 3506 | |
|---|---|---|
| M30 | 117810 | 140250 |
| M27 | 96390 | 114750 |
| M24 | 74130 | 88250 |
| M20 | 51450 | 110250 |
| M16 | 32970 | 70650 |
| M12 | 17700 | 37935 |
| M10 | 12180 | 26100 |
| M8 | 7685 | 16470 |
| M6 | 4220 | 9045 |
| M5 | 2980 | 6390 |
We export SS Grade B6 Flange Bolts with MTC Certificate, View A193 Gr b6 Socket Set Screws Weight Chart
A193 B6 Socket Set Screws Weight chart
| Diameter | M24 | M20 | M16 | M12 | M10 | M8 | M6 | M5 | M4 | M3 | M2.5 | M2 | M1.8 | M1.4 | M1.6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | |||||||||||||||
| 2.5 | 0.03 | 0.018 | 0.019 | ||||||||||||
| 3 | 0.075 | 0.044 | 0.036 | 0.022 | 0.028 | ||||||||||
| 4 | 0.14 | 0.1 | 0.059 | 0.048 | 0.029 | 0.037 | |||||||||
| 5 | 0.42 | 0.255 | 0.18 | 0.125 | 0.074 | 0.06 | 0.036 | 0.046 | |||||||
| 6 | 0.74 | 0.54 | 0.38 | 0.22 | 0.15 | 0.089 | 0.072 | 0.043 | 0.056 | ||||||
| 8 | 1.88 | 1.09 | 0.78 | 0.53 | 0.31 | 0.199 | 0.119 | ||||||||
| 10 | 2.51 | 1.44 | 1.02 | 0.68 | 0.4 | 0.249 | 0.148 | ||||||||
| 12 | 4.73 | 3.14 | 1.79 | 1.26 | 0.83 | 0.49 | |||||||||
| 16 | 9.5 | 6.73 | 4.4 | 2.49 | 1.74 | 1.13 | 0.67 | ||||||||
| 20 | 20.9 | 12.3 | 8.71 | 5.66 | 3.19 | 1.22 | 1.43 | 0.85 | |||||||
| 25 | 41.4 | 27.4 | 15.9 | 11.2 | 7.25 | 4.07 | 2.82 | ||||||||
| 30 | 70.3 | 51.7 | 34 | 19.5 | 13.7 | 8.84 | 4.95 | ||||||||
| 35 | 85.3 | 62 | 40.5 | 23.1 | 16.2 | 10.4 | 5.83 | ||||||||
| 40 | 100 | 72.3 | 47.1 | 26.7 | 18.7 | 12 | |||||||||
| 45 | 115 | 82.6 | |||||||||||||
| 50 | 130 | 92.9 | |||||||||||||
| 55 | 145 | ||||||||||||||
| 60 | 160 |
Why ASTM A193 Grade B6 Fasteners are used in petrochemical industry?
ASTM A193 B6 Stainless Steel Stud Bolts Heat Treatments
A193 Grade B6 Stud bolts Quenched & Tempered at 593º C minimum.
Recommended Nuts & Washer for ASTM A193 B6 Bolts
| Bolting Grade | Washer Grade | Nut Grade |
|---|---|---|
| ASTM A193 Gr B6 | Mild Steel | ASTM A194 Gr 6 |
SA 193 B6 Fasteners can withstand high temperature, A193 B6 Stainless Steel Studs comes in Fine and Coarse threads
A193 Gr B6 Heavy hex bolts Application
Testing Of ASTM A193 grade B6 Socket Cap Screws
