Inconel 625 Fasteners

Reliable Alloy 625 Hex Bolt Manufactuer in India

Table of Content

Fasteners Types

Inconel 625 fasteners Specification

Bolt Size

Inconel 625 Bolt Sizes

M2 to M24

Hex Nuts Size

Alloy 625 Nuts Size

M3 – M56 | 3/6″ to 2″

Screw Size

Nickel 625 Screw Size

3/6″ to 2″

Washers Size

UNS N06625 Washers Size

M3 – M56 | 3/6″ to 2″

Machine Screws Size

WNR 2.4856 Machine Screws Size

M1.6 – M12

ISO Standard

ISO Standard

ISO 3506-1

Melting Range

UNS N06626 anchor bolts Melting Range

1290–1350 °C

Length

Inconel 625 fasteners Length

3 mm to 200 mm

Operating Temperature

Nickel 625 hex nuts Operating Temperature

980°C

Condition

Inconel 625 self tapping screws Condition

Threading / Cold Drawn

Origin

Origin

Russian / Korean / Indian / European

Studs Type

Alloy 625 Studs Type

Fully or Fine threaded / Tap-End / Double-End

Standards

ASME SF468 UNS N06625 socket head cap screw Standards

DIN 933, 931, 934, 976, 7991, 125 / ASME B18.2.1, B18.3

Custom Sizes

Custom Sizes

We are Manufacturer of Inconel 625 Fasteners in custom sizes, threads and finishes

Threads

Inconel Alloy 625 threaded stud Threads

UNF / METRIC / BSW / BSF / UNC

Manufacturing Technique

Manufacturing Technique

Hot forging / Cold forging / CNC Machined

Thread Pitch

Ni 625 Screws Thread Pitch

Coarse Threads / Fine Threads

Surface finish

Alloy 625 Hex Nuts Finish

Passivation / HDG / Phosphating

Head Types

Inconel 625 grade 1 hex head bolts Head Types

  • Button head
  • Hex washer head
  • Slotted Drive
  • Flat
  • Socket cap head
  • Phillips Drive
  • Slotted hex washer

Bolt Size

WNR 2.4856 screws Thread Class

  • Class 2A (Medium fit)
  • 3G
  • 2G
  • Class 3A (Tight fit)
  • 5 ONF
  • 4G
  • Class 1A (Loose fit)

Drive Style

ASME SF468 UNS N06625 Bolt Drive Style

  • Torx
  • Round
  • Hex
  • Cross
  • Truss
  • Pan
  • Oval

Packaging

Packaging

  • Blister Packs
  • Wooden Pallet
  • Wooden Cases
  • Carton Box

Certificate

Certificate

  • UT and PMI Test
  • EN 10204/3.1B
  • 100% Radiography Test
  • Raw Materials Certificate

Value Added Services

Value Added Services

  • Color Coding
  • Laser Etching
  • Head Shank Drilling
  • Head Painting

Manufacturing range of Alloy 625 fasteners

Material Specification Standards Size Length
Inconel 625 IS / BS / ASTM ASTM B446 3 mm to 200 mm M2 to M24

Inconel 625 fasteners price

Product Price in USD
(Pcs)		 Price in Dirham
(Pcs)		 Price in Euro
(Pcs)
3/8 X1-1/2 Inconel 625 Bolts and Nuts, UNC US $27.8 102.03 AED € 23.63
M3 - 0.5P X 60MM Alloy 625 Hex Bolts, DIN 933 US $17.12 62.84 AED € 14.56

Alloy 625 bolts Chemical composition

Nickel

60 (Max.)

Chromium

22 (Max.)

Molybdenum

9 (Max)

Niobium

3.5

Titanium

0.3

Manganese

0.3 (Max.)

Aluminum

0.3

Silicon

0.25 (Max.)

Carbon

0.05

Sulfur

0.003

Phosphorous

0.01

ASTM F468 UNS N06625 Screws Mechanical properties

Tensile Strength

≥ 827 MPa

Yield strength

≥ 414 MPa

Hardness

95 Max HB

Elongation

45 % Min

Inconel 625 fasteners equivalent

STANDARD JIS UNS GOST BS EN WNR AFNOR
Inconel 625 NCF 625 N06625 ХН75МБТЮ NA 21 NiCr22Mo9Nb 2.4856 NC22DNB4M

Inconel Alloy 625 washers Physical properties

Density Melting point Young’s Modulus Thermal conductivity Specific Heat
8.44 g/cm³ 1330°C 207.5 N/mm2 9.9 W/(m.K) 410 J/(g.K)

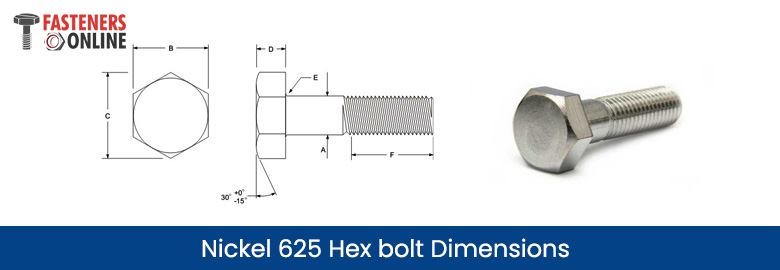

Nickel 625 Hex bolt Dimensions

Nickel 625 Hex bolt Dimensions
Bolt Size D C (min) B A (max) F
Thread Length
for Bolt Length
 E
6 and
shorter		 over 6 max min
1/4 11/64 0.484 7/16 0.26 0.75 1 0.03 0.01
5/16 7/32 0.552 1/2 0.324 0.875 1.125 0.03 0.01
3/8 1/4 0.62 9/16 0.388 1 1.25 0.03 0.01
7/16 19/64 0.687 5/8 0.452 1.125 1.375 0.03 0.01
1/2 11/32 0.826 3/4 0.515 1.25 1.5 0.03 0.01
5/8 27/64 1.033 15/16 0.642 1.5 1.75 0.06 0.02
3/4 1/2 1.24 1-1/8 0.768 1.75 2 0.06 0.02
7/8 37/64 1.447 1-5/16 0.895 2 2.25 0.06 0.02
1 43/64 1.653 1-1/2 1.022 2.25 2.5 0.09 0.03
1-1/8 3/4 1.859 1-11/16 1.149 2.5 2.75 0.09 0.03
1-1/4 27/32 2.066 1-7/8 1.277 2.75 3 0.09 0.03
1-3/8 29/32 2.273 2-1/16 1.404 3 3.25 0.09 0.03
1-1/2 1 2.48 2-1/4 1.531 3.25 3.5 0.09 0.03
1-3/4 1-5/32 2.893 2-5/8 1.785 3.75 4 0.12 0.04
2 1-11/32 3.306 3 2.039 4.25 4.5 0.12 0.04
2-1/4 1-1/2 3.719 3-3/8 2.305 4.75 5 0.19 0.06
2-1/2 1-21/32 4.133 3-3/4 2.559 5.25 5.5 0.19 0.06
2-3/4 1-13/16 4.546 4-1/8 2.837 5.75 6 0.19 0.06
3 2 4.959 4-1/2 3.081 6.25 6.5 0.19 0.06
3-1/4 2-3/16 5.372 4-7/8 3.335 6.75 7 0.19 0.06
3-1/2 2-5/16 5.786 5-1/4 3.589 7.25 7.5 0.19 0.06
3-3/4 2-1/2 6.198 5-5/8 3.858 7.75 8 0.19 0.06
4 2-11/16 6.612 6 4.111 8.25 8.5 0.19 0.06

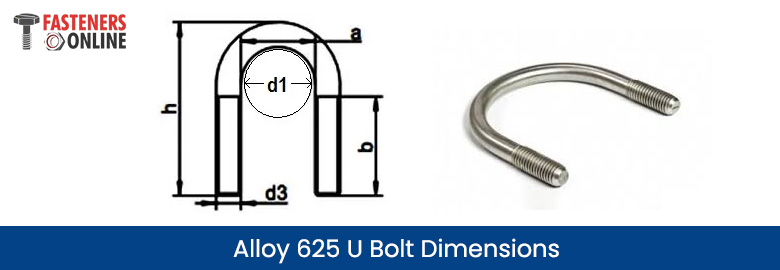

Alloy 625 U Bolt Dimensions

Alloy 625 U Bolt Dimensions
a1) To be used on pipes of b2) d2) d3) e h12) h2) Weight (7,85 kg/dm3)
kg/100 stuck
d1 Size A B
30 25 20 3/4 40 10 M10 40 70 28 9,4 6,8
26,9
38 30 25 1 48 76 31 10,5 7,7
33,7
46 38 32 11/4 50 56 86 37 12,0 9,0
42,4
52 44,5 40 11/4 62 92 40 12,9 9,7
48,3
64 57 50 2 12 M12 76 109 49 22,2 16,8
60,3
82 76,1 65 21/2 94 125 57 25,9 19,8
94 88,9 80 3" 106 138 66 28,8 22,4
120 108 100 4" 60 16 M16 136 171 - 64,0 -
114,3
148 133 125 - 164 191 - 72,7 -
139,7
176 159 150 - 192 217 - 83,4 -
168,3
202 (191) (175) - 218 249 - 95,8 -
193,7
228 216 200 - 70 20 M20 248 283 - 169,8 -
219,1
282 267 250 - 302 334 - 202,8 -
273
332 318 300 - 352 385 - 235 -
323,9
378 355,6 350 - 24 M24 402 435 - 382 -
368
428 406,4 400 - 452 487 - 429 -
419
530 508 500 - 554 589 - 522 -
521

Machining Of UNS N06625 screws

Machinability of UNS N06625 screws is difficult due to its high strength and low thermal conductivity.

Testing and inspection of Inconel 625 hex bolts

  • Salt Spray Testing
  • Tensile Testing
  • PMI Testing
  • Ultrasonic Testing
  • Corrosion Test
  • Fatigue Testing
  • Hardness Testing
  • Impact Testing
Testing and inspection of Inconel 625 hex bolts

DIN 2.4856 nuts Features

DIN 2.4856 nuts Features
  • High Strength
  • Excellent Corrosion Resistance
  • Oxidation Resistance
  • Good Fatigue Resistance
  • Non Magnetic
  • Temperature Stability
  • Good Weldability
  • High Creep Strength

Types of Inconel 625 Bolts

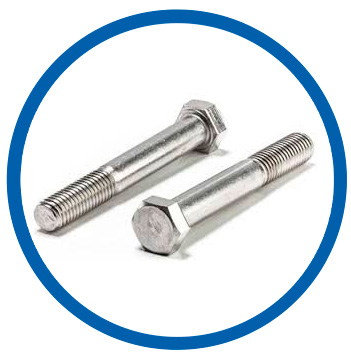

Inconel 625 bolts

Inconel 625 bolts

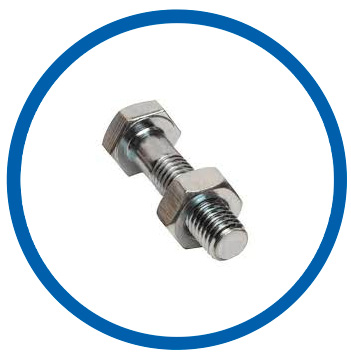

Alloy 625 hex bolts

Alloy 625 hex bolts

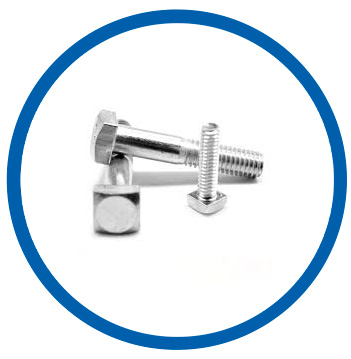

ASTM F468 UNS N06625 square bolts

ASTM F468 UNS N06625 square bolts

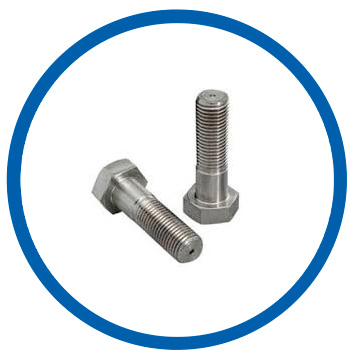

Alloy Inconel 625 heavy hex bolt

Alloy Inconel 625 heavy hex bolt

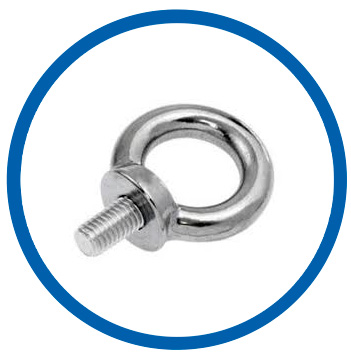

DIN 2.4856 eye bolts

DIN 2.4856 eye bolts

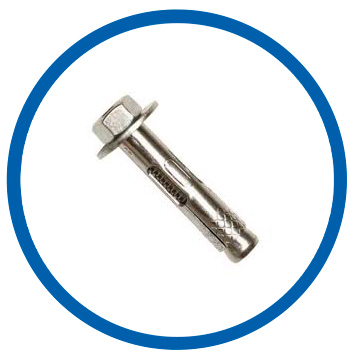

UNS N06626 anchor bolts

UNS N06626 anchor bolts

Types of Inconel 625 Nuts

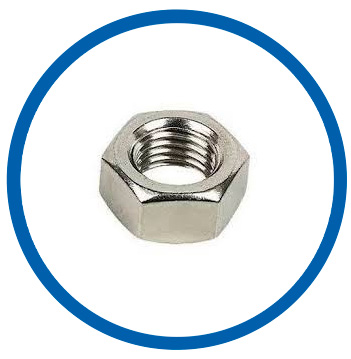

Nickel Alloy 625 nuts

Nickel Alloy 625 nuts

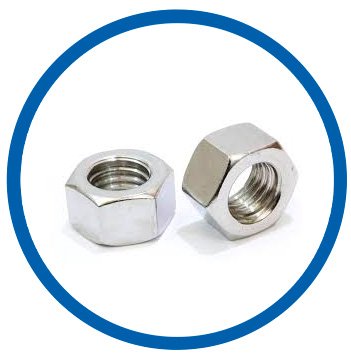

Nickel 625 hex nuts

Nickel 625 hex nuts

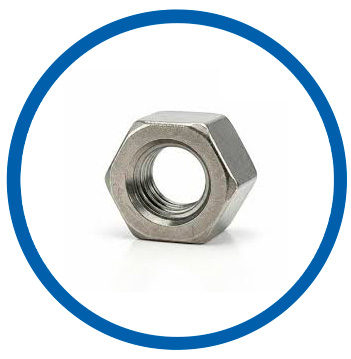

UNS N06625 heavy hex nuts

UNS N06625 heavy hex nuts

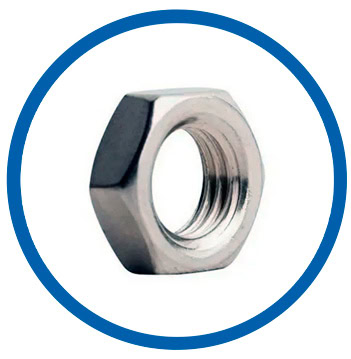

WNR 2.4856 lock nut

WNR 2.4856 lock nut

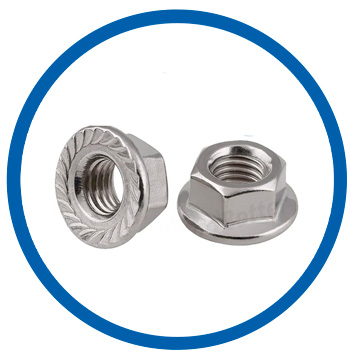

Inconel Alloy 625 flange lock nut

Inconel Alloy 625 flange lock nut

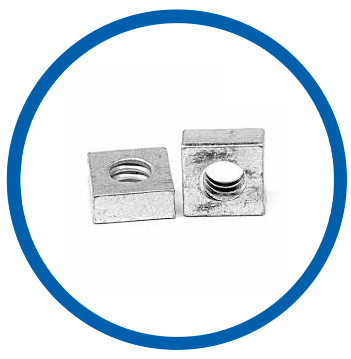

Inconel 625 grade 1 square nut

Inconel 625 grade 1 square nut

Types of Inconel 625 Screws

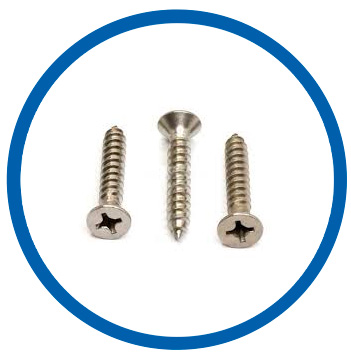

EN 2.4856 screw

EN 2.4856 screw

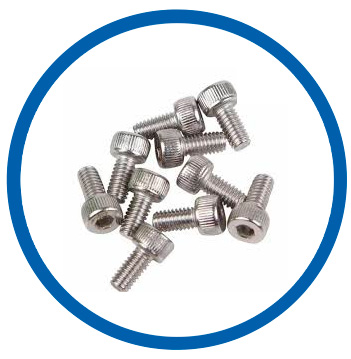

ASME SF468 UNS N06625 socket head cap screw

ASME SF468 UNS N06625 socket head cap screw

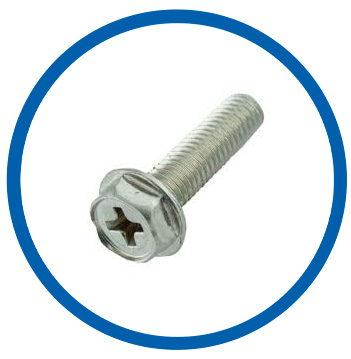

Inconel 625 self tapping screws

Inconel 625 self tapping screws

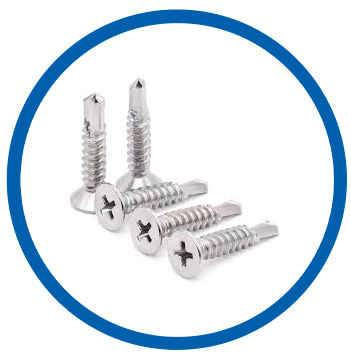

Ni 625 self drilling screws

Ni 625 self drilling screws

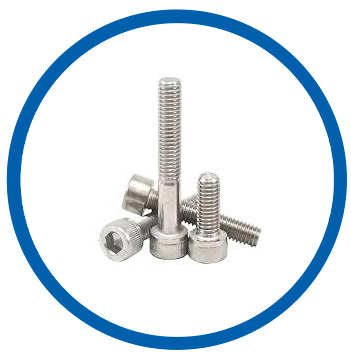

Inconel 625 grade 2 hex cap screws

Inconel 625 grade 2 hex cap screws

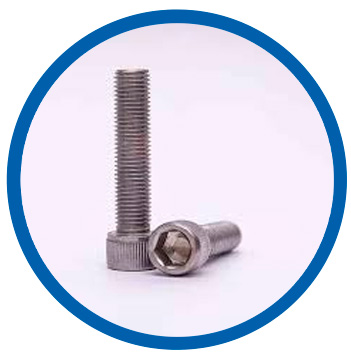

Nickel Alloy 625 socket cap screws

Nickel Alloy 625 socket cap screws

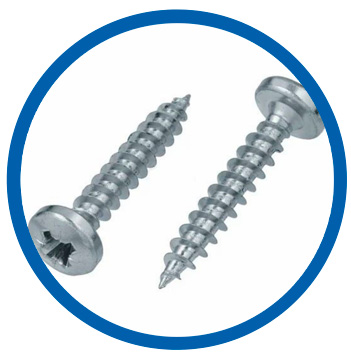

Inconel 625LCF machine screws

Inconel 625LCF machine screws

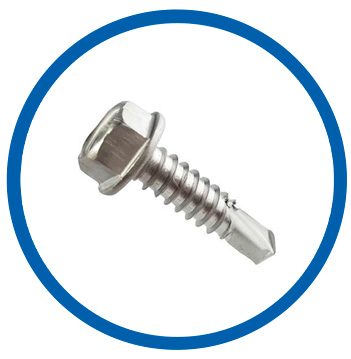

UNS N06626 wood screws

UNS N06626 wood screws

Types of Inconel 625 Studs

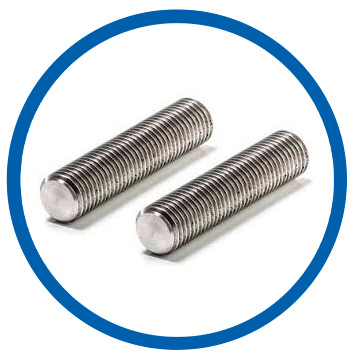

Alloy Inconel 625 studs

Alloy Inconel 625 studs

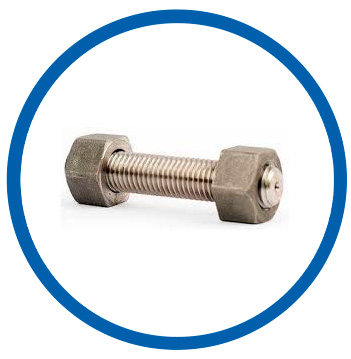

UNS N06625 stud bolt

UNS N06625 stud bolt

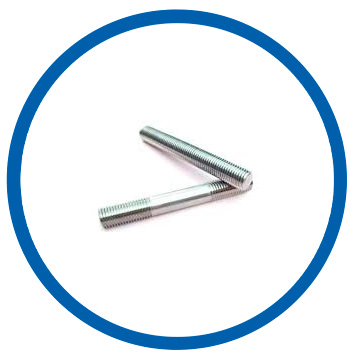

Inconel 625LCF threaded rod

Inconel 625LCF threaded rod

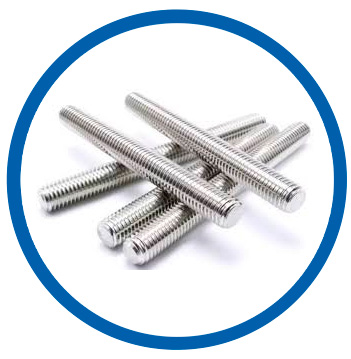

Inconel Alloy 625 threaded stud

Inconel Alloy 625 threaded stud

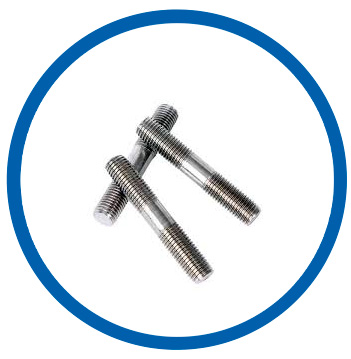

Nickel 625 double end stud bolts

Nickel 625 double end stud bolts

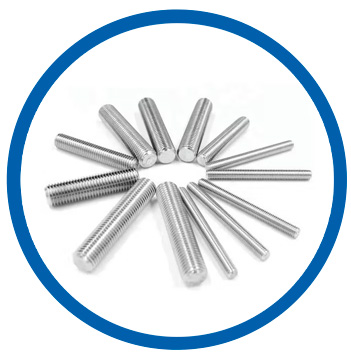

Ni 625 fully threaded studs

Ni 625 fully threaded studs

Types of Inconel 625 Washers

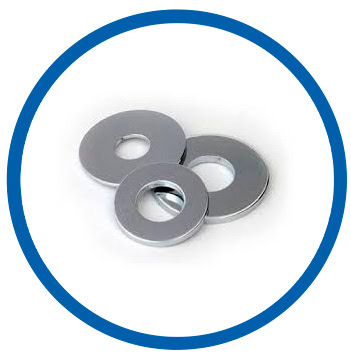

WNR 2.4856 washer

WNR 2.4856 washer

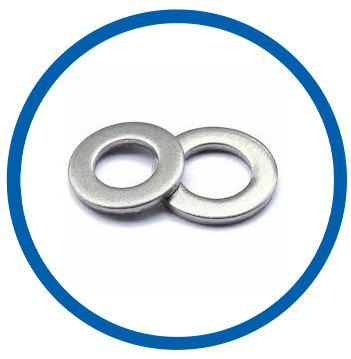

Alloy 625 flat washer

Alloy 625 flat washer

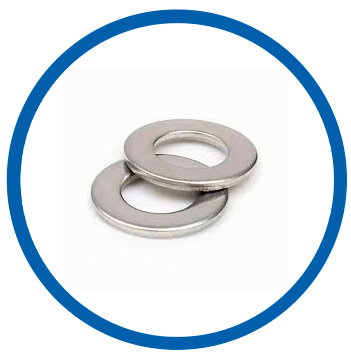

Inconel 625 grade 1 plain washer

Inconel 625 grade 1 plain washer

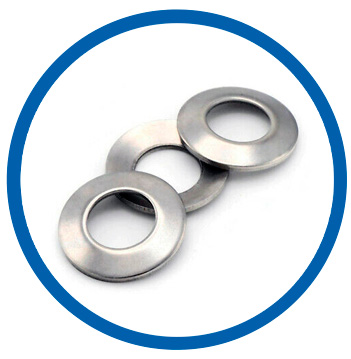

ASME SF468 UNS N06625 countersunk washer

ASME SF468 UNS N06625 countersunk washer

List of location where we have supplied Inconel 625 fasteners

Industry Location
Petrochemical Plant Project Abu Dhabi – UAE
Marine Engineering Firm Singapore
Subsea Equipment Provider Stavanger – Norway
Shipbuilding Industry Busan – South Korea
Mining & Refining Operation Perth – Australia
Desalination Plant Doha – Qatar

FAQs

  • Export buyers typically receive:
  • Mill Test Certificate (EN 10204 3.1 / 3.2)
  • PMI (Positive Material Identification)
  • Mechanical test reports
  • NACE compliance certificate (if required)
  • Third-party inspection (SGS, BV, TUV, DNV)
  • Wooden export boxes (fumigated & ISPM-15 compliant)
  • Seaworthy packing
  • Bubble wrapping & anti-rust paper
  • Heat number wise segregation
  • Custom labeling as per buyer requirements

Longer service life in harsh environments

  • Reduced maintenance costs
  • Compliance with global oil & gas standards
  • Reliable performance in extreme temperature and pressure
  • Excellent ROI in long term industrial projects
