Inconel 718 Fasteners
UNS N07718 Bolts Manufacturer in India
Table of Content
Inconel 718 Fasteners Specification
Inconel 718 Nuts Size
M3 – M56 | 3/6″ to 2″
Alloy 718 Bolt Sizes
M2 to M24
EN 2.4668 Screw Size
3/6″ to 2″
UNS N07718 Washers Size
M3 – M56 | 3/6″ to 2″
Nickel 718 Machine Screws Size
M1.6 – M12
ISO Standard
ISO 15156‑3
Origin
Korean / Indian / Russian / European
Alloy 718 eye bolts Condition
Threading / Cold Drawn
Inconel 718 Studs Type
Double-End / Tap-End / Fully or Fine threaded
SB 637 N07718 hex nuts Melting Point
1260 – 1336 °C
UNS N07718 stud bolt Thermal Conductivity
11.4 W/m·K (at 20 °C)
Inconel 718 fasteners Length
3 mm to 200 mm
EN 2.4668 countersunk washer Finish
HDG / Phosphating / Passivation
ASTM B637 UNS N07718 Screws Thread Pitch
Coarse Threads / Fine Threads
Manufacturing Technique
Hot forging / Cold forging / CNC Machined
ASME SB637 UNS N07718 self tapping screws Threads
BSF / UNF / METRIC / BSW / UNC
Custom Sizes
Reliable Inconel 718 Fasteners Manufacturer in India in various threads, sizes and diameter.
Inconel Alloy 718 double end stud bolts Standards
DIN 933, 976, 7991, 931, 125, 934 / ASME B18.2.1, B18.3
Certificate
- UT and PMI Test
- EN 10204/3.1B
- 100% Radiography Test
- Raw Materials Certificate
Packaging
- Wooden Cases
- Blister Packs
- Carton Box
- Wooden Pallet
Value Added Services
- Head Painting
- Head Shank Drilling
- Color Coding
- Laser Etching
Alloy 718 hex head bolts Head Types
- Socket cap head
- Hex washer head
- Phillips Drive
- Slotted hex washer
- Slotted Drive
- Button head
- Flat
UNS N07718 screws Thread Class
- 3G
- 5 ONF
- 2G
- 4G
- Class 2A (Medium fit)
- Class 3A (Tight fit)
- Class 1A (Loose fit)
Inconel 718 Bolt Drive Style
- Oval
- Hex
- Truss
- Torx
- Pan
- Cross
- Round
View Manufacturing Range of 718 Inconel Heavy Hex Nuts in different threads and finishes
Alloy 718 Hex Nuts Manufacturing Range
| Diameters | Surface finishes | Manufacturing Process | Standards | Thread Types | Nut Styles |
|---|---|---|---|---|---|
| M2 up to M150 | Mirror buffing Passivation Zinc plating Electro-polishing |
Cold or hot forging CNC machining |
ASME B18.2.3.6M DIN 6914 |
Metric coarse/fine UNC UNF BSW BSF |
Hex Heavy Hex Jam Nylon Insert |
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| M8 Hex Nuts, Incoloy 718, Plain finish, UNC | US $1.89 | 6.94 AED | € 1.62 |
| M6 x 40mm Alloy 718 Hex Head Bolt, UNF | US $5.23 | 19.21 AED | € 4.48 |
WNR 2.4668 countersunk bolts known for high strength and corrosion resistance properties
718 Inconel Screws Chemical composition
| C | P | Mn | Si | S | Ni | Cr | Cb | Mo | Ti | Ta | Co | Al | Cu | B | Fe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.08 | 0.015 | 0.35 | 0.35 | 0.015 | 50-55 | 17-21 | 4.75-5.50 | 2.8-3.30 | 0.65-1.15 | 0.05 | 1 | 0.20-0.80 | 0.3 | 0.006 | Rem |
DIN 2.4668 nuts Mechanical properties
Tensile Strength
1,240 MPa
Yield Strength
1,035 MPa
Hardness
277 Max HB
Elongation
12 % Min
Nickel 718 flat washers equivalent
| Standard | UNS | WNR |
|---|---|---|
| Inconel 718 | N07718 | 2.4668 |
Inconel 718 hex bolts Physical properties
| Density | Specific Gravity | Melting Range |
|---|---|---|
| 8.192 g/cm3 | 8.19 | 2500-2600°F |
Refer Sizes and dimensions of Nickel 718 Stud Bolts and Rods
Dimensions of WNR 2.4668 countersunk bolts
| d | dk | e | s | t |
|---|---|---|---|---|
| M 3 | 6 | 2.3 | 2 | 1.7 |
| M 4 | 8 | 2.9 | 2.5 | 2.3 |
| M 5 | 10 | 3.5 | 3 | 2.8 |
| M 6 | 12 | 4.7 | 4 | 3.3 |
| M 8 | 16 | 5.8 | 5 | 4.4 |
| M 10 | 20 | 7 | 6 | 5.5 |
| M 12 | 24 | 9.4 | 8 | 6.5 |
| M 16 | 30 | 11.7 | 10 | 7.5 |
| M 20 | 36 | 13.9 | 12 | 8.5 |
Inconel 718 fasteners size chart
| Bolt Size | Bolt Dia. [in] | Normal Fit [in] | Loose Fit [in] | Close Fit [in] |
|---|---|---|---|---|
| 1-1/2" | 1.5 | 1.625 | 1.734 | 1.562 |
| 1-3/8" | 1.375 | 1.5 | 1.609 | 1.438 |
| 1-1/4" | 1.25 | 1.344 | 1.438 | 1.281 |
| 1-1/8" | 1.125 | 1.219 | 1.312 | 1.156 |
| 1" | 1 | 1.094 | 1.156 | 1.031 |
| 7/8" | 0.875 | 0.938 | 1.031 | 0.906 |
| 3/4" | 0.75 | 0.812 | 0.906 | 0.781 |
| 5/8" | 0.625 | 0.688 | 0.734 | 0.656 |
| 1/2" | 0.5 | 0.562 | 0.609 | 0.531 |
| 7/16" | 0.4375 | 0.469 | 0.484 | 0.453 |
| 3/8" | 0.375 | 0.406 | 0.422 | 0.391 |
| 5/16" | 0.3125 | 0.344 | 0.359 | 0.328 |
| 1/4" | 0.25 | 0.281 | 0.297 | 0.266 |
We perform different NDT testing on 718 Inconel Square nuts before dispatching
Testing of UNS N07718 Fasteners

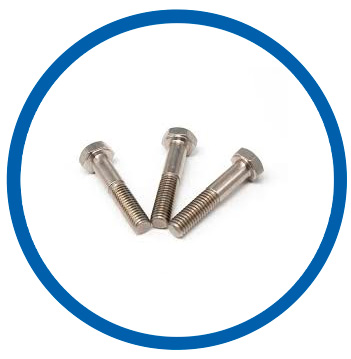

Inconel 718 heavy hex bolt

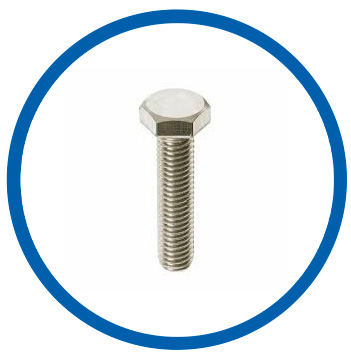

718 Inconel hex bolts

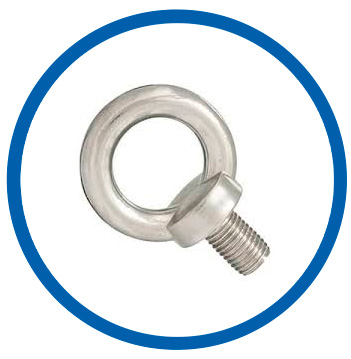

Alloy 718 eye bolts

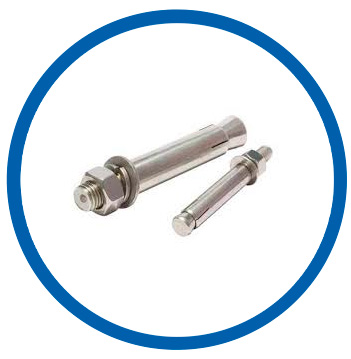

Alloy Inconel 718 anchor bolts

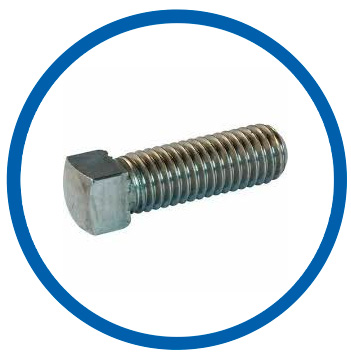

Nickel Alloy 718 square bolts

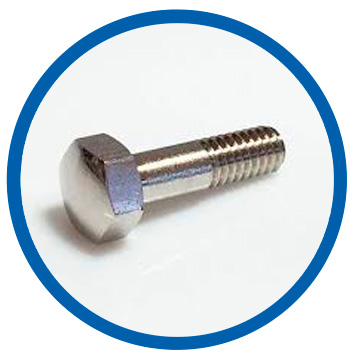

EN 2.4668 bolts

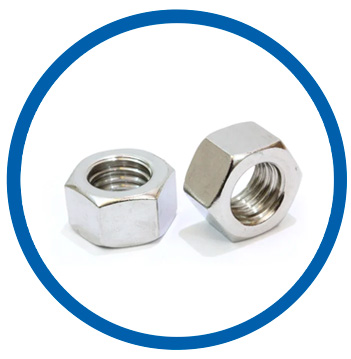

UNS N07718 heavy hex nuts

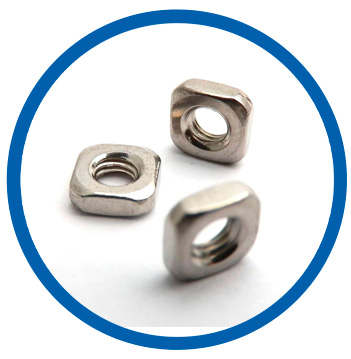

ASME SB637 UNS N07718 square nut

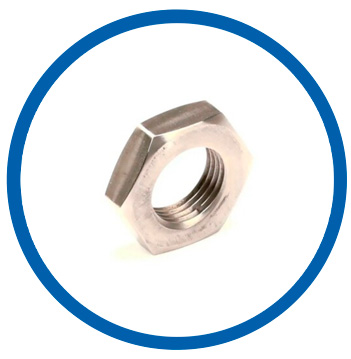

DIN 2.4668 lock nut

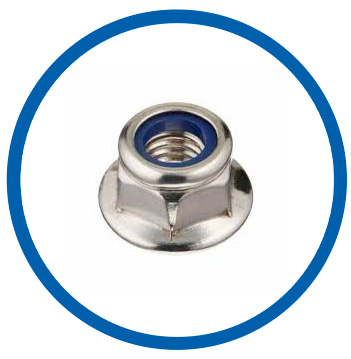

Inconel Alloy 718 flange lock nut

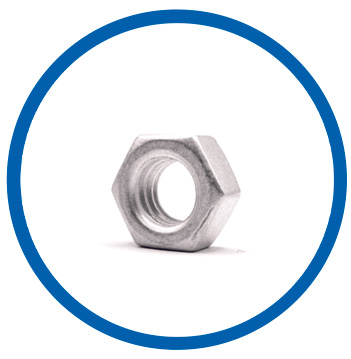

SB 637 N07718 hex nuts

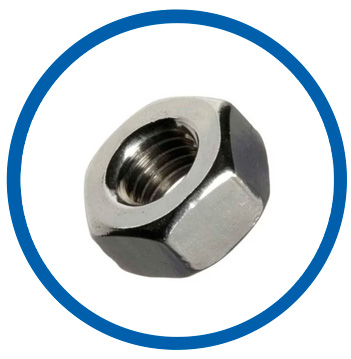

ASTM B637 UNS N07718 nuts

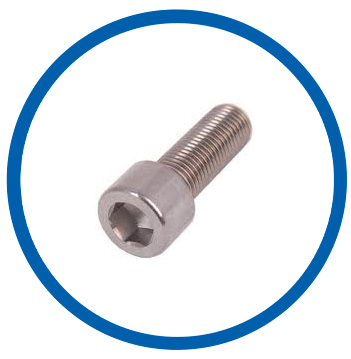

Nickel 718 socket head cap screw

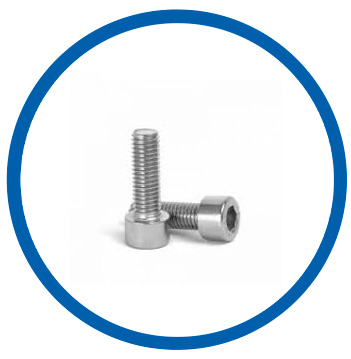

Alloy Inconel 718 socket cap screws

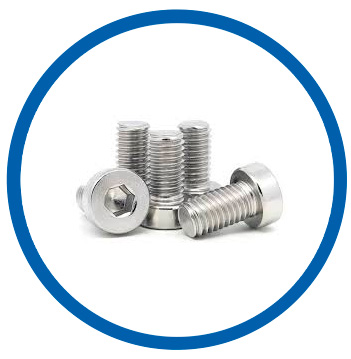

Alloy Inconel 718 hex cap screws

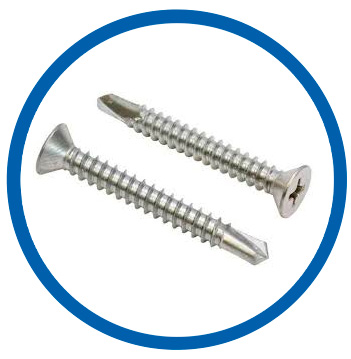

SB 637 N07718 self drilling screws

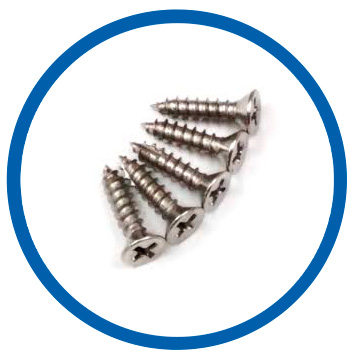

Nickel Alloy 718 wood screws

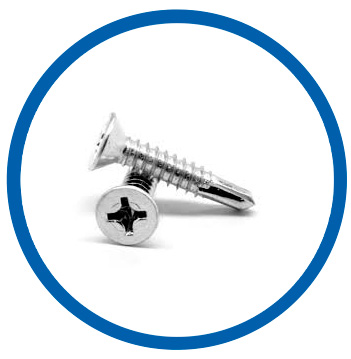

ASME SB637 UNS N07718 self tapping screws

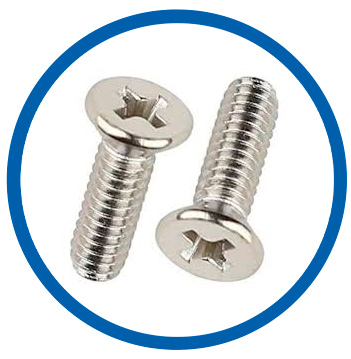

Alloy 718 machine screws

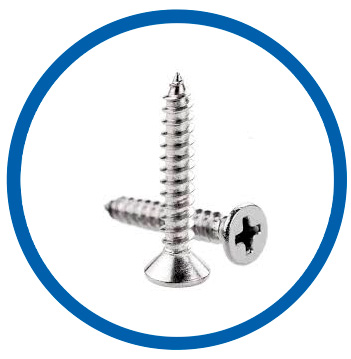

ASTM B637 UNS N07718 screw

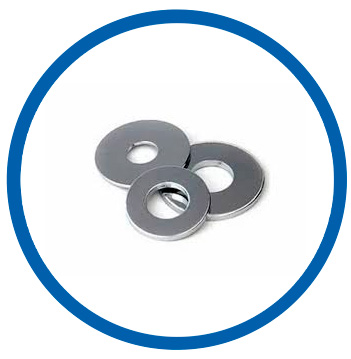

Nickel 718 plain washer

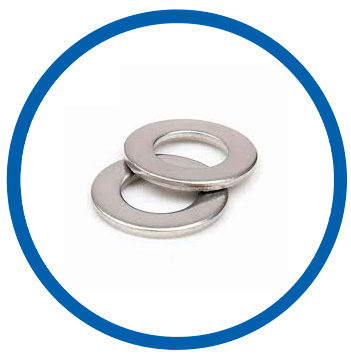

UNS N07718 washer

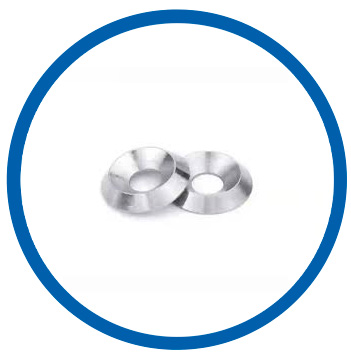

EN 2.4668 countersunk washer

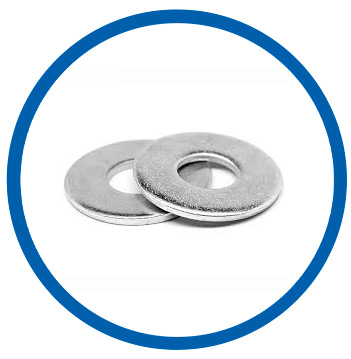

Inconel 718 flat washer

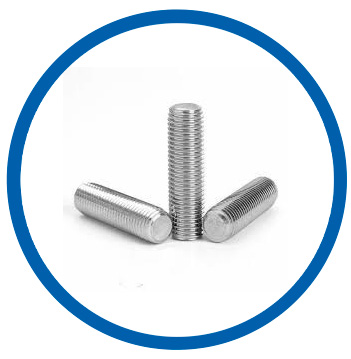

Inconel 718 threaded stud

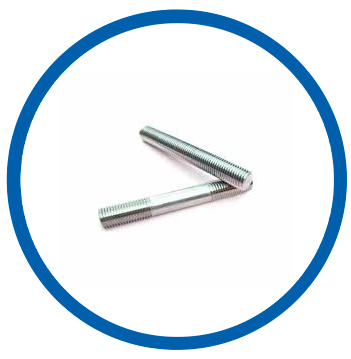

DIN 2.4668 studs

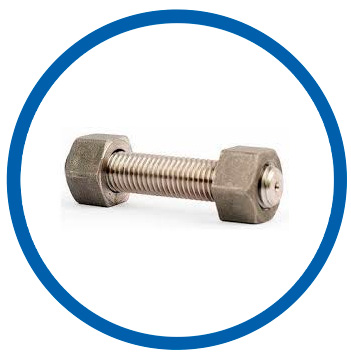

UNS N07718 stud bolt
EN 2.4668 fully threaded studs

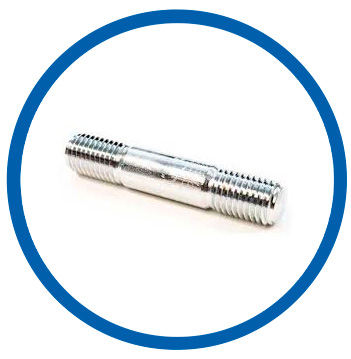

Inconel Alloy 718 double end stud bolts

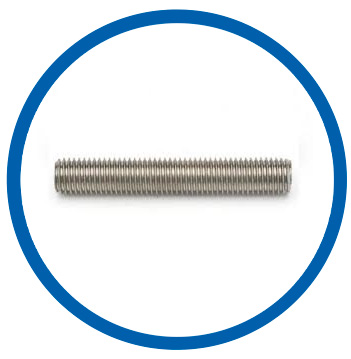

718 Inconel threaded rod
FAQs
- ASTM B637 / B637M
- ASTM B564 (for forged fasteners)
- ASME SB637 / SB564
- ISO / DIN standards available on request
- NACE MR0175 / ISO 15156 for sour service
- Continuous service: up to ~700°C (1290°F)
- Intermittent service: up to ~760°C (1400°F)
- Excellent oxidation and creep resistance make them ideal for turbine and high-heat equipment.
Yes. They resist:
- Chloride stress corrosion cracking
- Pitting and crevice corrosion
- General corrosion in seawater and chemical environments
