Waspaloy Fasteners

Check UNS N07001 Bolts sizes and dimensions

What is Waspaloy Fasteners?

Waspaloy is nickel based superalloy designed for high strength and high temperature application up to 870°C. These fasteners primarly used in aerospace and turbine applications. These are known for their thermal stability, corrosion resistance properties and resistance to creep and fatigue.

Table of Content

Fasteners Types

WASPALOY Fasteners Specification

Bolt Size

UNS N07001 Bolt Sizes

M2 to M24

Screw Size

AMS 5708 Screw Size

3/6″ to 2″

Hex Nuts Size

DIN 2.4654 Nuts Size

M3 – M56 | 3/6″ to 2″

Washers Size

Waspaloy alloy Washers Size

M3 – M56 | 3/6″ to 2″

Machine Screws Size

Waspaloy Machine Screws Size

M1.6 – M12

ISO Standard

ISO Standard

ISO 3506-1

Length

EN 2.4654 fasteners Length

3 mm to 200 mm

Thermal Expansion

Waspaloy alloy bolts Thermal Expansion

13.7 µm/m·°C

Melting Range

AMS 5708 Fasteners Melting Range

1320–1387 °C

Standards

UNS N07001 Anchor Bolts Standards

DIN 931, 933, 934, 7991, 976, 125 / ASME B18.2.1, B18.3

Threads

AMS 5708 Threaded Rod Threads

UNF / BSW / BSF / METRIC / UNC

Custom Sizes

Custom Sizes

We are Manufacturer of Waspaloy Fasteners in custom sizes

Studs Type

AMS 5708 Studs Type

Tap-End / Fully or Fine threaded / Double-End

Condition

Waspaloy Fasteners Condition

Threading / Cold Drawn

Origin

Origin

Indian / Russian / Korean / European

Manufacturing Technique

Manufacturing Technique

CNC Machined / Hot forging / Cold forging

Thread Pitch

DIN 2.4654 Screws Thread Pitch

Coarse Threads / Fine Threads

Surface finish

UNS N07001 Hex Bolt Finish

Phosphating / Passivation / HDG

Head Types

UNS N07001 hex head bolts Head Types

  • Phillips Drive
  • Button head
  • Slotted Drive
  • Socket cap head
  • Flat
  • Hex washer head
  • Slotted hex washer

Bolt Size

Waspaloy screws Thread Class

  • 3G
  • 4G
  • 2G
  • 5 ONF
  • Class 2A (Medium fit)
  • Class 3A (Tight fit)
  • Class 1A (Loose fit)

Drive Style

Waspaloy AMS 5708 Bolt Drive Style

  • Cross
  • Truss
  • Torx
  • Round
  • Hex
  • Oval
  • Pan

Packaging

Packaging

  • Wooden Pallet
  • Carton Box
  • Wooden Cases
  • Blister Packs

Certificate

Certificate

  • Raw Materials Certificate
  • EN 10204/3.1B
  • 100% Radiography Test
  • UT and PMI Test

Value Added Services

Value Added Services

  • Head Shank Drilling
  • Head Painting
  • Color Coding
  • Laser Etching

Manufacturing Range of UNS N07001 Bolts

Standards Dimensions Size Range Types
ASTM B637 / ASME SB637 ANSI B18.2.1
DIN 931
DIN 933
ISO 4014		 Diameter: M02 to M160
Length: 3 mm to 200 mm		 Heavy hex bolts
Anchor bolts
Eye bolts
Machine bolts
J bolts
U bolts
square bolts

We are well known Waspaloy Fasteners Manufacturer in India, Supplying in different industries such as oil and gas, petroleum and marine industry.

Service Temperature of Waspaloy material

Service Temperature 1600°F (870°C)

Price list of Waspaloy fasteners

Product Price in USD Price in Dirham Price in Euro
13UNC X 60MM UNS N07001 Hex Bolt ASME B18.2.1, UNF US $26.89 98.77 AED € 23.70
3/8 X1-1/2 Waspaloy Stud Bolts, UNC, DIN 933 US $30.33 111.40 AED € 26.73

Buy Waspaloy Fasteners at discounted price from us to get a quote email us on [email protected]. Leading Supplier and Stockist ofUNS N07001 Bolts in different sizes and diameters.

Waspaloy bolts Chemical composition

Nickel

56

Chromium

19

Molybdenum

4.30

Titanium

3

Cobalt

13.5

Aluminum

1.50

Iron

≤ 2

Silicon

≤ 0.15

Manganese

≤ 0.10

Carbon

0.080

Zirconium

0.050

Boron

0.0060

Waspaloy alloy hex nuts Mechanical properties

Tensile Strength

1335 MPa

Yield strength

910 MPa

Modulus of elasticity

213 GPa

Elongation

26.6%

Waspaloy Studs Equivalent

UNS WNR.
N07001 2.4654

Waspaloy AMS 5708 Screws Physical properties

Modulus of Elasticity Density Coefficient of Expansion Melting Point Modulus of Rigidity
211.0 kN/mm² 8.16 g/cm³ 12.2 μm/m °C (20 – 100 °C) 1330 °C 81 kN/mm²

Different types of WASPALOY Fasteners

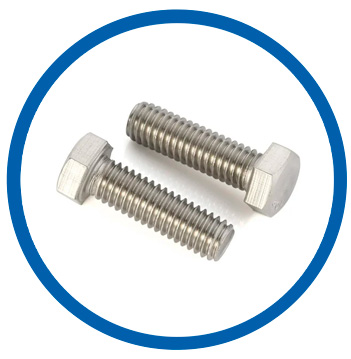

AMS 5708 Hex Bolt

AMS 5708 Hex Bolt

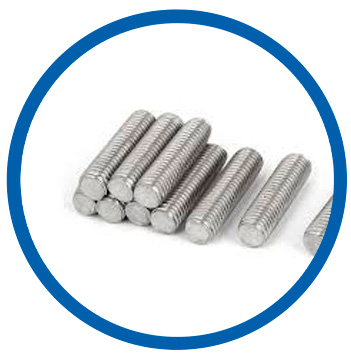

UNS N07001 Studs

UNS N07001 Studs

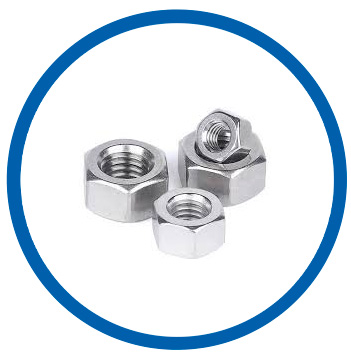

DIN 2.4654 Hex Nut

DIN 2.4654 Hex Nut

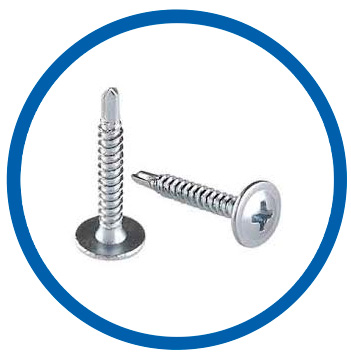

Waspaloy Screws

Waspaloy Screws

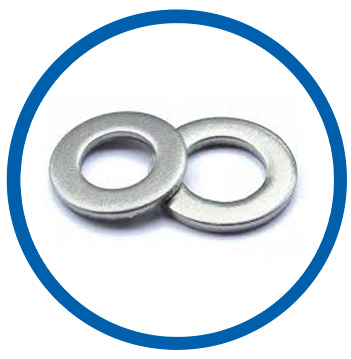

Waspaloy alloy Washer

Waspaloy alloy Washer

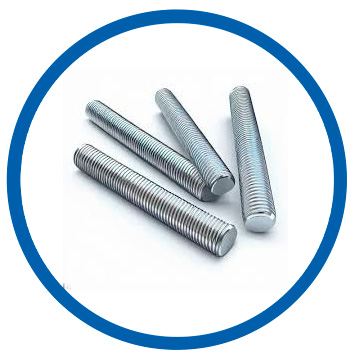

UNS N07001 Threaded Rod

UNS N07001 Threaded Rod

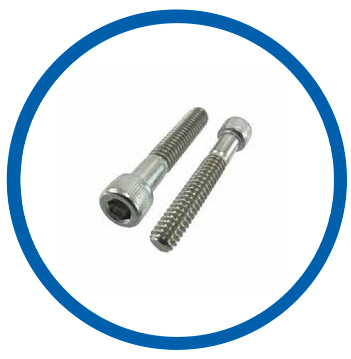

DIN 2.4654 Machine Screws

DIN 2.4654 Machine Screws

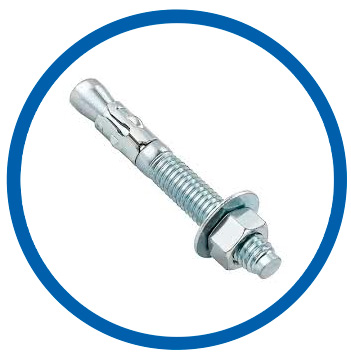

Waspaloy AMS 5708 Anchor Bolt

Waspaloy AMS 5708 Anchor Bolt

Heat Treatment and forging of AMS 5708 Threaded Rod

Heat Treatment Forging
1080°C (1975°F) 1038 to 1205°C

Annealing and Aging of UNS N07001 Anchor Bolts

Annealing Aging
1080°C (1975°F) 1080°C (1975°F)

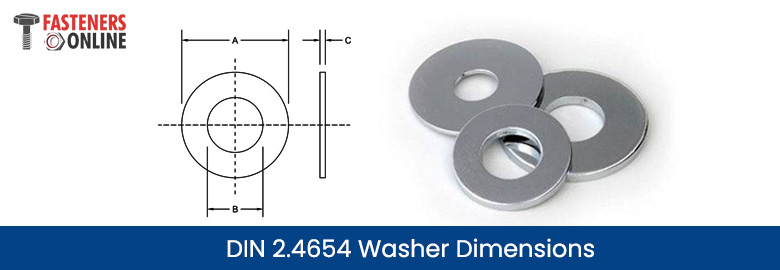

DIN 2.4654 Washer Dimensions

DIN 2.4654 Washer Dimensions
Bolts Size B
Inside Diameter		 A
Outside Diameter		 C
Thickness
Min Max
1/4" 9/32" 5/8" 0.051 0.08
5/16" 11/32" 11/16" 0.051 0.08
3/8" 13/32" 13/16" 0.051 0.08
7/16" 15/32" 59/64" 0.051 0.08
1/2" 17.32" 1-1/16" 0.097 0.177
5/8" 11/16" 1-5/16" 0.122 0.177
3/4" 13/16" 1-15/32" 0.122 0.177
7/8" 15/16" 1-3/4" 0.136 0.177
1" 1-1/8" 2" 0.136 0.177
1-1/8" 1-1/4" 2-1/4" 0.136 0.177
1-1/4" 1-3/8" 2-1/2" 0.136 0.177
1-3/8" 1-1/2" 2-3/4" 0.136 0.177
1-1/2" 1-5/8" 3" 0.136 0.177
1-3/4" 1-7/8" 3-3/8" 0.178 0.28
2" 2-1/8" 3-3/4" 0.178 0.28
2-1/4" 2-3/8" 4" 0.24 0.34
2-1/2" 2-5/8" 4-1/2" 0.24 0.34
2-3/4" 2-7/8" 5" 0.24 0.34
3" 3-1/8" 5-1/2" 0.24 0.34
3-1/4" 3-3/8" 6" 0.24 0.34
3-1/2" 3-5/8" 6-1/2" 0.24 0.34
3-3/4" 3-7/8" 7" 0.24 0.34
4" 4-1/8" 7-1/2" 0.24 0.34

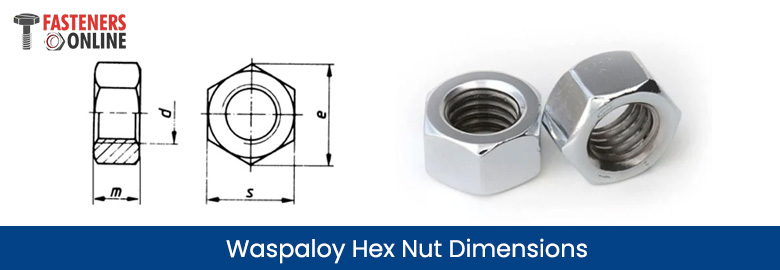

Waspaloy Hex Nut Dimensions

Waspaloy Hex Nut Dimensions
Sizes s m
M1 2.5 0.8
M1.2 3 1
M1.4 3 1.2
M1.6 3.2 1.3
M1.7 3.5 1.4
M2 4 1.6
M2.3 4.5 1.8
M2.5 5 2
M2.6 5 2
M3 5.5 2.4
M3.5 6 2.8
M4 7 3.2
M5 8 4.7
M6 10 5.2
M7 11 5.5
M8 13 6.8
M10 16 8.4
M12 18 10.8
M14 21 12.8
M16 24 14.8
M18 27 15.8
M20 30 18
M22 34 19.4
M24 36 21.5
M26 41 22
M27 41 23.8
M30 46 25.6
M33 50 28.7
M36 55 31
M39 60 33.4
M42 65 34
M45 70 36
M48 75 38
M52 80 42
M56 85 45
M60 90 48
M64 95 51
M68 100 54
M72 105 58
M76 110 61
M80 115 64
M85 120 68
M90 130 72
M95 135 75
M100 145 80
M105 150 82
M110 155 88
M120 175 95

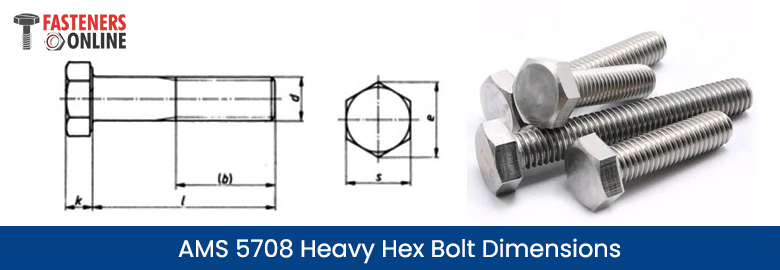

AMS 5708 Heavy Hex Bolt Dimensions

AMS 5708 Heavy Hex Bolt Dimensions
Size k s b (if l > 200 mm) b (if l < 200 mm) b (if l < 125 mm)
M2 1.4 4 - - 10
M3 2 5.5 - - 12
M4 2.8 7 - - 14
M5 3.5 8 - 22 16
M6 4 10 - 24 18
M7 4.8 11 - 26 20
M8 5.3 13 - 28 22
M10 6.4 16 45 32 26
M12 7.5 18 49 36 30
M14 8.8 21 53 40 34
M16 10 24 57 44 38
M18 11.5 27 61 48 42
M20 12.5 30 65 52 46
M22 14 34 69 56 50
M24 15 36 73 60 54
M27 17 41 79 66 60
M30 18.7 46 85 72 66
M33 21 50 91 78 72
M36 22.5 55 97 84 78
M39 25 60 103 90 84
M42 26 65 109 69 90
M45 28 70 115 102 96
M48 30 75 121 108 102
M52 33 80 129 116 -
M56 35 85 137 124 -
M64 40 95 153 140 -

Waspaloy alloy hex cap screws Characteristics

  • High Temperature
  • Exceptional Oxidation Resistance
  • Corrosion Resistance
  • High Mechanical Strength
  • Excellent Fatigue Resistance
  • Dimensional Stability
  • Superior Wear Resistance
  • Galling Resistance

Waspaloy industrial fasteners Application

  • Aerospace Industry
  • Gas Turbines
  • Power Generation
  • Chemical Processing
  • Nuclear Industry
  • Oil & Gas Industry
  • Offshore Industry
  • Petroleum Industry
Waspaloy industrial fasteners Application

Industrial Products

Types

Why Choose Us

  • If you are looking for Supplier and Exporter of Industrial Fasteners in Indonesia, Kenya, Saudi Arabia, Malaysia and Colombia contact us.
  • We keep ready stock of construction fasteners in size range of M6 to M36
  • Leading Stockist of automative fasteners in different types and threads
  • We supply coated fasteners with EN 10204 type 3.1 certificate
  • Get special 10% discount on large orders of marine fasteners
  • We have strongest supply network for mechanical fasteners which we manufacture in various standards such as ANSI, ISO, DIN, ASTM, SAE, JIS
  • Contact us to get a catalogue, client list and certificates
  • We are a manufacturer of hex bolts and nuts with an annual production capacity of 200,000 tonnes in different grades such as Hastelloy, Monel, Inconel, Titanium and Stainless Steel.
  • Special Price for steel fasteners Wholesalers, Importer, Stockholder and Stockist in Oman, Qatar and Eygpt
  • We manufacture black fasteners according to ISO 9001:2015 and PED standards
  • Our Steel Fasteners are widely used in Marine Industry, High pressure application and Construction industry
