Stainless Steel 316 Fasteners

Specialized AISI 316L Nut Bolts Manufacturer in India

Are 316 Stainless Steel Fasteners suitable for marine applications?

Yes, they are widely used in marine applications due to their excellent corrosion resistance properties. SS 316 Fasteners can withstand elevated temperatures which makes it ideal choice for marine applications.

We are manufactuerer of SS 316L Fasteners and AISI 316H Bolts and Nuts in India, We have ready stock of Stainless steel 316H fasteners in M2 to M132 Size range in different length and finishes.

Refer Sample Test Certificate for Stainless steel 316l Bolts

We provide Third party inspection from TUV SUD for all our products on demand. Conact us to get a Stainless Steel 316 Fasteners Price List.

Table of Content

Fasteners Types

Stainless steel 316 fasteners specification

Bolt Size

SS 316 Bolt Sizes

M2 to M24

Screw Size

EN 1.4401 Screw Size

3/6″ to 2″

Hex Nuts Size

AISI 316L Nuts Size

M3 – M56 | 3/6″ to 2″

Washers Size

UNS S31603 Washers Size

M3 – M56 | 3/6″ to 2″

Machine Screws Size

SS 316H Machine Screws Size

M1.6 – M12

ISO Standard

ISO Standard

ISO 3506-1

Length

Stainless Steel 316L fasteners Length

3 mm to 200 mm

Weldability

AISI 316 fasteners Thermal Conductivity

16.3 W/m·K at 100 °C

Specific Heat

SS 316H Washer Temperature Range

600–750°C

Threads

ASTM A276 Type 316L fully threaded studs Threads

BSW / UNF / METRIC / BSF / UNC

Standards

ASTM A276 Type 316H Heavy Hex Nuts Standards

DIN 976, 933, 931, 934, 7991, 125 / ASME B18.2.1, B18.3

Custom Sizes

Custom Sizes

One of the leading Stainless Steel 316 Fasteners manufacturer in India, known for its strength and durability.

Studs Type

SS 316L Studs Type

Fully or Fine threaded / Double-End / Tap-End

Origin

Origin

Russian / Indian / Korean / European

Condition

Type 316 Stainless steel fasteners Condition

Threading / Cold Drawn

Manufacturing Technique

Manufacturing Technique

Hot forging / CNC Machined / Cold forging

Thread Pitch

316H Stainless Steel Screws Thread Pitch

Coarse Threads / Fine Threads

Surface finish

ASTM A276 Type 316 square nut Finish

Passivation / Phosphating / HDG

Drive Style

Stainless Steel 316 Bolt Drive Style

  • Oval
  • Round
  • Pan
  • Cross
  • Hex
  • Truss
  • Torx

Head Types

SS 316H hex head bolts Head Types

  • Socket cap head
  • Flat
  • Slotted Drive
  • Phillips Drive
  • Slotted hex washer
  • Hex washer head
  • Button head

Bolt Size

316L Stainless Steel screws Thread Class

  • 2G
  • Class 1A (Loose fit)
  • 3G
  • Class 2A (Medium fit)
  • 5 ONF
  • 4G
  • Class 3A (Tight fit)

Packaging

Packaging

  • Wooden Cases
  • Carton Box
  • Blister Packs
  • Wooden Pallet

Certificate

Certificate

  • 100% Radiography Test
  • Raw Materials Certificate
  • UT and PMI Test
  • EN 10204/3.1B

Value Added Services

Value Added Services

  • Color Coding
  • Head Shank Drilling
  • Laser Etching
  • Head Painting

We are one of the leading AISI 316 Bolts Exporter. We stock and supply specially engineered SS 316 Heavy Hex Bolts for High Temperature.

Exporter of UNS S31600 Stud Bolts in Accordance with DIN, ASTM and BS Standards

SS 316 fasteners price

Product Price in USD
(100 Pcs)		 Price in Dirham
(100 Pcs)		 Price in Euro
(100 Pcs)
M3 X 10 SS 316 Set Screws, DIN 933 US $4.78 17.56 AED € 4.24
M27 AISI 316 Hexagon Nuts, DIN 934 US $257.54 945.89 AED € 228.41
M8 316 Stainless steel form a flat washer, DIN 125 US $3.16 11.60 AED € 2.80
M6 x 1 Metre Alloy 316 Threaded rod, DIN 975 US $302.35 1110.46 AED € 268.15

Contact us on [email protected] to buy Stainless steel 316 Fasteners at best price. We are Stockist and exporter of DIN 933 SS 316 Hex Bolt in various contries.

Are Stainless steel 316l fasteners compatible in chloride environments?

Yes, 316L Stainless steel Fasteners can be used in Chloride Environments. Molybdenum in it resist the pitting or crevice corrosion. Also lower carbon content reduces the risk of intergranular corrosion. These fasteners commonly used in marine and chemical industry.

Contact us to buy Chlorine Resistant Stainless Steel 316 Fasteners with MTC certificate at best price. We export and distribute AISI 316 Socket Head Cap Screws in Middle East Countries.

SS 316 Fasteners Stockist in Custom Size at Lowest Price in Mumbai, View chemical composition

Chemical composition of 316 ss fasteners

Grade Cr C P Si Mn S Ni Mo N
SS 316 16.00 - 18.00 0.08 max 0.045 max 1.0 max 2.0 max 0.030 max 11.00 - 14.00 2.00 - 3.00 67.845 min
SS 316L 16.00 - 18.00 0.035 max 0.045 max 1.0 max 2.0 max 0.030 max 10.00 - 14.00 2.00 - 3.00 68.89 min
SS 316H 16.00 - 18.00 0.10 max 0.045 max 0.75 max 2.0 max 0.030 max 10.00 - 14.00 2.00 - 3.00 68.89 min

Mechanical properties of ASTM A276 Type 316 Bolts

Grade Yield Strength
0.2% Proof
(MPa) min		 Tensile Strength (MPa) min Elongation
(% in 50mm) min		 Hardness
Rockwell B (HR B) max Brinell (HB) max
316 205 515 40 95 217
316L 170 485 40 95 217
316H 205 515 40 95 217

Equivalent grade of AISI 316 Hex Nuts

Grade UNS Euronorm Old British JIS SS
No Name BS En
316 S31600 1.4401 X5CrNiMo17-12-2 316S31 58H, 58J SUS 316 2347
316L S31603 1.4404 X2CrNiMo17-12-2 316S11 - SUS 316L 2348
316H S31609 - - 316S51 - - -
Buy 316 Stainless Steel U Bolts for Piping applications in wide range of sizes

Physical properties of SS 316 Screws

Grade Elastic Modulus
(GPa)		 Density
(kg/m3)		 Thermal Conductivity
(W/m.K)		 Mean Co-eff of Thermal Expansion (µm/m/°C) Elec Resistivity
(nΩ.m)		 Specific Heat 0-100°C
(J/kg.K)
At 100°C At 500°C 0-100°C 0-315°C 0-538°C
316/L/H 193 8000 16.3 21.5 15.9 16.2 17.5 740 500

Contact us if you are looking for a reliable SS 316 Fasteners Manufacturer who provides quality material with all the required test. You can Buy SS 316 Bolts and Nuts in Bulk to ensure cost efficiency and material uniformity across projects.

Type 316 Stainless steel fasteners Head Styles

Type 316 Stainless steel fasteners Head Styles
Supplier of Custom 316 Stainless Steel Fasteners in different finishes and threads

We have supplied Stainless steel 316L fasteners and AISI 316H bolts and nuts in Qatar, Oman, Brazil, Mexico, UAE and Indonesia. We are reliable manufacturer of SS 316 Fasteners for Wastewater Treatment.

Size Chart of UNS S31600 Washers

Size Thickness Outside Diameter Inside Diameter
1/4" 0.065" 0.734" 5/16"
5/16" 0.083" 7/8" 3/8"
3/8" 0.083" 1" 7/16"
7/16" 0.083" 1-1/4" 1/2"
1/2" 0.109" 1-3/8" 9/16"
9/16" 0.109" 1-15/32" 5/8"
5/8" 0.134" 1-3/4" 11/16"
3/4" 0.148" 2" 13/16"
7/8" 0.165" 2-1/4" 15/16"
1" 0.165" 2-1/2" 1-1/16"
1-1/8" 0.165" 2-3/4" 1-1/4"
1-1/4" 0.165" 3" 1-3/8"
1-3/8" 0.180" 3-1/4" 1-1/2"
1-1/2" 0.180" 3-1/2" 1-5/8"
1-5/8" 0.180" 3-3/4" 1-3/4"
1-3/4" 0.180" 4" 1-7/8"
2" 0.213" 4-1/2" 2-1/8"

SS 316 fasteners weight chart

Length Diameter (Approximate weight in kgs for 100 nos)
M22 M20 M18 M16 M14 M12 M10 M8 M6 M5
16mm 0.448 0.743 3.211 1.59
20mm 4.892 0.598 0.812 3.411 1.711
25mm 8.17 5.252 0.66 0.897 3.66 1.871
30mm 18.657 10.707 9.69 5.574 0.737 1.01 3.912 2.07
35mm 19.608 16.026 11.416 10 5.974 0.804 1.12 4.223 2.271
40mm 20.747 16.667 12.107 10.288 6.41 0.881 1.23 4.533 2.47
45mm 21.739 17.241 12.821 10.504 6.859 0.958 1.34 4.84 2.671
50mm 28.409 22.727 17.857 13.624 11.261 7.299 1.03 1.45 5.155 2.87
55mm 30.12 23.81 18.868 14.409 11.628 7.74 1.56 5.464 3.071
60mm 32.051 25.126 20 15.244 12.255 8.183 1.67 5.774 3.27
65mm 34.014 26.455 21.008 16.026 12.626 8.621 1.781 6.083 3.472
70mm 35.461 27.778 22.124 16.835 12.987 9.058 1.89 6.394 3.671
75mm 39.063 29.07 23.256 17.606 13.228 9.506 2 6.702 3.873
80mm 40 30.303 24.51 18.248 13.889 10 2.111 7.013 4.072
90mm 41.667 33.113 26.042 19.841 14.925 10.917 7.634 4.472
100mm 46.296 35.714 27.778 21.459 16.34 11.82 8.251 4.873
110mm 47.17 38.168 31.25 23.041 17.73 12.723 8.881
120mm 50 40.984 32.895 24.631 18.797 13.624 9.506
130mm 52.632 43.478 34.722 26.316 20 14.535 10.101
140mm 55.556 46.296 35.461 27.933 20.833 15.432 10.707
150mm 58.824 48.544 37.594 29.412 22.222 16.34 11.312
160mm 61.728 50.505 40.984 31.056 24.272 17.241 11.905
170mm 64.935 53.191 32.68 18.116 12.5
180mm 67.568 55.556 34.247 26.882 19.011 13.123
190mm 70.423 58.14 35.971 19.92 13.736
200mm 73.529 60.976 49.02 37.594 29.586 20.833 14.327
220mm 79.365 65.789 40.65 22.624 15.528
240mm 84.746 71.429 43.86 24.51 16.722
250mm 87.719 74.627 45.455 25.381 17.301
260mm 90.909 76.923 47.17 26.316 17.921
280mm 98.039 81.967 50.505 28.09 19.157
300mm 104.167 87.719 53.763 29.94 20.325
320mm 92.593 56.818 31.646
340mm 98.039 60.241 33.557
360mm 104.167 63.291 35.211
380mm 108.696 66.667 37.037
400mm 113.636 69.444 39.063

Stainless steel 316 bolt torque value

Bolt Size Torque in-lbs
4-40 5.5
4-48 6.9
5-40 8.1
5-44 9.8
6-32 10.1
6-40 12.7
8-32 20.7
8-36 23
10-24 23.8
10-32 33.1
1/4-20 78.8
1/4-28 99
5/16-18 138
5/16-24 147
3/8-16 247
3/8-24 271
7/16-14 393
7/16-20 418

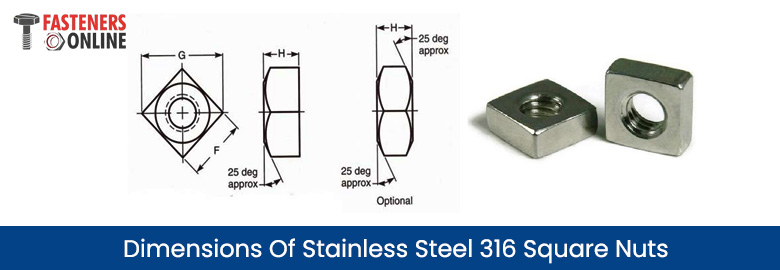

Dimensions Of Stainless Steel 316 Square Nuts

Dimensions Of Stainless Steel 316 Square Nuts
Nominal Size (Inch) Basic Major Thread Diameter Width Across Corners, G Width Across Flats, F Thickness, H
Min. Max. Basic Min. Max. Basic Min. Max.
1/4 1/4 41/74 13/21 7/16 17/40 7/16 7/32 14/69 4/17
5/16 5/16 31/43 31/39 9/16 35/64 9/16 17/64 1/4 15/53
3/8 3/8 77/96 61/69 5/8 20/33 5/8 21/64 22/71 9/26
7/16 7/16 32/33 1 5/82 3/4 8/11 3/4 3/8 21/59 13/33
1/2 1/2 1 4/77 1 7/47 13/16 26/33 13/16 7/16 28/67 11/24
5/8 5/8 1 3/10 1 12/29 1 94/97 1 35/64 21/40 33/58
3/4 3/4 1 45/97 1 13/22 1 1/8 1 3/34 1 1/8 21/32 12/19 17/25
7/8 7/8 1 42/59 1 6/7 1 5/16 1 7/26 1 5/16 49/64 37/50 19/24
1 1 1 74/77 2 4/33 1 1/2 1 9/20 1 1/2 7/8 72/85 28/31
1 1/8 1 1/8 2 14/67 2 22/57 1 11/16 1 53/84 1 11/16 1 32/33 1 1/33
1 1/4 1 1/4 2 11/24 2 15/23 1 7/8 1 13/16 1 7/8 1 3/32 1 1/16 1 1/8
1 3/8 1 3/8 2 17/24 2 11/12 2 1/16 1 17/18 2 1/16 1 13/64 1 12/71 1 9/38
1 1/2 1 1/2 2 87/91 3 2/11 2 1/4 2 7/40 2 1/4 1 5/16 1 8/29 1 8/23

Stainless steel 316H fasteners material testing

  • Tensile Test
  • IGC Test
  • Ultrasonic Testing
  • PMI Testing
  • X-Ray Testing
  • Proof Load Test
  • Hardness Testing
  • Magnetic Particle Test
Stainless steel 316H fasteners material testing

AISI 316 Stud Bolts Heat Treatment

Heat Treatment 1010-1120 °C and cool rapidly

Temperature Range of Stainless steel 316l fasteners

Temperature Range 425-860°C

Alternative grades of SUS 316 Washer

Grade Why to choose
317L Higher resistance to chlorides
316Ti Better resistance high temperature
904L Good formability, Higher resistance to chlorides
316N Higher strength

Our high performance 316 Stainless Steel Self Tapping Screws are widely used for their strength, durability, and excellent resistance to chemicals and marine industries. We supply SS 316 Plain & Spring Washers which are especially designed for corrosion resistance and secure load distribution in demanding environments.

Types of Stainless Steel 316 Bolts

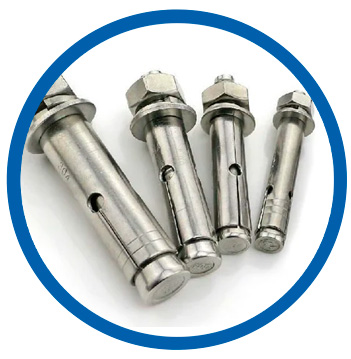

Alloy 316 anchor bolts

Alloy 316 anchor bolts

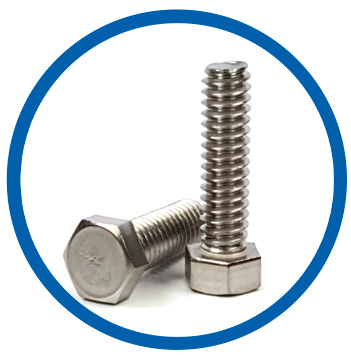

Stainless steel 316 bolts

Stainless steel 316 bolts

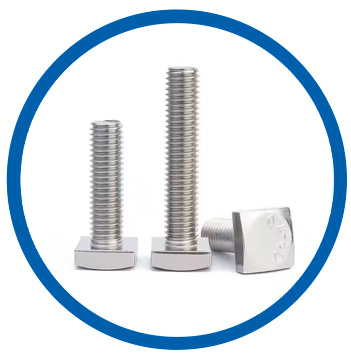

UNS S31609 square bolts

UNS S31609 square bolts

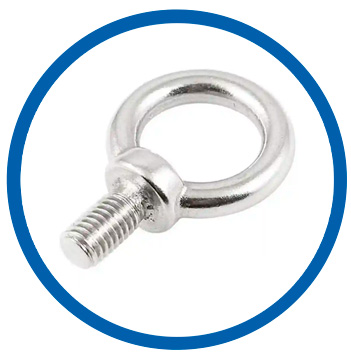

AISI 316L eye bolts

AISI 316L eye bolts

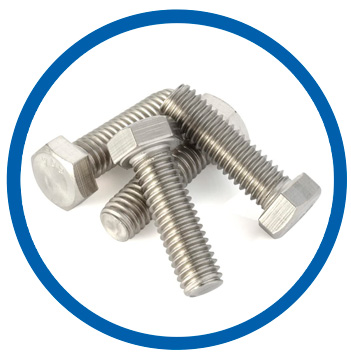

DIN 1.4404 heavy hex bolt

DIN 1.4404 heavy hex bolt

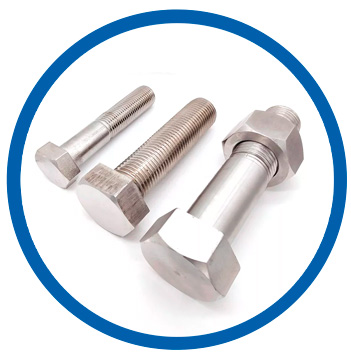

SS 316H hex bolts

SS 316H hex bolts

Types of Stainless Steel 316 Nuts

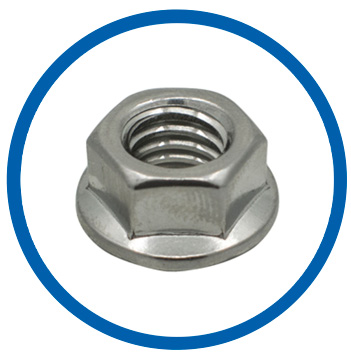

316H Stainless Steel flange lock nut

316H Stainless Steel flange lock nut

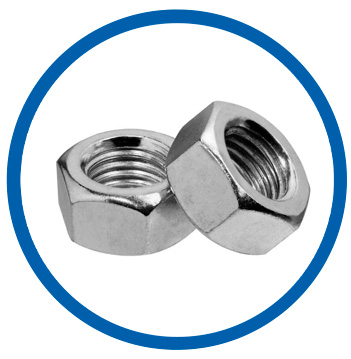

UNS S31603 hex nuts

UNS S31603 hex nuts

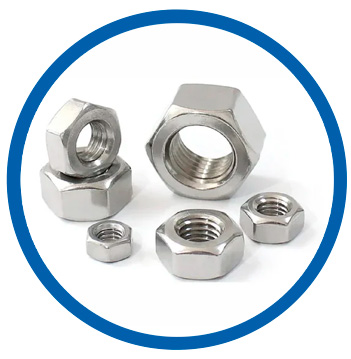

Type 316 Stainless Steel heavy hex nuts

Type 316 Stainless Steel heavy hex nuts

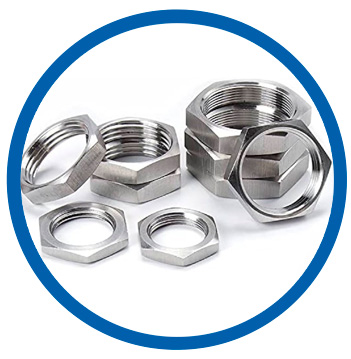

AISI 316H lock nut

AISI 316H lock nut

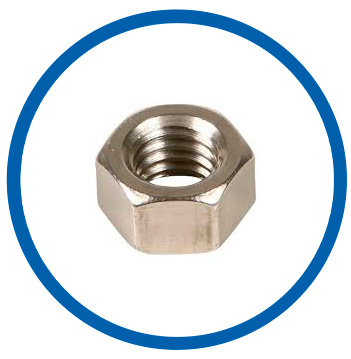

316L Stainless Steel nuts

316L Stainless Steel nuts

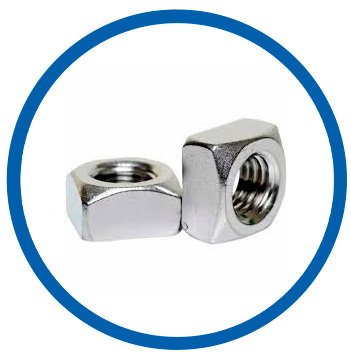

ASTM A276 Type 316 square nut

ASTM A276 Type 316 square nut

Types of Stainless Steel 316 Screws

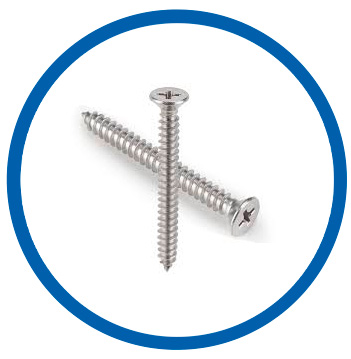

SUS 316L screw

SUS 316L screw

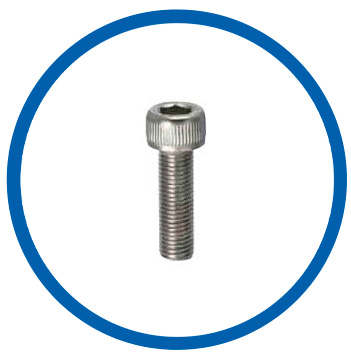

SS 316 hex cap screws

SS 316 hex cap screws

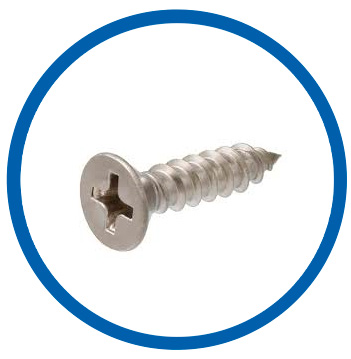

316 SS wood screws

316 SS wood screws

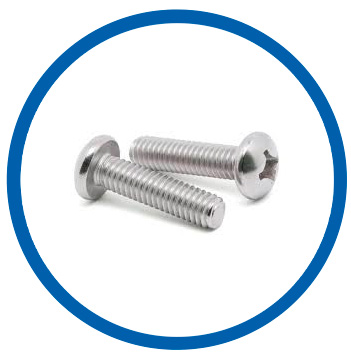

DIN 1.4401 machine screws

DIN 1.4401 machine screws

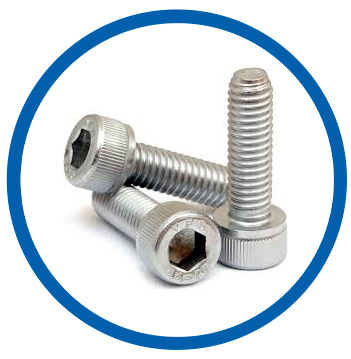

Alloy 316L socket cap screws

Alloy 316L socket cap screws

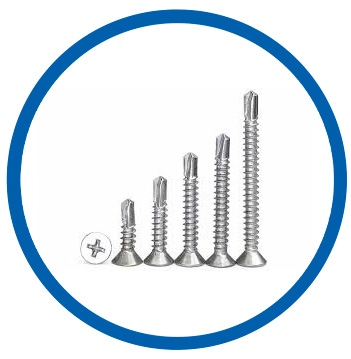

UNS S31603 self tapping screws

UNS S31603 self tapping screws

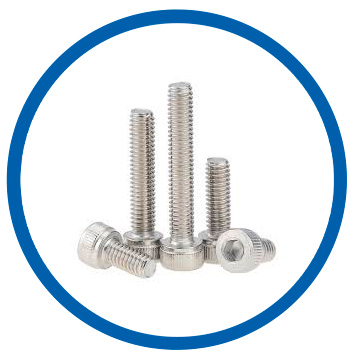

Stainless steel 316L socket head cap screw

Stainless steel 316L socket head cap screw

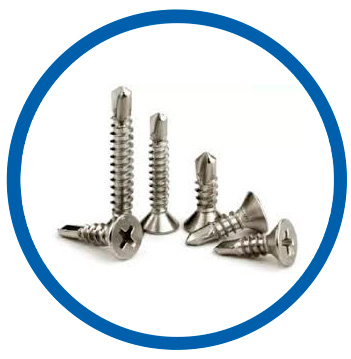

AISI 316 self drilling screws

AISI 316 self drilling screws

Types of Stainless Steel 316 Washers

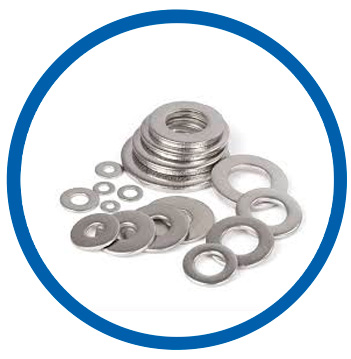

316L SS plain washer

316L SS plain washer

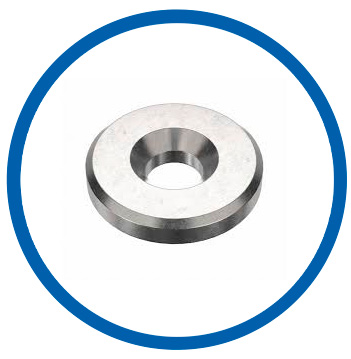

Stainless steel 316H countersunk washer

Stainless steel 316H countersunk washer

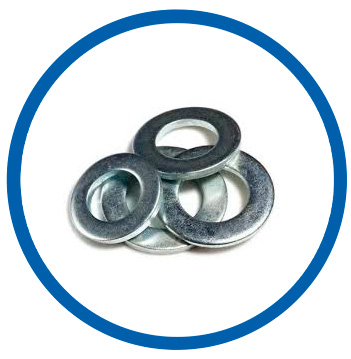

SUS 316 washer

SUS 316 washer

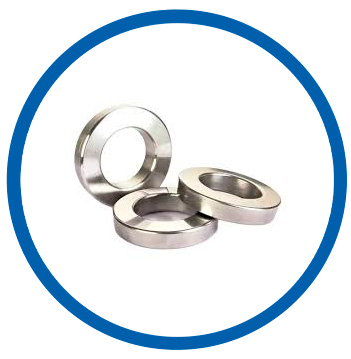

EN 1.4404 flat washer

EN 1.4404 flat washer

Types of Stainless Steel 316 Studs

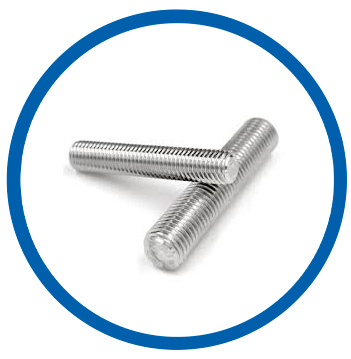

ASTM A276 Type 316L fully threaded studs

ASTM A276 Type 316L fully threaded studs

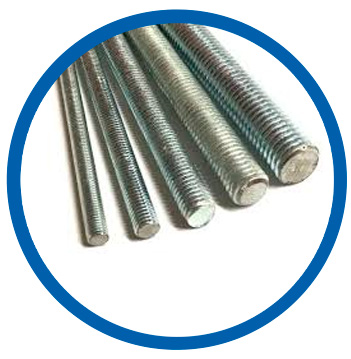

316H SS threaded rod

316H SS threaded rod

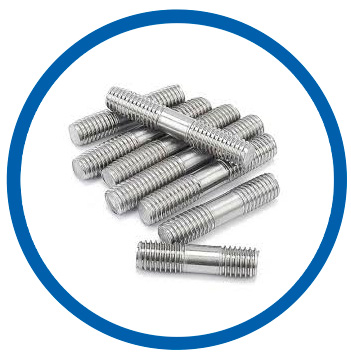

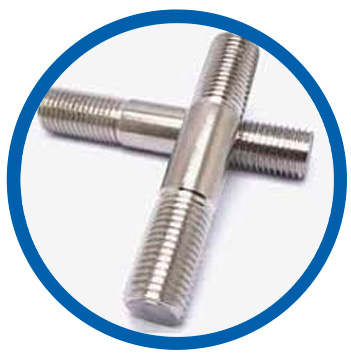

Alloy 316H double end stud bolts

Alloy 316H double end stud bolts

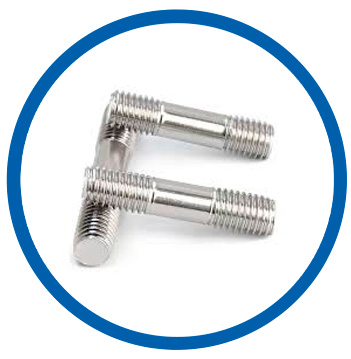

SS 316L studs

SS 316L studs

ASTM A276 Type 316H stud bolt

ASTM A276 Type 316H stud bolt

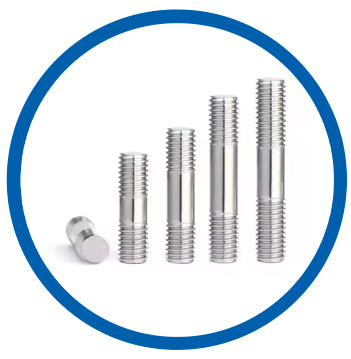

316 Stainless Steel threaded stud

316 Stainless Steel threaded stud

Recently Supplied Stainless steel 316 fasteners in below locations

Ports Country
Port of Rotterdam Netherlands
Port of Valencia Spain
Jebel Ali Port United Arab Emirates
Port of Shuwaikh Kuwait
Port of Hamburg Germany
Port Klang Malaysia
Belawan Port Indonesia
Port of Salalah Oman
Port of Klaipeda Lithuania

Industrial Products

Types

Why Choose Us

  • If you are looking for Supplier and Exporter of Industrial Fasteners in Indonesia, Kenya, Saudi Arabia, Malaysia and Colombia contact us.
  • We keep ready stock of construction fasteners in size range of M6 to M36
  • Leading Stockist of automative fasteners in different types and threads
  • We supply coated fasteners with EN 10204 type 3.1 certificate
  • Get special 10% discount on large orders of marine fasteners
  • We have strongest supply network for mechanical fasteners which we manufacture in various standards such as ANSI, ISO, DIN, ASTM, SAE, JIS
  • Contact us to get a catalogue, client list and certificates
  • We are a manufacturer of hex bolts and nuts with an annual production capacity of 200,000 tonnes in different grades such as Hastelloy, Monel, Inconel, Titanium and Stainless Steel.
  • Special Price for steel fasteners Wholesalers, Importer, Stockholder and Stockist in Oman, Qatar and Eygpt
  • We manufacture black fasteners according to ISO 9001:2015 and PED standards
  • Our Steel Fasteners are widely used in Marine Industry, High pressure application and Construction industry

Tools and Downloads
