ASTM A193 B16 Bolts
ASME SA 193 B16 Stud Bolts manufacturer in India
Is ASTM A193 B16 Bolts suitable for use in sour gas environments (H2S)?
No, these are high strength alloy which increases the chances of Sulfide Stress Cracking in sour environments. NACE MR0175 restricts yield strength and hardness of material in these enviroments and SA 193 B16 Studs exceeds these hardness limit. Its also not tested for SSC Cracking or hydrogen embrittlement.
Table of Content
ASTM A193 B16 Bolts Specification
ASTM A193 B16 Bolt Sizes
M2 to M24
A193 gr B16 Nuts Size
M3 – M56 | 3/6″ to 2″
SA193 B16 Screw Size
3/6″ to 2″
Elastic Modulus
200 GPa
ISO Standard
ISO 3506-1
B16 bolts Proof Load
100 ksi
Custom Sizes
We are trusted ASTM A193 B16 Bolts Manufacturer in India, We supply and stock SA 193 B16 studs in M2 to M100 Sizes.
ASTM A193 Grade B16 Stud Bolts Threads
METRIC / UNF / BSF / BSW / UNC
ASME SA193 Grade B16 Threaded Rod Standards
DIN 934, 931, 933, 7991, 125, 976 / ASME B18.2.1, B18.3
SA 193 gr B16 fasteners Length
3 mm to 200 mm
B16 bolts Temperature Range
540°C
A193 gr B16 Hex Nut Weldability
Not readily weldable
Origin
Korean / Russian / European / Indian
A 193 B16 Studs Type
Fully or Fine threaded / Tap-End / Double-End
SA 193 gr B16 Heavy Hex Bolts Condition
Threading / Cold Drawn
ASME SA193 B16 Bolt Drive Style
- Round
- Cross
- Hex
- Oval
- Pan
- Truss
- Torx
A193 Gr B16 hex head bolts Head Types
- Socket cap head
- Flat
- Hex washer head
- Phillips Drive
- Slotted hex washer
- Button head
- Slotted Drive
SA 193 B16 screws Thread Class
- Class 2A (Medium fit)
- Class 3A (Tight fit)
- 3G
- 5 ONF
- 4G
- 2G
- Class 1A (Loose fit)
Manufacturing Technique
Hot forging / CNC Machined / Cold forging
A193 gr B16 Screws Thread Pitch
Coarse Threads / Fine Threads
A193 Grade B16 stud material Finish
Passivation / Phosphating / HDG
Packaging
- Carton Box
- Wooden Cases
- Wooden Pallet
- Blister Packs
Value Added Services
- Color Coding
- Head Shank Drilling
- Head Painting
- Laser Etching
Certificate
- UT and PMI Test
- Raw Materials Certificate
- 100% Radiography Test
- EN 10204/3.1B
Refer lastest price list of ASTM A193 Grade B16 Studs
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| Stud bolt full Thread, C.S, 1/2" -13UNC x 165 ASTM A193 B16 | US $1.43 | 5.25 AED | € 1.26 |
| SA193 B16 Stud bolt, 1" -8UN x 100, full Thread | US $3.32 | 12.19 AED | € 2.93 |
| ASTM A193 GR B7 Galvanized Bolt M16 X 160MM | US $8.80 | 32.32 AED | € 7.77 |
For latest price list of ASTM A193 B16 Bolts you can contact us on sales@rishabhsteelindustries.com. We have recently supplied SA193 B16 Stud Bolts in Spain, Germany, Canada, Mexico and UAE.
Characteristics of ASTM A 193 gr B16 Threaded Rod
Raw Material of SA 193 B16 Heavy Hex Bolts
| Grade | Description |
|---|---|
| A193 B16 | Chromium-Molybdenum-Vanadium (Cr-Mo-V), Quenched & Tempered |
One of the leading ASTM A193 B16 Bolts manufacturer in India in size range of M2 to M100. We are also supplier and stockist of SA 193 Grade B16 Threaded Rod and Studs in diffrent threads and finishes as per demand of clients.
Check Chemical and Mechanical properties of Buy Grade B16 Hex Nuts, We are supplier of A193 B16 material in Mumbai
ASTM A193 B16 chemical composition
Carbon
0.36 - 0.47
Manganese
0.45 - 0.70
Sulfur
0.040 max
Silicon
0.15 - 0.35
Phosphorus
0.035 max
Chromium
0.80 - 1.15
Molybdenum
0.50 - 0.65
Vanadium
0.25 - 0.35
Aluminium
0.015 max
ASTM A193 B16 mechanical properties
Tensile Strength
760 MPa
Yield Strength
655 MPa
Elongation
17 %
Reduction
45 % Min
| Diameter | Hardness |
|---|---|
| Over M64 to M100 | 321 HBW or 35 HRC |
| Over M100 to M180 | 321 HBW or 35 HRC |
Various types of ASTM A193 B16 Fasteners

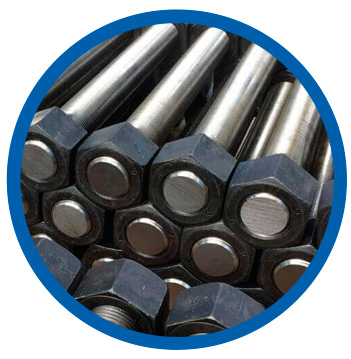

ASME SA 193 B16 Stud Bolts

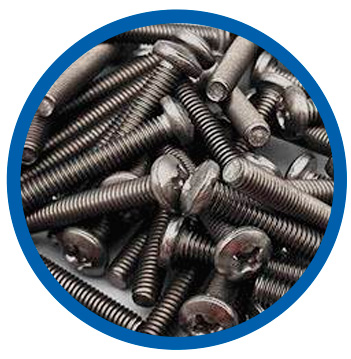

A193 Gr B16 Screws

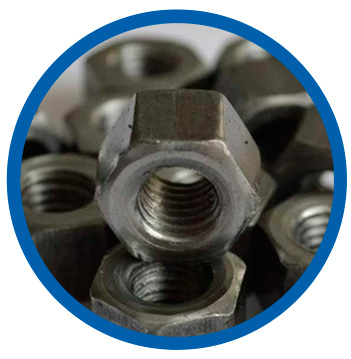

Grade B16 Hex Nuts

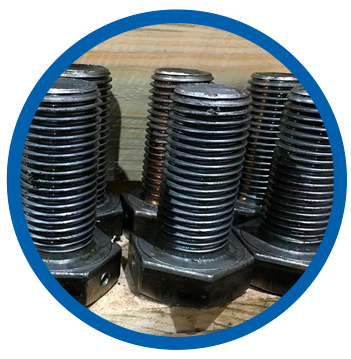

A193 B16 Hex Bolt

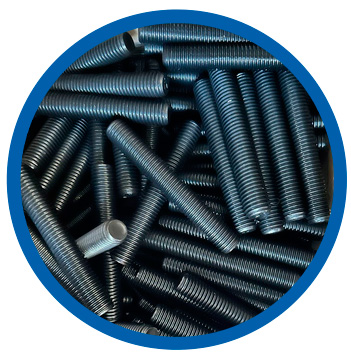

ASTM A193 B16 Threaded Rod

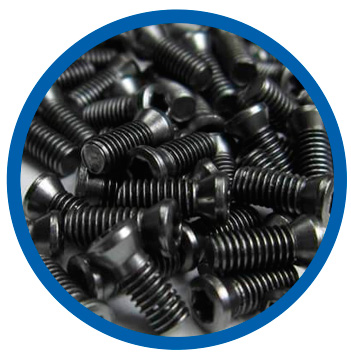

SA193 B16 Socket Head Cap Screw

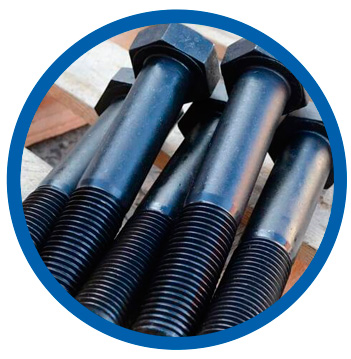

ASTM A193 Gr B16 Heavy Hex Bolts

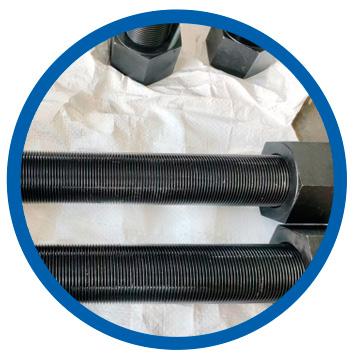

SA193 Grade B16 Studs
View SA 193 gr B16 Hex Bolt temperature range and dimensions, Check SA193 B16 Bolts torque chart
ASTM A193 grade B16 temperature range
| Temperature range | -20°F to +1100°F (-30°C to +593°C) |
|---|

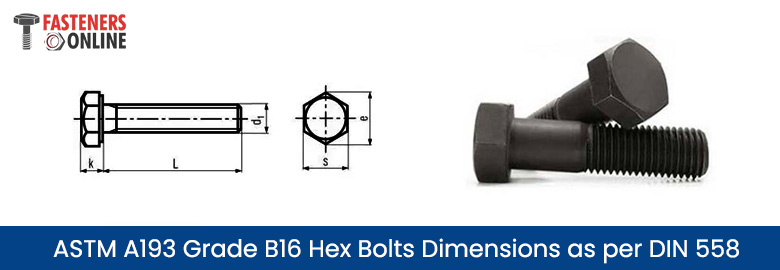

ASTM A193 Grade B16 Hex Bolts Dimensions as per DIN 558
| D1 | K | S | E |
|---|---|---|---|
| M20 | 12.5 | 30 | 32.95 |
| M16 | 10 | 24 | 26.17 |
| M12 | 7.5 | 19 | 20.88 |
| M10 | 6.4 | 17 | 18.72 |
| M8 | 5.3 | 13 | 14.2 |
| M6 | 4 | 10 | 10.89 |
ASTM A193 grade B16 torque chart
| BOLT DIA | Torque N*m | ||
|---|---|---|---|
| 100% Final Torque | 70% Torque | 30% Initial Torque | |
| 1/2 | 75 | 53 | 23 |
| 9/16 | 108 | 75 | 33 |
| 5/8 | 149 | 104 | 45 |
| 3/4 | 264 | 186 | 80 |
| 7/8 | 420 | 294 | 126 |
| 1 | 630 | 441 | 190 |
| 1.1/8 | 929 | 651 | 278 |
| 1.1/4 | 1302 | 911 | 390 |
| 1.3/8 | 1769 | 1241 | 530 |
| 1.1/2 | 2339 | 1638 | 702 |
| 1.9/16 | 2657 | 1860 | 797 |
| 1.5/8 | 3017 | 2112 | 906 |
| 1.3/4 | 3796 | 2657 | 1139 |
| 1.7/8 | 4718 | 3303 | 1415 |
| 2 | 5783 | 4047 | 1735 |
| 2.1/4 | 8359 | 5850 | 2508 |
| 2.1/2 | 11592 | 8115 | 3478 |
| 2.3/4 | 14101 | 9873 | 4232 |
| 3 | 18439 | 12907 | 5532 |
| DIN equivalent | DIN 17240 Grade 40CrMoV47 |
|---|
ASTM A193 grade B16 heat treatment
A193 B16 material is Quenched & Tempered at 860º C minimum
Buy ASTM A193 grade B16 threaded rod in different sizes and threads, Stockist of B16 bolts in India
Sizes and Threads of A193 gr B16 Stud Bolts
| Threads | Sizes |
|---|---|
|
|
Recommended Nut & Washer for A193 B16 Bolts
| Nut Grade | Washer Grade |
|---|---|
| ASTM A194 Grade 16 | ASTM F436 |
Application of SA 193 gr B16 Hex Bolt
