Stainless steel 416 fasteners
Trusted UNS S41600 Bolts and Nuts Manufacturer in India
Table of Content
Stainless Steel 416 Fasteners Specification
SS 416 Nuts Size
M3 – M56 | 3/6″ to 2″
Alloy 416 Bolt Sizes
M2 to M24
DIN 1.4005 Screw Size
3/6″ to 2″
UNS S41600 Machine Screws Size
M1.6 – M12
AISI 416 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 3506-1
UNS S41600 stud bolt Melting Point
1480–1530 °C
Stainless steel 416 fasteners Length
3 mm to 200 mm
AISI 416 eye bolts Electrical Resistivity
0.57 μΩ·m
Origin
Korean / Indian / Russian / European
422 SS Studs Type
Double-End / Tap-End / Fully or Fine threaded
EN 1.4005 socket head cap screw Condition
Threading / Cold Drawn
SS 416 Heavy Hex Bolts Finish
Phosphating / HDG / Passivation
SUS 416 Screws Thread Pitch
Coarse Threads / Fine Threads
Manufacturing Technique
Cold forging / Hot forging / CNC Machined
416 Stainless Steel hex cap screws Threads
METRIC / BSF / UNF / BSW / UNC
Type 416 Stainless Steel square bolts Standards
DIN 7991, 933, 976, 931, 125, 934 / ASME B18.2.1, B18.3
Custom Sizes
Reliable 416 Stainless steel fasteners manufacturer in India in custom diameters.
Certificate
- UT and PMI Test
- EN 10204/3.1B
- Raw Materials Certificate
- 100% Radiography Test
Packaging
- Blister Packs
- Wooden Cases
- Carton Box
- Wooden Pallet
Value Added Services
- Color Coding
- Laser Etching
- Head Shank Drilling
- Head Painting
DIN 1.4005 hex head bolts Head Types
- Slotted hex washer
- Slotted Drive
- Socket cap head
- Hex washer head
- Button head
- Phillips Drive
- Flat
AISI 416 screws Thread Class
- 3G
- Class 1A (Loose fit)
- 2G
- Class 3A (Tight fit)
- 5 ONF
- 4G
- Class 2A (Medium fit)
Type 416 Stainless Steel Bolt Drive Style
- Hex
- Torx
- Oval
- Pan
- Cross
- Truss
- Round
We supply AISI 416 screws and 416 stainless steel bolts in different types and sizes
416 Stainless Steel Screws Manufacturing Range
| Diameters | Length | Manufacturing Process | Standards | Thread Types | Head Types |
|---|---|---|---|---|---|
| M1.0 up to M150 | 3 mm to 200 mm | Cold or hot forging CNC machining |
ASME B18.2.3.6M DIN 6914 |
Metric coarse/fine UNC UNF BSW BSF |
Hex head Socket Panel |
Stainless Steel 416 Fasteners Price list
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| M4 x 25mm Socket Cap Screws, SS 416 | US $1.42 | 5.22 AED | € 1.22 |
| M6 Stainless Steel 416 Wing Nut, UNC | US $1.50 | 5.51 AED | € 1.29 |
416 stainless steel socket head cap screw and EN 1.4005 lock nuts offers moderate corrosion resistance
AISI 416 Hex Bolts Chemical composition
Carbon
0.15 (Max.)
Silicon
1 (Max.)
Manganese
1.25 (Max)
Phosphorus
0.06
Chromium
12 To 14
Sulfur
0.15 (Max.)
Molybdenum
0.6
DIN 1.4005 Washer Mechanical properties
Tensile Strength
517 MPa
Yield Strength
275 MPa
Hardness
262 Max HB
Elongation
30 % Min
SUS 416 Threaded Rod equivalent
| Grade | UNS No | Swedish SS | Euronorm | Old British | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| No | Name | BS | En | ||||
| 416 | S41600 | 2380 | 1.4005 | X12CrS13 | 416S21 | 56AM | SUS 416 |
SS 416 Machine Screws Physical properties
| Density (kg/m3) | Thermal Conductivity (W/m.K) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Electrical Resistivity (nΩ.m) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | |||
|---|---|---|---|---|---|---|---|---|
| at 100°C | at 500°C | 0-100°C | 0-315°C | 0-538°C | ||||
| 7800 | 24.9 | 28.7 | 9.9 | 11 | 11.5 | 570 | 200 | 460 |
Heat Treatment of AISI 416 Stud Bolts
| Heat Treatment | 815 to 900°C |
|---|
Various types of Stainless Steel 416 Fasteners
416 SS hex nuts

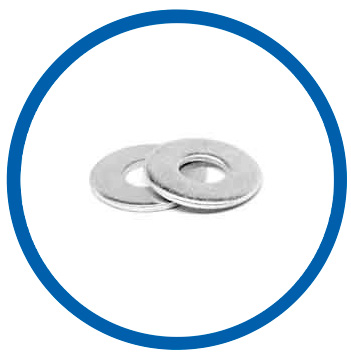

SUS 416 plain washer
416 Stainless Steel hex cap screws

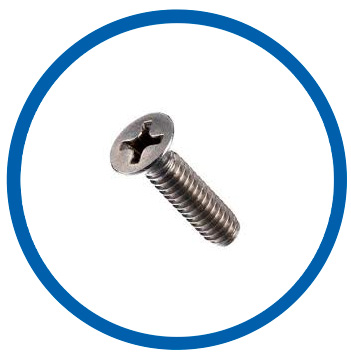

SS 416 machine screws

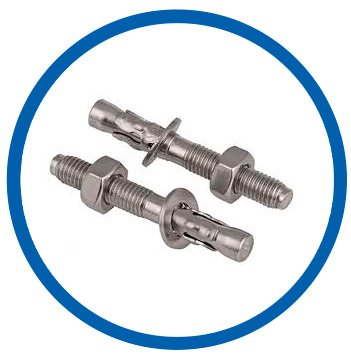

Stainless steel 416 anchor bolts

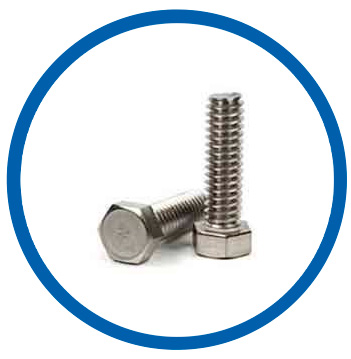

DIN 1.4005 hex bolts

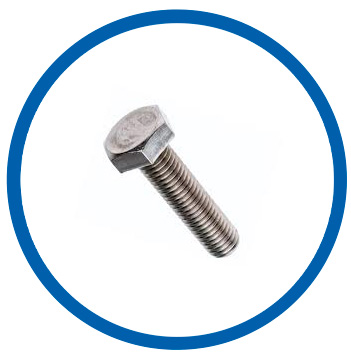

AISI 416 heavy hex bolt

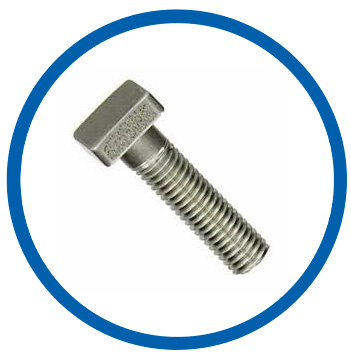

Type 416 Stainless Steel square bolts

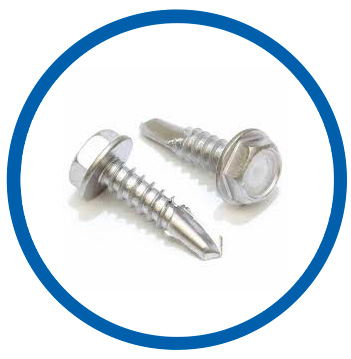

UNS S41600 self drilling screws

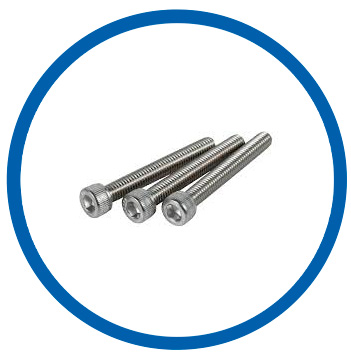

EN 1.4005 socket head cap screw

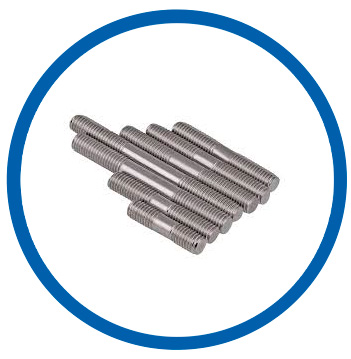

UNS S41600 stud bolt

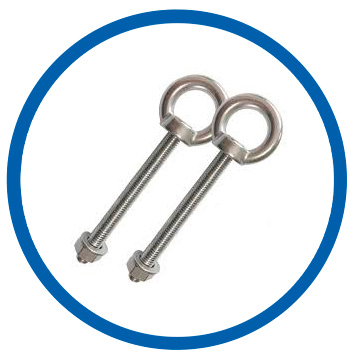

AISI 416 eye bolts

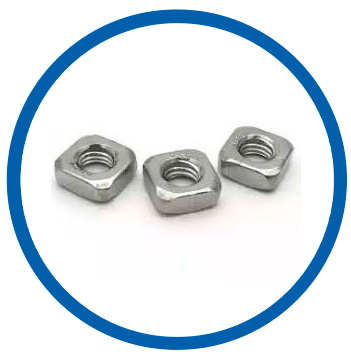

Stainless steel 416 square nut
SS 416 threaded rod
EN 1.4005 flat washer
Refer latest price list of 416 SS industrial fasteners, View dimensions of 416 stainless steel dowel pins

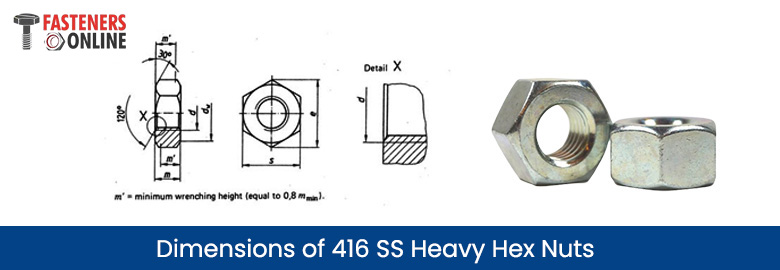

Dimensions of 416 SS Heavy Hex Nuts
| Thread size d | dw, Min. | p | m, Min. | e, Min | m | s | ||
|---|---|---|---|---|---|---|---|---|
| Nominal Size = Max | Min | Nominal Size = Max | Min | |||||
| M 12 | 20 | 1.75 | 7.71 | 23.91 | 10 | 9.64 | 22 | 21.16 |
| M 16 | 25 | 2 | 9.84 | 29.56 | 13 | 12.3 | 27 | 26.16 |
| M 20 | 30 | 2.5 | 11.92 | 35.03 | 16 | 14.9 | 32 | 31 |
| M 22 | 34 | 2.5 | 13.52 | 39.55 | 18 | 16.9 | 36 | 35 |
| M 24 | 39 | 3 | 14.16 | 45.2 | 19 | 17.7 | 41 | 40 |
| M 27 | 43.5 | 3 | 16.56 | 50.85 | 22 | 20.7 | 46 | 45 |
| M 30 | 47.5 | 3.5 | 18.16 | 55.37 | 24 | 22.7 | 50 | 49 |
| M 36 | 57 | 4 | 22.16 | 66.44 | 29 | 27.7 | 60 | 58.8 |
Type 416 Stainless Steel Screws Size Chart
| Size | Nearest Fraction | Inch | Millimeter |
|---|---|---|---|
| #0 | 1/16 | 0.06 | 1.5 |
| #1 | 5/64 | 0.07 | 1.8 |
| #2 | 3/32 | 0.08 | 2 |
| #3 | 7/64 | 0.09 | 2.3 |
| #4 | 7/64 | 0.11 | 2.8 |
| #5 | 1/8 | 0.12 | 3.1 |
| #6 | 9/64 | 0.13 | 3.3 |
| #8 | 5/32 | 0.16 | 4.2 |
| #10 | 3/16 | 0.19 | 4.8 |
| #12 | 7/32 | 0.21 | 5.5 |
| #14 | 1/4 | 0.24 | 6.3 |
DIN 1.4005 machine screw and Type 416 Stainless Steel studs widely used in Electrical motors and Pumps
