Stainless steel 422 Fasteners
Leading AISI 422 Nut and Bolts manufacturer in India
Table of Content
Stainless Steel 422 Fasteners Specification
SS 422 Nuts Size
M3 – M56 | 3/6″ to 2″
AISI 422 Bolt Sizes
M2 to M24
SUS 422 Screw Size
3/6″ to 2″
EN 1.4742 Machine Screws Size
M1.6 – M12
ASTM A276 Type 422 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 3506-1
Origin
Korean / Russian / Indian / European
422 SS Studs Type
Double-End / Fully or Fine threaded / Tap-End
SUS 422 hex cap screws Condition
Threading / Cold Drawn
ASTM A276 UNS S42200 fasteners Length
3 mm to 200 mm
UNS S42200 hex nuts Thermal Conductivity
24 W/m·K
422 SS anchor bolts Thermal Expansion
10.4 µm/m·°C
Type 422 Stainless Steel Screws Thread Pitch
Coarse Threads / Fine Threads
422 Stainless Steel Fasteners Finish
Phosphating / HDG / Passivation
Manufacturing Technique
Cold forging / Hot forging / CNC Machined
SS 422 square nut Standards
DIN 7991, 933, 976, 931, 125, 934 / ASME B18.2.1, B18.3
UNS S42200 heavy hex bolt Threads
METRIC / BSF / UNF / BSW / UNC
Custom Sizes
Reliable Stainless Steel 422 Fasteners in custom finish and sizes.
Certificate
- UT and PMI Test
- EN 10204/3.1B
- Raw Materials Certificate
- 100% Radiography Test
Value Added Services
- Color Coding
- Laser Etching
- Head Shank Drilling
- Head Painting
Packaging
- Blister Packs
- Wooden Cases
- Carton Box
- Wooden Pallet
AISI 422 screws Thread Class
- 3G
- Class 1A (Loose fit)
- 2G
- Class 3A (Tight fit)
- 5 ONF
- 4G
- Class 2A (Medium fit)
SUS 422 hex head bolts Head Types
- Slotted hex washer
- Slotted Drive
- Socket cap head
- Hex washer head
- Button head
- Phillips Drive
- Flat
UNS S42200 Bolt Drive Style
- Hex
- Torx
- Oval
- Pan
- Cross
- Truss
- Round
We stock UNS S42200 Stud Bolts in size range of M2 to M100, check dimensions of Type 422 Stainless Steel Machine Screws
422 SS Heavy Hex Bolts Manufacturing Range
| Diameters | Length | Manufacturing Process | Standards | Thread Types | Service Temperature |
|---|---|---|---|---|---|
| M12 – M100 | 50 mm – 500 mm | Cold forming Hot forging CNC machining Threading |
ASME B18.2.3.6M DIN 6914 |
Metric UNC UNF 8UN |
Up to ≈ 600 °C |
Reliable supplier of EN 1.4742 Threaded Rod in mumbai, View torque chart and weight of ASTM A276 UNS S42200 Flange Bolt
Stainless Steel 422 Fasteners Price list
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| M8 x 55mm Stainless Steel 422 Hex Bolt | US $7.80 | 28.65 AED | € 6.68 |
| M12 AISI 422 Heavy Hex Nuts | US $4.80 | 17.63 AED | € 4.11 |
422 SS Washers contains 11.5% chromium content, leading exporter of 422 Stainless Steel Set Screws in MENA countries
AISI 422 Machine Screws Chemical composition
Chromium
11.0-13.0
Manganese
1.00 (Max.)
Nickel
0.5-1.0 (Max)
Molybdenum
0.75-1.25
Tungsten
0.75-1.25
Silicon
0.75 (Max.)
Carbon
0.20-0.25
Vanadium
0.15-0.3 (Max.)
Phosphorous
0.025
Sulfur
0.025 (Max.)
ASTM A276 Type 422 Washer Mechanical properties
Tensile Strength
965 MPa
Yield Strength
793 MPa
Hardness
293 Max HB
Elongation
13 % Min
| Standard | WNR | UNS | JIS |
|---|---|---|---|
| SS 422 | 1.4742 | S42200 | SUS 422 |
UNS S42200 Threaded Rod Physical properties
| Density | Elastic modulus | Poisson's ratio |
|---|---|---|
| 7.8 g/cm3 | 190-210 GPa | 0.27-0.30 |
Thermal Properties of EN 1.4742 Studs
| Thermal expansion | Thermal conductivity |
|---|---|
| 11.2 x 10-6/ºC | 23.9 x W/m.K |
ASTM A276 Type 422 Socket Cap Screw shows high oxidation resistance, we manufacture SS 422 Anchor Bolts in different finishes
Various types of Stainless Steel 422 Fasteners

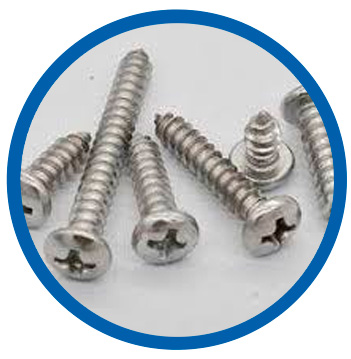

SS 422 machine screws

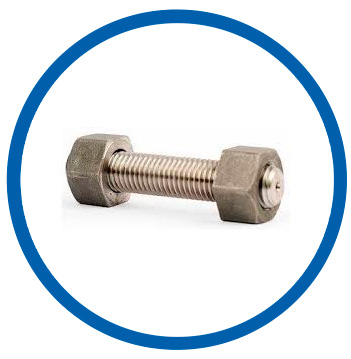

Type 422 Stainless Steel stud bolt

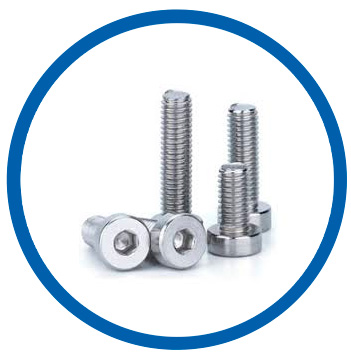

ASTM A276 UNS S42200 socket head cap screw

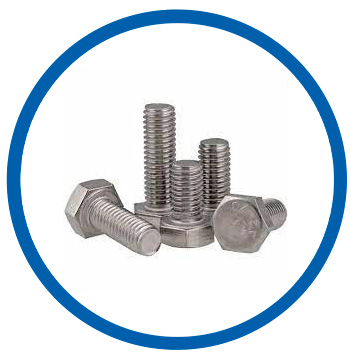

AISI 422 hex bolts

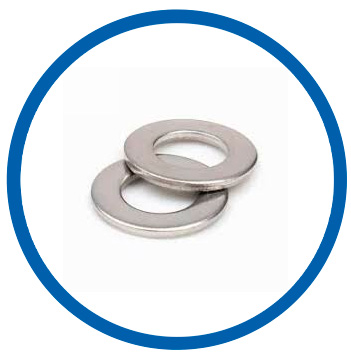

422 Stainless Steel flat washer

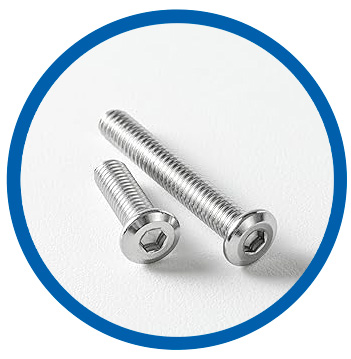

SUS 422 hex cap screws

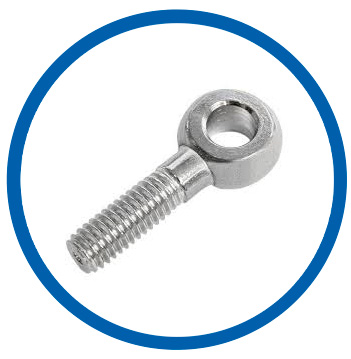

422 Stainless Steel eye bolts

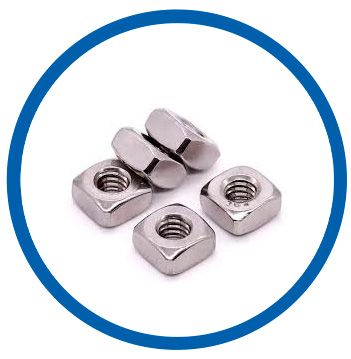

SS 422 square nut

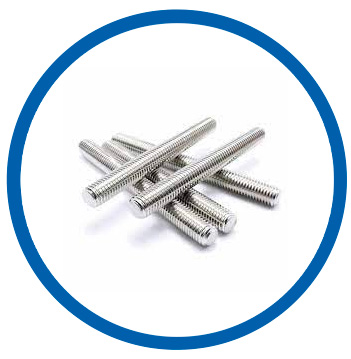

EN 1.4742 threaded rod

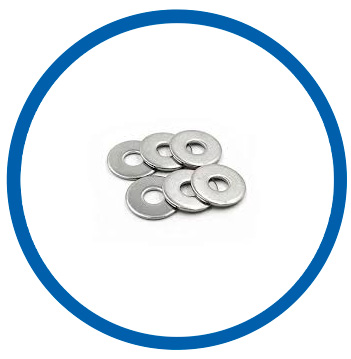

Stainless steel 422 plain washer

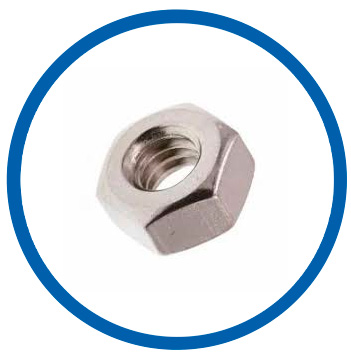

UNS S42200 hex nuts

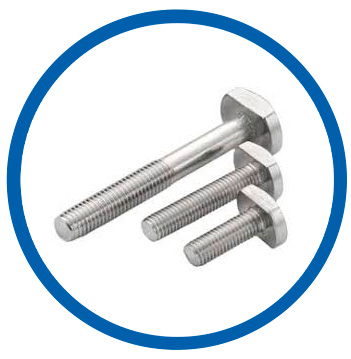

ASTM A276 Type 422 square bolts

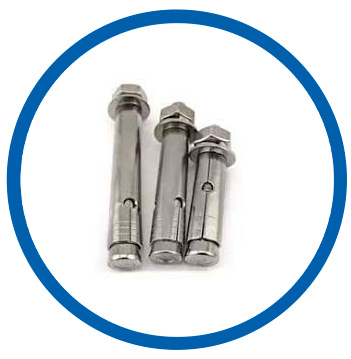

422 SS anchor bolts

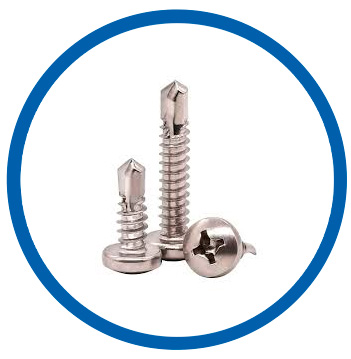

DIN 1.4742 self drilling screws

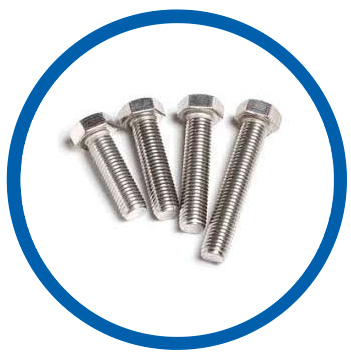

ASTM A276 UNS S42200 heavy hex bolt

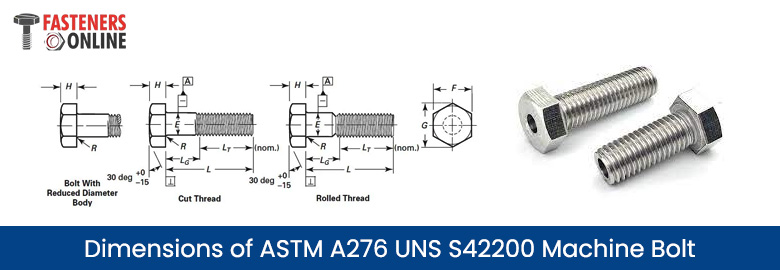

Dimensions of ASTM A276 UNS S42200 Machine Bolt
| Nominal Size or Basic product Diameter (Inches) | Full-Size Body Diameter, E | Radius of Fillet, R | Width Across Corners, G | Width Across Flats, F | Head Height, H | Thread Length for Bolt Lengths, LT | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 inches & Shorter | Over 6 inches | |||||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Basic | Max. | Min. | Basic | Max. | Min. | Nom. | Nom. | |
| 1/4" | 0.26 | 0.237 | 0.03 | 0.01 | 0.505 | 0.484 | 7/16" | 0.438 | 0.425 | 11/64" | 0.188 | 0.15 | 0.75 | 1 |
| 5/16" | 0.324 | 0.298 | 0.03 | 0.01 | 0.577 | 0.552 | 1/2" | 0.5 | 0.484 | 7/32" | 0.235 | 0.195 | 0.875 | 1.125 |
| 3/8" | 0.388 | 0.36 | 0.03 | 0.01 | 0.65 | 0.62 | 9/16" | 0.562 | 0.544 | 1/4" | 0.268 | 0.226 | 1 | 1.25 |
| 7/16" | 0.452 | 0.421 | 0.03 | 0.01 | 0.722 | 0.687 | 5/8" | 0.625 | 0.603 | 19/64" | 0.316 | 0.272 | 1.125 | 1.375 |
| 1/2" | 0.515 | 0.482 | 0.03 | 0.01 | 0.866 | 0.826 | 3/4" | 0.75 | 0.725 | 11/32" | 0.364 | 0.302 | 1.25 | 1.5 |
| 5/8" | 0.642 | 0.605 | 0.06 | 0.02 | 1.083 | 1.033 | 15/16" | 0.938 | 0.906 | 27/64" | 0.444 | 0.378 | 1.5 | 1.75 |
| 3/4" | 0.768 | 0.729 | 0.06 | 0.02 | 1.299 | 1.24 | 1-1/8" | 1.125 | 1.088 | 1/2" | 0.524 | 0.455 | 1.75 | 2 |
| 7/8" | 0.895 | 0.852 | 0.06 | 0.02 | 1.516 | 1.447 | 1-5/16" | 1.312 | 1.269 | 37/64" | 0.604 | 0.531 | 2 | 2.25 |
| 1" | 1.022 | 0.976 | 0.09 | 0.03 | 1.732 | 1.653 | 1-1/2" | 1.5 | 1.45 | 43/64" | 0.7 | 0.591 | 2.25 | 2.5 |
| 1-1/8" | 1.149 | 1.098 | 0.09 | 0.03 | 1.949 | 1.859 | 1-11/16" | 1.688 | 1.631 | 3/4" | 0.78 | 0.658 | 2.5 | 2.75 |
| 1-1/4" | 1.277 | 1.223 | 0.09 | 0.03 | 2.165 | 2.066 | 1-7/8" | 1.875 | 1.812 | 27/32" | 0.876 | 0.749 | 2.75 | 3 |
| 1-3/8" | 1.404 | 1.345 | 0.09 | 0.03 | 2.382 | 2.273 | 2-1/16" | 2.062 | 1.994 | 29/32" | 0.94 | 0.81 | 3 | 3.25 |
| 1-1/2" | 1.531 | 1.47 | 0.09 | 0.03 | 2.598 | 2.48 | 2-1/4" | 2.25 | 2.175 | 1" | 1.036 | 0.902 | 3.25 | 3.5 |
| 1-5/8" | 1.658 | 1.591 | 0.09 | 0.03 | 2.815 | 2.616 | 2-7/16" | 2.438 | 2.356 | 1-3/32" | 1.116 | 0.978 | 3.5 | 3.75 |
| 1-3/4" | 1.785 | 1.716 | 0.12 | 0.04 | 3.031 | 2.893 | 2-5/8" | 2.625 | 2.538 | 1-5/32" | 1.196 | 1.054 | 3.75 | 4 |
| 1-7/8" | 1.912 | 1.839 | 0.12 | 0.04 | 3.248 | 3.099 | 2-13/16" | 2.812 | 2.719 | 1-1/4" | 1.276 | 1.13 | 4 | 4.25 |
| 2" | 2.039 | 1.964 | 0.12 | 0.04 | 3.464 | 3.306 | 3" | 3 | 2.9 | 1-11/32" | 1.388 | 1.175 | 4.25 | 4.5 |
| 2 1/4" | 2.305 | 2.214 | 0.19 | 0.06 | 3.897 | 3.719 | 3-3/8" | 3.375 | 3.262 | 1-1/2" | 1.548 | 1.327 | 4.75 | 5 |
| 2 1/2" | 2.559 | 2.461 | 0.19 | 0.06 | 4.33 | 4.133 | 3-3/4" | 3.75 | 3.625 | 1-21/32" | 1.708 | 1.479 | 5.25 | 5.5 |
| 2-3/4" | 2.827 | 2.711 | 0.19 | 0.06 | 4.763 | 4.546 | 4-1/8" | 4.125 | 3.988 | 1-13/16" | 1.869 | 1.632 | 5.75 | 6 |
| 3" | 3.081 | 2.961 | 0.19 | 0.06 | 5.196 | 4.959 | 4-1/2" | 4.5 | 4.35 | 2" | 2.06 | 1.815 | 6.25 | 6.5 |
| 3-1/4" | 3.335 | 3.21 | 0.19 | 0.06 | 5.629 | 5.372 | 4-7/8" | 4.875 | 4.712 | 2-3/16" | 2.251 | 1.936 | 6.75 | 7 |
| 3-1/2" | 3.589 | 3.461 | 0.19 | 0.06 | 6.062 | 5.786 | 5-1/4" | 5.25 | 5.075 | 2-5/16" | 2.38 | 2.057 | 7.25 | 7.5 |
| 3-3/4" | 3.858 | 3.726 | 0.19 | 0.06 | 6.495 | 6.198 | 5-5/8" | 5.625 | 5.437 | 2-1/2" | 2.572 | 2.241 | 7.75 | 8 |
| 4" | 4.111 | 3.975 | 0.19 | 0.06 | 6.928 | 6.612 | 6" | 6 | 5.8 | 2-11/16" | 2.764 | 2.424 | 8.25 | 8.5 |
| Nominal Size | Dia, D | Threads Per Inch | ||
|---|---|---|---|---|
| 8UN | UNC | UNF | ||
| 1/4 | 0.25 | - | 20 | 28 |
| 5/16 | 0.3125 | - | 18 | 2424 |
| 3/8 | 0.375 | - | 16 | 20 |
| 7/16 | 0.4375 | - | 14 | 20 |
| 1/2 | 0.5 | - | 13 | 1816 |
| 9/16 | 0.5625 | - | 12 | 14 |
| 5/8 | 0.625 | - | 11 | 12 |
| 3/4 | 0.75 | - | 10 | 12 |
| 7/8 | 0.875 | - | 9 | 12 |
| 1 | 1 | - | 8 | 12 |
| 1 1/8 | 1.125 | 8 | 7 | 12 |
| 1 1/4 | 1.25 | 8 | 7 | - |
| 1 3/8 | 1.375 | 8 | 6 | - |
| 1 1/2 | 1.5 | 8 | 6 | - |
| 1 5/8 | 1.625 | 8 | - | - |
| 1 3/4 | 1.75 | 8 | 5 | - |
| 1 7/8 | 1.875 | 8 | - | - |
| 2 | 2 | 8 | 4 1/2 | - |
| 2 1/4 | 2.25 | 8 | 4 1/2 | - |
| 2 1/2 | 2.5 | 8 | 4 | - |
| 2 3/4 | 2.75 | 8 | 4 | - |
| 3 | 3 | 8 | 4 | - |
| 3 1/4 | 3.25 | 8 | 4 | - |
| 3 1/2 | 3.5 | 8 | 4 | - |
| 3 3/4 | 3.75 | 8 | 4 | - |
| 4 | 4 | 8 | 4 | - |
