Nitronic 50 fasteners
Biggest XM-19 Screws Manufacturer in India
Table of Content
Nitronic 50 Fasteners Specification
Nitronic 50 Bolt Sizes
M2 to M24
XM-19 Screw Size
3/6″ to 2″
UNS S20910 Nuts Size
M3 – M56 | 3/6″ to 2″
Alloy 50 Machine Screws Size
M1.6 – M12
ASTM A193 UNS S20910 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO‑15156
DIN 1.3964 Studs Type
Fully or Fine threaded / Double-End / Tap-End
UNS S20910 threaded rod Condition
Threading / Cold Drawn
Origin
Indian / Russian / Korean / European
Nitronic 50 socket head cap screw Threads
BSW / UNF / BSF / METRIC / UNC
DIN 1.3964 hex cap screws Standards
DIN 934, 933, 976, 931, 7991, 125 / ASME B18.2.1, B18.3
Custom Sizes
We are Nitronic 50 Fasteners Manufacturer in India in wide range of diameters.
XM-19 hex bolts Thermal Expansion
15.9 µm/m·°C (20–100 °C)
Nitronic 50 fasteners Length
3 mm to 200 mm
23Cr13Ni5MN flat washer Specific Heat
500 J/kg·K
Manufacturing Technique
CNC Machined / Cold forging / Hot forging
DIN 1.3964 Screws Thread Pitch
Coarse Threads / Fine Threads
ASTM A193 UNS S20910 Hex Nuts Finish
Phosphating / Passivation / HDG
Packaging
- Wooden Pallet
- Carton Box
- Wooden Cases
- Blister Packs
Value Added Services
- Head Painting
- Laser Etching
- Color Coding
- Head Shank Drilling
Certificate
- 100% Radiography Test
- UT and PMI Test
- Raw Materials Certificate
- EN 10204/3.1B
Nitronic 50 Bolt Drive Style
- Hex
- Pan
- Truss
- Round
- Oval
- Torx
- Cross
WNR 1.3964 screws Thread Class
- Class 3A (Tight fit)
- 5 ONF
- Class 2A (Medium fit)
- 4G
- Class 1A (Loose fit)
- 3G
- 2G
XM-19 hex head bolts Head Types
- Phillips Drive
- Button head
- Socket cap head
- Slotted hex washer
- Hex washer head
- Slotted Drive
- Flat
Alloy 50 Bolts and Nuts are highly corrosion resistive and have excellent fatigue strength
Why buy Alloy 50 bolts from us?
Nitronic 50 Fasteners Price List
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| M8 x 100mm Alloy 50 Hex Head Bolt | US $4.33 | 15.90 AED | € 3.71 |
| M5 x 10mm Nitronic 50 Cap Screws | US $1.44 | 5.29 AED | € 1.23 |
Check Nitronic 50 XM-19 studs dimensions and sizes
Temperature range of UNS S20910 Threaded Rod
| Condition | Temperature Range |
|---|---|
| Cryogenic | -200°C |
| Continuous High Temp | Up to 600–675°C |
XM 19 Stainless Steel Hex Screw contains upto 20% chromium
Alloy 50 Stud bolts chemical composition
Carbon
0.06 (Max.)
Manganese
4.00-6.00
Sulphur
0.03 (Max)
Phosporous
0.045
Silicon
1.00 (max)
Nickel
11.5-13.5
Chromium
20.5-23.5
Molybdenum
1.50-3.00
Niobium
0.10-0.30 (max)
Vanadium
0.10-0.30
Nitrogen
0.20-0.40
DIN 1.3964 Screws mechanical properties
Tensile Strength
900 MPa
Yield Strength
590 MPa
Reduction of Area
55% min
Elongation
35% min
Nitronic 50 bolts physical properties
| Density | Thermal expansion co-efficient (@25.6-93.3°C/78-200°F) |
|---|---|
| 7.89 g/cm3 | 16.2 µm/m°C |
Nitronic 50 fasteners equivalent
| Grade | Alloy Name | UNS | WNR |
|---|---|---|---|
| Nitronic 50 | XM-19 | S20910 | 1.3964 |
Heat Treatment of Nitronic 50 Hex Nuts
| Heat Treatment | 1093°C (2000°F) |
|---|
Supplier of DIN 1.3964 heavy hex nut in different finish and threads
Various types of Nitronic 50 Fasteners

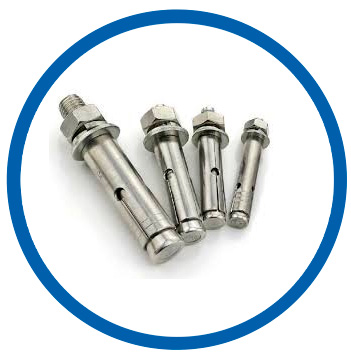

Nitronic 50 anchor bolts
Alloy 50 heavy hex bolt

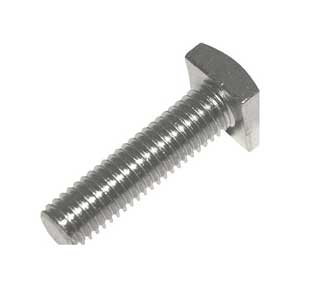

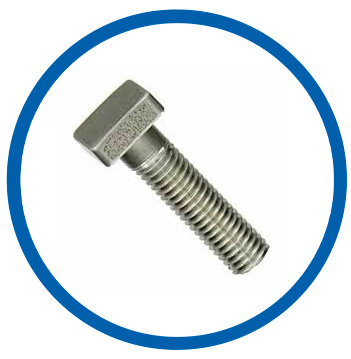

ASTM A193 UNS S20910 square bolts

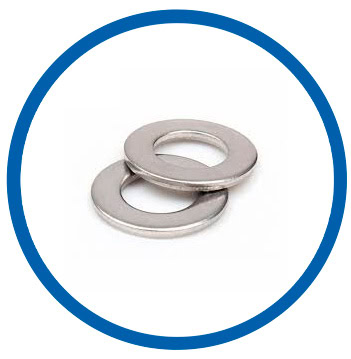

XM-19 plain washer

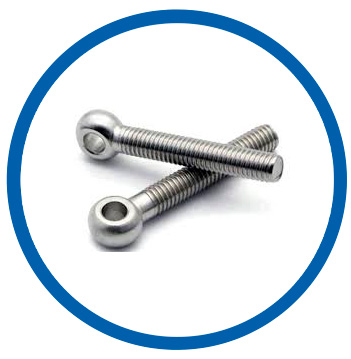

UNS S20910 eye bolts

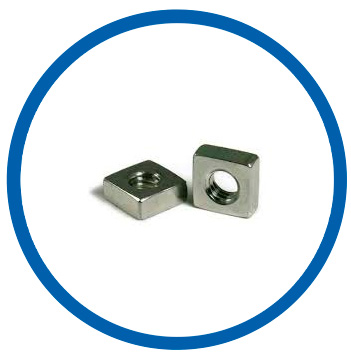

Nitronic 50 square nut

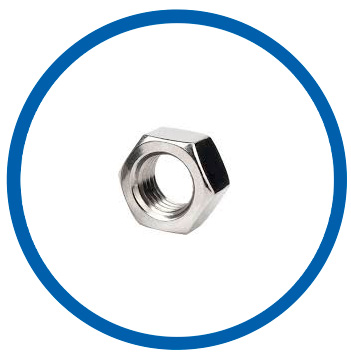

DIN 1.3964 hex nuts

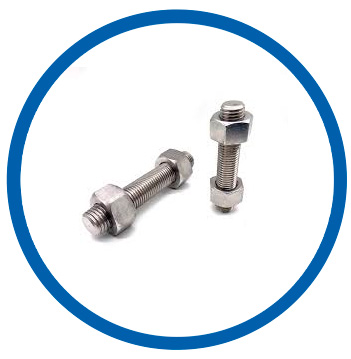

Nitronic 50 stud bolt

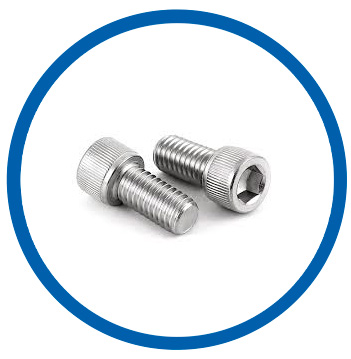

DIN 1.3964 hex cap screws

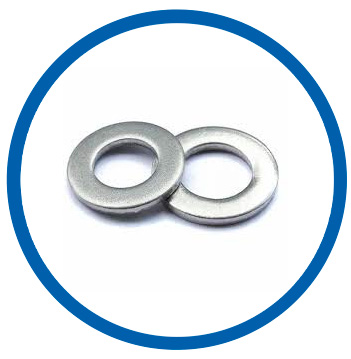

23Cr13Ni5MN flat washer

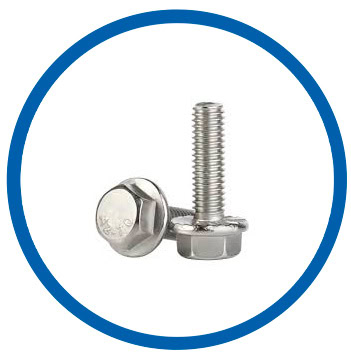

XM-19 hex bolts

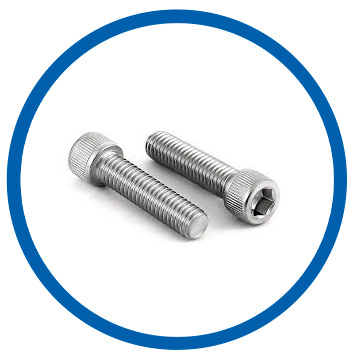

Nitronic 50 socket head cap screw

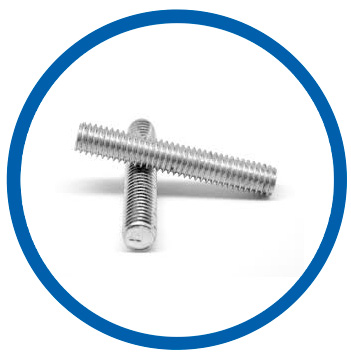

UNS S20910 threaded rod

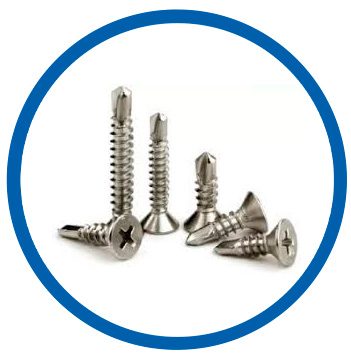

ASTM A193 UNS S20910 self drilling screws

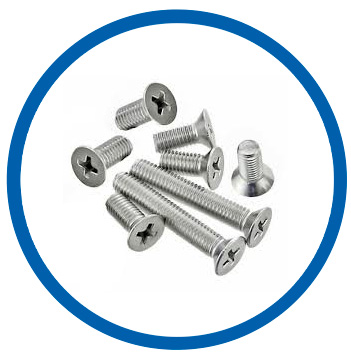

Alloy 50 machine screws
| Sizes | Outside Diameter (B) | Inside Diameter (A) | Thickness© |
|---|---|---|---|
| #2 | 1/4" | 3/32" | 0.020" |
| #4 | 5/16" | 1/8" | 0.032" |
| #6 | 3/8" | 5/32" | 0.049" |
| #8 | 7/16" | 3/16" | 0.049" |
| #10 | 1/2" | 7/32" | 0.049" |
| #12 | 9/16" | 1/4" | 0.065" |
| 1/4" | 5/8" | 9/32" | 0.065" |
| 5/16" | 11/16" | 11/32" | 0.065" |
| 3/8" | 13/16" | 13/32" | 0.065" |
| 7/16" | 15/16" | 15/32" | 0.065" |
| 1/2" | 1-1/16" | 17/32" | 0.095" |
| 9/16" | 1-5/32" | 19/32" | 0.095" |
| 5/8" | 1-5/16" | 21/32" | 0.095" |
| 3/4" | 1-15/32" | 13/16" | 0.134" |
| 7/8" | 1-3/4" | 15/16" | 0.134" |
| 1" | 2" | 1-1/16" | 0.134" |

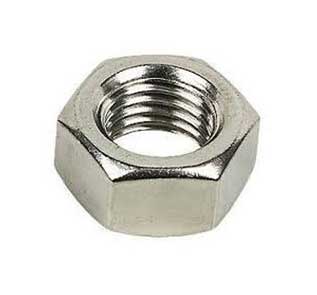

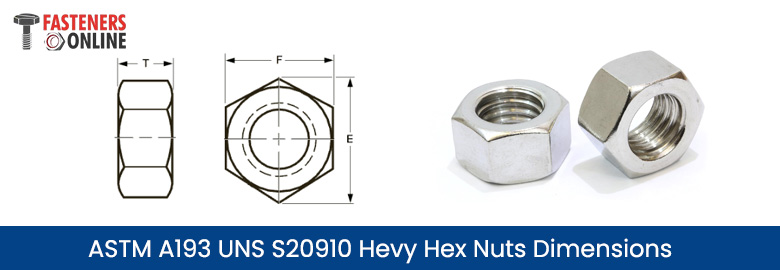

ASTM A193 UNS S20910 Hevy hex nuts dimensions
| Nut Size | Thread Pitch | E (Width Across Corners) |
F (Width Across Flats) |
T (Height of the Nut) |
||
|---|---|---|---|---|---|---|
| min. | min. | max. | min. | max. | ||
| M1.6 | 0.35 | 3.41 | 3.02 | 3.2 | 1.05 | 1.3 |
| M2 | 0.4 | 4.32 | 3.82 | 4 | 1.35 | 1.6 |
| M2.5 | 0.45 | 5.45 | 4.82 | 5 | 1.75 | 2 |
| M3 | 0.5 | 6.01 | 5.32 | 5.5 | 2.15 | 2.4 |
| M3.5 | 0.6 | 6.58 | 5.82 | 6 | 2.55 | 2.8 |
| M4 | 0.7 | 7.66 | 6.78 | 7 | 2.9 | 3.2 |
| M5 | 0.8 | 8.79 | 7.78 | 8 | 4.4 | 4.7 |
| M6 | 1 | 11.05 | 9.78 | 10 | 4.9 | 5.2 |
| M8 | 1.25 | 14.38 | 12.73 | 13 | 6.44 | 6.8 |
| M10 | 1.5 | 17.77 | 15.73 | 16 | 8.04 | 8.4 |
| M12 | 1.75 | 20.03 | 17.73 | 18 | 10.37 | 10.8 |
| M14 | 2 | 23.36 | 20.67 | 21 | 12.1 | 12.8 |
| M16 | 2 | 26.75 | 23.67 | 24 | 14.1 | 14.8 |
| M18 | 2.5 | 29.56 | 26.16 | 27 | 15.1 | 15.8 |
| M20 | 2.5 | 32.95 | 29.16 | 30 | 16.9 | 18 |
| M22 | 2.5 | 37.29 | 33 | 34 | 18.1 | 19.4 |
| M24 | 3 | 39.55 | 35 | 36 | 20.2 | 21.5 |
Application of XM-19 Fasteners
