Hastelloy C276 Fasteners
Alloy C276 Bolts Manufacturer in India
Comparison of Hastelloy C276 fasteners with stainless steel or Inconel fasteners
| Property | Hastelloy C276 | Inconel 625 | 316 SS |
|---|---|---|---|
| Corrosion Resistance | Exceptional | Excellent | Moderate |
| Max Temp (°C) | 1040 | 980 | 870 |
| Cost | High | High | Low |
| Stress Corrosion Cracking Resistance | Excellent | Excellent | Limited |
Table of Content
Hastelloy C276 Fasteners Specification
UNS N10276 Bolt Sizes
M2 to M24
Nickel C276 Screw Size
3/6″ to 2″
Alloy C276 Nuts Size
M3 – M56 | 3/6″ to 2″
Hastelloy C276 Washers Size
M3 – M56 | 3/6″ to 2″
WNR 2.4819 Machine Screws Size
M1.6 – M12
ISO Standard
ISO 4014
Nickel C276 fasteners Length
3 mm to 200 mm
Ni C276 flange lock nut Thermal Expansion
11.2 µm/m·°C
WNR 2.4819 screw Melting Point
1325–1370 °C
Hastelloy Alloy C276 Threaded Rod and Studs Standards
DIN 933, 931, 934, 976, 7991, 125 / ASME B18.2.1, B18.3
ASME SB574 UNS N10276 Heavy Hex Bolts Threads
BSF / BSW / METRIC / UNF / UNC
Custom Sizes
We are top notch Hastelloy C276 Fasteners Manufacturer in India in ASTM B574 Standards.
Alloy C276 Studs Type
Fully or Fine threaded / Double-End / Tap-End
Nickel C276 machine screws Condition
Threading / Cold Drawn
Origin
Korean / Indian / European / Russian
Manufacturing Technique
CNC Machined / Cold forging / Hot forging
ASTM B574 UNS N10276 nuts Finish
Passivation / HDG / Phosphating
B574 UNS N10276 Screws Thread Pitch
Coarse Threads / Fine Threads
NW 0276 hex head bolts Head Types
- Slotted Drive
- Slotted hex washer
- Flat
- Phillips Drive
- Button head
- Hex washer head
- Socket cap head
EN 2.4819 Bolt Drive Style
- Pan
- Oval
- Cross
- Torx
- Hex
- Truss
- Round
Haynes Alloy C276 screws Thread Class
- 2G
- Class 1A (Loose fit)
- 3G
- Class 2A (Medium fit)
- 5 ONF
- 4G
- Class 3A (Tight fit)
Certificate
- Raw Materials Certificate
- EN 10204/3.1B
- UT and PMI Test
- 100% Radiography Test
Packaging
- Blister Packs
- Wooden Pallet
- Carton Box
- Wooden Cases
Value Added Services
- Head Painting
- Head Shank Drilling
- Laser Etching
- Color Coding
View UNS N10276 Nuts Threads and Finish, Supplier of Nickel 825 Anchor bolts
Nickel C276 Bolts Manufacturing Range
| Metric Sizes | Imperial Sizes | Length | Thread Type | Standards | Finish |
|---|---|---|---|---|---|
| M6 to M100 | 1/4" to 4" | 10 mm to 1000 mm | Metric UNC UNF BSW |
ASTM B574 DIN 933 ISO 4014 ASME B18.2.1 |
Plain Bright polished Shot blasted |
Fastener online is trusted Hastelloy C276 Fasteners manufacturer in India which we supply in chemical, petrochemical, and oil & gas industries in different types and lengths.
Hastelloy C276 fasteners price
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 0.375 IN X 1.5IN length Alloy C276 Hex Bolts | US $3.79 | 13.92 AED | € 3.34 |
| M16-2.0P X 65MM DIN 933 Nickel C276 Hex Bolts | US $4.98 | 18.29 AED | € 4.39 |
| M10 X100MM UNS N010276 Hex Nuts | US $8.07 | 29.64 AED | € 7.11 |
For complete price list of Hastelloy C276 Fasteners, Contact us on sales@rishabhsteelindustries.com. We are Alloy C276 Nuts and Bolts stockist and supplier in 1/4" to 4" Size Range
Alloy C276 Nuts Chemical composition
Nickel
57
Molybdenum
15-17
Chromium
14.5-16.5
Tungsten
3-4.50
Cobalt
2.50
Manganese
1
Vanadium
0.35
Silicon
0.080
Phosphorous
0.025
Carbon
0.010
Sulfur
0.010
Ni C276 Washer Mechanical properties
Tensile Strength
500 - 700 MPa
Proof Stress
190 MPa
Hardness
215 Max HB
Elongation
45 % Min
Nickel Alloy C276 Threaded Rod equivalent
| STANDARD | JIS | UNS | WERKSTOFF NR. | EN | GOST | OR |
|---|---|---|---|---|---|---|
| Hastelloy C276 | NW 0276 | N10276 | 2.4819 | NiMo16Cr15W | ХН65МВУ | ЭП760 |
Hastelloy C276 Screws Physical properties
| Coefficient of Expansion | Density | Modulus of Rigidity | Melting Point | Modulus of Elasticity |
|---|---|---|---|---|
| 11.2 μm/m °C (20 – 100 °C) | 8.89 g/cm³ | 78.6 kN/mm² | 1370 °C | 205.5 kN/mm² |
Alloy C276 Fasteners Thermal Properties
| Properties | Metric |
|---|---|
| Thermal conductivity (-168 °C) | 7.20 W/mK |
| Thermal expansion co-efficient (@24-93°C/75.2-199°F) | 11.2 µm/m°C |
Heat Treatment of ASTM B574 UNS N10276 Studs
| Heat Treatment | 1121°C (2050°F) |
|---|
Advantages of buying Hastelloy C276 Fasteners from us
We keep ready stock of Nickel Alloy C276 Stud Bolts and Nuts in size range of M8- M64

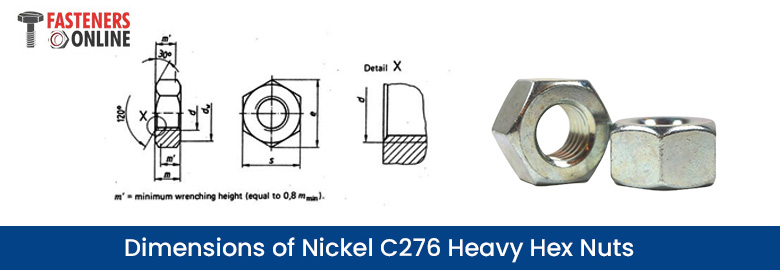

Dimensions of Nickel C276 Heavy Hex Nuts
| Thread size d | dw, Min. | p | e, Min | m, Min. | s | m | ||
| Nominal Size = Max | Min | Nominal Size = Max | Min | |||||
| M 12 | 20 | 1.75 | 23.91 | 7.71 | 22 | 21.16 | 10 | 9.64 |
| M 16 | 25 | 2 | 29.56 | 9.84 | 27 | 26.16 | 13 | 12.3 |
| M 20 | 30 | 2.5 | 35.03 | 11.92 | 32 | 31 | 16 | 14.9 |
| M 22 | 34 | 2.5 | 39.55 | 13.52 | 36 | 35 | 18 | 16.9 |
| M 24 | 39 | 3 | 45.2 | 14.16 | 41 | 40 | 19 | 17.7 |
| M 27 | 43.5 | 3 | 50.85 | 16.56 | 46 | 45 | 22 | 20.7 |
| M 30 | 47.5 | 3.5 | 55.37 | 18.16 | 50 | 49 | 24 | 22.7 |
| M 36 | 57 | 4 | 66.44 | 22.16 | 60 | 58.8 | 29 | 27.7 |
| Square Washer (MM) | Hole Diameter (MM) | Thickness (MM) | Weight (Gram) |
|---|---|---|---|
| 30 x 30 | 9 - 14 | 3.0 | 20 |
| 32 X 32 | 9 - 14 | 3.0 | 24 |
| 32 X 32 | 9 - 14 | 4.5 | 32 |
| 38 X 38MNM | 11 - 18 | 3.0 | 35 |
| 38 X 38MNM | 11 - 18 | 4.5 | 45 |
| 38 X 38MNM | 11 - 18 | 6.0 | 68 |
| 50 X 50 | 13 - 22 | 3.0 | 40 |
| 50 X 50 | 13 - 22 | 4.5 | 85 |
| 50 X 50 | 13 - 22 | 6.0 | 100 |
| 65 X 65 | 17 - 26 | 4.5 | 140 |
| 65 X 65 | 17 - 26 | 6.0 | 180 |
| 75 X 75 | 17 - 26 | 4.5 | 180 |
| 75 X 75 | 17 - 26 | 6.0 | 240 |

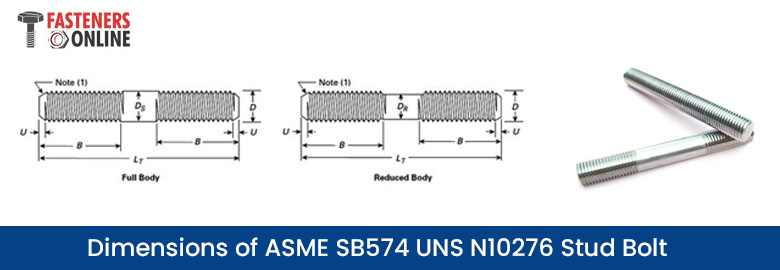

Dimensions of ASME SB574 UNS N10276 Stud Bolt
| Nominal Size | Diameter, D | Nut End Minimum Full Thread Length, Bmin | Umax = 2 Thread Pitches | ||||
|---|---|---|---|---|---|---|---|
| L > 16 | 10 > L ≤ 16 | L ≤ 10 | 8UN Threads | UNF Threads | UNC Threads | ||
| 1/4 | 0.25 | 1.5 | 1 | 0.75 | -- | 0.071 | 0.1 |
| 5/16 | 0.3125 | 1.625 | 1.125 | 0.875 | -- | 0.083 | 0.111 |
| 3/8 | 0.375 | 1.75 | 1.25 | 1 | -- | 0.083 | 0.125 |
| 7/16 | 0.4375 | 1.875 | 1.375 | 1.125 | -- | 0.1 | 0.143 |
| 1/2 | 0.5 | 2 | 1.5 | 1.25 | -- | 0.1 | 0.154 |
| 9/16 | 0.5625 | 2.125 | 1.625 | 1.375 | -- | 0.111 | 0.167 |
| 5/8 | 0.625 | 2.25 | 1.75 | 1.5 | -- | 0.111 | 0.182 |
| 3/4 | 0.75 | 2.5 | 2 | 1.75 | -- | 0.125 | 0.2 |
| 7/8 | 0.875 | 2.75 | 2.25 | 2 | -- | 0.143 | 0.222 |
| 1 | 1 | 3 | 2.5 | 2.25 | -- | 0.167 | 0.25 |
| 1 1/8 | 1.125 | 3.25 | 2.75 | 2.5 | 0.25 | 0.167 | 0.286 |
| 1 1/4 | 1.25 | 3.5 | 3 | 2.75 | 0.25 | 0.167 | 0.286 |
| 1 3/8 | 1.375 | 3.75 | 3.25 | 3 | 0.25 | 0.167 | 0.333 |
| 1 1/2 | 1.5 | 4 | 3.5 | 3.25 | 0.25 | 0.167 | 0.333 |
| 1 5/8 | 1.625 | 4.25 | 3.75 | 3.5 | 0.25 | -- | -- |
| 1 3/4 | 1.75 | 4.5 | 4 | 3.75 | 0.25 | -- | 0.4 |
| 1 7/8 | 1.875 | 4.75 | 4.25 | 4 | 0.25 | -- | -- |
| 2 | 2 | 5 | 4.5 | 4.25 | 0.25 | -- | 0.444 |
| 2 1/4 | 2.25 | 5.5 | 5 | 4.75 | 0.25 | -- | 0.444 |
| 2 1/2 | 2.5 | 6 | 5.5 | 5.25 | 0.25 | -- | 0.5 |
| 2 3/4 | 2.75 | 6.5 | 6 | 5.75 | 0.25 | -- | 0.5 |
| 3 | 3 | 7 | 6.5 | -- | 0.25 | -- | 0.5 |
| 3 1/4 | 3.25 | 7.5 | 7 | -- | 0.25 | -- | 0.5 |
| 3 1/2 | 3.5 | 8 | 7.5 | -- | 0.25 | -- | 0.5 |
| 3 3/4 | 3.75 | 8.5 | 8 | -- | 0.25 | -- | 0.5 |
| 4 | 4 | 9 | 8.5 | -- | 0.25 | -- | 0.5 |
Weight Chart of EN 2.4819 Socket Head Cap Screws
| Diameter | M24 | M22 | M20 | M18 | M16 | M14 | M12 | M10 | M8 | M6 | M5 | M4 | M3 | M2.5 | M2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | |||||||||||||||
| 3 | 0.155 | ||||||||||||||
| 4 | 0.345 | 0.175 | |||||||||||||
| 5 | 0.7 | 0.375 | 0.195 | ||||||||||||
| 6 | 1.5 | 0.7 | 0.405 | 0.215 | |||||||||||
| 8 | 2.5 | 1.7 | 0.8 | 0.465 | 0.255 | ||||||||||
| 10 | 4.7 | 2.7 | 1.8 | 0.9 | 0.525 | 0.295 | |||||||||
| 12 | 10.9 | 5.1 | 3 | 2 | 1 | 0.585 | 0.355 | ||||||||
| 16 | 20.9 | 12.1 | 5.8 | 3.5 | 2.3 | 1.2 | 0.705 | 0.415 | |||||||
| 20 | 32.1 | 22.9 | 13.4 | 6.5 | 4 | 2.7 | 1.4 | 0.825 | 0.495 | ||||||
| 25 | 71.3 | 48 | 35.7 | 25.4 | 15 | 7.6 | 4.8 | 3.2 | 1.6 | 0.975 | |||||
| 30 | 128 | 111 | 77.8 | 53 | 39.3 | 27.9 | 16.9 | 8.3 | 5.6 | 3.7 | 1.9 | ||||
| 35 | 211 | 139 | 120 | 84.4 | 58 | 42.9 | 30.4 | 18.9 | 9.9 | 6.3 | 4.2 | ||||
| 40 | 270 | 224 | 150 | 129 | 91 | 63 | 46.5 | 32.9 | 20.9 | 11 | 7.1 | 4.7 | |||
| 45 | 285 | 237 | 161 | 138 | 97.6 | 68 | 50.1 | 36.1 | 22.9 | 12.1 | 7.9 | ||||
| 50 | 300 | 250 | 172 | 147 | 106 | 73 | 54.5 | 39.3 | 24.9 | 13.2 | 8.6 | ||||
| 55 | 316 | 263 | 183 | 156 | 114 | 78 | 58.9 | 42.5 | 26.9 | 14.3 | |||||
| 60 | 330 | 276 | 194 | 165 | 122 | 84 | 63.4 | 45.7 | 28.9 | 15.4 | |||||
| 65 | 345 | 291 | 205 | 174 | 130 | 90 | 67.8 | 48.9 | 31 | ||||||
| 70 | 363 | 306 | 216 | 183 | 138 | 96 | 71.3 | 52.1 | 33 | ||||||
| 80 | 399 | 336 | 241 | 203 | 154 | 108 | 80.2 | 58.5 | 37 | ||||||
| 90 | 435 | 366 | 266 | 223 | 170 | 120 | 89.1 | 64.9 | |||||||
| 100 | 471 | 396 | 291 | 243 | 186 | 132 | 98 | 71.2 | |||||||
| 110 | 507 | 426 | 316 | 263 | 202 | 144 | 107 | ||||||||
| 120 | 543 | 456 | 341 | 283 | 218 | 156 | 116 | ||||||||
| 130 | 579 | 486 | 366 | 303 | 234 | 168 | |||||||||
| 140 | 615 | 516 | 391 | 323 | 250 | 180 | |||||||||
| 150 | 651 | 546 | 416 | 343 | 266 | ||||||||||
| 160 | 687 | 576 | 441 | 363 | 282 | ||||||||||
| 180 | 759 | 636 | 491 | 403 | |||||||||||
| 200 | 831 | 696 | 541 | ||||||||||||
| 220 | 903 | 756 | |||||||||||||
| 240 | 975 |
Is Hastelloy C276 Bolts Magnetic?
No, Hastelloy C276 bolts are non-magnetic.
Purchase WNR 2.4819 Threaded Rods and EN 2.4819 heavy hex nuts at factory price directly from manufacturer
DIN 2.4819 Screw Material Testing
Nickel C276 Machine Screws widely used for Refinery Plant, Exporter and Distributor of C276 Hastelloy Heavy Hex Bolt
Performance of C276 Hastelloy Heavy Hex Bolt in different media
| Media | Performance |
|---|---|
| Acidic Media | Excellent resistance pitting and crevice corrosion |
| Chloride Solutions | Exceptional resistance to SSC |
| High Temperature Environments | Superior resistance to oxidation |
| Organic Solvents | Resists organic acids |
| Hydrogen Sulfide | Excellent resistance to corrosion |

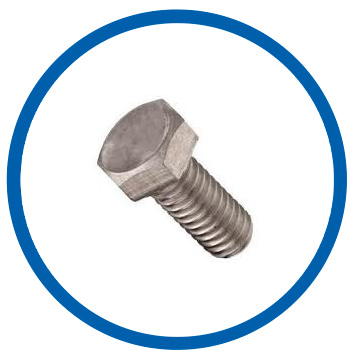

DIN 2.4819 heavy hex bolt
Hastelloy 2.4819 square bolts

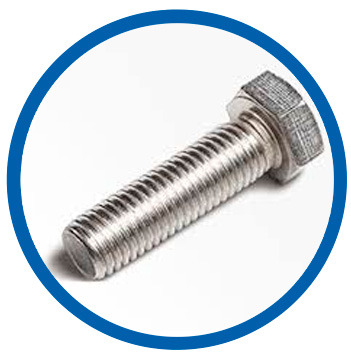

Hastelloy C276 bolts

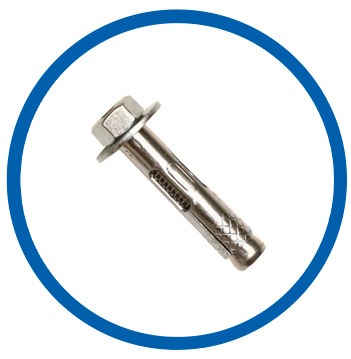

Alloy C276 anchor bolts

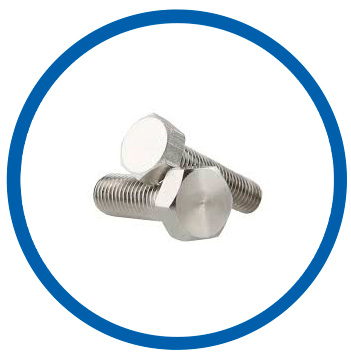

Nickel alloy C276 hex bolts

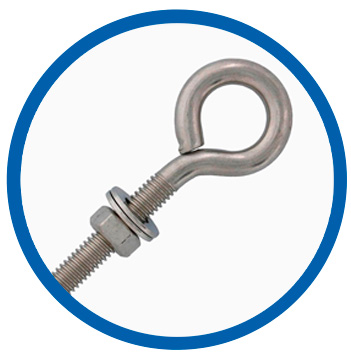

Hastelloy alloy C276 eye bolts

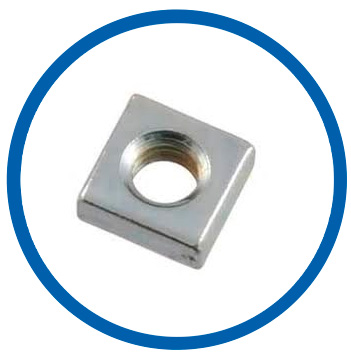

Alloy Hastelloy C276 square nut

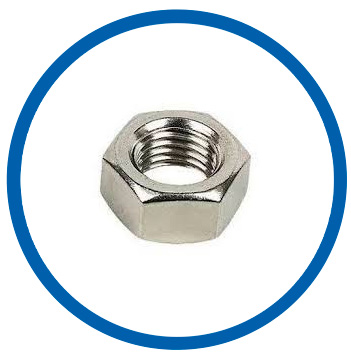

ASTM B574 UNS N10276 nuts
Nickel C276 hex nuts

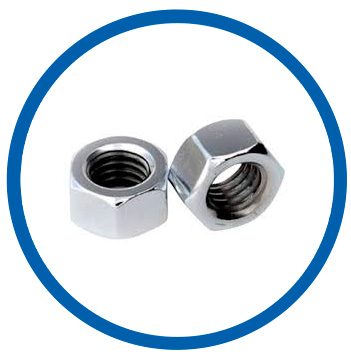

EN 2.4819 heavy hex nuts

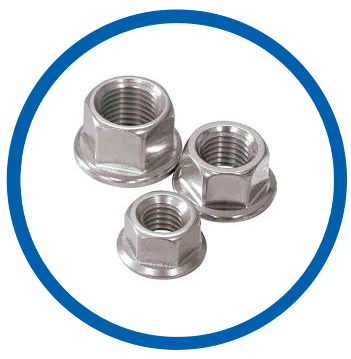

Ni C276 flange lock nut

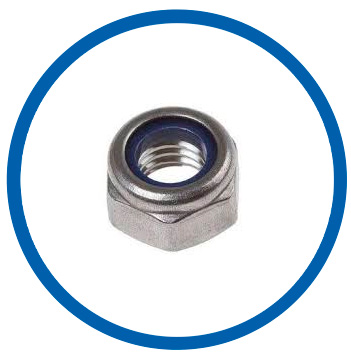

UNS N10276 lock nut
Types of Hastelloy C276 Screws

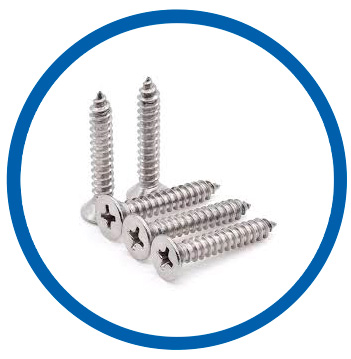

C276 Hastelloy self tapping screws

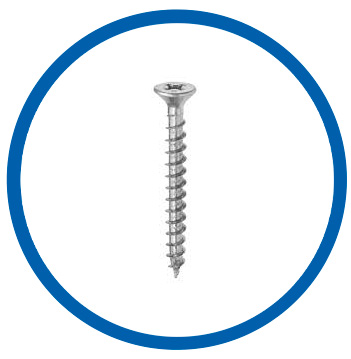

ASME SB574 UNS N10276 wood screws

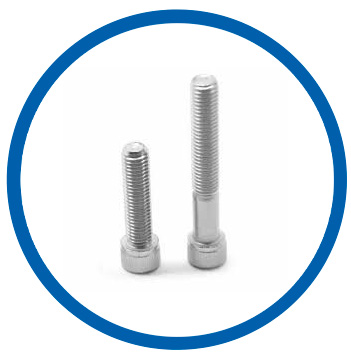

NW 0276 socket cap screws

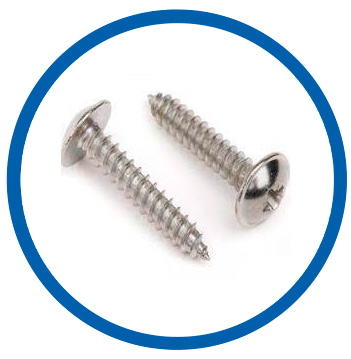

WNR 2.4819 screw

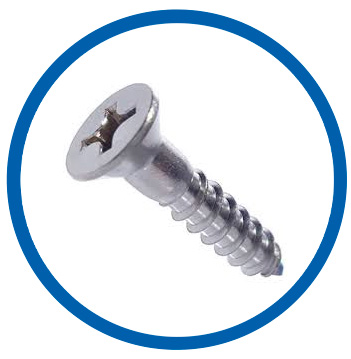

B574 UNS N10276 self drilling screws
Nickel C276 machine screws

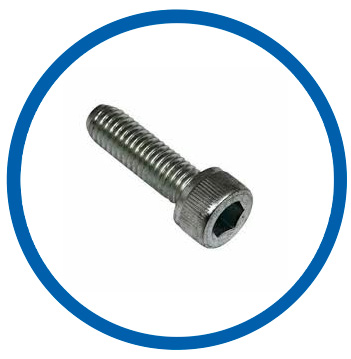

Haynes Alloy C276 hex cap screws

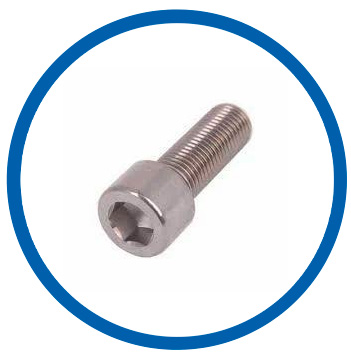

Alloy C276 socket head cap screw
Types of Hastelloy C276 Washers

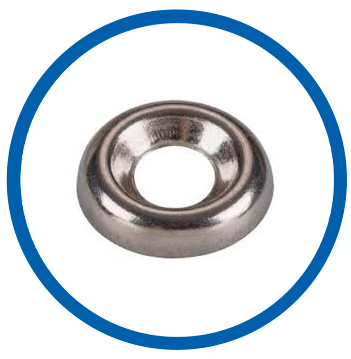

B574 UNS N10276 countersunk washer

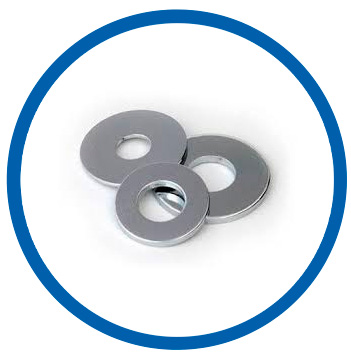

Alloy C276 washer

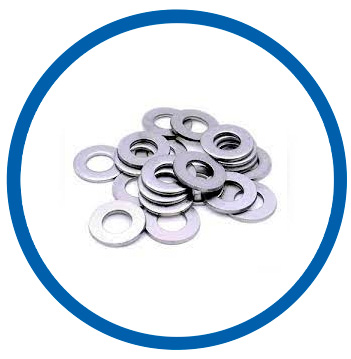

Hastelloy alloy C276 flat washer

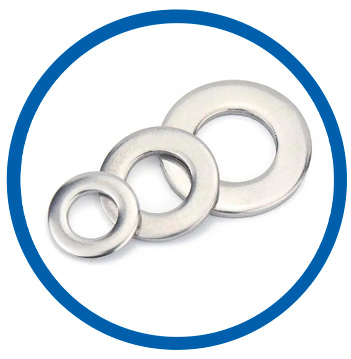

Haynes Alloy C276 plain washer

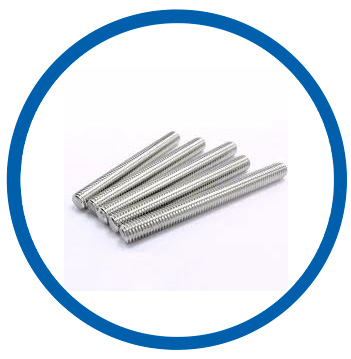

C276 Hastelloy threaded stud

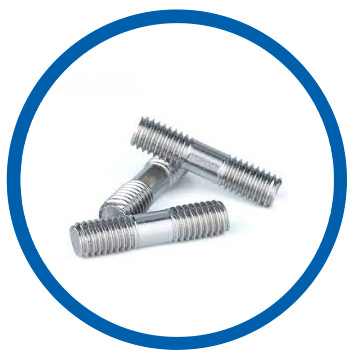

Nickel C276 studs

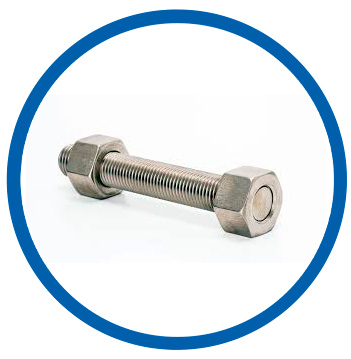

NW 0276 stud bolt

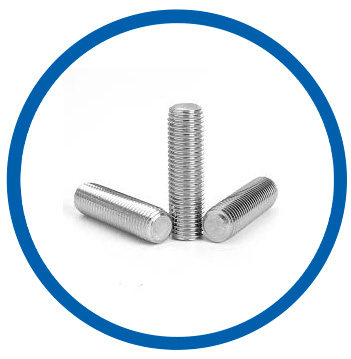

Ni C276 fully threaded studs

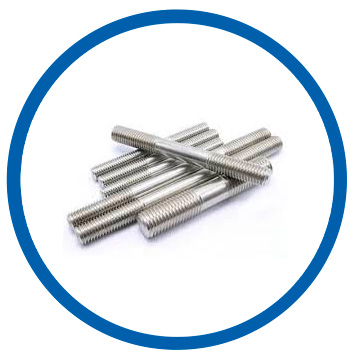

Alloy Hastelloy C276 threaded rod

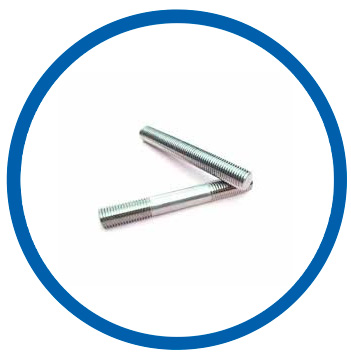

Alloy C276 double end stud bolts
Application of ASTM B574 UNS N10276 Hex Nuts
