Hastelloy C22 Fasteners Manufacturer in India
Buy ASTM B574 UNS N06022 Fasteners at factory price in different sizes
If you are looking to buy Hastelloy C22 fasteners from a reliable source in India, you have landed in the right place. Fasteners Online is a leading manufacturer and supplier of UNS N06022 fasteners based in Mumbai, offering the complete range Hastelloy C22 hex bolts, heavy hex nuts, stud bolts, threaded rods, washers, and screws at competitive factory prices. Every piece we supply comes with EN 10204 3.1 / 3.2 mill test certificates, NACE MR0175 compliance, and full material traceability, so your quality documentation is never a concern.
Buyers choose Hastelloy C22 Hex Bolts when the job demands resistance to both oxidising and reducing acids, wet chlorine, and pitting in aggressive chemical environments. It performs where standard stainless steel and even some other nickel alloys fall short which is why it is widely used in chemical processing, pharmaceutical, offshore, and marine applications. As a stockist of ASTM B574 UNS N06022 Nuts with ready inventory in sizes from M3 to M80, we make sure your procurement timeline is not held up by long production lead times. Whether you need a small trial lot or a bulk project quantity, we supply both.
We are an active exporter of Alloy C22 fasteners to Saudi Arabia, UAE, Oman, Qatar, Nigeria, Malaysia, and across the MENA and Southeast Asia region. Procurement teams and EPC contractors across India and worldwide reach out to us directly for price lists, material certificates, and delivery schedules. Contact Fasteners Online today for your requirement share your size, quantity, and standards, and we will get back to you with a quote within 24 hours.
Table of Content
Hastelloy C22 Fasteners Specification
Nickel C22 Nuts Size
M3 – M56 | 3/6″ to 2″
UNS N06022 Bolt Sizes
M2 to M24
DIN 2.4602 Screw Size
3/6″ to 2″
Hastelloy C22 Machine Screws Size
M1.6 – M12
NW 6022 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 15156‑3
ASTM B574 UNS N06022 anchor bolts Condition
Threading / Cold Drawn
Nickel C22 Studs Type
Tap-End / Double-End / Fully or Fine threaded
Origin
Russian / Korean / Indian / European
Alloy C22 square bolts Thermal Conductivity
9.0 W/m·K (at 20 °C)
Hastelloy C22 fasteners Length
3 mm to 200 mm
NW 6022 threaded rod Thermal Expansion
12.9 µm/m·°C (20–100 °C)
Custom Sizes
We are Manufacturer of Hastelloy C22 Fasteners in India in custom finish and sizes.
ASTM B574 UNS N06022 Self Drilling Screws Threads
UNF / BSF / BSW / METRIC / UNC
Nickel alloy C22 fully threaded studs Standards
DIN 976, 931, 933, 7991, 934, 125 / ASME B18.2.1, B18.3
Alloy C22 Screws Thread Pitch
Coarse Threads / Fine Threads
Hastelloy C22 heavy hex nuts Finish
Passivation / Phosphating / HDG
Manufacturing Technique
Hot forging / Cold forging / CNC Machined
Packaging
- Blister Packs
- Carton Box
- Wooden Cases
- Wooden Pallet
Certificate
- EN 10204/3.1B
- 100% Radiography Test
- UT and PMI Test
- Raw Materials Certificate
Value Added Services
- Head Shank Drilling
- Color Coding
- Head Painting
- Laser Etching
C22 Hastelloy hex head bolts Head Types
- Hex washer head
- Phillips Drive
- Flat
- Socket cap head
- Button head
- Slotted hex washer
- Slotted Drive
NW 6022 screws Thread Class
- Class 2A (Medium fit)
- 2G
- 3G
- Class 1A (Loose fit)
- 4G
- 5 ONF
- Class 3A (Tight fit)
Nickel C22 Bolt Drive Style
- Round
- Oval
- Cross
- Pan
- Truss
- Hex
- Torx
As a Hastelloy C22 fasteners manufacturer in India, Fasteners Online produces the complete range of UNS N06022 bolts, nuts, stud bolts, washers, and threaded rods from our Mumbai facility.
Nickel C22 Studs Manufacturing Range
| Diameters | Length | Manufacturing Process | Standards | Thread Types | Service temperature |
|---|---|---|---|---|---|
| M3 to M80 | 3 mm to 200 mm | Cold forged Hot forged CNC machined |
ASTM B574 NACE MR0175 |
Metric coarse/fine UNF UNC BSF BSW |
up to ~400 °C (750 °F) |
Refer Nickel C22 Hex Nut Price list
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| M10 x 40mm Hastelloy C22 Hex Bolt, UNF | US $8.80 | 32.32 AED | € 7.54 |
| M8 x 50mm Nickel C22 Socket Head Cap Screws, UNC | US $9.69 | 35.59 AED | € 8.30 |
If you are looking to buy UNS N06022 bolts and nuts at factory price, sourcing directly from us means you skip the trader margin and get better value on every order. We stock ASTM B574 UNS N06022 fasteners for sale in sizes from M3 to M80, covering most project requirements without waiting on custom production runs.
Supplier of Alloy C22 Threaded Rod in size range of 1/2 to 24 inch
C22 Hastelloy hex bolts Chemical composition
Chromium
20-22.5
Molybdenum
12.5-14.5
Tungsten
2.5-3.5
Cobalt
2.5 min
Iron
2-6
Manganese
0.5 max
Vanadium
0.35 min
Silicon
0.08 max
Phosphorus
0.02 max
Sulfur
0.02 max
Carbon
0.015 max
Nickel
50 Min
UNS 6022 socket head cap screw Mechanical properties
Tensile Strength
793 MPa
Yield Strength
379 MPa
Hardness
160-230 Max HB
Elongation
60 % Min
| STANDARD | UNS | WNR | EN | JIS |
|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 |
DIN 2.4602 Stud bolts and Nuts have superior resistance to pitting
DIN 2.4602 studs Physical properties
| Density | Melting point | Elastic modulus | Thermal conductivity |
|---|---|---|---|
| 8.69 g/cm³ | 1399°C | 206 MPa | 11.1 W/mK |
View Dimensions and Weight of UNS N06022 Machine bolts

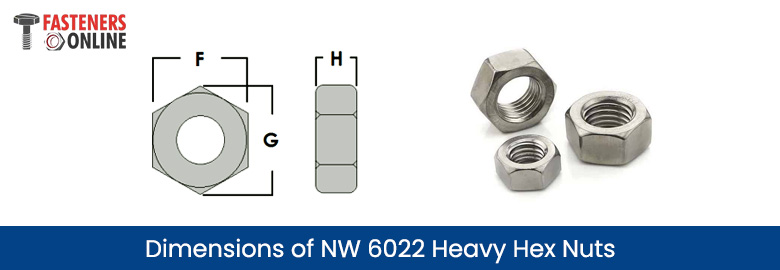

Dimensions of NW 6022 heavy hex nuts
| Nominal Size or Basic Major Thread Diameter | G | F | H | |||||
|---|---|---|---|---|---|---|---|---|
| Width Across Corners | Width Across Flats | Thickness | ||||||
| Max | Min | Basic | Min | Max | Basic | Min | Max | |
| 1/4 | .577 | .556 | 1/2 | .488 | .500 | 15/64 | .218 | .250 |
| 5/16 | .650 | .622 | 9/16 | .546 | .562 | 19/64 | .280 | .314 |
| 3/8 | .794 | .763 | 11/16 | .669 | .688 | 23/64 | .341 | .377 |
| 7/16 | .866 | .830 | 3/4 | .728 | .750 | 27/64 | .403 | .441 |
| 1/2 | 1.010 | .969 | 7/8 | .850 | .875 | 31/64 | .464 | .504 |
| 9/16 | 1.083 | 1.037 | 15/16 | .909 | .938 | 35/64 | .526 | .568 |
| 5/8 | 1.227 | 1.175 | 1-1/16 | 1.031 | 1.062 | 39/64 | .587 | .631 |
| 3/4 | 1.443 | 1.382 | 1-1/4 | 1.212 | 1.250 | 47/64 | .710 | .758 |
| 7/8 | 1.660 | 1.589 | 1-7/16 | 1.394 | 1.438 | 55/64 | .833 | .885 |
| 1 | 1.876 | 1.796 | 1-5/8 | 1.575 | 1.325 | 63/64 | .956 | 1.012 |
| 1-1/8 | 2.093 | 2.002 | 1-13/16 | 1.756 | 1.812 | 1-7/64 | 1.079 | 1.139 |
| 1-1/4 | 2.309 | 2.209 | 2 | 1.938 | 2.000 | 1-7/32 | 1.187 | 1.251 |
| 1-3/8 | 2.526 | 2.416 | 2-3/16 | 2.119 | 2.188 | 1-11/32 | 1.310 | 1.378 |
| 1-1/2 | 2.742 | 2.622 | 2-3/8 | 2.300 | 2.375 | 1-15/32 | 1.433 | 1.505 |
| 1-5/8 | 2.959 | 2.828 | 2-9/16 | 2.481 | 2.562 | 1-19/32 | 1.556 | 1.632 |
| 1-3/4 | 3.175 | 3.035 | 2-3/4 | 2.662 | 2.750 | 1-23/32 | 1.679 | 1.759 |
| 2 | 3.608 | 3.449 | 3-1/8 | 3.025 | 3.125 | 1-31/32 | 1.925 | 2.013 |
| 2-1/4 | 4.041 | 3.862 | 3-1/2 | 3.388 | 3.500 | 2-13/64 | 2.155 | 2.251 |
| 2-1/2 | 4.474 | 4.275 | 3-7/8 | 3.750 | 3.875 | 2-29/64 | 2.401 | 2.505 |
| 2-3/4 | 4.907 | 4.688 | 4-1/4 | 4.112 | 4.250 | 2-45/64 | 2.647 | 2.759 |
| 3 | 5.340 | 5.102 | 4-5/8 | 4.475 | 4.625 | 2-61/64 | 2.893 | 3.013 |
| 3-1/4 | 5.774 | 5.515 | 5 | 4.838 | 5.000 | 3-3/16 | 3.124 | 3.252 |
| 3-1/2 | 6.207 | 5.928 | 5-3/8 | 5.200 | 5.375 | 3-7/16 | 3.370 | 3.506 |
| 3-3/4 | 6.640 | 6.341 | 5-3/4 | 5.562 | 5.750 | 3-11/16 | 3.616 | 3.670 |
| 4 | 7.073 | 6.755 | 6-1/8 | 5.925 | 6.125 | 3-15/16 | 3.862 | 4.014 |
ASTM B574 UNS N06022 threaded rod Size Chart
| Size (MM) | Weight per Metre | Size (MM) | Weight per Metre |
|---|---|---|---|
| M16 | 1.33 | M48 | 12.4 |
| M14 | 0.97 | M45 | 11 |
| M12 | 0.725 | M42 | 9.4 |
| M10 | 0.5 | M39 | 8.2 |
| M8 | 0.319 | M36 | 6.9 |
| M6 | 0.177 | M33 | 5.9 |
| M5 | 0.124 | M30 | 4.75 |
| M4 | 0.078 | M27 | 3.85 |
| M3.5 | 0.06 | M24 | 3 |
| M3 | 0.044 | M22 | 2.54 |
| M2.5 | 0.03 | M20 | 2.08 |
| M2 | 0.0187 | M18 | 1.65 |
Characteristics of Hastelloy C22 Machine Screws
Hastelloy C22 fasteners for chemical and offshore industry applications need to perform in some of the most aggressive conditions imaginable acid reactors, chlorine handling systems, scrubbers, and subsea environments.

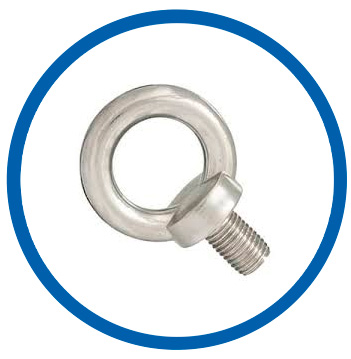

Hastelloy alloy C22 eye bolts

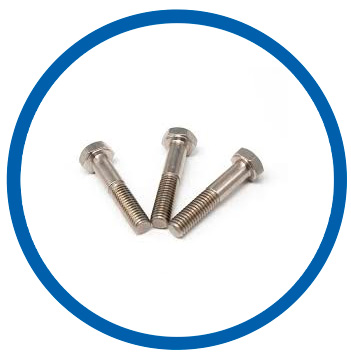

C22 Hastelloy heavy hex bolt

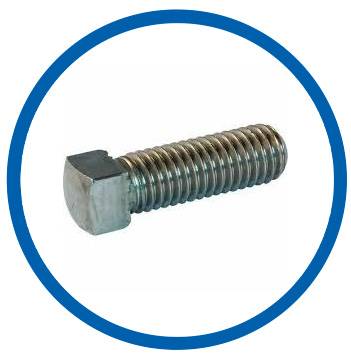

Nickel alloy C22 square bolts

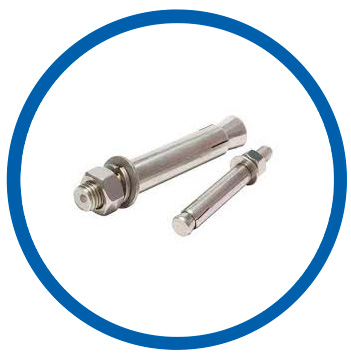

Nickel C22 anchor bolts

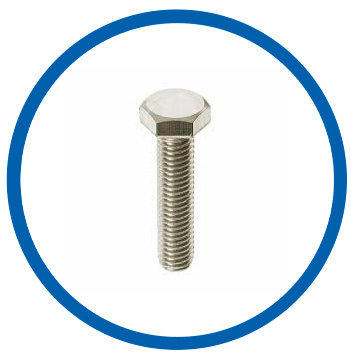

DIN 2.4602 hex bolts

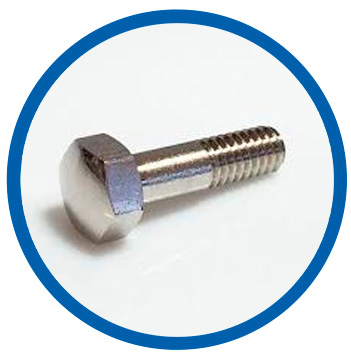

NW 6022 bolts

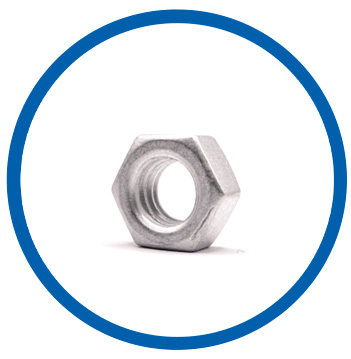

ASTM B574 UNS N06022 hex nuts

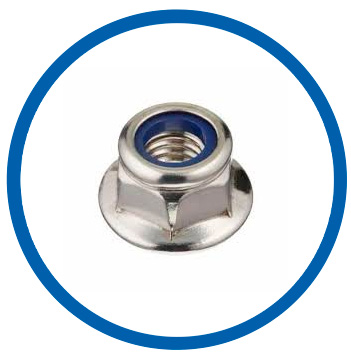

Hastelloy C22 flange lock nut

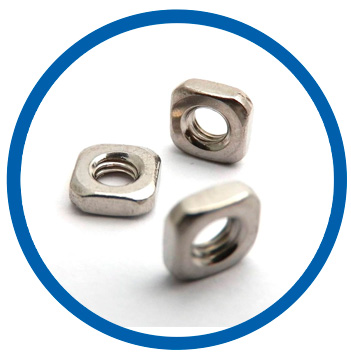

Alloy C22 square nut

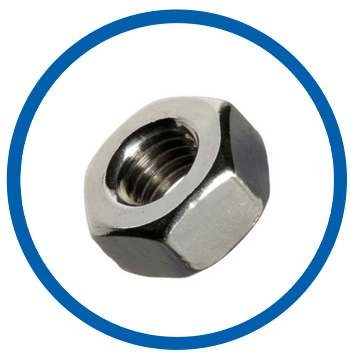

DIN 2.4602 nuts

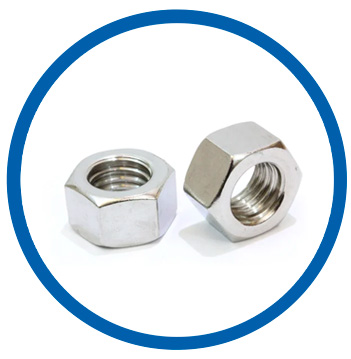

Hastelloy C22 heavy hex nuts

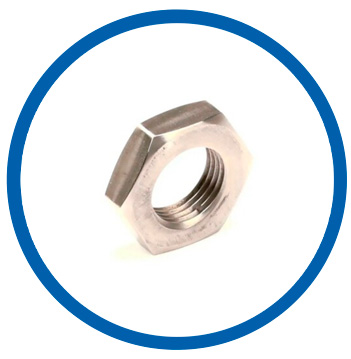

NW 6022 lock nut

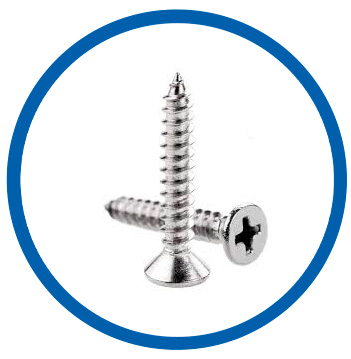

Nickel alloy C22 screw

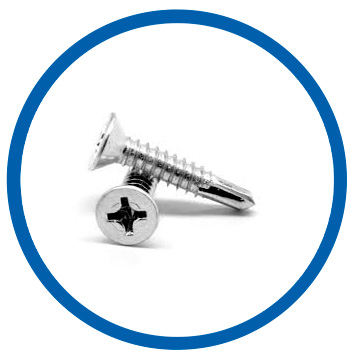

Hastelloy alloy C22 self tapping screws

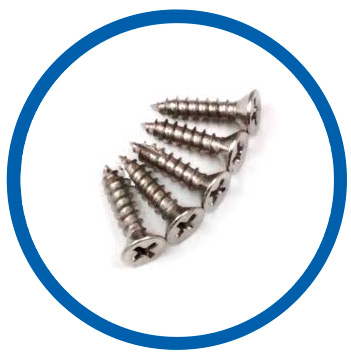

ASTM B574 UNS N06022 wood screws

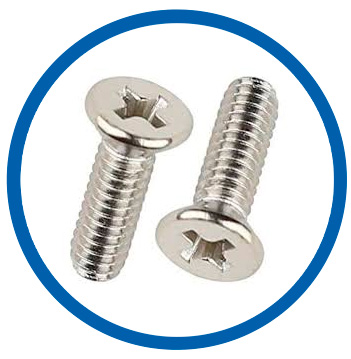

Nickel C22 machine screws

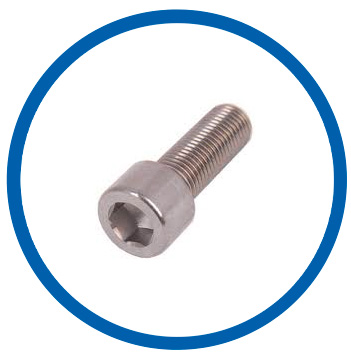

Alloy C22 socket head cap screw

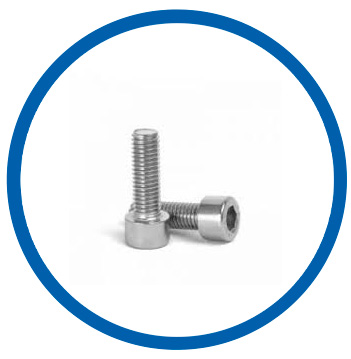

C22 Hastelloy socket cap screws

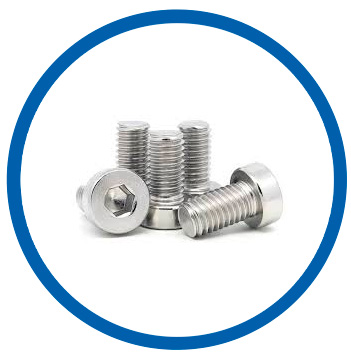

Nickel C22 hex cap screws

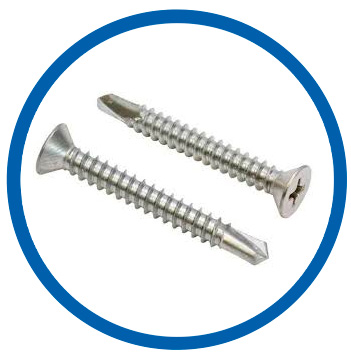

Hastelloy alloy C22 self drilling screws
Types of Hastelloy C22 Washers

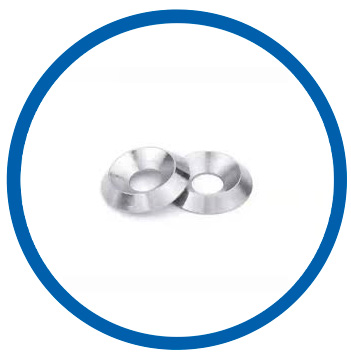

C22 Hastelloy countersunk washer

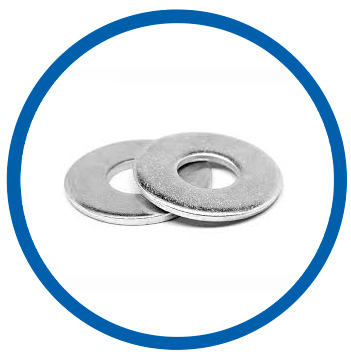

Alloy C22 plain washer

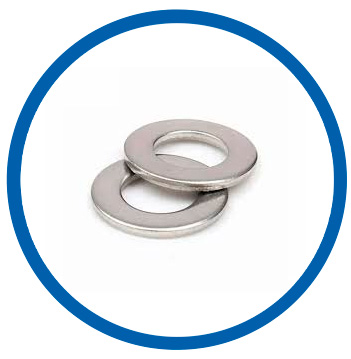

Nickel alloy C22 washer

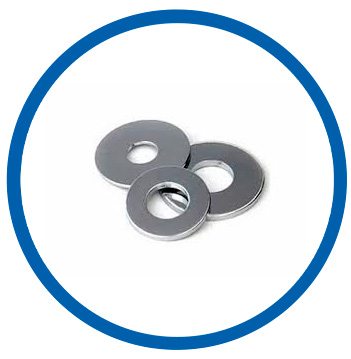

NW 6022 flat washer

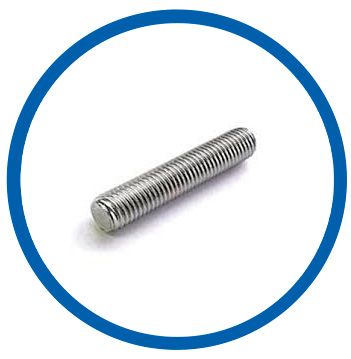

Alloy C22 threaded stud

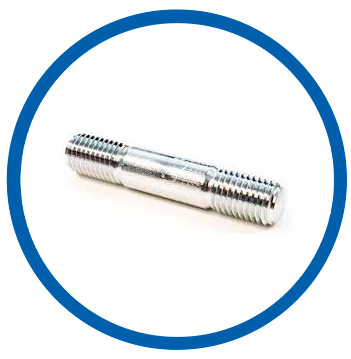

Hastelloy C22 double end stud bolts

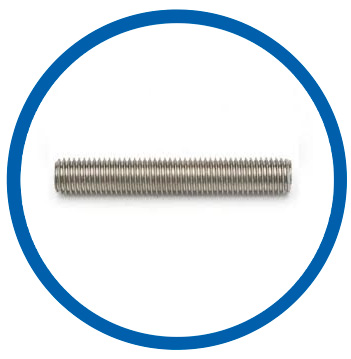

NW 6022 threaded rod

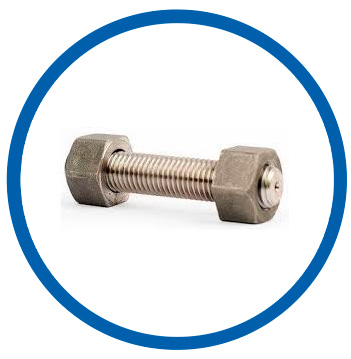

DIN 2.4602 stud bolt

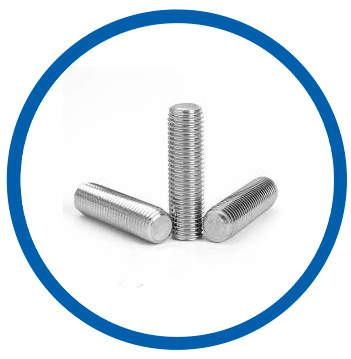

Nickel alloy C22 fully threaded studs

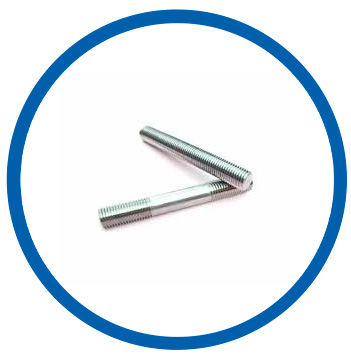

ASTM B574 UNS N06022 studs
FAQs
We stock M3 to M80 in multiple thread forms including UNC, UNF, and Metric.
Yes, we regularly export to UAE, Saudi Arabia, Oman, Malaysia, and across the MENA region.
Yes, we supply both trial lots and bulk project quantities with no minimum order restriction.
Yes, it is widely used in pharmaceutical, chemical, and offshore industries due to its superior corrosion resistance.
We manufacture as per ASTM B574, NACE MR0175, and ASME B18.2.1 standards.
