Titanium Fasteners Manufacturer in India
Stockist of ASTM F468 titanium Stud Bolts in M2 to M48 size range
Table of Content
Titanium fasteners specification
Titanium Bolt Sizes
M2 to M24
Ti Alloy Nuts Size
M3 – M56 | 3/6″ to 2″
Ti Screw Size
3/6″ to 2″
Pure Titanium Washers Size
M3 – M56 | 3/6″ to 2″
Titanium steel Machine Screws Size
M1.6 – M12
ISO Standard
ISO 3506-1
Ti hex bolts Operating Temp
600°C
Titanium fasteners Length
3 mm to 200 mm
ASTM F468 Titanium Nuts Specific Heat
500 J/kg·K
Titanium steel machine screws Condition
Threading / Cold Drawn
Origin
Russian / Indian / Korean / European
Titanium Studs Type
Fully or Fine threaded / Double-End / Tap-End
Pure Titanium socket cap screws Standards
DIN 976, 933, 931, 934, 7991, 125 / ASME B18.2.1, B18.3
Custom Sizes
We are Manufacturer of Titanium fasteners in custom sizes
ASTM F468 Titanium plain washer Threads
BSF / BSW / UNF / METRIC / UNC
Manufacturing Technique
Hot forging / Cold forging / CNC Machined
Titanium Screws Thread Pitch
Coarse Threads / Fine Threads
CP Titanium Hex Nut Finish
Passivation / HDG / Phosphating
Value Added Services
- Laser Etching
- Head Shank Drilling
- Color Coding
- Head Painting
Packaging
- Wooden Cases
- Wooden Pallet
- Carton Box
- Blister Packs
Certificate
- EN 10204/3.1B
- 100% Radiography Test
- UT and PMI Test
- Raw Materials Certificate
Titanium hex head bolts Head Types
- Slotted hex washer
- Button head
- Flat
- Hex washer head
- Slotted Drive
- Socket cap head
- Phillips Drive
ASTM F468 Titanium Bolt Drive Style
- Hex
- Cross
- Truss
- Oval
- Torx
- Round
- Pan
Ti alloy screws Thread Class
- Class 3A (Tight fit)
- 5 ONF
- 3G
- Class 2A (Medium fit)
- 2G
- 4G
- Class 1A (Loose fit)
Manufacturing Range of Titanium alloy hex bolts
| Diameter | Length | Thread Types | Standards | Head Styles | Finishes |
|---|---|---|---|---|---|
| M3 to M30 | 6 mm to 200 mm | Metric UNC UNF |
ASTM F468 ASTM F1472 ISO 5832-3 |
Socket cap Button head Hex |
Uncoated Anodized Passivated |
Why cp titanium metric bolts are used in aerospace industry?
Due to its excellent strength to weight ratio and outstanding corrosion and temperature resistance, titanium metric bolts are widely used in aerospace industry.
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| M8 X 25, Hex Bolts, Titanium, UNC | US $4.3 | 15.79 AED | € 3.66 |
| M12 X 75 , Stud Bolts, Titanium alloy, DIN 933 | US $94.76 | 347.77 AED | € 80.55 |
Titanium Cap Screws Chemical composition
| Grade | Ti | C | O | N | Fe | H | V | Al |
|---|---|---|---|---|---|---|---|---|
| Ti Grade2 | 99.2 min | 0.1 max | 0.25 max | 0.03 max | 0.3 max | 0.015 max | - | - |
| Ti Grade5 | 90 min | - | 0.2 max | - | 0.25 max | - | 4 min | 6 min |
Pure titanium Washer Mechanical properties
| Grade | Yield Strength | Tensile Strength | Elongation |
|---|---|---|---|
| Titanium Grade 2 | 275 MPa | 344 MPa | 20% |
| Titanium Grade 5 | 880 MPa | 950 MPa | 14% |
ASTM F468 titanium Stud Bolts equivalent
| Standard | UNS | WNR |
|---|---|---|
| Titanium Grade 2 | R50400 | 3.7035 |
| Titanium Grade 5 | N56400 | 3.7165 |
Physical Properties of Ti metal Machine Screws
| Grade | Density | Melting Point |
|---|---|---|
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) |
| Size | Nominal (Major) | Head Height | Width Across Flats | ||
|---|---|---|---|---|---|
| Dia [in] | Min [in] | Max [in] | Min [in] | Max [in] | |
| #2 | 0.086 | 0.04 | 0.05 | 0.12 | 0.125 |
| #4 | 0.112 | 0.049 | 0.06 | 0.181 | 0.188 |
| #6 | 0.138 | 0.08 | 0.093 | 0.244 | 0.25 |
| #8 | 0.164 | 0.096 | 0.11 | 0.244 | 0.25 |
| #10 | 0.19 | 0.105 | 0.12 | 0.305 | 0.312 |
| 1/4" | 0.25 | 0.172 | 0.19 | 0.367 | 0.375 |
| 5/16" | 0.3125 | 0.208 | 0.23 | 0.489 | 0.5 |
| 3/8" | 0.375 | 0.27 | 0.295 | 0.551 | 0.562 |

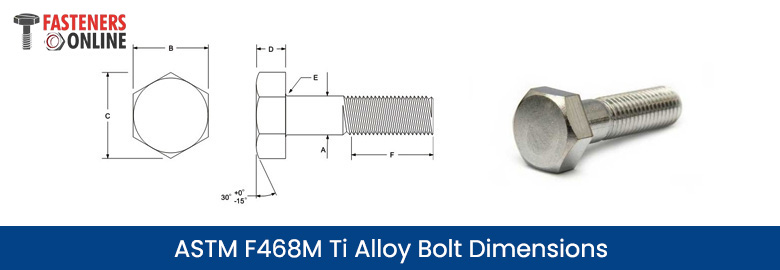

ASTM F468M ti alloy Bolt Dimensions
| Bolt Size | D | C (min) | B | A (max) | F Thread Length for Bolt Length |
E | ||
|---|---|---|---|---|---|---|---|---|
| 6 and shorter |
over 6 | max | min | |||||
| 1/4 | 11/64 | 0.484 | 7/16 | 0.26 | 0.75 | 1 | 0.03 | 0.01 |
| 5/16 | 7/32 | 0.552 | 1/2 | 0.324 | 0.875 | 1.125 | 0.03 | 0.01 |
| 3/8 | 1/4 | 0.62 | 9/16 | 0.388 | 1 | 1.25 | 0.03 | 0.01 |
| 7/16 | 19/64 | 0.687 | 5/8 | 0.452 | 1.125 | 1.375 | 0.03 | 0.01 |
| 1/2 | 11/32 | 0.826 | 3/4 | 0.515 | 1.25 | 1.5 | 0.03 | 0.01 |
| 5/8 | 27/64 | 1.033 | 15/16 | 0.642 | 1.5 | 1.75 | 0.06 | 0.02 |
| 3/4 | 1/2 | 1.24 | 1-1/8 | 0.768 | 1.75 | 2 | 0.06 | 0.02 |
| 7/8 | 37/64 | 1.447 | 1-5/16 | 0.895 | 2 | 2.25 | 0.06 | 0.02 |
| 1 | 43/64 | 1.653 | 1-1/2 | 1.022 | 2.25 | 2.5 | 0.09 | 0.03 |
| 1-1/8 | 3/4 | 1.859 | 1-11/16 | 1.149 | 2.5 | 2.75 | 0.09 | 0.03 |
| 1-1/4 | 27/32 | 2.066 | 1-7/8 | 1.277 | 2.75 | 3 | 0.09 | 0.03 |
| 1-3/8 | 29/32 | 2.273 | 2-1/16 | 1.404 | 3 | 3.25 | 0.09 | 0.03 |
| 1-1/2 | 1 | 2.48 | 2-1/4 | 1.531 | 3.25 | 3.5 | 0.09 | 0.03 |
| 1-3/4 | 1-5/32 | 2.893 | 2-5/8 | 1.785 | 3.75 | 4 | 0.12 | 0.04 |
| 2 | 1-11/32 | 3.306 | 3 | 2.039 | 4.25 | 4.5 | 0.12 | 0.04 |
| 2-1/4 | 1-1/2 | 3.719 | 3-3/8 | 2.305 | 4.75 | 5 | 0.19 | 0.06 |
| 2-1/2 | 1-21/32 | 4.133 | 3-3/4 | 2.559 | 5.25 | 5.5 | 0.19 | 0.06 |
| 2-3/4 | 1-13/16 | 4.546 | 4-1/8 | 2.837 | 5.75 | 6 | 0.19 | 0.06 |
| 3 | 2 | 4.959 | 4-1/2 | 3.081 | 6.25 | 6.5 | 0.19 | 0.06 |
| 3-1/4 | 2-3/16 | 5.372 | 4-7/8 | 3.335 | 6.75 | 7 | 0.19 | 0.06 |
| 3-1/2 | 2-5/16 | 5.786 | 5-1/4 | 3.589 | 7.25 | 7.5 | 0.19 | 0.06 |
| 3-3/4 | 2-1/2 | 6.198 | 5-5/8 | 3.858 | 7.75 | 8 | 0.19 | 0.06 |
| 4 | 2-11/16 | 6.612 | 6 | 4.111 | 8.25 | 8.5 | 0.19 | 0.06 |
| Nut Size (mm) | Diameter (mm) | Height (mm) | ||
|---|---|---|---|---|
| Nylock Nut | Hex Nut | Jam Nut | ||
| 20 | 30 | 20 | 16 | 10 |
| 18 | 27 | 18.5 | 15 | 9 |
| 16 | 24 | 16 | 13 | 8 |
| 14 | 22 | 14 | 11 | 7 |
| 12 | 19 | 12 | 10 | 6 |
| 10 | 17 | 10 | 8 | 5 |
| 8 | 13 | 8 | 6.5 | 4 |
| 7 | 11 | - | 5.5 | 3.5 |
| 6 | 10 | 6 | 5 | 3.2 |
| 5 | 8 | 5 | 4 | 2.7 |
| 4 | 7 | 5 | 3.2 | 2.2 |
| 3 | 5.5 | 4 | 2.4 | 1.8 |
| 2.5 | 5 | - | 2 | 1.6 |
| 2 | 4 | - | 1.6 | 1.2 |
Size Chart of Pure titanium alloy Dock Washer
| Size | Outside Diameter | Inside Diameter | Thickness |
|---|---|---|---|
| 1/2" | 9/16" | 1/4" | 3" |
| 5/8" | 11/16" | 1/4" | 3" |
| 3/4" | 13/16" | 1/4" | 3" |
| 7/8" | 15/16" | 1/4" | 3" |
| 1" | 1 1/16" | 1/4" | 3 1/4" |
| 1 1/4" | 1 3/8" | 11/4"/2" | 4" |

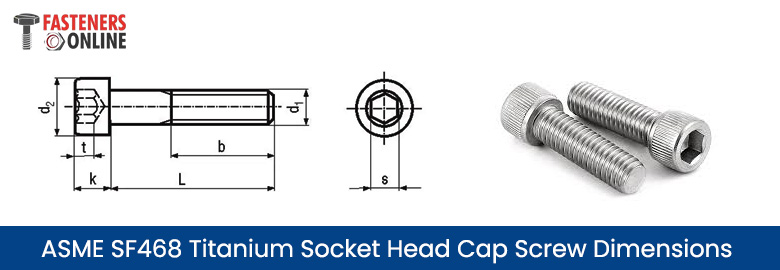

ASME SF468 titanium Socket Head Cap Screw Dimensions
| Size (d1) | Thread Pitch | Key Size (s) | Head Height (k) | Head Diameter (d2) | Key Engagement (t) | |||
|---|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Nominal | ||
| M1.4 | 0.3 | 1.32 | 1.36 | 1.26 | 1.4 | 2.46 | 2.74 | 0.6 |
| M1.6 | 0.35 | 1.52 | 1.56 | 1.46 | 1.6 | 2.86 | 3.14 | 0.7 |
| M2 | 0.4 | 1.52 | 1.56 | 1.86 | 2 | 3.62 | 3.98 | 1 |
| M2.5 | 0.45 | 2.02 | 2.06 | 2.36 | 2.5 | 4.32 | 4.68 | 1.1 |
| M3 | 0.5 | 2.52 | 2.58 | 2.86 | 3 | 5.32 | 5.68 | 1.3 |
| M4 | 0.7 | 3.02 | 3.08 | 3.82 | 4 | 6.78 | 7.22 | 2 |
| M5 | 0.8 | 4.02 | 4.095 | 4.82 | 5 | 8.28 | 8.72 | 2.5 |
| M6 | 1 | 5.02 | 5.14 | 5.7 | 6 | 9.78 | 10.22 | 3 |
| M8 | 1.25 | 6.02 | 6.14 | 7.64 | 8 | 12.73 | 13.27 | 4 |
| M10 | 1.5 | 8.025 | 8.175 | 9.64 | 10 | 15.73 | 16.27 | 5 |
| M12 | 1.75 | 10.025 | 10.175 | 11.57 | 12 | 17.73 | 18.27 | 6 |
| M14 | 2 | 12.032 | 12.212 | 13.57 | 14 | 20.67 | 21.33 | 7 |
| M16 | 2 | 14.032 | 14.212 | 15.57 | 16 | 23.67 | 24.33 | 8 |
| M18 | 2.5 | 14.032 | 14.212 | 17.57 | 18 | 26.67 | 27.33 | 9 |
| M20 | 2.5 | 17.05 | 17.23 | 19.48 | 20 | 29.67 | 30.33 | 10 |
| M22 | 2.5 | 17.05 | 17.23 | 21.48 | 22 | 32.61 | 33.39 | 11 |
| M24 | 3 | 19.05 | 19.275 | 23.48 | 24 | 35.61 | 36.39 | 12 |
| M27 | 3 | 19.065 | 19.275 | 26.48 | 27 | 39.61 | 40.39 | 13.5 |
| M30 | 3.5 | 22.065 | 22.275 | 29.48 | 30 | 44.61 | 45.39 | 15.5 |
| M33 | 3.5 | 24.065 | 24.275 | 32.38 | 33 | 49.61 | 50.39 | 18 |
| M36 | 4 | 27.065 | 27.275 | 35.38 | 36 | 53.54 | 54.56 | 19 |
| M39 | 4 | 27.065 | 27.275 | 38.38 | 39 | 57.54 | 58.46 | 22 |
| M42 | 4.5 | 32.08 | 32.33 | 41.38 | 42 | 62.54 | 63.46 | 24 |
| M45 | 4.5 | 32.08 | 32.33 | 44.38 | 45 | 66.54 | 67.46 | 24 |
| M48 | 5 | 36.08 | 36.33 | 47.38 | 48 | 71.54 | 72.46 | 28 |
| M56 | 5.5 | 41.08 | 41.33 | 55.26 | 56 | 93.46 | 84.54 | 34 |
| M64 | 6 | 46.08 | 46.33 | 63.26 | 64 | 95.46 | 96.54 | 38 |
| M72 | 6 | 55.1 | 55.4 | 71.26 | 72 | 107.46 | 108.54 | 43 |
| M80 | 6 | 65.1 | 65.4 | 79.26 | 80 | 119.46 | 120.54 | 48 |
| M90 | 6 | 75.1 | 75.4 | 89.13 | 90 | 134.37 | 135.63 | 54 |
| M100 | 6 | 85.12 | 85.47 | 99.13 | 100 | 149.37 | 150.63 | 60 |
Ti alloy button head bolts Inspection and Testing

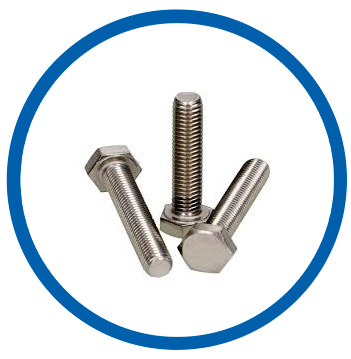

Titanium bolts

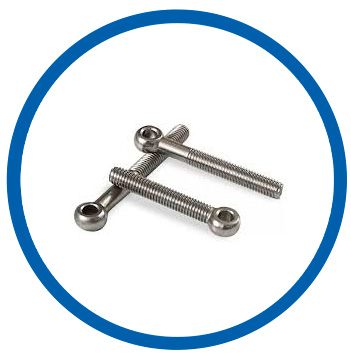

Titanium steel eye bolts

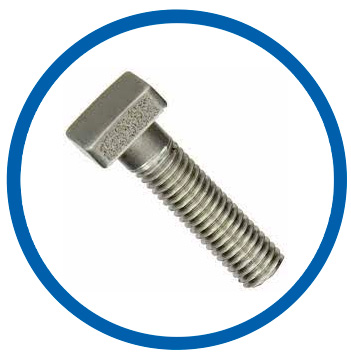

Titanium steel alloy square bolts

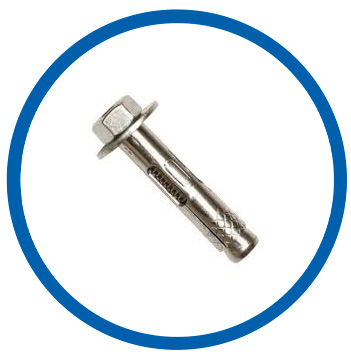

Pure Titanium alloy anchor bolts

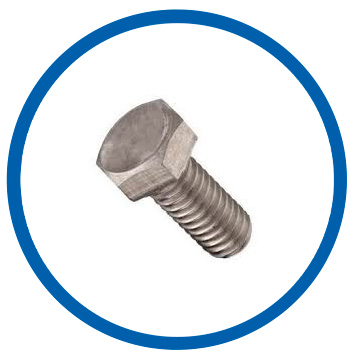

Ti hex bolts

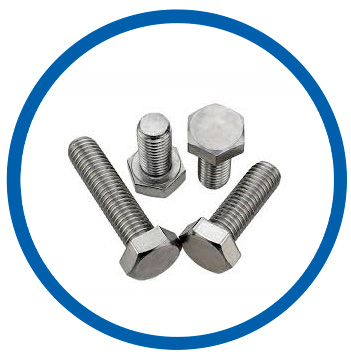

ASTM F468 Titanium heavy hex bolt

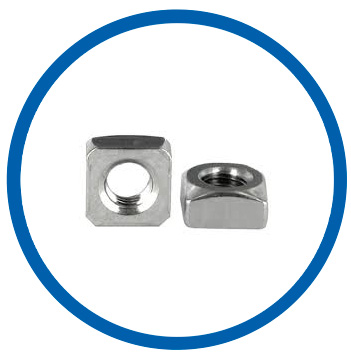

Titanium alloy square nut
Titanium metal nuts

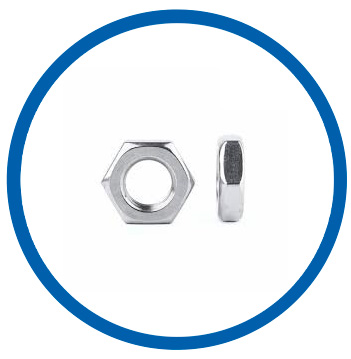

Ti metal lock nut

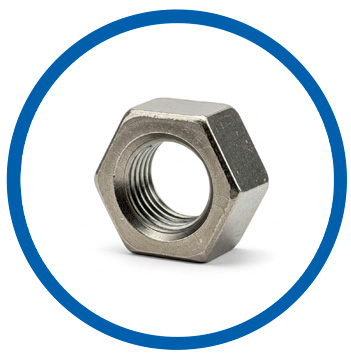

ASTM F468M ti alloy heavy hex nuts

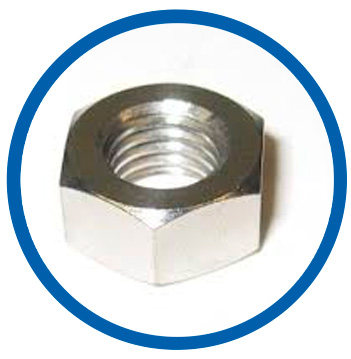

CP Titanium hex nuts

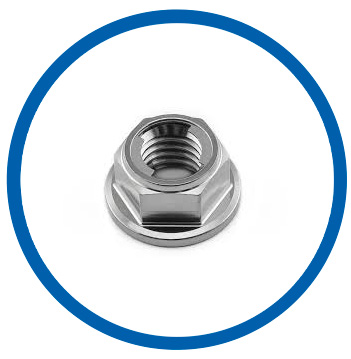

ASME SF468 Titanium flange lock nut

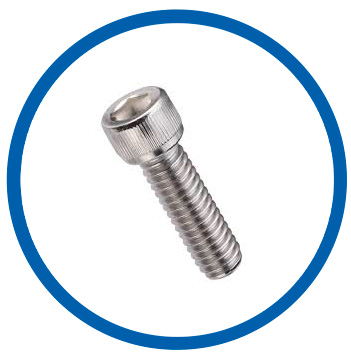

Commercially pure Titanium hex cap screws

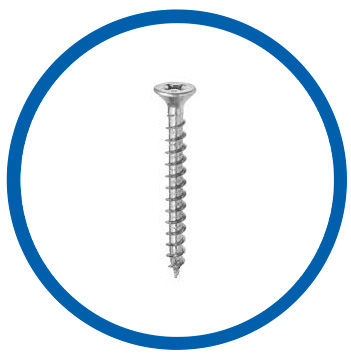

Titanium steel machine screws

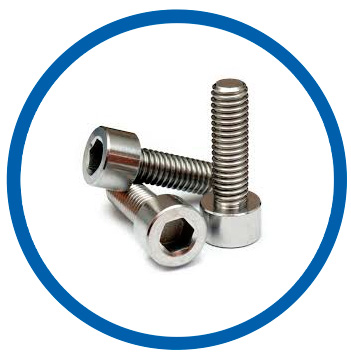

Pure Titanium socket head cap screw

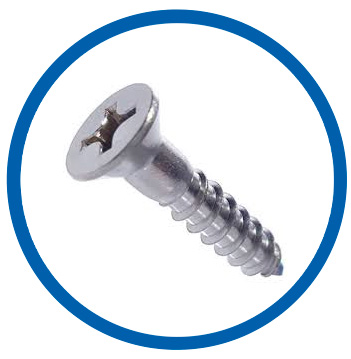

Ti steel wood screws

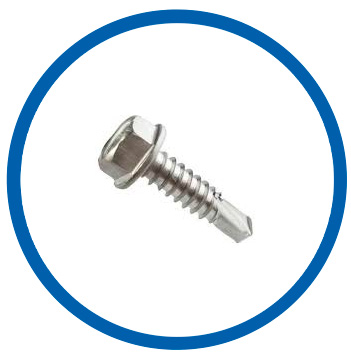

Titanium metal self drilling screws

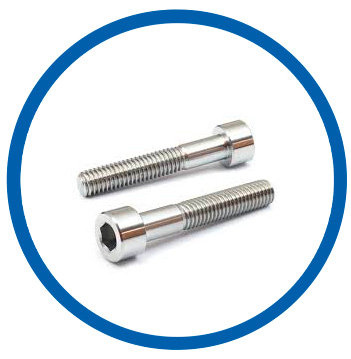

Pure Titanium socket cap screws

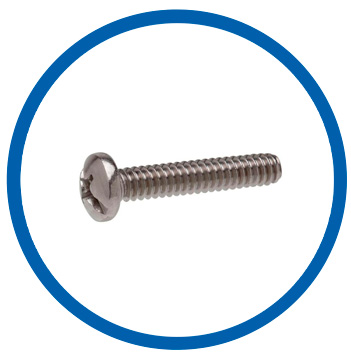

Ti screw

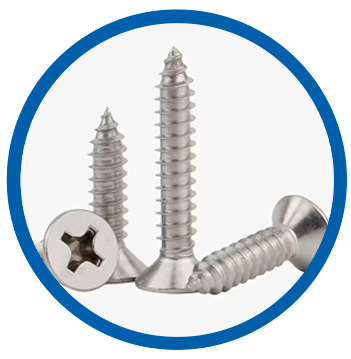

Ti metal self tapping screws

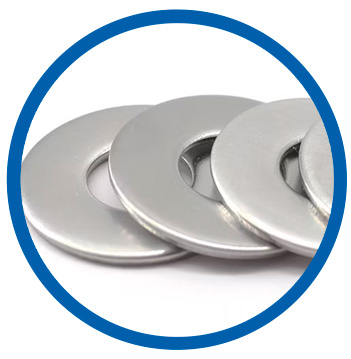

ASTM F468M ti alloy flat washer

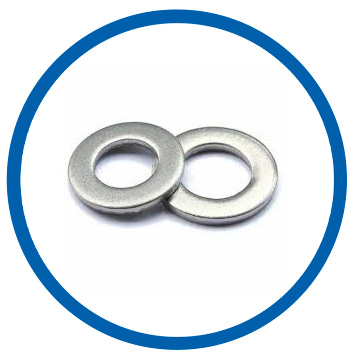

Ti steel washer

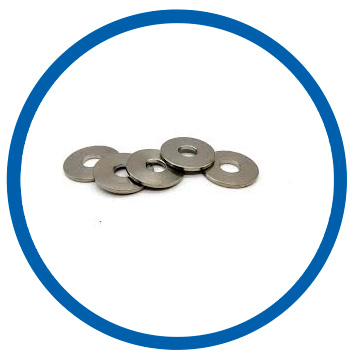

ASTM F468 Titanium plain washer

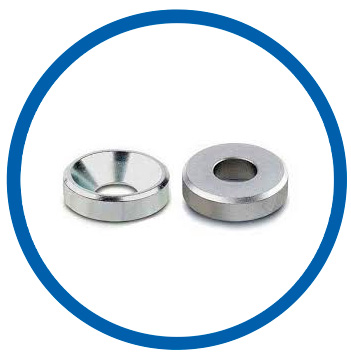

Pure Titanium alloy countersunk washer

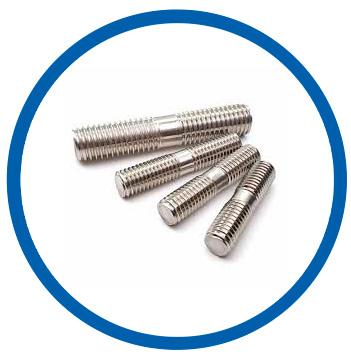

ASME SF468 Titanium threaded rod

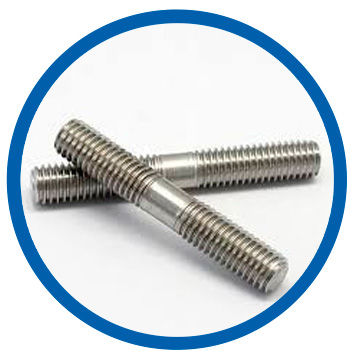

Commercially pure Titanium stud bolt

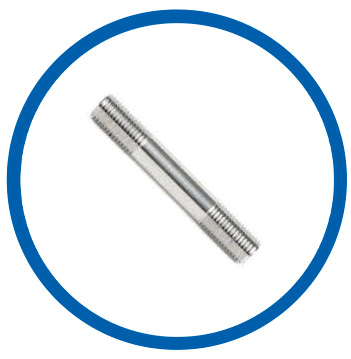

Titanium steel alloy fully threaded studs

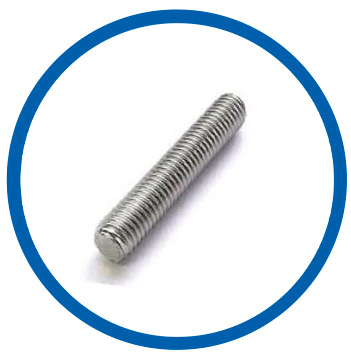

Titanium studs

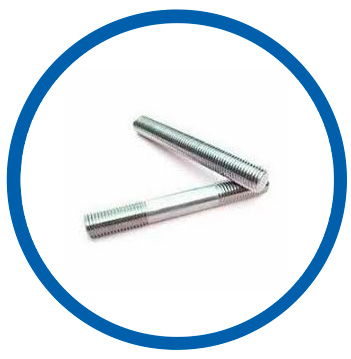

Titanium alloy threaded stud

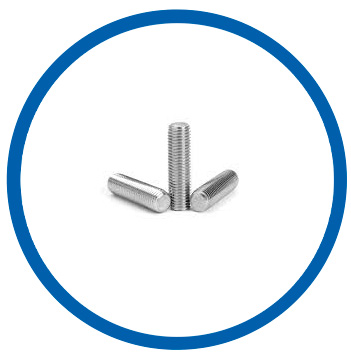

CP Titanium double end stud bolts
Features of Titanium self drilling screws
