Titanium Grade 5 Fasteners
Table of Content
Titanium Grade 5 Fasteners Specification
Bolt Sizes
M2 to M24
Screw Size
3/6″ to 2″
Nuts Size
M3 – M56 | 3/6″ to 2″
Washers Size
M3 – M56 | 3/6″ to 2″
Machine Screws Size
M1.6 – M12
ISO Standard
ISO 3506-1
fasteners Length
3 mm to 200 mm
Weldability
Excellent
Specific Heat
500 J/kg·K
Threads
UNF / BSW / BSF / METRIC / UNC
Standards
DIN 931, 933, 934, 7991, 976, 125 / ASME B18.2.1, B18.3
Custom Sizes
We are Manufacturer of Titanium Grade 5 Fasteners in custom sizes
Studs Type
Tap-End / Fully or Fine threaded / Double-End
Origin
Indian / Russian / Korean / European
Condition
Threading / Cold Drawn
Manufacturing Technique
CNC Machined / Hot forging / Cold forging
Screws Thread Pitch
Coarse Threads / Fine Threads
Finish
Phosphating / Passivation / HDG
Bolt Drive Style
- Cross
- Truss
- Torx
- Round
- Hex
- Oval
- Pan
hex head bolts Head Types
- Phillips Drive
- Button head
- Slotted Drive
- Socket cap head
- Flat
- Hex washer head
- Slotted hex washer
screws Thread Class
- 3G
- 4G
- 2G
- 5 ONF
- Class 2A (Medium fit)
- Class 3A (Tight fit)
- Class 1A (Loose fit)
Packaging
- Wooden Pallet
- Carton Box
- Wooden Cases
- Blister Packs
Certificate
- Raw Materials Certificate
- EN 10204/3.1B
- 100% Radiography Test
- UT and PMI Test
Value Added Services
- Head Shank Drilling
- Head Painting
- Color Coding
- Laser Etching
ASTM F468 UNS R56400 Bolts Manufacturing Range
Titanium Grade 5 Fasteners Price list
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| COUNTERSUNK SCREW M5x12 TORX DRIVE Ti GRADE 5 | US $1.25 | 4.59 AED | € 1.07 |
| TOOTHED LOCK WASHER M8 INTERNAL UNS R56400 | US $1.48 | 5.44 AED | € 1.26 |
Ti grade 5 Hex Nuts Chemical composition
Titanium
87.6 - 91
Aluminum
5.5 - 6.75
Vanadium
3.5 - 4.5
Iron
≤ 0.40
Oxygen
≤ 0.20
Carbon
≤ 0.080
Nitrogen
≤ 0.050
Hydrogen
≤ 0.015
ASTM F468 Gr5 Stud Bolts Mechanical properties
Tensile Strength
895 MPa
Yield strength
828 MPa
Hardness
30-34 HRC
Elongation
10 % Min
UNS R56400 Hex Bolts equivalent
| Grade | WNR | UNS |
|---|---|---|
| Titanium Gr. 5 | 3.7165 | N56400 |
DIN 3.7034 Physical properties
| Density | Melting point | Poisson’s ratio | Elastic modulus | Shear modulus |
|---|---|---|---|---|
| 4.43 g/cm3 | 1674 °C | 0.31 | 105-120 GPa | 41-45 GPa |
Various types of Grade 5 titanium fasteners

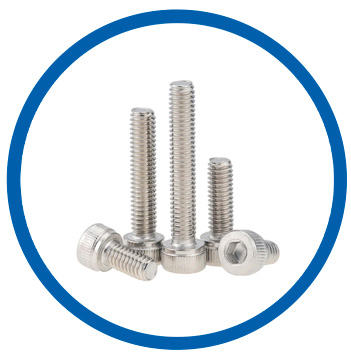

Titanium grade 5 socket head cap screw

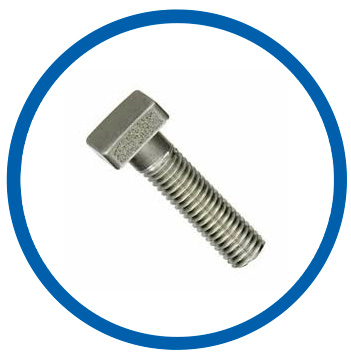

Grade 5 titanium square bolts

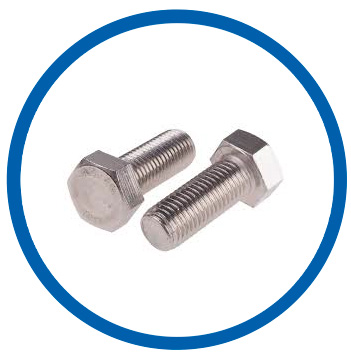

UNS R56400 heavy hex bolt

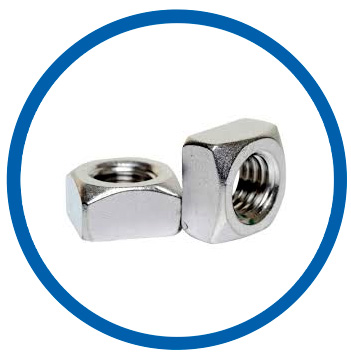

Titanium grade 5 square nut

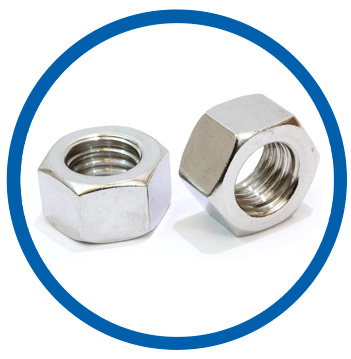

Grade 5 Titanium hex nuts

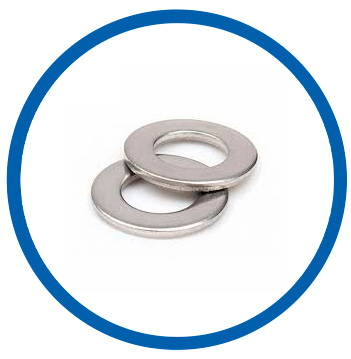

UNS R56400 flat washer

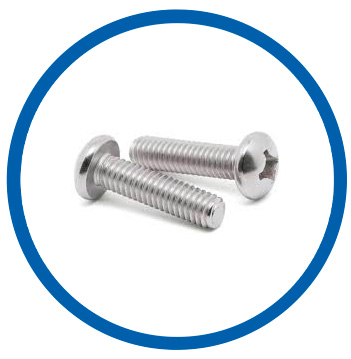

Titanium Gr. 5 machine screws

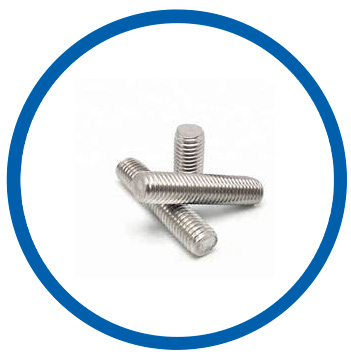

Titanium Alloy Gr 5 stud bolt

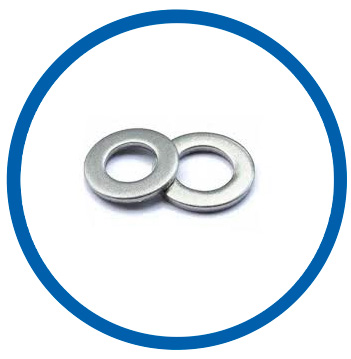

DIN 3.7034 plain washer

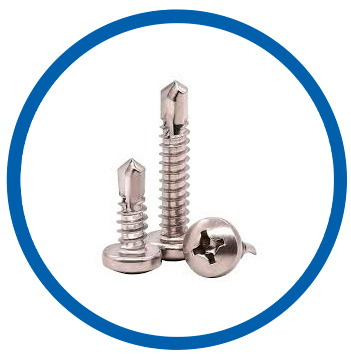

SB348 Ti Grade 5 self drilling screws

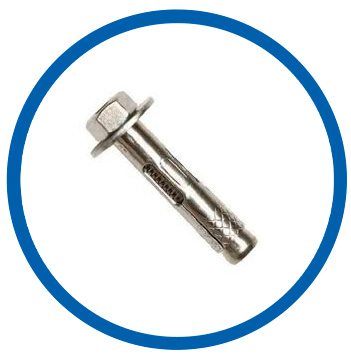

Gr 5 Ti anchor bolts

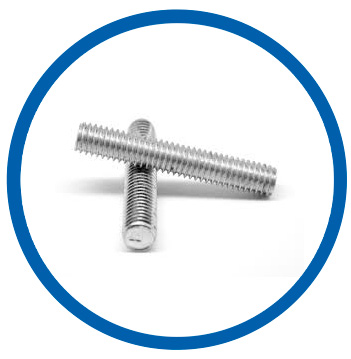

ASME SB348 Ti Grade 5 threaded rod

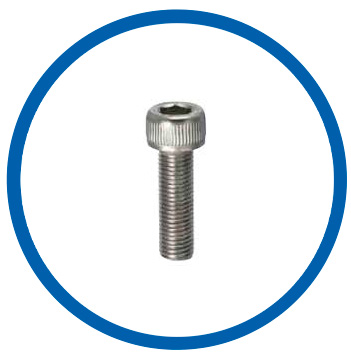

DIN 3.7034 hex cap screws

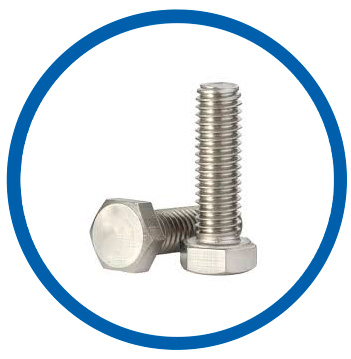

Titanium grade 5 hex bolts

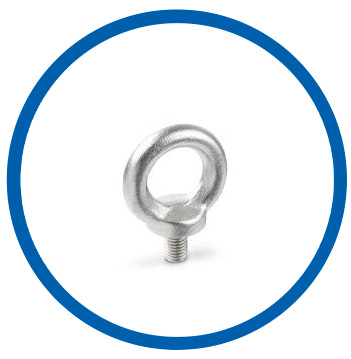

Gr 5 Ti eye bolts
Annealing of Grade 5 titanium screws
| Annealing | 732°C (1350°F) |
|---|
Forging of Titanium grade 5 bolts
| Forging | 982°C(1800°F) |
|---|
