Inconel X750 Fasteners
UNS N07750 Hex Bolts Manufacturer in India in different sizes
Table of Content
Incoloy X750 Fasteners Specification
Inconel X-750 Bolt Sizes
M2 to M24
Alloy X-750 Screw Size
3/6″ to 2″
UNS N07750 Nuts Size
M3 – M56 | 3/6″ to 2″
Nickel X750 Washers Size
M3 – M56 | 3/6″ to 2″
WNR 2.4669 Machine Screws Size
M1.6 – M12
ISO Standard
ISO 15156‑3
Manufacturing Technique
Cold forging / Hot forging / CNC Machined
ASTM B637 UNS N07750 Screws Thread Pitch
Coarse Threads / Fine Threads
Nickel alloy X-750 hex nuts Finish
Passivation / Phosphating / HDG
UNS N07750 threaded stud Condition
Threading / Cold Drawn
Origin
Korean / Indian / Russian / European
Nickel X-750 Studs Type
Double-End / Fully or Fine threaded / Tap-End
Nickel alloy X-750 bolts Specific Heat
435 J/kg·K
X-750 Inconel heavy hex nuts Melting Point
1390 – 1430 °C
Inconel X750 fasteners Length
3 mm to 200 mm
Custom Sizes
Reliable Inconel X-750 Fasteners Manufacturer in India in wide range of sizes.
Alloy X-750 socket cap screw Standards
DIN 976, 931, 933, 934, 7991, 125 / ASME B18.2.1, B18.3
ASTM B637 UNS N07750 Stud Bolts Threads
METRIC / BSF / BSW / UNF / UNC
Certificate
- EN 10204/3.1B
- UT and PMI Test
- Raw Materials Certificate
- 100% Radiography Test
Value Added Services
- Head Painting
- Laser Etching
- Head Shank Drilling
- Color Coding
Packaging
- Wooden Cases
- Carton Box
- Blister Packs
- Wooden Pallet
Alloy X-750 hex head bolts Head Types
- Slotted hex washer
- Phillips Drive
- Button head
- Socket cap head
- Hex washer head
- Slotted Drive
- Flat
UNS N07750 Bolt Drive Style
- Round
- Oval
- Cross
- Hex
- Pan
- Torx
- Truss
WNR 2.4669 screws Thread Class
- Class 3A (Tight fit)
- 5 ONF
- Class 1A (Loose fit)
- 3G
- 2G
- Class 2A (Medium fit)
- 4G
Alloy X750 bolts Manufacturing Range
| Sizes | Lengths | Thread Types | Standards |
|---|---|---|---|
| M6 to M64 | 13 mm to 600 mm | UNC (Coarse) UNF (Fine) Metric |
ASTM ASME AMS ISO |
Alloy X750 Nuts have high creep strength, Refer Nickel X-750 Fasteners price list
Incoloy X750 Fasteners Price list
| Product | Price in USD | Price in Dirham | Price in Euro |
|---|---|---|---|
| M12X70 Incoloy X750 Hex Bolt, BSP Thread | US $34.44 | 126.48 AED | € 29.24 |
| 8 MM Heavy Hex Nut, Nickel X750, Metric | US $29.77 | 109.33 AED | € 25.28 |
| Property | Incoloy X-750 | Inconel 718 |
|---|---|---|
| UNS Designation | N07750 | N07718 |
| Yield Strength | 85 ksi | 120–150 ksi |
| Temperature Range | High-temp | Mid-temp |
| Corrosion Resistance | Good | Excellent |
| Density | 8.28 g/cm³ | 8.19 g/cm³ |
Buy ASTM B637 UNS N07750 Threaded Rod in custom sizes, WNR 2.4669 Screws contains upto 17% Chromium
Nickel alloy X-750 Screws Chemical composition
Nickel
70.0 min
Chromium
14-17 (Max.)
Titanium
2.25-2.75
Manganese
1 max
Niobium
0.7-1.2
Copper
0.5 max
Silicon
0.5 max
Aluminum
0.4-1
Carbon
0.08 max
Sulfur
0.01 min
UNS N07750 washer Mechanical properties
Tensile Strength
1325 MPa
Yield Strength
868 MPa
Reduction of area
42%
Elongation
23.60%
Nickel X750 stud bolt equivalent
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Inconel X750 | 2.4669 | N07750 |
Alloy X-750 heavy hex bolt Physical properties
| Melting Point | Density | Modulus of Rigidity | Coefficient of Expansion |
|---|---|---|---|
| 1430 °C | 8.28g/cm³ | 75.8 kN/mm² | 12.6 μm/m °C (20 – 100 °C) |
Leading supplier of Alloy X-750 Washer in Mumbai, Check Sizes and dimensions of Incoloy X750 Stud Bolts

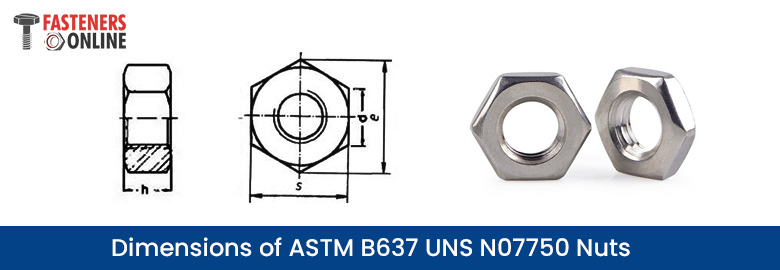

Dimensions of ASTM B637 UNS N07750 nuts
| d | s | e min | h | Pitch |
|---|---|---|---|---|
| M12 | 22 | 23.91 | 10 | 1.75 |
| M16 | 27 | 29.56 | 13 | 2 |
| M20 | 32 | 35.03 | 16 | 2.5 |
| M22 | 36 | 39.55 | 18 | 2.5 |
| M24 | 41 | 45.2 | 19 | 3 |
| M27 | 46 | 50.35 | 22 | 3 |
| M30 | 50 | 55.37 | 24 | 3.5 |
| M36 | 60 | 66.44 | 29 | 4 |
Inconel X750 threaded rod Size Chart
| Size (MM) | Weight per Metre | Size (MM) | Weight per Metre |
|---|---|---|---|
| M2 | 0.0187 | M18 | 1.65 |
| M2.5 | 0.03 | M20 | 2.08 |
| M3 | 0.044 | M22 | 2.54 |
| M3.5 | 0.06 | M24 | 3 |
| M4 | 0.078 | M27 | 3.85 |
| M5 | 0.124 | M30 | 4.75 |
| M6 | 0.177 | M33 | 5.9 |
| M8 | 0.319 | M36 | 6.9 |
| M10 | 0.5 | M39 | 8.2 |
| M12 | 0.725 | M42 | 9.4 |
| M14 | 0.97 | M45 | 11 |
| M16 | 1.33 | M48 | 12.4 |
Nickel Alloy X-750 Machine Bolts have high corrosion resistance, Reliable stockist and exporter of WNR 2.4669 Socket head cap screws
Heat treatment of UNS N07750 eye bolts
| Heat treatment | Annealing at 885 to 1149°C |
|---|

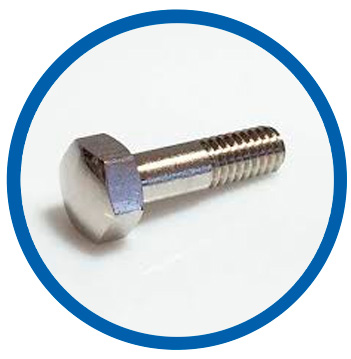

Inconel X-750 bolts

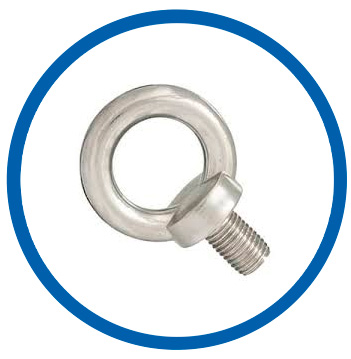

Alloy X-750 eye bolts

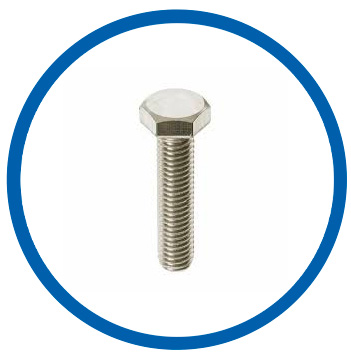

Inconel alloy X-750 hex bolts

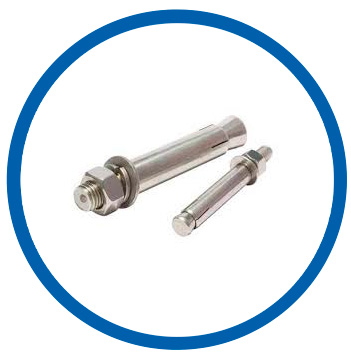

Nickel alloy X-750 anchor bolts

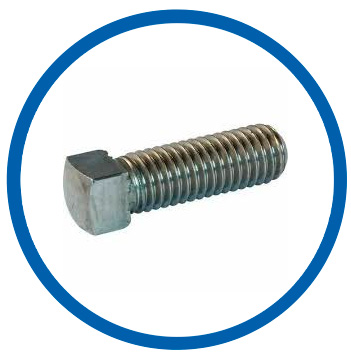

ASTM B637 UNS N07750 square bolts

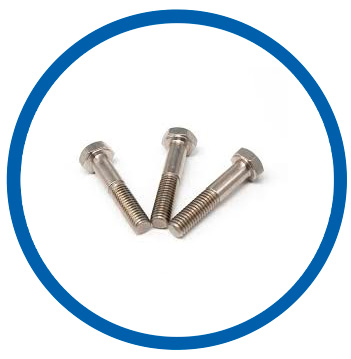

UNS N07750 heavy hex bolt

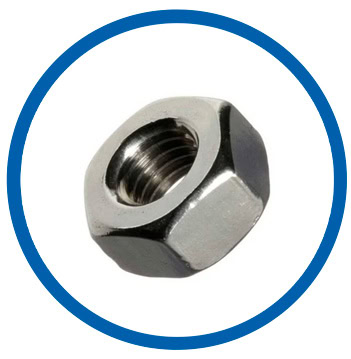

WNR 2.4669 nuts

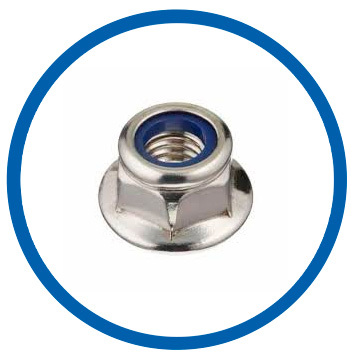

Nickel X-750 flange lock nut

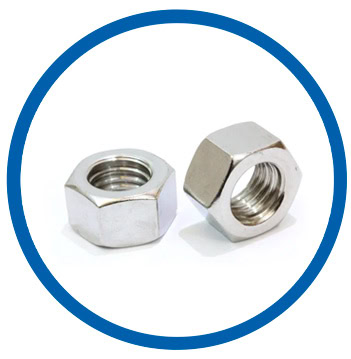

X-750 Inconel heavy hex nuts

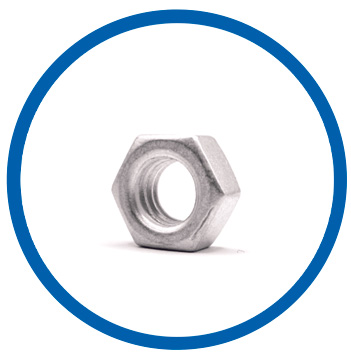

Nickel alloy X-750 hex nuts

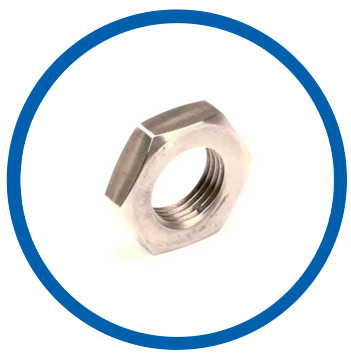

WNR 2.4669 lock nut

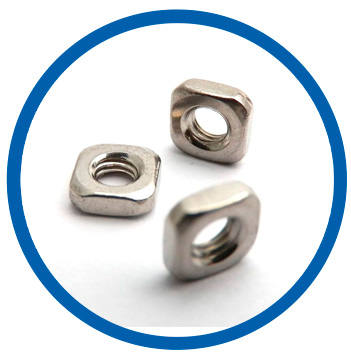

Inconel alloy X-750 square nut

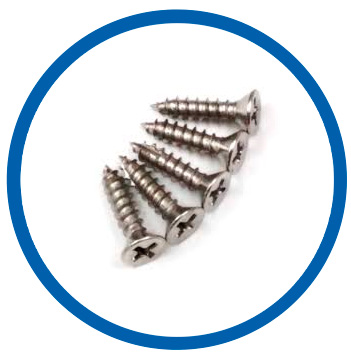

Nickel X-750 wood screws

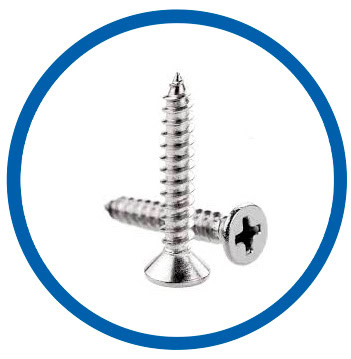

X-750 Inconel screw

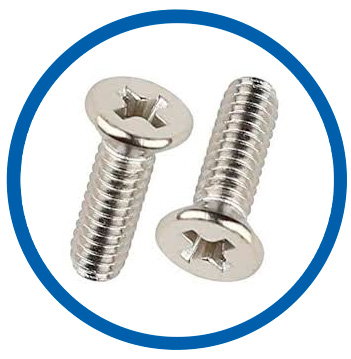

Inconel X-750 machine screws

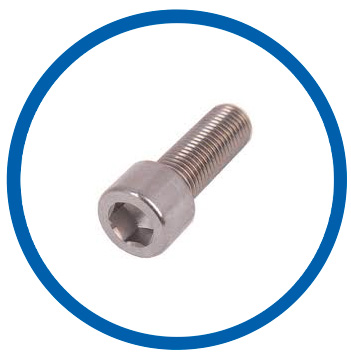

Alloy X-750 socket head cap screw

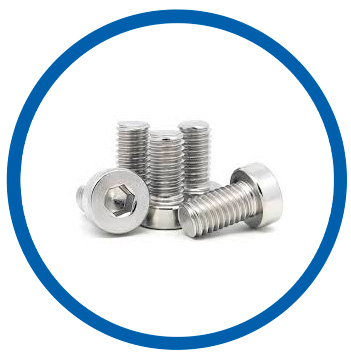

ASTM B637 UNS N07750 hex cap screws

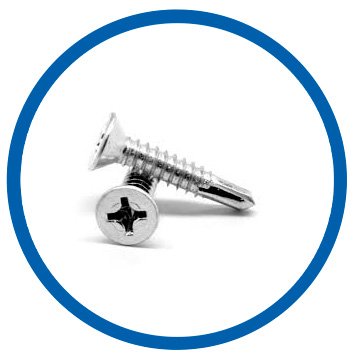

UNS N07750 self tapping screws

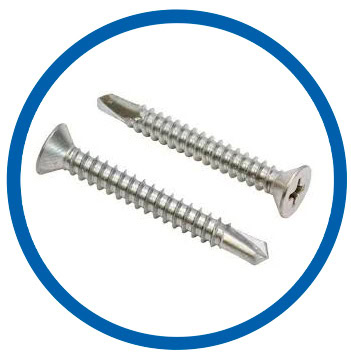

X-750 Inconel self drilling screws

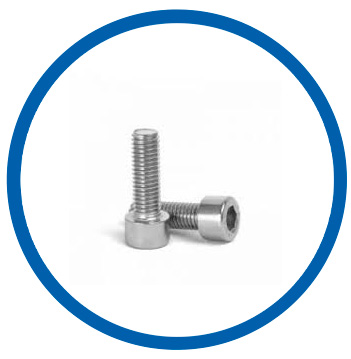

Inconel X-750 socket cap screws

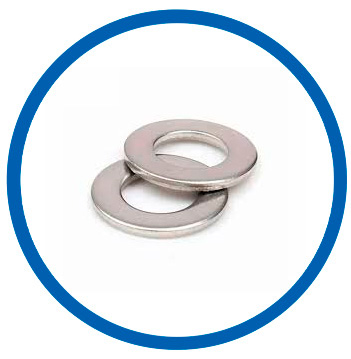

Nickel alloy X-750 flat washer

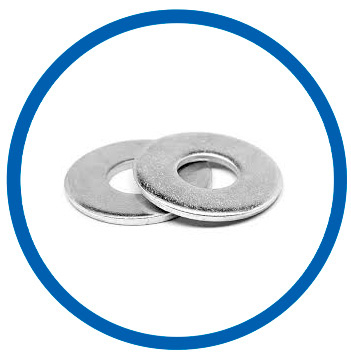

Nickel X-750 washer

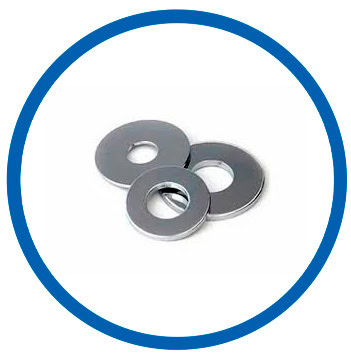

X-750 Inconel plain washer

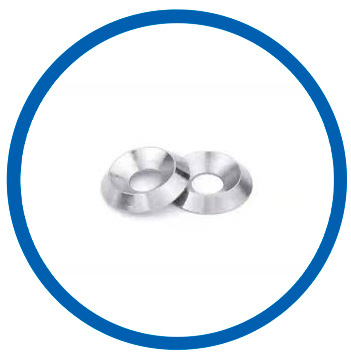

Nickel alloy X-750 countersunk washer

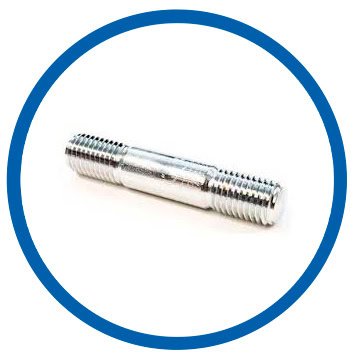

WNR 2.4669 double end stud bolts

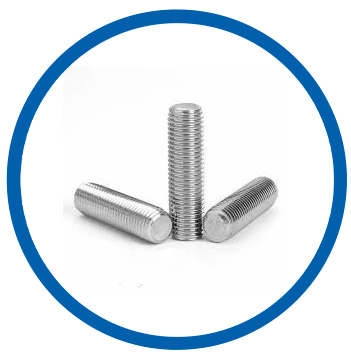

UNS N07750 threaded stud

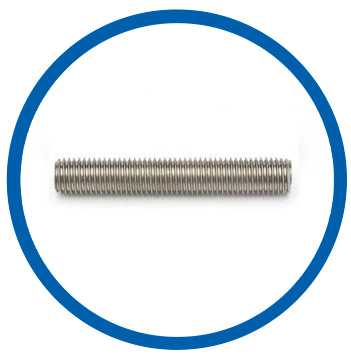

Alloy X-750 threaded rod

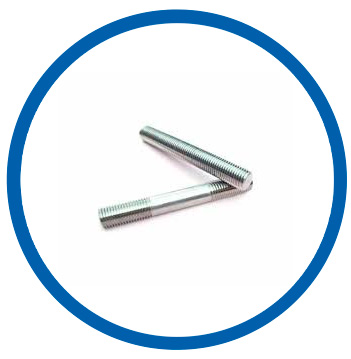

Inconel alloy X-750 studs

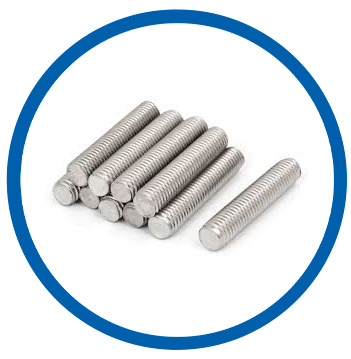

Nickel X-750 fully threaded studs

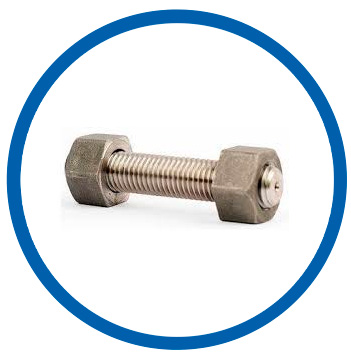

ASTM B637 UNS N07750 stud bolt
