Incoloy 800 Fasteners and Alloy 800H/HT Hex Bolts/ Nuts/Screws/Studs

Table of Content

Incoloy 800 fasteners Specification
Nickel 800H Heavy Hex Bolts Manufacturing Range
Incoloy 800HT Fasteners Price list
Nickel 800 Stud Bolts Chemical composition
Alloy 800 Screws Mechanical properties
Incoloy 800 Threaded Rod equivalent
ASTM B408 UNS N08800 Washer Physical properties

Available types of Incoloy 800 fasteners
Dimensions of ASTM B408 UNS N08810 Bolts
NCF 800h Hex Nuts Size Chart
Forging and Hot Working of Nickel 800HT Hex Nuts
ASTM F2281 Incoloy 800H Bolts Annealing
Application of Incoloy 800H Coach Screw
How to order DIN 1.4958 Carriage Bolt

Incoloy 800 fasteners Specification

Bolt Size

Incoloy 800HT Bolt Sizes

M2 to M24

Alloy 800 Screw Size

3/6″ to 2″

Nickel 800H Nuts Size

M3 – M56 | 3/6″ to 2″

Nickel 800 Washers Size

M3 – M56 | 3/6″ to 2″

800H Inconel Machine Screws Size

M1.6 – M12

ISO Standard

ISO 3506-1

EN 1.4958 fasteners Length

3 mm to 200 mm

DIN 1.4859 flat washer Service Temp

1100 °C

NCF 800HT threaded rod Melting Range

1357–1385 °C

ASTM B408 UNS N08811 square bolts Standards

DIN 934, 931, 7991, 933, 976, 125 / ASME B18.2.1, B18.3

Alloy 800H socket head cap screw Threads

METRIC / BSW / UNF / BSF / UNC

Custom Sizes

We are Manufacturer of Incoloy 800 fasteners in custom sizes

800H Inconel anchor bolts Condition

Threading / Cold Drawn

Nickel 800 Studs Type

Tap-End / Fully or Fine threaded / Double-End

Origin

Indian / Russian / Korean / European

Alloy 800HT hex nuts Finish

Passivation / HDG / Phosphating

Manufacturing Technique

Hot forging / Cold forging / CNC Machined

ASTM B408 UNS N08811 Screws Thread Pitch

Coarse Threads / Fine Threads

Value Added Services

Color Coding
Laser Etching
Head Shank Drilling
Head Painting

Packaging

Blister Packs
Wooden Pallet
Carton Box
Wooden Cases

Certificate

UT and PMI Test
EN 10204/3.1B
100% Radiography Test
Raw Materials Certificate

Alloy 800 hex head bolts Head Types

Button head
Hex washer head
Socket cap head
Slotted Drive
Phillips Drive
Slotted hex washer
Flat

Nickel 800HT Bolt Drive Style

Cross
Torx
Hex
Pan
Round
Oval
Truss

Incoloy 800H screws Thread Class

Class 2A (Medium fit)
2G
3G
Class 1A (Loose fit)
5 ONF
4G
Class 3A (Tight fit)

Nickel 800H Heavy Hex Bolts Manufacturing Range

Diameter	Thread Type	Length	Standards	Conditions
1/4" to 2-1/2"	UNC UNF Metric coarse	Up to 12"	ASTM B408 ASTM B564	Solution annealed Pickled Bright finish

Incoloy 800HT Fasteners Price list

Product	Price in USD (Pcs)	Price in Dirham (Pcs)	Price in Euro (Pcs)
M10x 2.5 PITCH x 343 MM INCOLOY 800HT STUD BOLT	US $42.7	156.71 AED	€ 36.3
M 30 X 3.5 MM PITCH Alloy 800 Heavy Hex Nuts	US $19.04	69.88 AED	€ 16.19

Nickel 800 Stud Bolts Chemical composition

Grade	Mn	C	S	Si	Ni	Fe	Al	Cr	Cu	Ti
800	1.50 max	0.10 max	0.015 max	1.00 max	30.00 – 35.00	39.50 min	0.15 – 0.60	19.00 – 23.00	0.75 max	0.15 – 0.60
800H	1.50 max	0.05 – 0.10	0.015 max	1.00 max	30.00 – 35.00	39.50 min	0.15 – 0.60	19.00 – 23.00	0.75 max	0.15 – 0.60
800HT	1.50 max	0.06 – 0.10	0.015 max	1.00 max	30.00 – 35.00	39.50 min	0.15 – 0.60ᴬ	19.00 – 23.00	0.75 max	0.15 – 0.60

Alloy 800 Screws Mechanical properties

Tensile Strength

531 MPa

Yield strength

200 MPa

Hardness

70 Max HB

Elongation

52 % Min

Incoloy 800 Threaded Rod equivalent

STANDARD	UNS	JIS	GOST	WNR	EN	AFNOR	BS	OR
Incoloy 800	N08800	NCF 800	ЭИ670	1.4876	X10NiCrAlTi32-20	Z8NC32-21	NA 15	Xh22T
Incoloy 800H	N08810	NCF 800H	ЭИ670	1.4958 / 1.4876	X5NiCrAlTi31-20	Z8NC33-21	NA 15(H)	Xh22T
Incoloy 800HT	N08811	NCF 800HT	ЭИ670	1.4859 / 1.4876	X8NiCrAlTi32-21	-	NA 15(HT)	Xh22T

ASTM B408 UNS N08800 Washer Physical properties

Density	Melting point
8.08 g/cm³	1371°C

Available types of Incoloy 800 fasteners

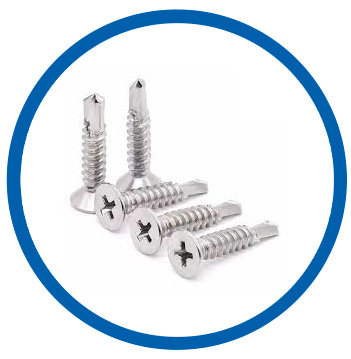

Incoloy 800 self drilling screws

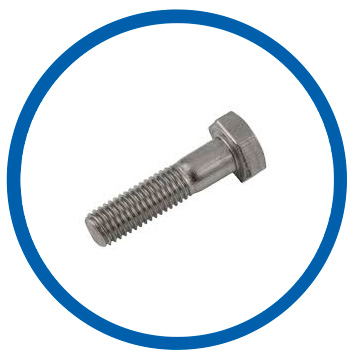

Alloy 800 heavy hex bolt

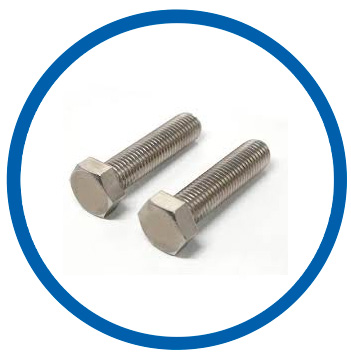

Nickel 800 hex bolts

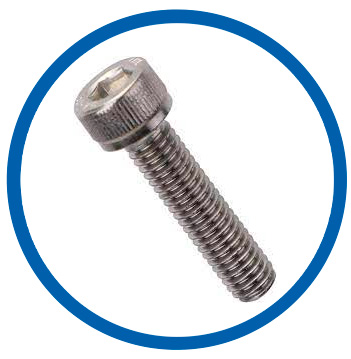

ASTM B408 UNS N08800 hex cap screws

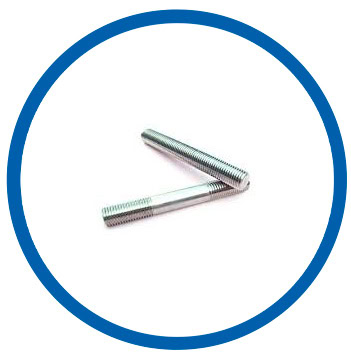

WNR 1.4876 stud bolt

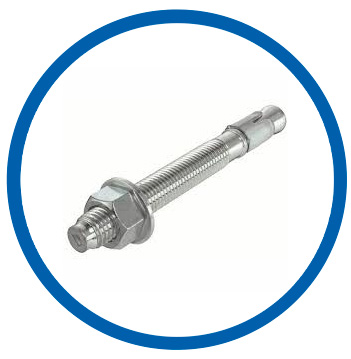

800H Inconel anchor bolts

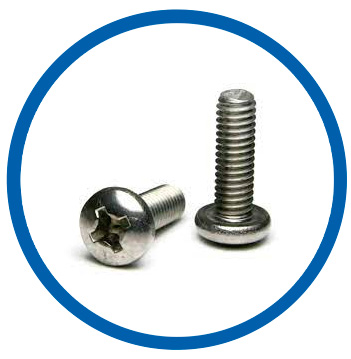

EN 1.4958 machine screws

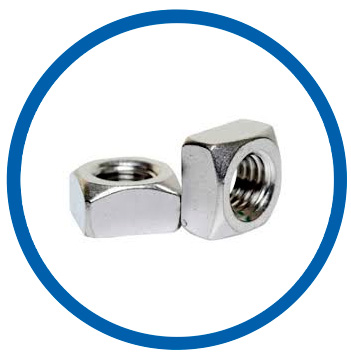

Nickel 800H square nut

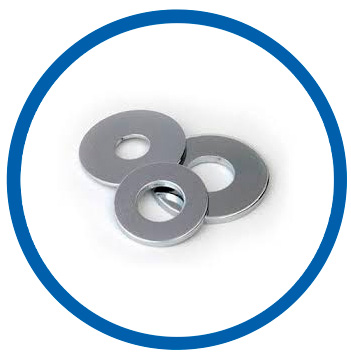

ASTM B408 UNS N08810 plain washer

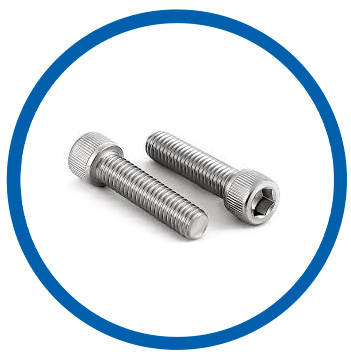

Alloy 800H socket head cap screw

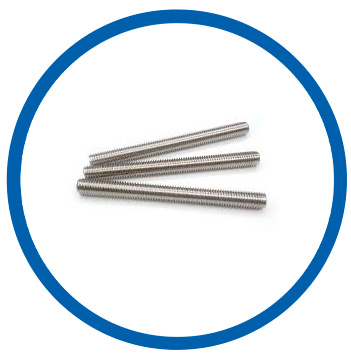

NCF 800HT threaded rod

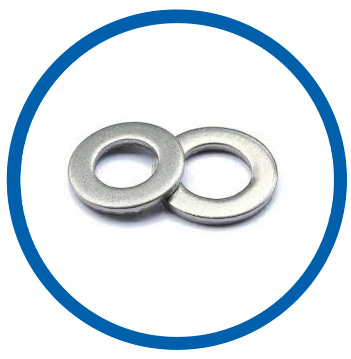

DIN 1.4859 flat washer

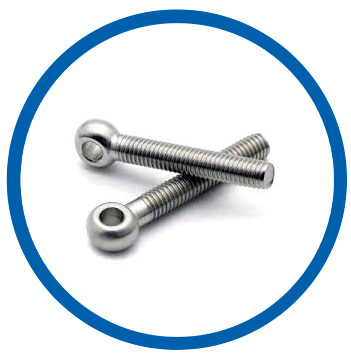

Incoloy 800HT eye bolts

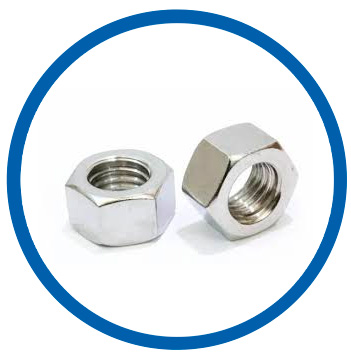

Alloy 800HT hex nuts

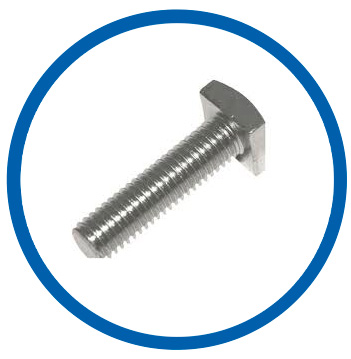

ASTM B408 UNS N08811 square bolts

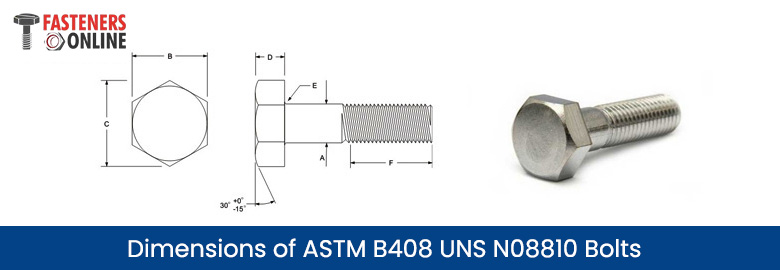

Dimensions of ASTM B408 UNS N08810 Bolts

Bolt Size	D	C (min)	B	A (max)	F Thread Length for Bolt Length		E
Bolt Size	D	C (min)	B	A (max)	6 and shorter	over 6	max	min
1/4	11/64	0.484	7/16	0.26	0.75	1	0.03	0.01
5/16	7/32	0.552	1/2	0.324	0.875	1.125	0.03	0.01
3/8	1/4	0.62	9/16	0.388	1	1.25	0.03	0.01
7/16	19/64	0.687	5/8	0.452	1.125	1.375	0.03	0.01
1/2	11/32	0.826	3/4	0.515	1.25	1.5	0.03	0.01
5/8	27/64	1.033	15/16	0.642	1.5	1.75	0.06	0.02
3/4	1/2	1.24	1-1/8	0.768	1.75	2	0.06	0.02
7/8	37/64	1.447	1-5/16	0.895	2	2.25	0.06	0.02
1	43/64	1.653	1-1/2	1.022	2.25	2.5	0.09	0.03
1-1/8	3/4	1.859	1-11/16	1.149	2.5	2.75	0.09	0.03
1-1/4	27/32	2.066	1-7/8	1.277	2.75	3	0.09	0.03
1-3/8	29/32	2.273	2-1/16	1.404	3	3.25	0.09	0.03
1-1/2	1	2.48	2-1/4	1.531	3.25	3.5	0.09	0.03
1-3/4	1-5/32	2.893	2-5/8	1.785	3.75	4	0.12	0.04
2	1-11/32	3.306	3	2.039	4.25	4.5	0.12	0.04
2-1/4	1-1/2	3.719	3-3/8	2.305	4.75	5	0.19	0.06
2-1/2	1-21/32	4.133	3-3/4	2.559	5.25	5.5	0.19	0.06
2-3/4	1-13/16	4.546	4-1/8	2.837	5.75	6	0.19	0.06
3	2	4.959	4-1/2	3.081	6.25	6.5	0.19	0.06
3-1/4	2-3/16	5.372	4-7/8	3.335	6.75	7	0.19	0.06
3-1/2	2-5/16	5.786	5-1/4	3.589	7.25	7.5	0.19	0.06
3-3/4	2-1/2	6.198	5-5/8	3.858	7.75	8	0.19	0.06
4	2-11/16	6.612	6	4.111	8.25	8.5	0.19	0.06

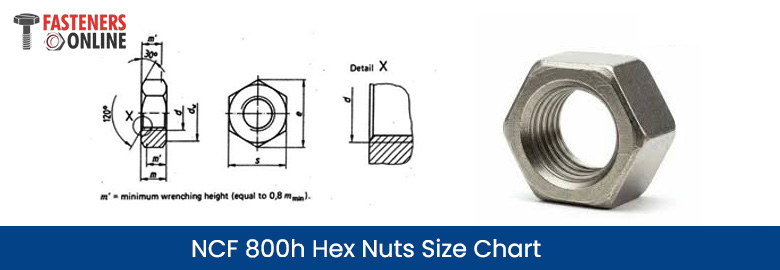

NCF 800h Hex Nuts Size Chart

Thread size d	p	dw, Min.	m, Min.	e, Min	s		m
Thread size d	p	dw, Min.	m, Min.	e, Min	Nominal Size = Max	Min	Nominal Size = Max	Min
M 36	4	57	22.16	66.44	60	58.8	29	27.7
M 30	3.5	47.5	18.16	55.37	50	49	24	22.7
M 27	3	43.5	16.56	50.85	46	45	22	20.7
M 24	3	39	14.16	45.2	41	40	19	17.7
M 22	2.5	34	13.52	39.55	36	35	18	16.9
M 20	2.5	30	11.92	35.03	32	31	16	14.9
M 16	2	25	9.84	29.56	27	26.16	13	12.3
M 12	1.75	20	7.71	23.91	22	21.16	10	9.64

Forging and Hot Working of Nickel 800HT Hex Nuts

Forging	Hot Working
1204-982°C	1204-871°C

ASTM F2281 Incoloy 800H Bolts Annealing

Annealing	1177°C

Application of Incoloy 800H Coach Screw

Petrochemical
Oil and Gas Industry
Refinery Plants
Aerospace

Marine industry
Chemical Processing
Offshore Plants
Power Generation

How to order DIN 1.4958 Carriage Bolt

FAQs

Can Inconel 800 fasteners be used in corrosive chemical environments?

They offer moderate corrosion resistance compared to 625 or 718. Best suited for oxidizing atmospheres, mildly acidic or alkaline solutions, but not ideal for strong chloride or sour gas environments.

Can Alloy 800 fasteners be welded?

Yes, they can be welded using nickel based filler metals

How does Nickel 800 Bolts handle thermal cycling?

Inconel 800 fasteners perform exceptionally well under rapid heating and cooling cycles
