Inconel 601 Fasteners
Trusted ASTM B166 UNS N06601 Hex Bolts Manufacturer in India
Table of Content
Inconel 601 Fasteners Specification
Alloy 601 Bolt Sizes
M2 to M24
UNS N06601 Screw Size
3/6″ to 2″
Nickel 601 Nuts Size
M3 – M56 | 3/6″ to 2″
Inconel 601 Machine Screws Size
M1.6 – M12
EN 2.4851 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 15156‑3
Manufacturing Technique
CNC Machined / Cold forging / Hot forging
Nickel alloy 601 Screws Thread Pitch
Coarse Threads / Fine Threads
Inconel 601 threaded rod Finish
Phosphating / Passivation / HDG
UNS N06601 Studs Type
Fully or Fine threaded / Double-End / Tap-End
Alloy 601 countersunk washer Condition
Threading / Cold Drawn
Origin
Indian / Russian / Korean / European
Inconel 601 heavy hex nuts Melting Range
1360–1411 °C
Nickel 601 fasteners Length
3 mm to 200 mm
Alloy 601 hex cap screws Specific Heat
500 J/kg·K
ASTM B166 UNS N06601 stud bolt Threads
BSW / UNF / BSF / METRIC / UNC
Nickel 601 self tapping screws Standards
DIN 934, 933, 976, 931, 7991, 125 / ASME B18.2.1, B18.3
Custom Sizes
Inconel 601 Fasteners Manufacturer in India in different threads and finish.
Packaging
- Wooden Pallet
- Carton Box
- Wooden Cases
- Blister Packs
Certificate
- 100% Radiography Test
- UT and PMI Test
- Raw Materials Certificate
- EN 10204/3.1B
Value Added Services
- Head Painting
- Laser Etching
- Color Coding
- Head Shank Drilling
DIN 2.4851 Bolt Drive Style
- Hex
- Pan
- Truss
- Round
- Oval
- Torx
- Cross
Inconel 601 hex head bolts Head Types
- Phillips Drive
- Button head
- Socket cap head
- Slotted hex washer
- Hex washer head
- Slotted Drive
- Flat
ASTM B166 UNS N06601 screws Thread Class
- Class 3A (Tight fit)
- 5 ONF
- Class 2A (Medium fit)
- 4G
- Class 1A (Loose fit)
- 3G
- 2G
Nickel 601 heavy hex bolt Manufacturing Range
| Diameters | Lengths | Thread Types | Standards | Manufacturing Process | Certifications |
|---|---|---|---|---|---|
| M6 to M64 | 20 mm to 500 mm | UNC UNF 8UN Metric |
ASME B18.2.1 ASME B18.2.3.6M DIN 931 ISO 4014 NACE MR0175 |
CNC machined Cold forged |
EN 10204 3.1 / 3.2 |
Check latest Nickel 601 Nuts Price list, Supplier of DIN 2.4851 Machine Screws in custom sizes
Inconel 601 Fasteners Price list
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| M4 Wing Nut, Inconel 601, Zinc finish | US $1.75 | 6.43 AED | € 1.50 |
| M8 x 80mm Alloy 601 Socket Head Cap Screw, UNF | US $6.15 | 22.59 AED | € 5.27 |
View Alloy 601 Stud Bolts Chemical and mechanical properties, Exporter of Inconel 601 Washer Worldwide
Alloy 601 bolts Chemical composition
Carbon
0.08 (Max.)
Silicon
0.75 (Max.)
Manganese
2.0 (Max)
Phosphorus
0.045
Chromium
18.0 To 20.0
Sulfur
0.03 (Max.)
Nickel
8.0 To 10.5
Nitrogen
0.10 (Max.)
DIN 2.4851 hex cap screws Mechanical properties
Tensile Strength
586-689 MPa
Yield strength
207-345 MPa
Hardness
89 Rb
Elongation
35-55%
| STANDARD | UNS | DIN | BS | JIS | AFNOR | GOST | EN |
|---|---|---|---|---|---|---|---|
| Inconel 601 | N06601 | 2.4851 | NA 49 | NCF 601 | NC23FeA | XH60BT | NiCr23Fe |
Nickel 601 threaded rod Physical properties
| Density | Coefficient of Expansion | Melting Point | Modulus of Elasticity | Modulus of Rigidity |
|---|---|---|---|---|
| 8.11g/cm³ | 13.75 μm/m °C (20 – 100 °C) | 1411 °C | 206.5 kN/mm² | 81.2 kN/mm² |
Advantages of buying Inconel 601 Fasteners from us
Refer sizes and dimensions of Alloy 601 hex cap screws, Stockist of WNR 2.4851 threaded rod in different finish.

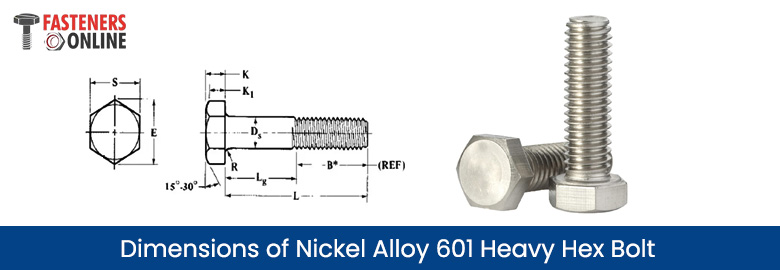

Dimensions of Nickel alloy 601 heavy hex bolt
| Nominal Bolt Diameter, D, and Thread Pitch | Width Across Flats, S | Body Diameter Ds | Head Height, K | Width Across Corners, E | Wrenching Height, K1 | ||||
|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min | Max | Min | Min | |
| M12 x 1.75 | 21 | 20.16 | 12.7 | 11.3 | 7.95 | 7.24 | 24.25 | 22.78 | 5.2 |
| M14 x 2 | 24 | 23.16 | 14.7 | 13.3 | 9.25 | 8.51 | 27.71 | 26.17 | 6.2 |
| M16 x 2 | 27 | 26.16 | 16.7 | 15.3 | 10.75 | 9.68 | 31.18 | 29.56 | 7 |
| M20 x 2.5 | 34 | 33 | 20.84 | 19.16 | 13.4 | 12.12 | 39.26 | 37.29 | 8.8 |
| M24 x 3 | 41 | 40 | 24.84 | 23.16 | 15.9 | 14.56 | 47.34 | 45.2 | 10.5 |
| M20 x 3.5 | 50 | 49 | 30.84 | 29.16 | 19.75 | 17.92 | 57.74 | 55.37 | 13.1 |
| M36 x 4 | 60 | 58.8 | 37 | 35 | 23.55 | 21.72 | 69.28 | 66.44 | 15.8 |

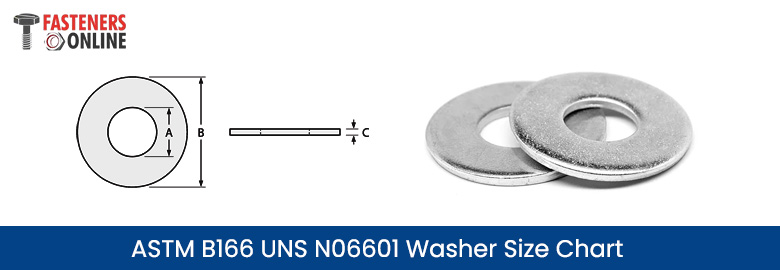

ASTM B166 UNS N06601 washer Size Chart
| Sizes | Outside Diameter (B) | Inside Diameter (A) | Thickness© |
|---|---|---|---|
| #2 | 1/4" | 3/32" | 0.020" |
| #4 | 5/16" | 1/8" | 0.032" |
| #6 | 3/8" | 5/32" | 0.049" |
| #8 | 7/16" | 3/16" | 0.049" |
| #10 | 1/2" | 7/32" | 0.049" |
| #12 | 9/16" | 1/4" | 0.065" |
| 1/4" | 5/8" | 9/32" | 0.065" |
| 5/16" | 11/16" | 11/32" | 0.065" |
| 3/8" | 13/16" | 13/32" | 0.065" |
| 7/16" | 15/16" | 15/32" | 0.065" |
| 1/2" | 1-1/16" | 17/32" | 0.095" |
| 9/16" | 1-5/32" | 19/32" | 0.095" |
| 5/8" | 1-5/16" | 21/32" | 0.095" |
| 3/4" | 1-15/32" | 13/16" | 0.134" |
| 7/8" | 1-3/4" | 15/16" | 0.134" |
| 1" | 2" | 1-1/16" | 0.134" |
Nickel Heavy Hex Bolts widely used in high temperature application, We manufacture Nickel 601 Screws in bulk quantity on demands
Application of Inconel Alloy 601 studs

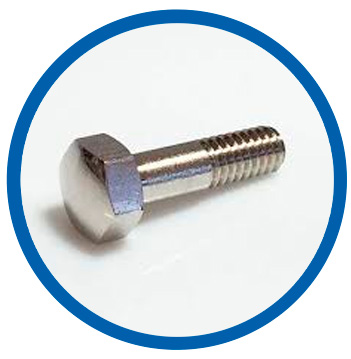

ASTM B166 UNS N06601 bolts

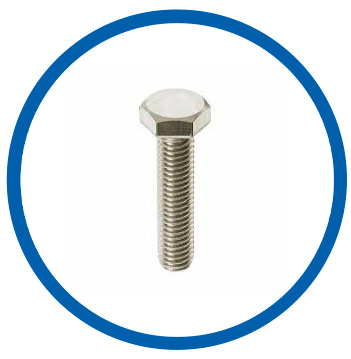

Alloy 601 hex bolts

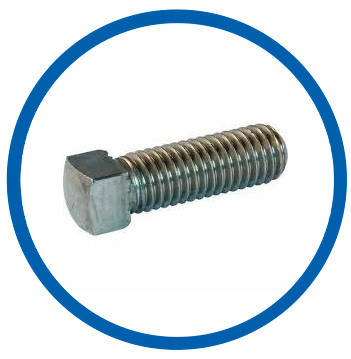

UNS N06601 square bolts

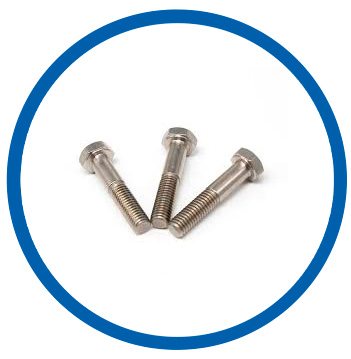

Nickel 601 heavy hex bolt

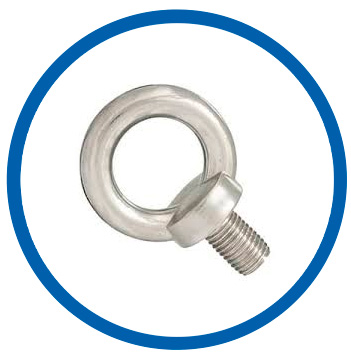

Inconel alloy 601 eye bolts

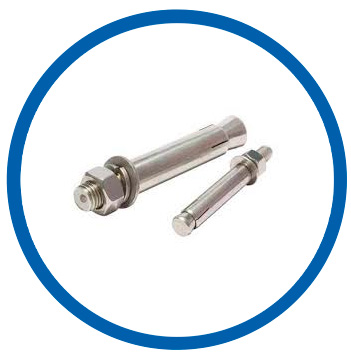

EN 2.4851 anchor bolts

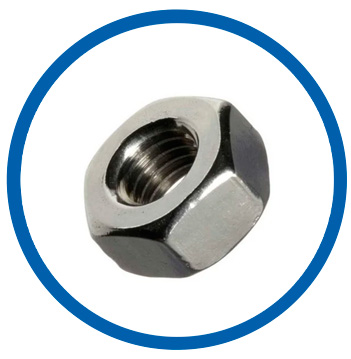

DIN 2.4851 nuts

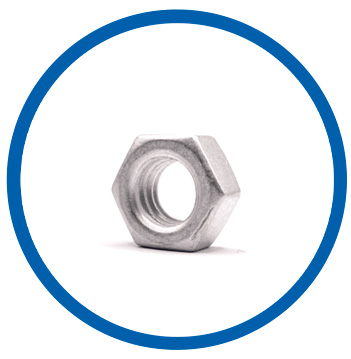

Nickel alloy 601 hex nuts

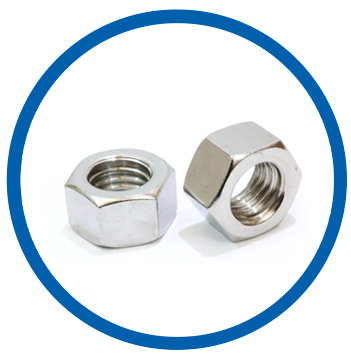

Inconel 601 heavy hex nuts

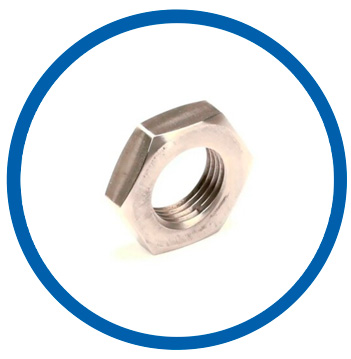

EN 2.4851 lock nut

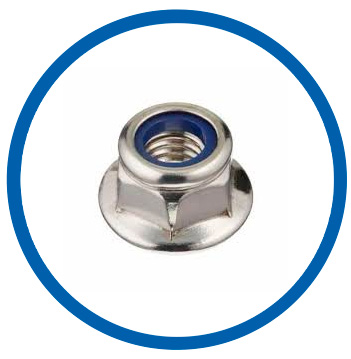

Inconel alloy 601 flange lock nut

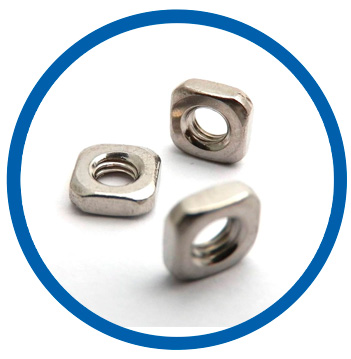

ASTM B166 UNS N06601 square nut

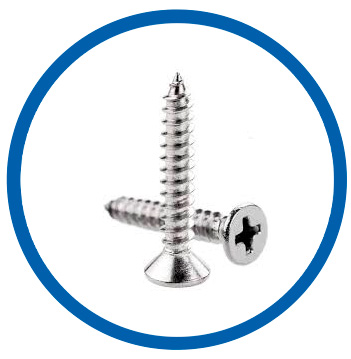

Nickel alloy 601 screw

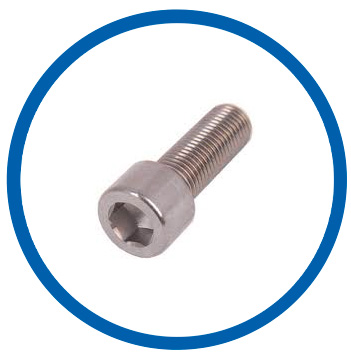

Inconel 601 socket head cap screw

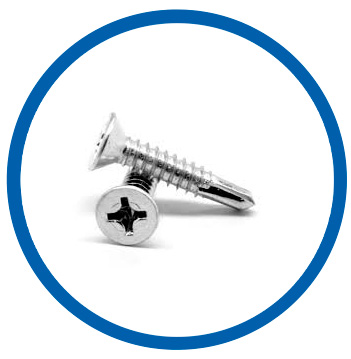

Nickel 601 self tapping screws

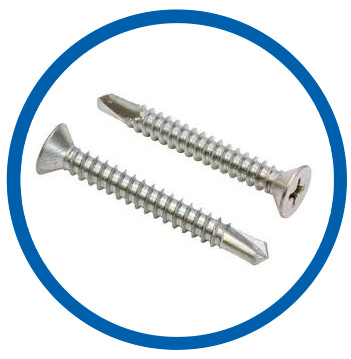

DIN 2.4851 self drilling screws

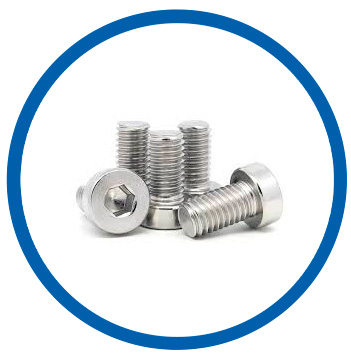

Alloy 601 hex cap screws

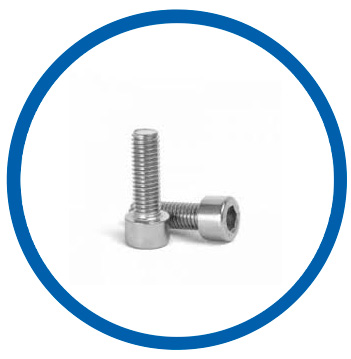

Inconel 601 socket cap screws

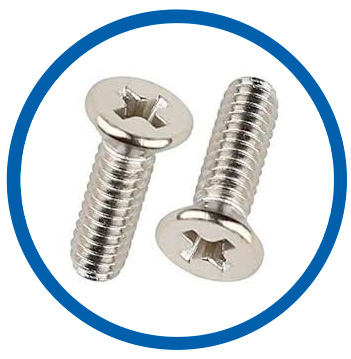

UNS N06601 machine screws

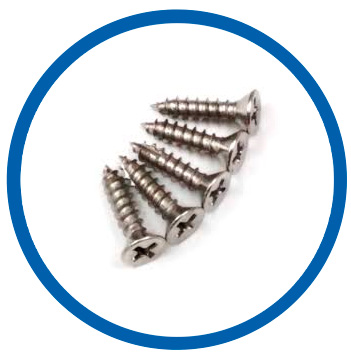

Nickel 601 wood screws

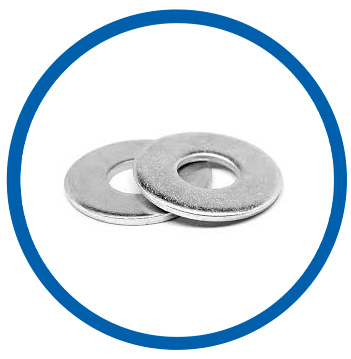

Inconel alloy 601 washer

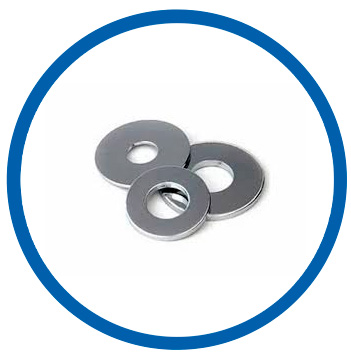

ASTM B166 UNS N06601 flat washer

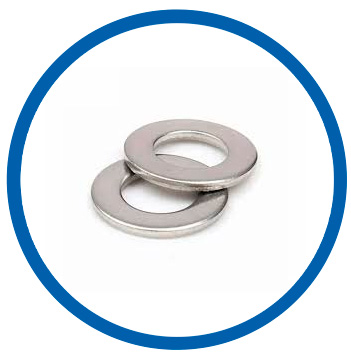

UNS N06601 plain washer

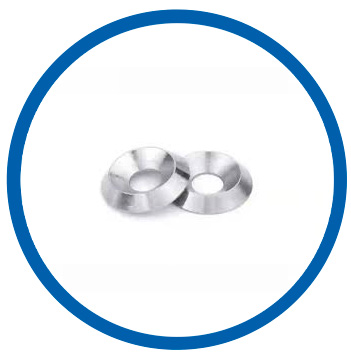

Alloy 601 countersunk washer

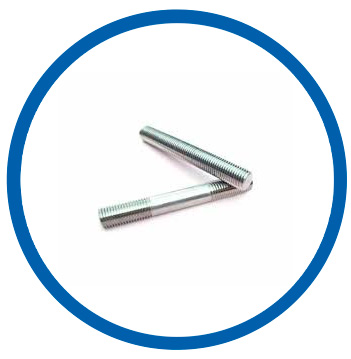

UNS N06601 studs

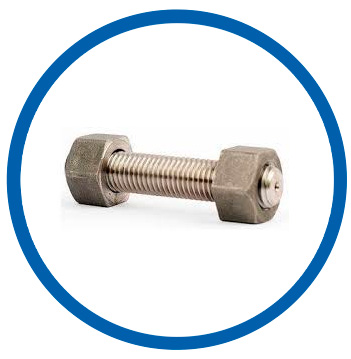

ASTM B166 UNS N06601 stud bolt

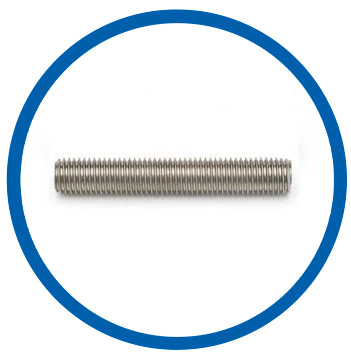

Inconel 601 threaded rod

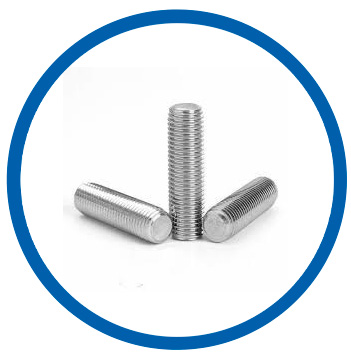

Nickel alloy 601 threaded stud

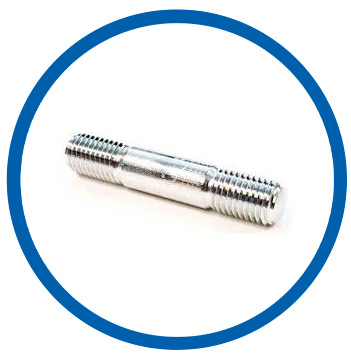

Nickel 601 double end stud bolts

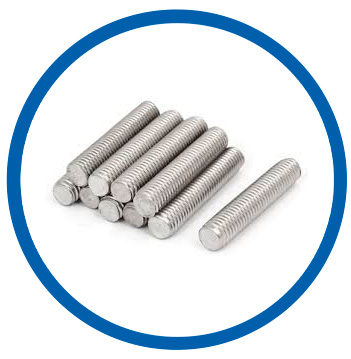

Alloy 601 fully threaded studs
FAQs
- Raw material market rates (nickel content)
- Size and dimensions
- Quantity ordered
- Certification requirements
- Custom machining needs
- Standard sizes: Usually 7–15 days
- Custom orders: 2–4 weeks depending on quantity and specifications
Yes. They perform exceptionally well under repeated heating and cooling cycles without cracking or scaling.
