Monel K500 Fasteners
Manufacturer of Alloy K500 Hex Nuts in India in different finishes
Table of Content
Monel K500 Fasteners Specification
Monel K500 Bolt Sizes
M2 to M24
Alloy K500 Screw Size
3/6″ to 2″
WNR 2.4375 Nuts Size
M3 – M56 | 3/6″ to 2″
UNS N05500 Washers Size
M3 – M56 | 3/6″ to 2″
ASME SF467 N05500 Machine Screws Size
M1.6 – M12
ISO Standard
ISO 15156‑3
Origin
Korean / Russian / Indian / European
Nickel K500 Studs Type
Double-End / Fully or Fine threaded / Tap-End
ASTM F468 UNS N05500 Hex Nuts Condition
Threading / Cold Drawn
Nickel Alloy K500 Screws Thread Pitch
Coarse Threads / Fine Threads
Manufacturing Technique
Cold forging / Hot forging / CNC Machined
UNS N05500 eye bolts Finish
Passivation / Phosphating / HDG
WNR 2.4375 square nut Thermal Conductivity
17.5 W/m·K (at 20 °C)
ASTM F467 UNS N05500 fasteners Length
3 mm to 200 mm
Monel K500 machine screws Melting Point
1315–1350 °C
Custom Sizes
We are Manufacturer of Monel K500 in custom sizes and diameters in India.
Nickel K500 threaded rod Standards
DIN 931, 933, 976, 934, 7991, 125 / ASME B18.2.1, B18.3
Monel Alloy K500 flat washer Threads
BSW / UNF / METRIC / BSF / UNC
Certificate
- EN 10204/3.1B
- UT and PMI Test
- Raw Materials Certificate
- 100% Radiography Test
Packaging
- Wooden Cases
- Carton Box
- Blister Packs
- Wooden Pallet
Value Added Services
- Head Painting
- Laser Etching
- Head Shank Drilling
- Color Coding
WNR 2.4375 hex head bolts Head Types
- Slotted hex washer
- Phillips Drive
- Button head
- Socket cap head
- Hex washer head
- Slotted Drive
- Flat
Nickel K500 screws Thread Class
- Class 3A (Tight fit)
- 5 ONF
- Class 1A (Loose fit)
- 3G
- 2G
- Class 2A (Medium fit)
- 4G
ASTM F468 UNS N05500 Bolt Drive Style
- Round
- Oval
- Cross
- Hex
- Pan
- Torx
- Truss
Refer manufacturing range of ASTM F468 UNS N05500 Stud Bolts, Supplier of WNR 2.4375 Hex Screws
Alloy K500 bolts Manufacturing Range
| Diameter Range | Length Range | Bolt Types | Threads | Standards |
|---|---|---|---|---|
| ¼” to 4” | Up to 1000 mm | Hex bolts Heavy hex bolts Shoulder bolts Eye bolts |
UNC UNF Metric BSPT |
ASTM B865 ASME B18.2.1 |
Buy Nickel K500 threaded rod in custom sizes at best price, Stockist of Monel K500 machine bolts in Mumbai
Monel K500 Fasteners Price list
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 3/8 Alloy K500 Hexy Hex Bolt, BSP Thread, Mill Finish | US $22.75 | 83.56 AED | € 19.55 |
| Monel 400 HEAVY HEX NUT, 5/8X8, NPT Thread | US $11.83 | 43.45 AED | € 10.16 |
UNS N05500 socket head cap screw Chemical composition
Nickel
66 (Max.)
Copper
29 (Max.)
Aluminum
2.7 (Max)
Sulfur
0.01
Manganese
0.7
Tungsten
0.6 (Max.)
Silicon
0.25
Carbon
0.10 (Max.)
DIN 2.4375 heavy hex nut Mechanical properties
Tensile Strength
1000 MPa
Elongation
22%
Yield strength
655 MPa
Hardness
27
ASME SF467 N05500 studs equivalent
| Material | UNS | WNR |
|---|---|---|
| Monel K500 | N05500 | 2.4375 |
Nickel K500 lock nut Physical properties
| Melting Point | Density | Modulus of Elasticity | Modulus of Rigidity |
|---|---|---|---|
| 1350 °C | 8.44 g/cm³ | 179 kN/mm² | 66 kN/mm² |
View dimension of Alloy K500 bolts, We export UNS N05500 Washer in more than 30 countries

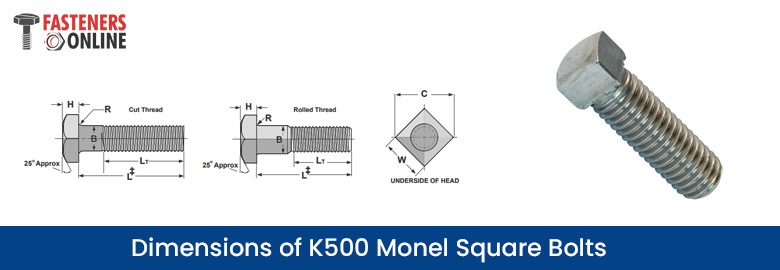

Dimensions of K500 Monel square bolts
| Nominal or Basic Product Diameter | Diameter of Full Size Body (B) | Width Across Corners (C) | Width Across Flats (W) | Radius of Fillet (R) | Head Height (H) | Thread Length for Bolt Lengths | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Max | Min Sharp | Max | Min (Basic) | Max | Min | 6 in. & Shorter (Basic) | over 6 in. (Basic) | |
| 1/4 | 0.26 | .237 | .530 | .498 | .375 | .362 | 0.03 | 0.01 | .188 | .156 | .750 | 1.000 |
| 5/16 | .324 | .298 | .707 | .665 | .500 | .484 | 0.03 | 0.01 | .220 | .186 | .875 | 1.125 |
| 3/8 | .388 | .360 | .795 | .747 | .562 | .544 | 0.03 | 0.01 | .268 | .232 | 1.000 | 1.250 |
| 7/16 | .452 | .421 | .884 | .828 | .625 | .603 | 0.03 | 0.01 | .316 | .278 | 1.125 | 1.375 |
| 1/2 | .515 | .482 | 1.061 | .995 | .750 | .725 | 0.03 | 0.01 | .348 | .308 | 1.250 | 1.500 |
| 5/8 | .642 | .605 | 1.326 | 1.244 | .938 | .906 | 0.06 | 0.02 | .444 | .400 | 1.500 | 1.750 |
| 3/4 | .768 | .729 | 1.591 | 1.494 | 1.125 | 1.088 | 0.06 | 0.02 | .524 | .476 | 1.750 | 2.000 |
| 7/8 | .895 | .852 | c | 1.742 | 1.312 | 1.269 | 0.06 | 0.02 | .620 | .568 | 2.000 | 2.250 |
| 1 | 1.022 | .976 | 2.121 | 1.991 | 1.500 | 1.450 | 0.09 | 0.03 | .684 | .628 | 2.250 | 2.500 |
| 1 1/8 | 1.149 | 1.098 | 2.386 | 2.239 | 1.688 | 1.631 | 0.09 | 0.03 | .780 | .720 | 2.5 | 2.750 |
| 1 1/4 | 1.277 | 1.223 | 2.652 | 2.489 | 1.875 | 1.812 | 0.09 | 0.03 | .876 | .812 | 2.750 | 3.000 |
| 1 3/8 | 1.404 | 1.345 | 2.917 | 2.738 | 2.062 | 1.994 | 0.09 | 0.03 | .940 | .872 | 3.000 | 3.250 |
| 1 1/2 | 1.531 | 1.47 | 3.182 | 2.986 | 2.25 | 2.175 | 0.09 | 0.03 | 1.036 | 0.964 | 3.25 | 3.5 |
ASTM F468 UNS N05500 threaded rod Size Chart
| Size (MM) | Weight per Metre | Size (MM) | Weight per Metre |
|---|---|---|---|
| M2 | 0.0187 | M18 | 1.65 |
| M2.5 | 0.03 | M20 | 2.08 |
| M3 | 0.044 | M22 | 2.54 |
| M3.5 | 0.06 | M24 | 3 |
| M4 | 0.078 | M27 | 3.85 |
| M5 | 0.124 | M30 | 4.75 |
| M6 | 0.177 | M33 | 5.9 |
| M8 | 0.319 | M36 | 6.9 |
| M10 | 0.5 | M39 | 8.2 |
| M12 | 0.725 | M42 | 9.4 |
| M14 | 0.97 | M45 | 11 |
| M16 | 1.33 | M48 | 12.4 |
Stockholder and distributor of Nickel K500 Fasteners, We manufacturer ASME SF467 N05500 studs in different shapes and sizes

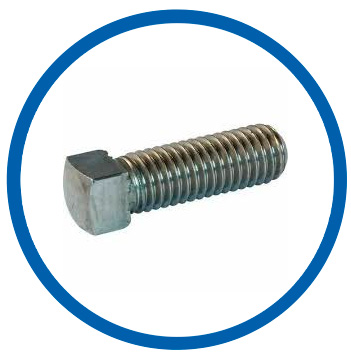

Monel K500 square bolts

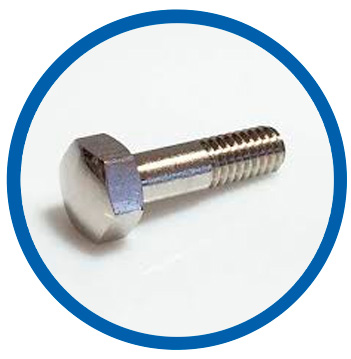

K500 Monel bolts

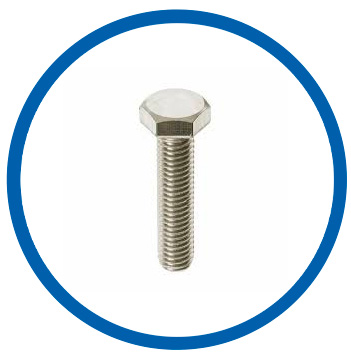

DIN 2.4375 hex bolts

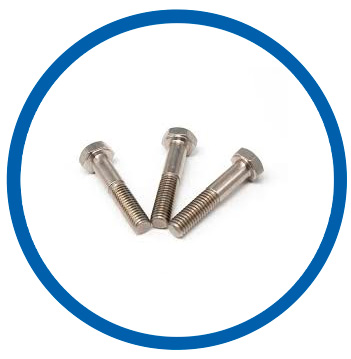

ASTM F467 UNS N05500 heavy hex bolt

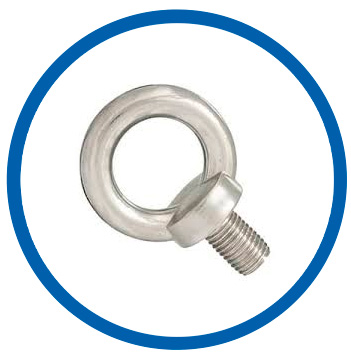

UNS N05500 eye bolts

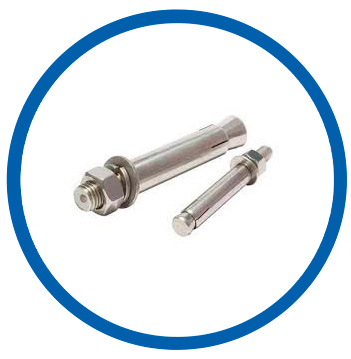

Monel Alloy K500 anchor bolts

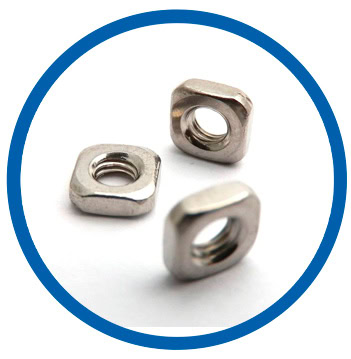

WNR 2.4375 square nut

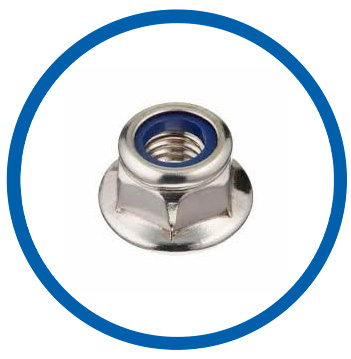

Monel Alloy K500 flange lock nut

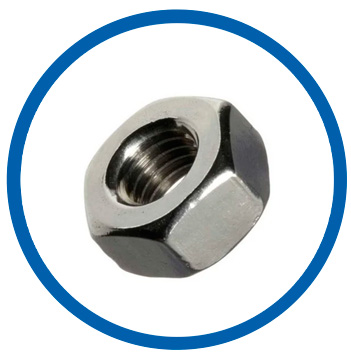

Alloy K500 nuts

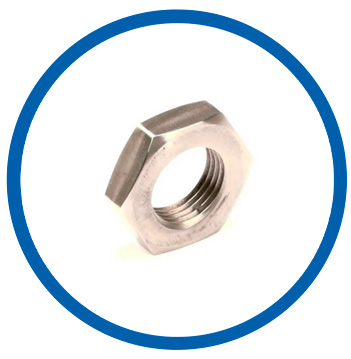

ASTM F468 UNS N05500 lock nut

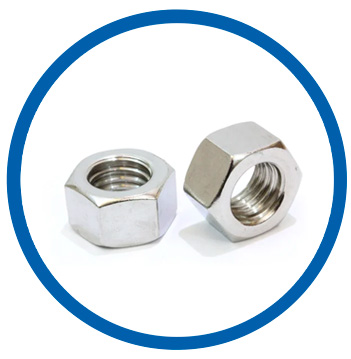

Nickel Alloy K500 heavy hex nuts

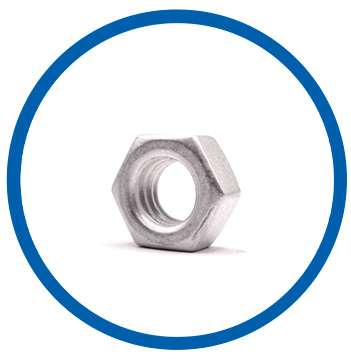

ASME SF467 N05500 hex nuts

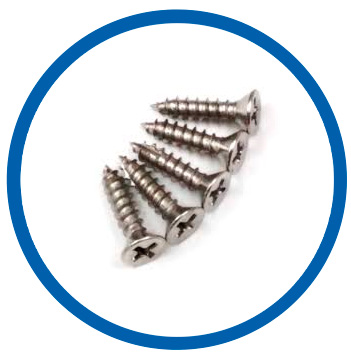

K500 Monel wood screws

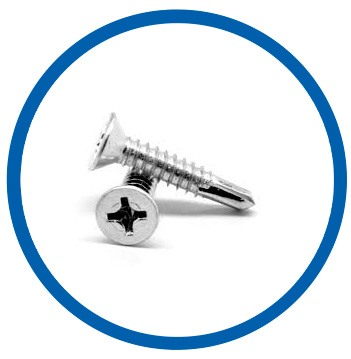

UNS N05500 self tapping screws

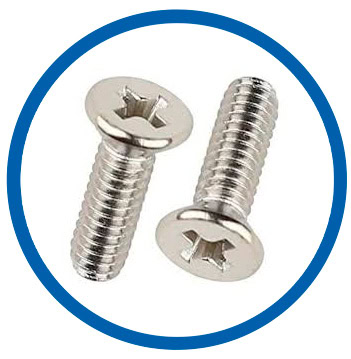

WNR 2.4375 machine screws

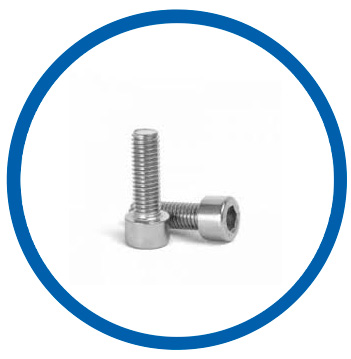

ASTM F467 UNS N05500 socket cap screws

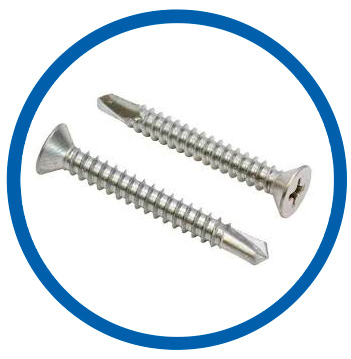

Alloy K500 self drilling screws

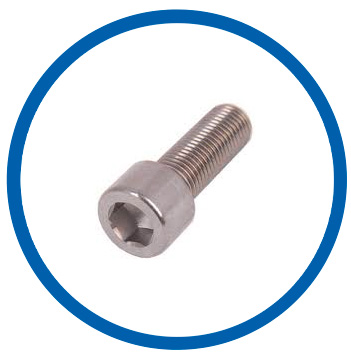

Nickel Alloy K500 socket head cap screw

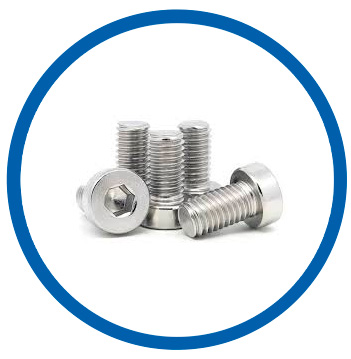

ASME SF467 N05500 hex cap screws

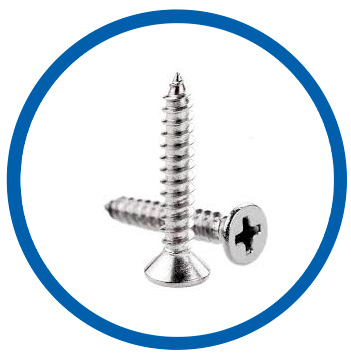

Monel K500 screw

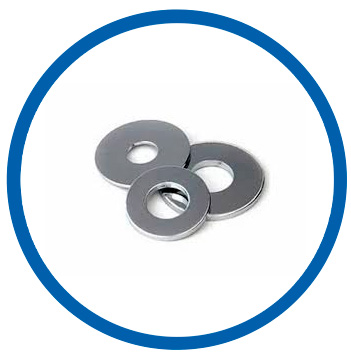

ASTM F467 UNS N05500 plain washer

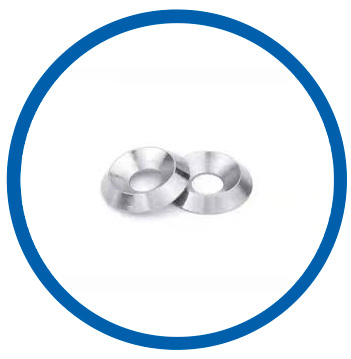

Monel K500 countersunk washer

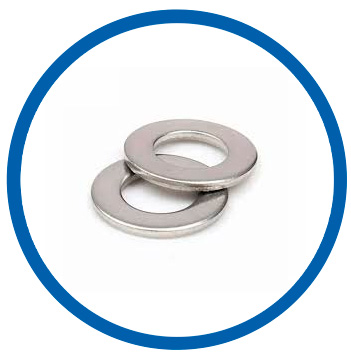

Monel Alloy K500 flat washer

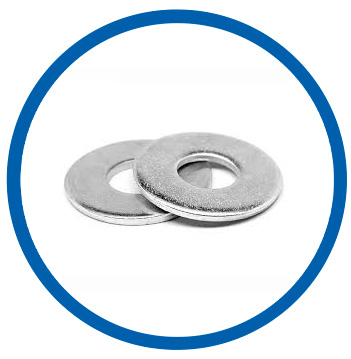

DIN 2.4375 washer

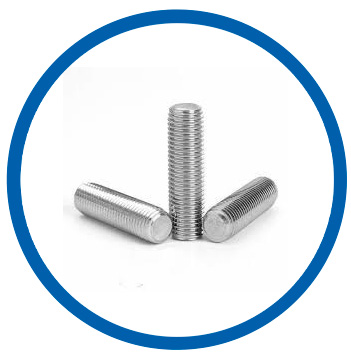

ASTM F468 UNS N05500 threaded stud

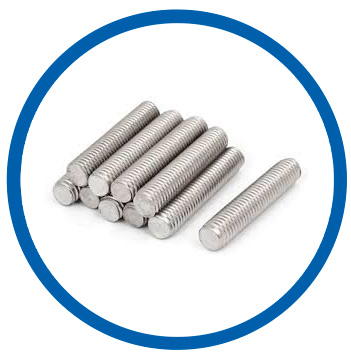

Monel Alloy K500 fully threaded studs

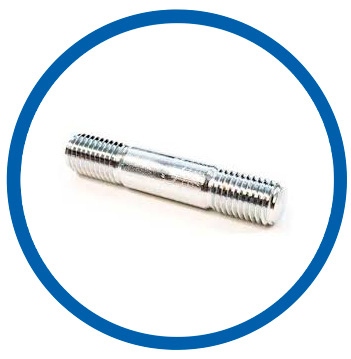

Monel Alloy K500 double end stud bolts

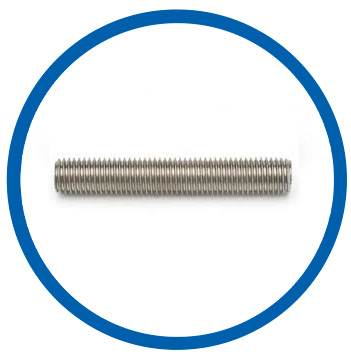

DIN 2.4375 threaded rod

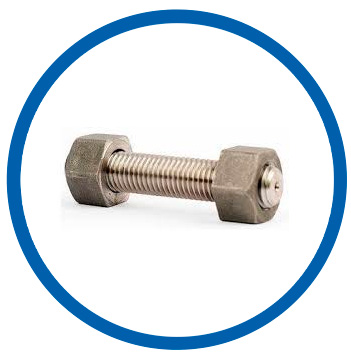

Nickel Alloy K500 stud bolt

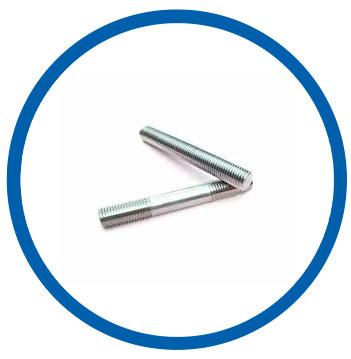

WNR 2.4375 studs
FAQs
When installed properly, Monel K500 fasteners can last decades in marine environments
Yes, K500 resists mild acids, but in strong oxidizing acids or concentrated sulfuric/nitric acids, performance may degrade.
Yes. Nickel K500 can be pre machined to exact tolerances
