Stainless Steel 409 Fasteners
AISI 409 Hex Bolts Manufacturer in India
Table of Content
Stainless Steel 409 Fasteners Specification
409 SS Nuts Size
M3 – M56 | 3/6″ to 2″
AISI 409 Bolt Sizes
M2 to M24
UNS S40900 Screw Size
3/6″ to 2″
DIN 1.4512 Machine Screws Size
M1.6 – M12
409 Stainless Steel Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 3506-1
Stainless steel 409 fasteners Length
3 mm to 200 mm
409 SS stud bolt Modulus of Elasticity
200 GPa
AISI 409 square nut Thermal Conductivity
25 W/m·K
Stainless steel 409 anchor bolts Condition
Threading / Cold Drawn
Origin
Korean / Indian / Russian / European
DIN 1.4512 Studs Type
Double-End / Tap-End / Fully or Fine threaded
409 Stainless Steel hex cap screws Threads
BSF / METRIC / BSW / UNF / UNC
Custom Sizes
Buy 409 Stainless steel fasteners from manufacturer in India in custom sizes.
UNS S40900 socket cap screw Standards
DIN 931, 933, 976, 7991, 934, 125 / ASME B18.2.1, B18.3
SUS 422 Screws Thread Pitch
Coarse Threads / Fine Threads
SS 409 square bolts Finish
Passivation / Phosphating / HDG
Manufacturing Technique
Cold forging / Hot forging / CNC Machined
AISI 409 hex head bolts Head Types
- Slotted hex washer
- Slotted Drive
- Socket cap head
- Button head
- Hex washer head
- Phillips Drive
- Flat
DIN 1.4512 screws Thread Class
- 2G
- Class 1A (Loose fit)
- 4G
- Class 2A (Medium fit)
- 3G
- 5 ONF
- Class 3A (Tight fit)
UNS S40900 Bolt Drive Style
- Cross
- Torx
- Pan
- Truss
- Round
- Oval
- Hex
Certificate
- 100% Radiography Test
- UT and PMI Test
- EN 10204/3.1B
- Raw Materials Certificate
Packaging
- Carton Box
- Wooden Cases
- Blister Packs
- Wooden Pallet
Value Added Services
- Color Coding
- Head Painting
- Head Shank Drilling
- Laser Etching
Refer Sizes and dimensionso of DIN 1.4512 Nut and SS 409 Stud Bolt
SS 409 Hex Bolt Manufacturing Range
| Diameters | Length | Standards | Manufacturing Process | Surface finishes | Thread Types |
|---|---|---|---|---|---|
| M2–M33 | 3 mm–200 mm | ASTM B446 DIN 931 ISO 4014 ASME B18.2.1 |
Cold forged Hot forged CNC machined |
Mirror buffing Passivation Zinc plating Electro-polishing |
Metric coarse/fine UNF UNC BSF BSW |
409 SS Grub Screw can withstand temperature upto 600°C, View price list of 409 Stainless Steel industrial fasteners
Stainless Steel 409 Fasteners Price list
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| M8 x 55mm AISI 409 Hex Bolt | US $3.80 | 13.96 AED | € 3.26 |
| M12 SS 409 Heavy Hex Nuts | US $1.80 | 6.61 AED | € 1.54 |
Check mechanical properties of UNS S40900 Threaded Rod, Exporter of SS 409 Nuts in More than 20 countries
AISI 409 Screws Chemical composition
Carbon
0.08 (Max.)
Silicon
1.00 (Max.)
Manganese
1.00 (Max)
Phosphorus
0.045
Chromium
10.5 To 11.75
Sulfur
0.045 (Max.)
Nickel
0.5
Titanium
0.75 (Max.)
UNS S40900 Hex Nut Mechanical properties
Tensile Strength
450 MPa
Yield Strength
240 MPa
Hardness
75 Max HB
Elongation
25 % Min
| Grade | UNS | WNR | Japanese JIS |
|---|---|---|---|
| 409 | S40900 | 1.4512 | SUH 409 |
DIN 1.4512 Machine Bolt Physical properties
| Density | Elastic Modulus | Specific Heat 0-100°C | Electrical Resistivity |
|---|---|---|---|
| 7800 kg/m3 | 200 GPa | 460 J/kg.K | 600 nΩ.m |
UNS S40900 screws are commonly used in automotive exhaust systems, Supplier of Alloy 409 carriage bolts in Mumbai
Various types of Stainless Steel 409 Fasteners

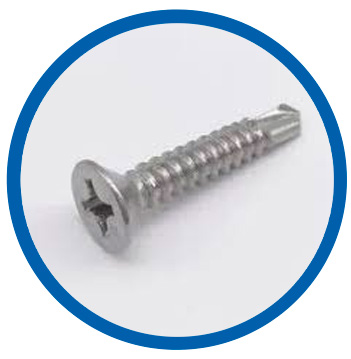

409 SS self drilling screws

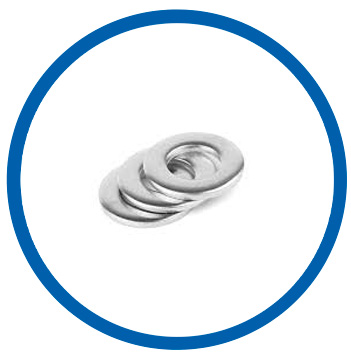

UNS S40900 flat washer

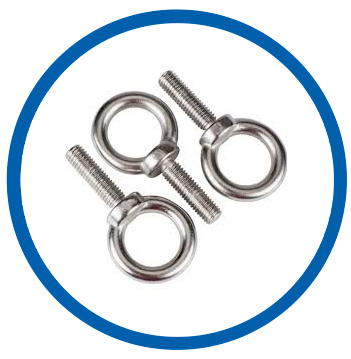

DIN 1.4512 eye bolts

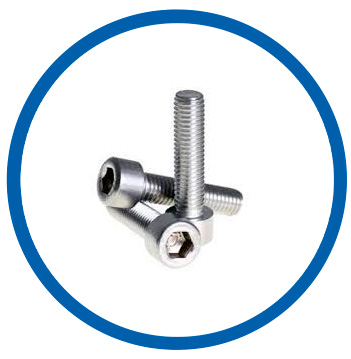

409 Stainless Steel hex cap screws

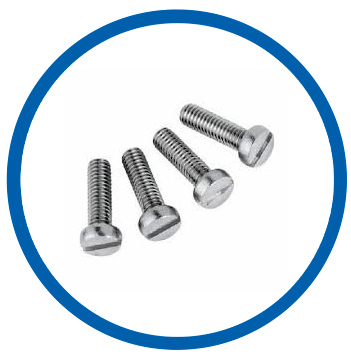

AISI 409 machine screws

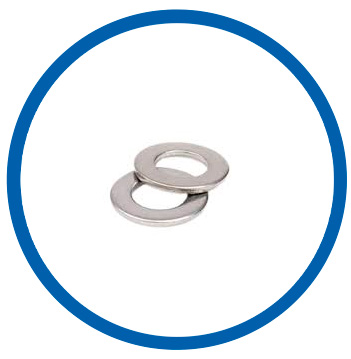

Stainless steel 409 plain washer

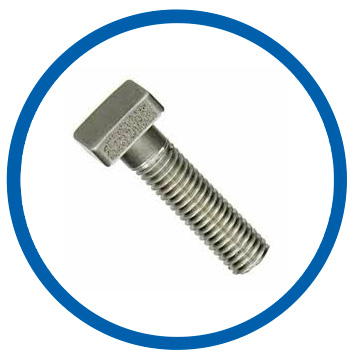

SS 409 square bolts

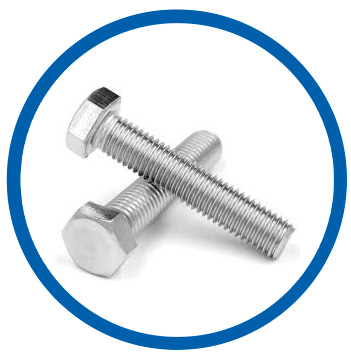

AISI 409 hex bolts

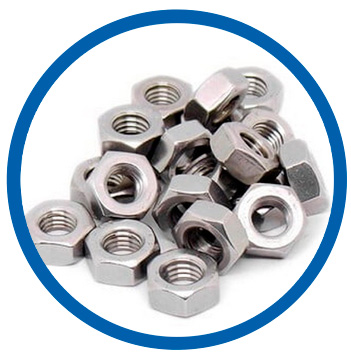

DIN 1.4512 hex nuts

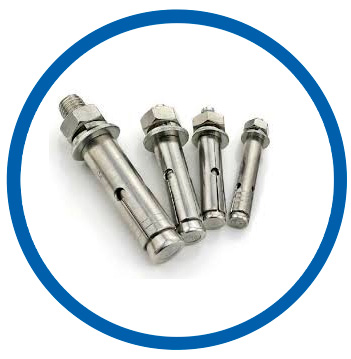

Stainless steel 409 anchor bolts

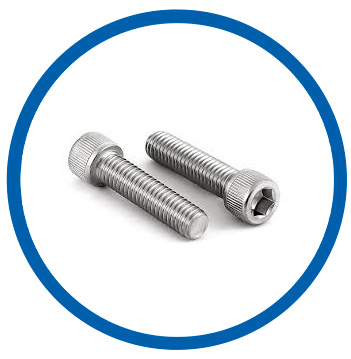

UNS S40900 socket head cap screw

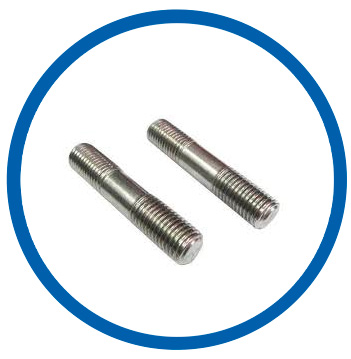

409 SS stud bolt

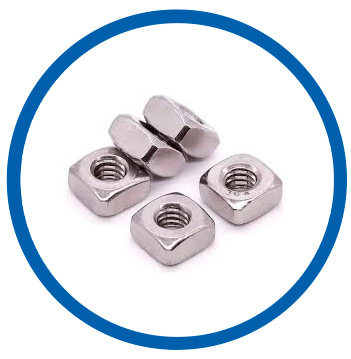

AISI 409 square nut

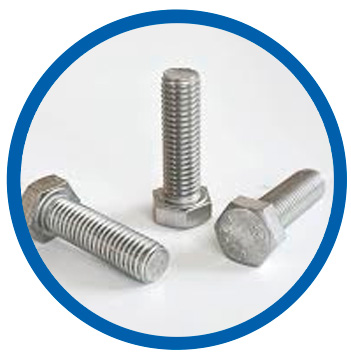

409 Stainless Steel heavy hex bolt

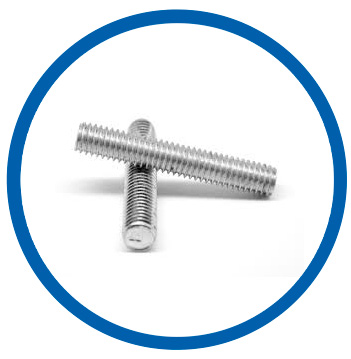

SS 409 threaded rod
Dimensions of AISI 409 Threaded Rod
| Size (MM) | Weight per Metre | Size (MM) | Weight per Metre |
|---|---|---|---|
| M2 | 0.0187 | M18 | 1.65 |
| M2.5 | 0.03 | M20 | 2.08 |
| M3 | 0.044 | M22 | 2.54 |
| M3.5 | 0.06 | M24 | 3 |
| M4 | 0.078 | M27 | 3.85 |
| M5 | 0.124 | M30 | 4.75 |
| M6 | 0.177 | M33 | 5.9 |
| M8 | 0.319 | M36 | 6.9 |
| M10 | 0.5 | M39 | 8.2 |
| M12 | 0.725 | M42 | 9.4 |
| M14 | 0.97 | M45 | 11 |
| M16 | 1.33 | M48 | 12.4 |

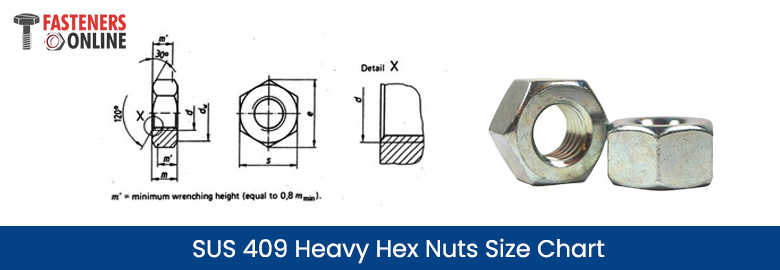

SUS 409 Heavy Hex Nuts Size Chart
| Thread size d | dw, Min. | e, Min | p | m, Min. | m | s | ||
|---|---|---|---|---|---|---|---|---|
| Nominal Size = Max | Min | Nominal Size = Max | Min | |||||
| M 12 | 20 | 23.91 | 1.75 | 7.71 | 10 | 9.64 | 22 | 21.16 |
| M 16 | 25 | 29.56 | 2 | 9.84 | 13 | 12.3 | 27 | 26.16 |
| M 20 | 30 | 35.03 | 2.5 | 11.92 | 16 | 14.9 | 32 | 31 |
| M 22 | 34 | 39.55 | 2.5 | 13.52 | 18 | 16.9 | 36 | 35 |
| M 24 | 39 | 45.2 | 3 | 14.16 | 19 | 17.7 | 41 | 40 |
| M 27 | 43.5 | 50.85 | 3 | 16.56 | 22 | 20.7 | 46 | 45 |
| M 30 | 47.5 | 55.37 | 3.5 | 18.16 | 24 | 22.7 | 50 | 49 |
| M 36 | 57 | 66.44 | 4 | 22.16 | 29 | 27.7 | 60 | 58.8 |
Heat Treatment of Type 409 Stainless Steel Studs
| Heat Treatment | 790 to 900°C |
|---|
409 Stainless Steel Bolt Testing Inspection
