Stainless steel 330 Fasteners
Biggest Alloy 330 Hex Bolts Manufacturer in India
Table of Content
Stainless Steel 330 Fasteners Specification
AISI 330 Nuts Size
M3 – M56 | 3/6″ to 2″
Alloy 330 Bolt Sizes
M2 to M24
SS 330 Screw Size
3/6″ to 2″
DIN 1.4864 Machine Screws Size
M1.6 – M12
UNS N08330 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 3506-1
Stainless Steel 330 fasteners Length
3 mm to 200 mm
SUS 330 anchor bolts Melting Point
Excellent
SS 330 stud bolt Specific Heat
502 J/kg·K
330 SS hex cap screws Condition
Threading / Cold Drawn
SUS 330 Studs Type
Tap-End / Double-End / Fully or Fine threaded
Origin
Russian / Korean / Indian / European
Type 330 Stainless Steel hex bolts Threads
UNF / BSF / BSW / METRIC / UNC
Custom Sizes
Stainless steel 330 fastener Manufacturer in India in custom sizes and diameter.
Stainless steel 330 hex bolt Standards
DIN 976, 931, 933, 7991, 934, 125 / ASME B18.2.1, B18.3
AISI 330 Screws Thread Pitch
Coarse Threads / Fine Threads
Manufacturing Technique
Hot forging / Cold forging / CNC Machined
SS 330 plain washer Finish
Passivation / Phosphating / HDG
Certificate
- EN 10204/3.1B
- 100% Radiography Test
- UT and PMI Test
- Raw Materials Certificate
Packaging
- Blister Packs
- Carton Box
- Wooden Cases
- Wooden Pallet
Value Added Services
- Head Shank Drilling
- Color Coding
- Head Painting
- Laser Etching
SS 330 hex head bolts Head Types
- Socket cap head
- Button head
- Hex washer head
- Phillips Drive
- Flat
- Slotted hex washer
- Slotted Drive
AISI 330 screws Thread Class
- Class 1A (Loose fit)
- 4G
- Class 2A (Medium fit)
- 2G
- 3G
- 5 ONF
- Class 3A (Tight fit)
Stainless Steel 330 Bolt Drive Style
- Cross
- Round
- Oval
- Hex
- Torx
- Pan
- Truss
Refer manufacturing range and price list of SS 330 Heavy Hex Nuts and Screws
AISI 330 Machine Screws Manufacturing Range
| Diameters | Length | Manufacturing Process | Standards | Thread Types | Surface finishes |
|---|---|---|---|---|---|
| M2 – M100 | 3 mm up to 200 mm | Cold forged Hot forged CNC machined |
ASTM F2281 ASME B1.13M |
Metric coarse/fine UNF UNC BSF BSW |
Mirror buffing Passivation Zinc plating Electro-polishing |
Stainless Steel 330 Fasteners Price list
| Product | Price in USD (10 Pcs) |
Price in Dirham (10 Pcs) |
Price in Euro (10 Pcs) |
|---|---|---|---|
| Hex Bolt M12 x 40mm, AISI 330, UNF | US $3.45 | 12.67 AED | € 2.96 |
| SS 330 Socket Head Cap Screw M5 x 8mm | US $1.72 | 6.32 AED | € 1.47 |
AISI 330 Stud bolts are resistant to carburization and oxidation
SUS 330 Threaded Rod Chemical composition
Iron
42 (Max.)
Nickel
36 (Max.)
Chromium
19 (Max)
Manganese
2
Silicon
1.13
Carbon
0.080
Phosphorous
0.040
Sulfur
0.030
DIN 1.4864 Screws Mechanical properties
Tensile Strength
550 MPa
Yield Strength
260 MPa
Poisson’s ratio
0.27 – 0.30
Elongation
40 % Min
| Grade | UNS | WNR | JIS |
|---|---|---|---|
| SS 330 | N08330 | 1.4864 | SUH 330 |
UNS N08330 Hex Bolt Physical properties
| Density | Modulus of elasticity | Melting Point |
|---|---|---|
| 8 g/cm3 | 197 GPa | 1354°C – 1400°C |
Stockist and Supplier of 330 Stainless steel Washer and Machine bolts in Mumbai
Various types of Stainless Steel 330 Fasteners

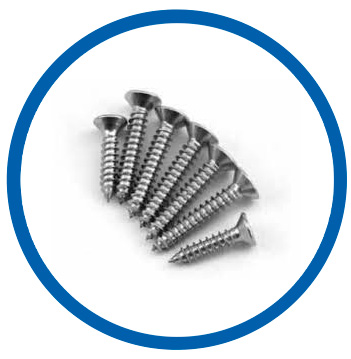

330 Stainless Steel self drilling screws

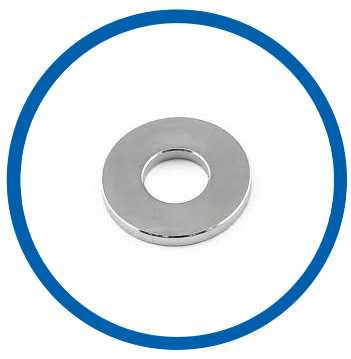

Stainless steel 330 flat washer

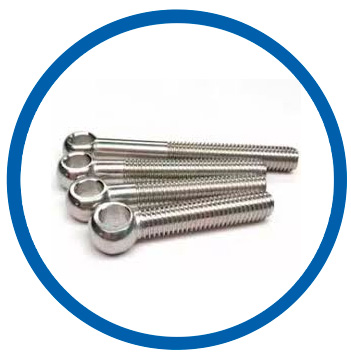

DIN 1.4864 eye bolts

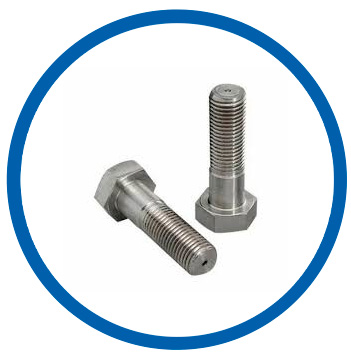

330 SS hex cap screws

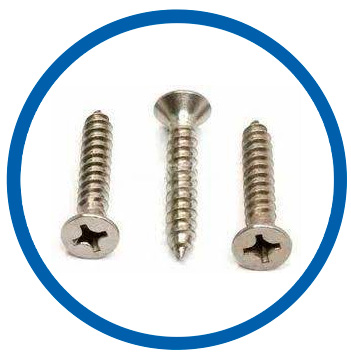

AISI 330 machine screws

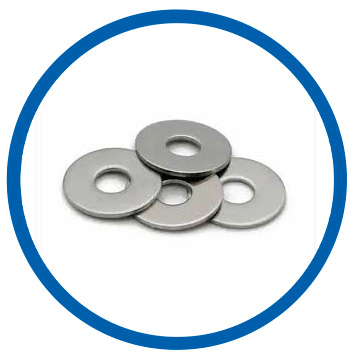

SS 330 plain washer

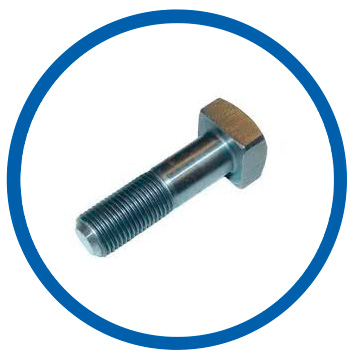

EN 1.4864 square bolts

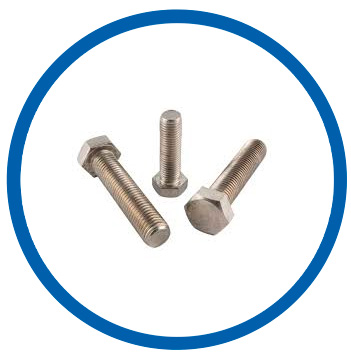

Type 330 Stainless Steel hex bolts

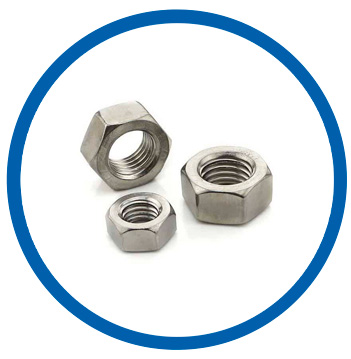

UNS N08330 hex nuts

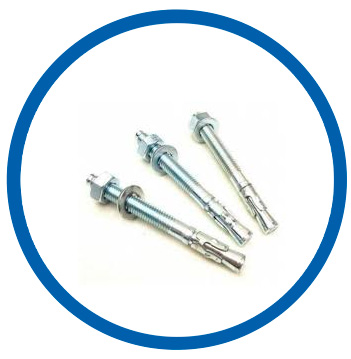

SUS 330 anchor bolts

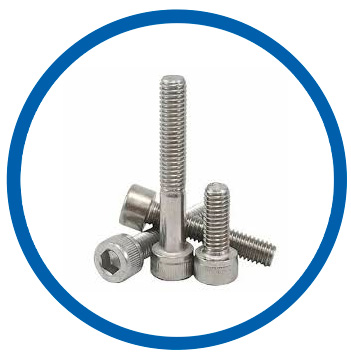

AISI 330 socket head cap screw

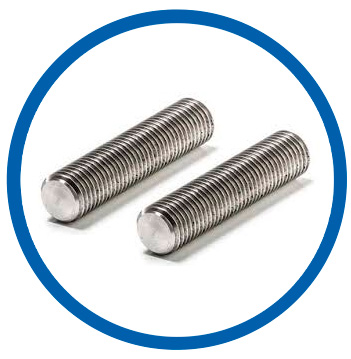

SS 330 stud bolt

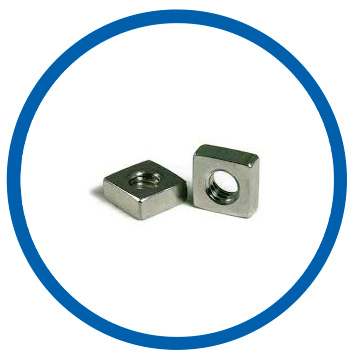

DIN 1.4864 square nut

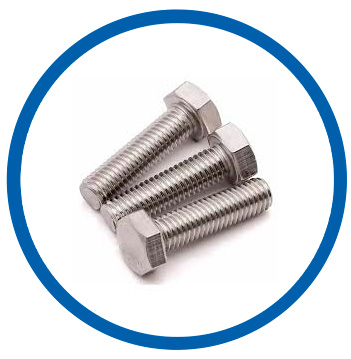

Stainless steel 330 heavy hex bolt

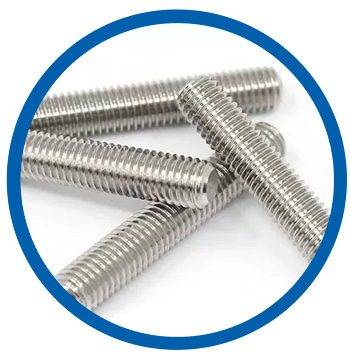

UNS N08330 threaded rod
Buy UNS N08330 eye bolts in custom sizes, Exporter of DIN 1.4864 Socket head cap screws worldwide

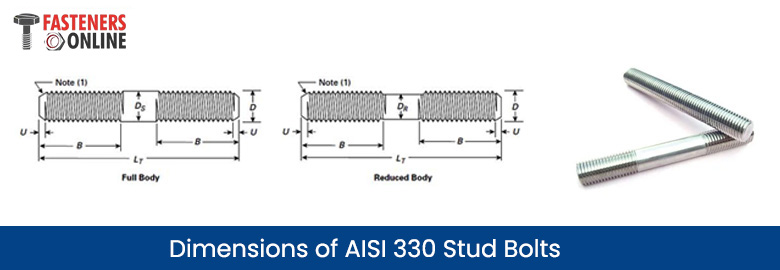

Dimensions of AISI 330 Stud Bolts
| Nominal Size | Diameter, D | Nut End Minimum Full Thread Length, Bmin | Umax = 2 Thread Pitches | ||||
|---|---|---|---|---|---|---|---|
| L > 16 | 10 > L ≤ 16 | L ≤ 10 | 8UN Threads | UNF Threads | UNC Threads | ||
| 1/4 | 0.25 | 1.5 | 1 | 0.75 | -- | 0.071 | 0.1 |
| 5/16 | 0.3125 | 1.625 | 1.125 | 0.875 | -- | 0.083 | 0.111 |
| 3/8 | 0.375 | 1.75 | 1.25 | 1 | -- | 0.083 | 0.125 |
| 7/16 | 0.4375 | 1.875 | 1.375 | 1.125 | -- | 0.1 | 0.143 |
| 1/2 | 0.5 | 2 | 1.5 | 1.25 | -- | 0.1 | 0.154 |
| 9/16 | 0.5625 | 2.125 | 1.625 | 1.375 | -- | 0.111 | 0.167 |
| 5/8 | 0.625 | 2.25 | 1.75 | 1.5 | -- | 0.111 | 0.182 |
| 3/4 | 0.75 | 2.5 | 2 | 1.75 | -- | 0.125 | 0.2 |
| 7/8 | 0.875 | 2.75 | 2.25 | 2 | -- | 0.143 | 0.222 |
| 1 | 1 | 3 | 2.5 | 2.25 | -- | 0.167 | 0.25 |
| 1 1/8 | 1.125 | 3.25 | 2.75 | 2.5 | 0.25 | 0.167 | 0.286 |
| 1 1/4 | 1.25 | 3.5 | 3 | 2.75 | 0.25 | 0.167 | 0.286 |
| 1 3/8 | 1.375 | 3.75 | 3.25 | 3 | 0.25 | 0.167 | 0.333 |
| 1 1/2 | 1.5 | 4 | 3.5 | 3.25 | 0.25 | 0.167 | 0.333 |
| 1 5/8 | 1.625 | 4.25 | 3.75 | 3.5 | 0.25 | -- | -- |
| 1 3/4 | 1.75 | 4.5 | 4 | 3.75 | 0.25 | -- | 0.4 |
| 1 7/8 | 1.875 | 4.75 | 4.25 | 4 | 0.25 | -- | -- |
| 2 | 2 | 5 | 4.5 | 4.25 | 0.25 | -- | 0.444 |
| 2 1/4 | 2.25 | 5.5 | 5 | 4.75 | 0.25 | -- | 0.444 |
| 2 1/2 | 2.5 | 6 | 5.5 | 5.25 | 0.25 | -- | 0.5 |
| 2 3/4 | 2.75 | 6.5 | 6 | 5.75 | 0.25 | -- | 0.5 |
| 3 | 3 | 7 | 6.5 | -- | 0.25 | -- | 0.5 |
| 3 1/4 | 3.25 | 7.5 | 7 | -- | 0.25 | -- | 0.5 |
| 3 1/2 | 3.5 | 8 | 7.5 | -- | 0.25 | -- | 0.5 |
| 3 3/4 | 3.75 | 8.5 | 8 | -- | 0.25 | -- | 0.5 |
| 4 | 4 | 9 | 8.5 | -- | 0.25 | -- | 0.5 |

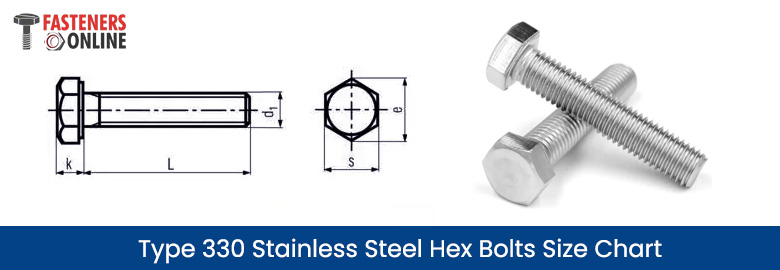

Type 330 Stainless Steel Hex Bolts Size Chart
| d1d1 | s | e | k |
|---|---|---|---|
| M48 | 75 | 82.6 | 30 |
| M42 | 65 | 71.3 | 26 |
| M36 | 55 | 60.79 | 22.5 |
| M33 | 50 | 55.37 | 21 |
| M30 | 46 | 50.85 | 18.7 |
| M27 | 41 | 45.2 | 17 |
| M24 | 36 | 39.98 | 15 |
| M22 | 32 | 35.72 | 14 |
| M20 | 30 | 33.53 | 12.5 |
| M18 | 27 | 30.14 | 11.5 |
| M16 | 24 | 26.75 | 10 |
| M14 | 22 | 24.49 | 8.8 |
| M12 | 19 | 21.1 | 7.5 |
| M10 | 17 | 18.9 | 6.4 |
| M8 | 13 | 14.38 | 5.3 |
| M6 | 10 | 11.05 | 4 |
| M5 | 8 | 8.79 | 3.5 |
| M4 | 7 | 7.66 | 2.8 |
| M3 | 5.5 | 6.01 | 2 |
Thermal Properties of UNS N08330 Hex Nuts
| Thermal expansion co-efficient | Thermal conductivity |
|---|---|
| 14.4 µm/m°C | 12.5 W/mK |
Hot Working and Cold Working 330 SS Fasteners
| Hot Working | Cold Working |
|---|---|
| 1149 to 1177°C | Difficult to Perform |
