13-8 PH Fasteners
PH 13-8 Mo Bolt Manufactuer in India in M2 to M100
Table of Content
13-8 PH Fasteners Specification
PH 13-8 Mo Bolt Sizes
M2 to M24
13-8Mo Nuts Size
M3 – M56 | 3/6″ to 2″
UNS S13800 Screw Size
3/6″ to 2″
DIN 1.4534 Machine Screws Size
M1.6 – M12
13-8 PH steel Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 3506-1
13-8 Mo machine screws Melting Point
1404–1471 °C
SS PH 13-8 Mo fasteners Length
3 mm to 200 mm
PH 13-8 Mo hex bolts Specific Heat
500 J/kg·K
13-8mo stainless steel socket head cap screw Standards
DIN 931, 934, 933, 7991, 976, 125 / ASME B18.2.1, B18.3
PH 13-8 Mo Stainless Steel plain washer Threads
BSW / UNF / BSF / METRIC / UNC
Custom Sizes
We are Manufacturer of 13-8 PH Fasteners in India in custom sizes, finishesh and threads.
PH 13-8 Mo Studs Type
Tap-End / Fully or Fine threaded / Double-End
UNS S13800 hex nuts Condition
Threading / Cold Drawn
Origin
Russian / Indian / Korean / European
13-8Mo Screws Thread Pitch
Coarse Threads / Fine Threads
Manufacturing Technique
Hot forging / CNC Machined / Cold forging
PH 13-8 Mo threaded rod Finish
Passivation / Phosphating / HDG
X3CrNiMoAl13-8-2 screws Thread Class
- Class 1A (Loose fit)
- 3G
- 4G
- Class 3A (Tight fit)
- 5 ONF
- 2G
- Class 2A (Medium fit)
13-8 PH steel Bolt Drive Style
- Torx
- Hex
- Oval
- Round
- Cross
- Pan
- Truss
13-8Mo hex head bolts Head Types
- Button head
- Slotted Drive
- Phillips Drive
- Flat
- Hex washer head
- Slotted hex washer
- Socket cap head
Certificate
- 100% Radiography Test
- Raw Materials Certificate
- EN 10204/3.1B
- UT and PMI Test
Packaging
- Wooden Cases
- Wooden Pallet
- Blister Packs
- Carton Box
Value Added Services
- Color Coding
- Laser Etching
- Head Shank Drilling
- Head Painting
Different types of 13-8 PH stainless steel Fasteners

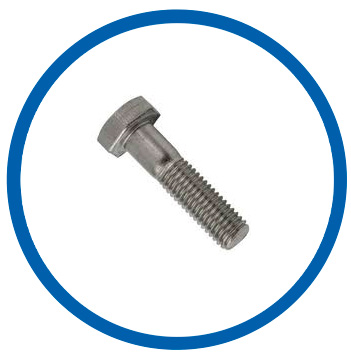

SS PH 13-8 Mo heavy hex bolt

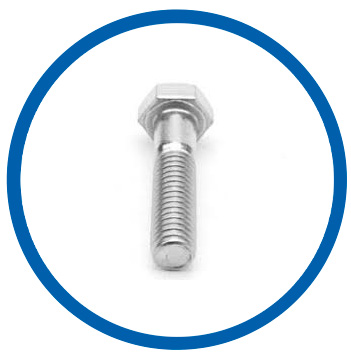

PH 13-8 Mo hex bolts

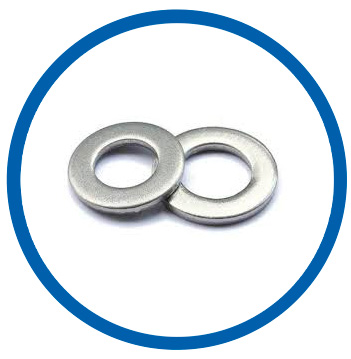

UNS S13800 flat washer

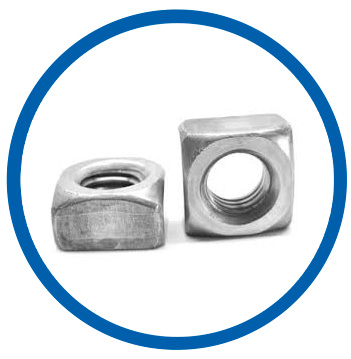

13-8Mo square nut

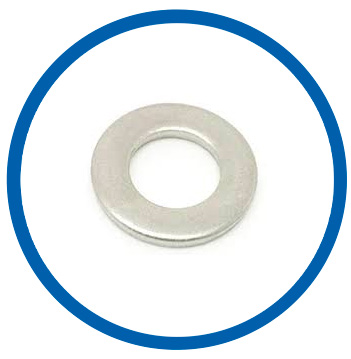

PH 13-8 Mo Stainless Steel plain washer

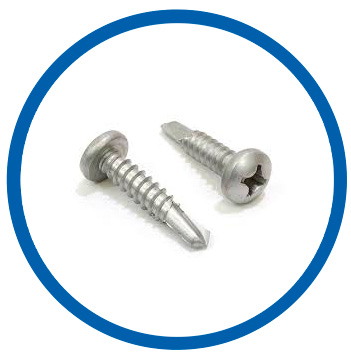

13-8 PH stainless steel self drilling screws

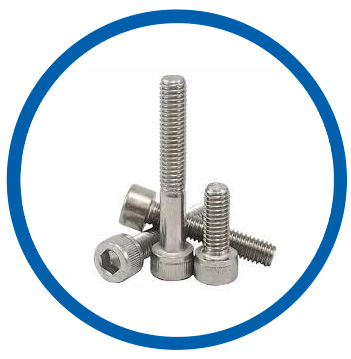

13-8mo stainless steel socket head cap screw

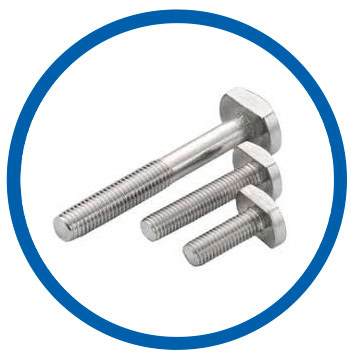

X3CrNiMoAl13-8-2 square bolts

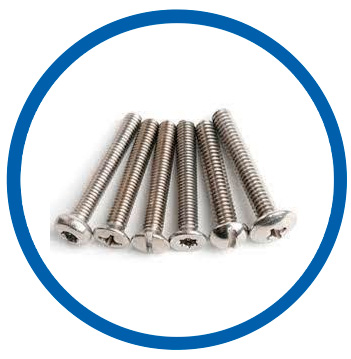

13-8 stainless steel machine screws

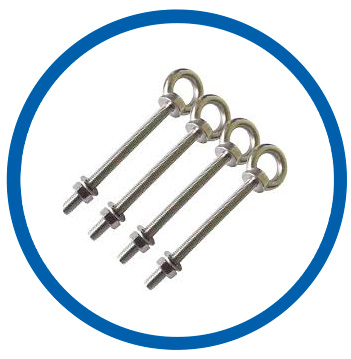

13-8 PH steel eye bolts

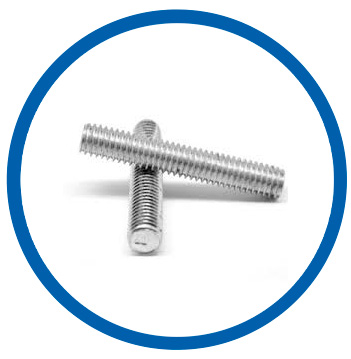

DIN 1.4534 stud bolt

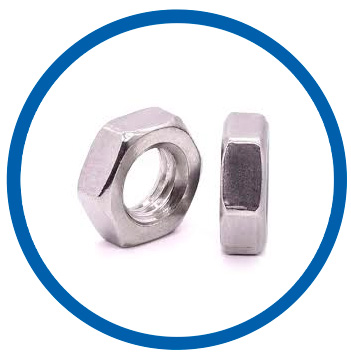

UNS S13800 hex nuts

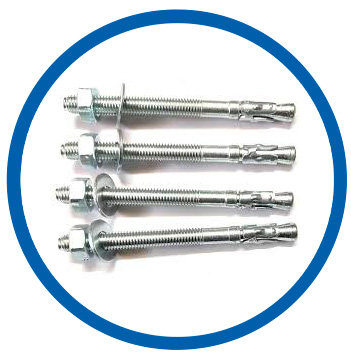

13-8 stainless steel anchor bolts

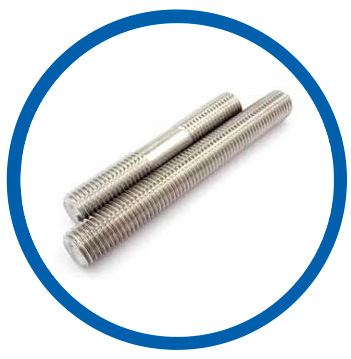

PH 13-8 Mo threaded rod

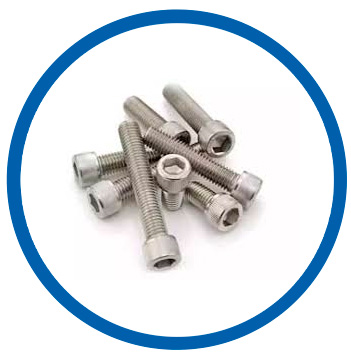

DIN 1.4534 hex cap screws
Price list of UNS S13800 Bolts
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 13-8 Mo SOCKET HEAD CAP SCREW 16X320MM | US $25.52 | 93.73 AED | € 21.80 |
| SCREW CSK M5X12 13-8ph Steel | US $0.41 | 1.51 AED | € 0.35 |
SS PH 13-8 Mo Hex Nuts Chemical composition
Chromium
12.25-13.25
Nickel
7.50-8.50
Molybdenum
2.0-2.50
Aluminum
0.90-1.35
Manganese
0.10
Silicon
0.10 (Max.)
Carbon
0.010
Phosphorous
0.010
Sulfur
0.0080
Mechanical properties of DIN 1.4534 Stud Bolts
Tensile Strength
1620 MPa
Yield strength
1480 MPa
Machinability
35.0-40.0
Elongation
12 % Min
| Grade | UNS | WNR | ASTM | EN |
|---|---|---|---|---|
| 13-8 MO | S13800 | 1.4534 | XM-13 | X3CrNiMoAl13-8-2 |
Physical Properties of 13-8 PH SS Washer
| Density | Elastic modulus | Poisson's ratio | Charpy Impact |
|---|---|---|---|
| 7.80 g/cm3 | 203 GPa | 0.27-0.30 | 27.0 J |
13-8mo stainless steel Hex Bolts Electrical Resistivity
| Test Temperature | ohms c/mf | microhm-mm | |
|---|---|---|---|
| °F | °C | ||
| 212 | 100 | 613 | 1020 |
Magnetic Permeability of 13-8 PH steel Threaded Rod
| Field Strength H (Oersteds) | Permeability |
|---|---|
| 10.5 | 52 |
| 54.7 | 127 |
| 110.5 | 85 |
| 164.5 | 65 |
| 217 | 53 |
| 264 | 46 |
UNS S13800 Heavy Hex Bolts Heat Treatment
| Solution Annealing | Aging |
|---|---|
| Heat to 1040 - 1100°C | Heat to 480 - 700°C |
Application of X3CrNiMoAl13-8-2 Threaded Rods
