Stainless Steel 430 Fasteners

Trusted UNS S43000 Stub Bolts manufacturer in India

Table of Content

Fasteners Types

Stainless Steel 430 Fasteners Specification

Hex Nuts Size

AISI 430 Nuts Size

M3 – M56 | 3/6″ to 2″

Bolt Size

430 SS Bolt Sizes

M2 to M24

Screw Size

UNS S43000 Screw Size

3/6″ to 2″

Machine Screws Size

DIN 1.4016 Machine Screws Size

M1.6 – M12

Washers Size

SS 430 Washers Size

M3 – M56 | 3/6″ to 2″

ISO Standard

ISO Standard

ISO 3506-1

Origin

Origin

Korean / Russian / Indian / European

Studs Type

SUS 430 Studs Type

Double-End / Fully or Fine threaded / Tap-End

Condition

Stainless steel 430 hex bolts Condition

Threading / Cold Drawn

Length

Stainless steel 430 fasteners Length

3 mm to 200 mm

Melting Point

SS 430 hex nuts Melting Point

1425–1510 °C

Thermal Conductivity

SUS 430 plain washer Thermal Conductivity

26 W/m·K (at 100 °C)

Surface finish

430 Stainless steel fasteners Finish

Phosphating / HDG / Passivation

Thread Pitch

ASTM A276 Type 430 Screws Thread Pitch

Coarse Threads / Fine Threads

Manufacturing Technique

Manufacturing Technique

Cold forging / Hot forging / CNC Machined

Standards

ASTM A276 Type 430 socket head cap screw Standards

DIN 7991, 933, 976, 931, 125, 934 / ASME B18.2.1, B18.3

Threads

Type 430 Stainless Steel Fully Threaded Rod Threads

METRIC / BSW / BSF / UNF / UNC

Custom Sizes

Custom Sizes

Trusted Stainless steel 430 fasteners manufacturer in India in different shapes, types and lengths.

Certificate

Certificate

  • EN 10204/3.1B
  • Raw Materials Certificate
  • UT and PMI Test
  • 100% Radiography Test

Value Added Services

Value Added Services

  • Laser Etching
  • Head Shank Drilling
  • Color Coding
  • Head Painting

Packaging

Packaging

  • Wooden Cases
  • Carton Box
  • Blister Packs
  • Wooden Pallet

Bolt Size

Alloy 430 screws Thread Class

  • Class 1A (Loose fit)
  • 2G
  • Class 3A (Tight fit)
  • 5 ONF
  • 4G
  • 3G
  • Class 2A (Medium fit)

Head Types

AISI 430 hex head bolts Head Types

  • Socket cap head
  • Hex washer head
  • Button head
  • Slotted hex washer
  • Slotted Drive
  • Phillips Drive
  • Flat

Drive Style

ASTM A276 Type 430 Bolt Drive Style

  • Oval
  • Pan
  • Cross
  • Hex
  • Torx
  • Round
  • Truss

One of the reliable AISI 430 Screws supplier in wide range of sizes, refer weight chart of 430 stainless steel bolts

ASTM A276 Type 430 Hex Bolts Manufacturing Range

Diameters Length Thread Types Standards Surface Finishes Manufacturing Process
M5 to M24 10 mm to 150 mm Metric
UNC
UNF
8UN 		ISO 4014
ASME B18.2.1
DIN 933		 Bright finish
Pickled
Electropolished 		Cold forming
Hot forging
CNC machining
Threading

View updated price list of ASTM A276 Type 430 Threaded Rod online, check dimensions and torque chart of EN 1.4016 Heavy Hex Nuts

Stainless Steel 430 Fasteners Price list

Product Price in USD
(10 Pcs)		 Price in Dirham
(10 Pcs)		 Price in Euro
(10 Pcs)
M10 x 45mm SS 430 Hexagon Bolts US $3.39 12.45 AED € 2.91
M5 x 10mm AISI 430 Screws US $1.44 5.29 AED € 1.23
Type 430 Stainless Steel Machine Screws shows excellent ductility and corrosion resistance, stockists of SS 430 Washer in UNF and UNC threads

430 Stainless Steel Studs Chemical composition

Carbon

0.12 (Max.)

Silicon

1 (Max.)

Manganese

1.0 (Max)

Phosphorus

0.04

Chromium

16 To 18

Sulfur

0.030

Nickel

0.50

AISI 430 Screws Mechanical properties

Tensile Strength

483 MPa

Yield Strength

310 MPa

Hardness

85 Max HB

Elongation

22 % Min

SS 430 Threaded Rod equivalent

Grade UNS Euronorm Old British Japanese JIS Swedish SS
No Name BS En
430 S43000 1.4016 X8Cr17 430S17 60 SUS 430 2320

DIN 1.4016 Washer Physical properties

Density (kg/m3) Electrical Resistivity (nΩ.m) Elastic Modulus (GPa) Specific Heat 0-100°C (J/kg.K)
7750 600 200 460
Leading exporter of ASTM A276 UNS S43000 Hanger Bolt and 430 SS Carriage Bolt as per DIN 931 standard

Various types of Stainless Steel 430 Fasteners

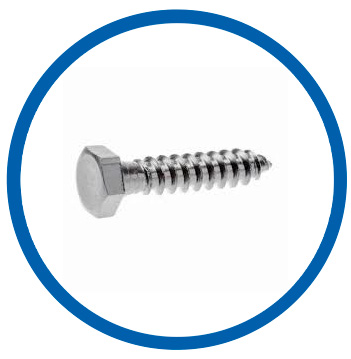

430 Stainless Steel machine screws

430 Stainless Steel machine screws

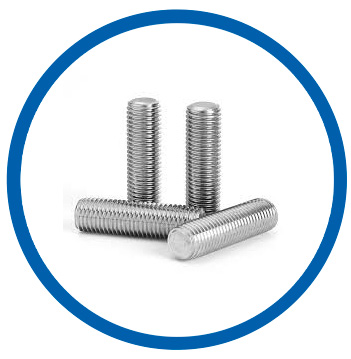

DIN 1.4016 stud bolt

DIN 1.4016 stud bolt

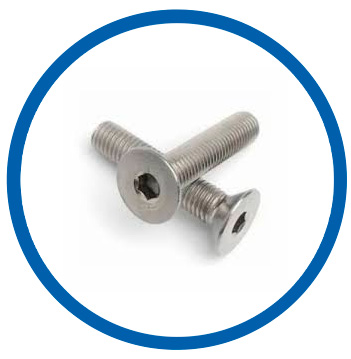

ASTM A276 Type 430 socket head cap screw

ASTM A276 Type 430 socket head cap screw

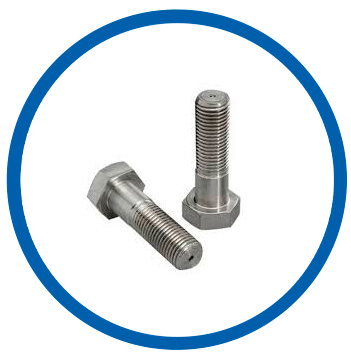

Stainless steel 430 hex bolts

Stainless steel 430 hex bolts

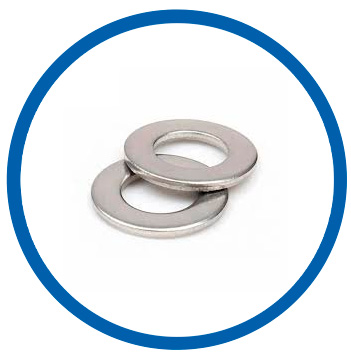

AISI 430 flat washer

AISI 430 flat washer

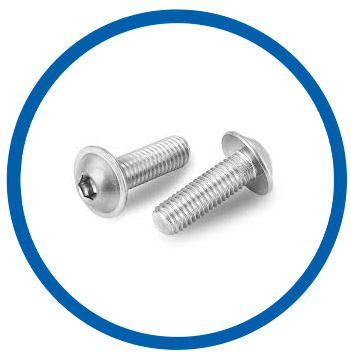

ASTM A276 Type 430 hex cap screws

ASTM A276 Type 430 hex cap screws

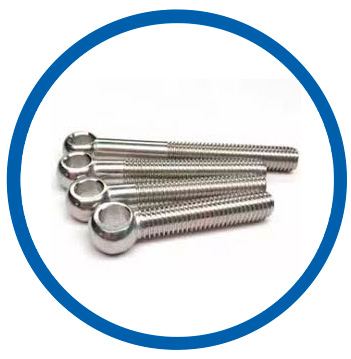

UNS S43000 eye bolts

UNS S43000 eye bolts

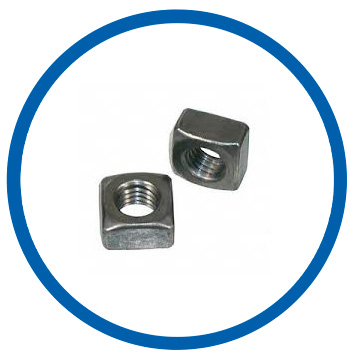

ASTM A276 UNS S43000 square nut

ASTM A276 UNS S43000 square nut

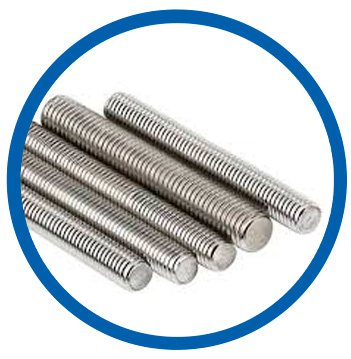

Type 430 Stainless Steel threaded rod

Type 430 Stainless Steel threaded rod

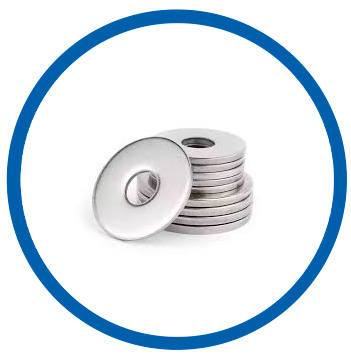

SUS 430 plain washer

SUS 430 plain washer

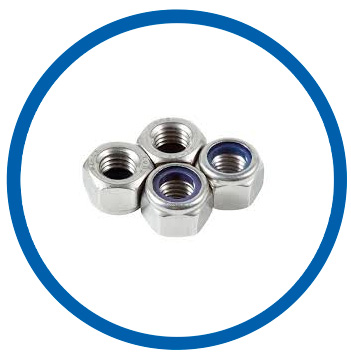

SS 430 hex nuts

SS 430 hex nuts

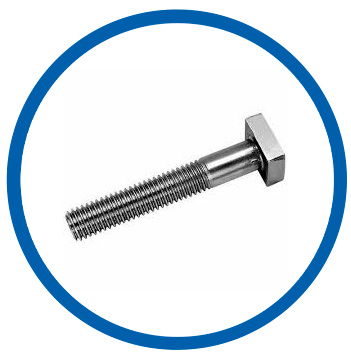

EN 1.4016 square bolts

EN 1.4016 square bolts

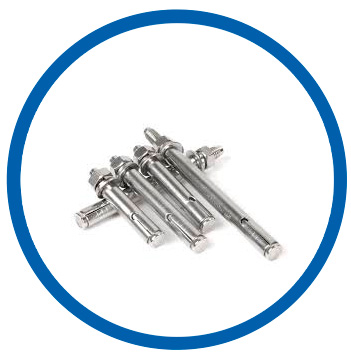

430 SS anchor bolts

430 SS anchor bolts

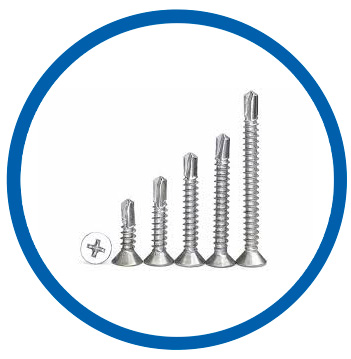

AISI 430 self drilling screws

AISI 430 self drilling screws

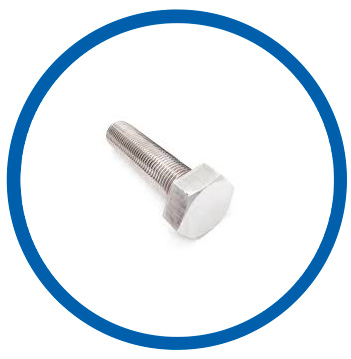

ASTM A276 Type 430 heavy hex bolt

ASTM A276 Type 430 heavy hex bolt

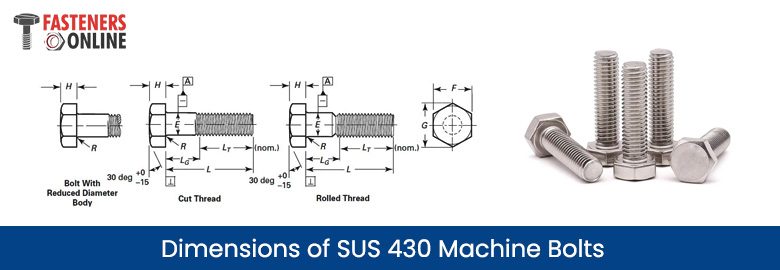

Dimensions of SUS 430 Machine Bolts

Dimensions of SUS 430 Machine Bolts
Nominal Size (Inches) Body Diameter, E Radius of Fillet, R Width Across Corners, G Width Across Flats, F Head Height, H Thread Length for Bolt Lengths, LT
6 inches & Shorter Over 6 inches
Max. Min. Max. Min. Max. Min. Basic Max. Min. Basic Max. Min. Nom. Nom.
1/4" 0.26 0.237 0.03 0.01 0.505 0.484 7/16" 0.438 0.425 11/64" 0.188 0.15 0.75 1
5/16" 0.324 0.298 0.03 0.01 0.577 0.552 1/2" 0.5 0.484 7/32" 0.235 0.195 0.875 1.125
3/8" 0.388 0.36 0.03 0.01 0.65 0.62 9/16" 0.562 0.544 1/4" 0.268 0.226 1 1.25
7/16" 0.452 0.421 0.03 0.01 0.722 0.687 5/8" 0.625 0.603 19/64" 0.316 0.272 1.125 1.375
1/2" 0.515 0.482 0.03 0.01 0.866 0.826 3/4" 0.75 0.725 11/32" 0.364 0.302 1.25 1.5
5/8" 0.642 0.605 0.06 0.02 1.083 1.033 15/16" 0.938 0.906 27/64" 0.444 0.378 1.5 1.75
3/4" 0.768 0.729 0.06 0.02 1.299 1.24 1-1/8" 1.125 1.088 1/2" 0.524 0.455 1.75 2
7/8" 0.895 0.852 0.06 0.02 1.516 1.447 1-5/16" 1.312 1.269 37/64" 0.604 0.531 2 2.25
1" 1.022 0.976 0.09 0.03 1.732 1.653 1-1/2" 1.5 1.45 43/64" 0.7 0.591 2.25 2.5
1-1/8" 1.149 1.098 0.09 0.03 1.949 1.859 1-11/16" 1.688 1.631 3/4" 0.78 0.658 2.5 2.75
1-1/4" 1.277 1.223 0.09 0.03 2.165 2.066 1-7/8" 1.875 1.812 27/32" 0.876 0.749 2.75 3
1-3/8" 1.404 1.345 0.09 0.03 2.382 2.273 2-1/16" 2.062 1.994 29/32" 0.94 0.81 3 3.25
1-1/2" 1.531 1.47 0.09 0.03 2.598 2.48 2-1/4" 2.25 2.175 1" 1.036 0.902 3.25 3.5
1-5/8" 1.658 1.591 0.09 0.03 2.815 2.616 2-7/16" 2.438 2.356 1-3/32" 1.116 0.978 3.5 3.75
1-3/4" 1.785 1.716 0.12 0.04 3.031 2.893 2-5/8" 2.625 2.538 1-5/32" 1.196 1.054 3.75 4
1-7/8" 1.912 1.839 0.12 0.04 3.248 3.099 2-13/16" 2.812 2.719 1-1/4" 1.276 1.13 4 4.25
2" 2.039 1.964 0.12 0.04 3.464 3.306 3" 3 2.9 1-11/32" 1.388 1.175 4.25 4.5
2 1/4" 2.305 2.214 0.19 0.06 3.897 3.719 3-3/8" 3.375 3.262 1-1/2" 1.548 1.327 4.75 5
2 1/2" 2.559 2.461 0.19 0.06 4.33 4.133 3-3/4" 3.75 3.625 1-21/32" 1.708 1.479 5.25 5.5
2-3/4" 2.827 2.711 0.19 0.06 4.763 4.546 4-1/8" 4.125 3.988 1-13/16" 1.869 1.632 5.75 6
3" 3.081 2.961 0.19 0.06 5.196 4.959 4-1/2" 4.5 4.35 2" 2.06 1.815 6.25 6.5
3-1/4" 3.335 3.21 0.19 0.06 5.629 5.372 4-7/8" 4.875 4.712 2-3/16" 2.251 1.936 6.75 7
3-1/2" 3.589 3.461 0.19 0.06 6.062 5.786 5-1/4" 5.25 5.075 2-5/16" 2.38 2.057 7.25 7.5
3-3/4" 3.858 3.726 0.19 0.06 6.495 6.198 5-5/8" 5.625 5.437 2-1/2" 2.572 2.241 7.75 8
4" 4.111 3.975 0.19 0.06 6.928 6.612 6" 6 5.8 2-11/16" 2.764 2.424 8.25 8.5

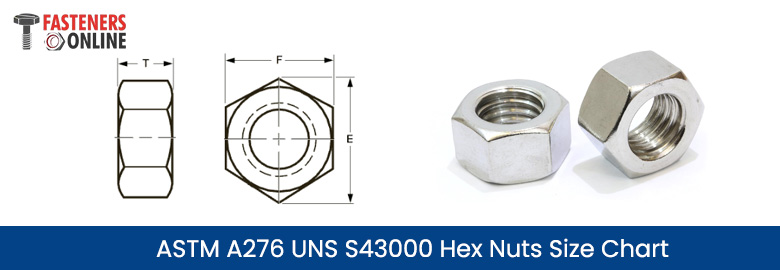

ASTM A276 UNS S43000 Hex Nuts Size Chart

ASTM A276 UNS S43000 Hex Nuts Size Chart
Nut Size Thread Pitch E (Width
Across
Corners)		 F (Width
Across
Flats)		 T (Height
of the
Nut)
min. min. max. min. max.
M1.6 0.35 3.41 3.02 3.2 1.05 1.3
M2 0.4 4.32 3.82 4 1.35 1.6
M2.5 0.45 5.45 4.82 5 1.75 2
M3 0.5 6.01 5.32 5.5 2.15 2.4
M3.5 0.6 6.58 5.82 6 2.55 2.8
M4 0.7 7.66 6.78 7 2.9 3.2
M5 0.8 8.79 7.78 8 4.4 4.7
M6 1 11.05 9.78 10 4.9 5.2
M8 1.25 14.38 12.73 13 6.44 6.8
M10 1.5 17.77 15.73 16 8.04 8.4
M12 1.75 20.03 17.73 18 10.37 10.8
M14 2 23.36 20.67 21 12.1 12.8
M16 2 26.75 23.67 24 14.1 14.8
M18 2.5 29.56 26.16 27 15.1 15.8
M20 2.5 32.95 29.16 30 16.9 18
M22 2.5 37.29 33 34 18.1 19.4
M24 3 39.55 35 36 20.2 21.5

Application of UNS S43000 Fasteners

  • Automotive Industry
  • Architecture
  • Construction
  • Food Equipment
  • Manufacturing Fixtures
  • Oil an Gas Industry
  • Power Generation
  • HVAC Systems
Application of UNS S43000 Fasteners

Alternative Grades of ASTM A276 UNS S43000 Bolts

Grade Reason
SS 410 Higher strength than 430
SS 434 Improved corrosion resistance
SS 436 Stabilized with Columbium or Titanium
