Stainless Steel 317 Fasteners
Get a quote for UNS S31700 Hex Bolts in various sizes and finish
Table of Content
Stainless Steel 317 Fasteners Specification
Bolt Sizes
M2 to M24
Screw Size
3/6″ to 2″
Nuts Size
M3 – M56 | 3/6″ to 2″
Washers Size
M3 – M56 | 3/6″ to 2″
Machine Screws Size
M1.6 – M12
ISO Standard
ISO 3506-1
fasteners Length
3 mm to 200 mm
Weldability
Excellent
Specific Heat
500 J/kg·K
Threads
BSF / UNF / METRIC / UNC / BSW
Standards
DIN 934, 931, 7991, 933, 976, 125 / ASME B18.2.1, B18.3
Custom Sizes
We are Manufacturer of Stainless Steel 317 Fasteners in custom sizes
Studs Type
Tap-End / Fully or Fine threaded / Double-End
Origin
Russian / Korean / Indian / European
Condition
Threading / Cold Drawn
Manufacturing Technique
Hot forging / CNC Machined / Cold forging
Screws Thread Pitch
Fine Threads / Coarse Threads
Finish
Passivation / HDG / Phosphating
Bolt Drive Style
- Round
- Truss
- Torx
- Oval
- Pan
- Hex
- Cross
hex head bolts Head Types
- Socket cap head
- Flat
- Hex washer head
- Slotted hex washer
- Phillips Drive
- Button head
- Slotted Drive
screws Thread Class
- Class 2A (Medium fit)
- 3G
- 4G
- Class 1A (Loose fit)
- 5 ONF
- Class 3A (Tight fit)
- 2G
Packaging
- Carton Box
- Wooden Cases
- Wooden Pallet
- Blister Packs
Certificate
- 100% Radiography Test
- Raw Materials Certificate
- UT and PMI Test
- EN 10204/3.1B
Value Added Services
- Color Coding
- Head Shank Drilling
- Laser Etching
- Head Painting
UNS S31700 Hex Bolts Manufacturing Range
| Sizes | Lengths | Standards | Surface Finishes | Certification |
|---|---|---|---|---|
| M3–M56 | 8 mm – 100 mm | DIN 931 DIN 933 ISO 4014 ISO 4017 ASME B18.2.1 |
Galvanizing Passivation Chrome Electropolish |
EN 10204/3.1 NDT PMI |
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| STUD M8x60 BOTH ENDS THREADED 25MM ZINC AISI 317 | US $1.21 | 4.45 AED | € 1.03 |
| FLANGED HEX BOLT M8x50 SS 317 | US $1.59 | 5.84 AED | € 1.36 |
SUS 317 Heavy Hex Nuts Chemical composition
| Grade | Ni | Cr | C | S | Si | Mo | P | Mn | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 317 | 11.00 - 15.00 | 18.00 - 20.00 | 0.08 max | 0.030 max | 1.0 max | 3.00 - 4.00 | 0.045 max | 2.0 max | 57.845 min |
| SS 317L | 11.00 - 15.00 | 18.00 - 20.00 | 0.035 max | 0.030 max | 1.0 max | 3.00 - 4.00 | 0.045 max | 2.0 max | 57.89 min |
UNS S31700 Screws Mechanical properties
Tensile Strength
620 MPa
Yield strength
275 MPa
Hardness
85 Max HB
Elongation
45 % Min
317 Stainless Steel Threaded Rod equivalent
| Grade | UNS | WNR | EN | JIS |
|---|---|---|---|---|
| SS 317 | S31700 | 1.4449 | - | SUS 317 |
| SS 317L | S31703 | 1.4438 | X2CrNiMo18-15-4 | SUS 317L |
SS 317 Stud Bolts Physical properties
| Density | Melting point | Elastic modulus | Poisson's ratio |
|---|---|---|---|
| 8 g/cm3 | 1370°C | 193 GPa | 0.27-0.30 |

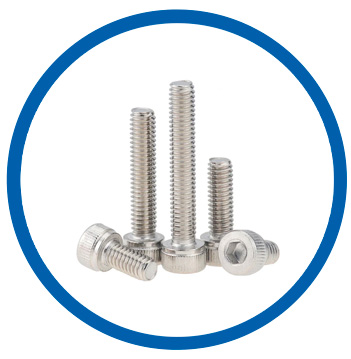

317L Stainless Steel socket head cap screw

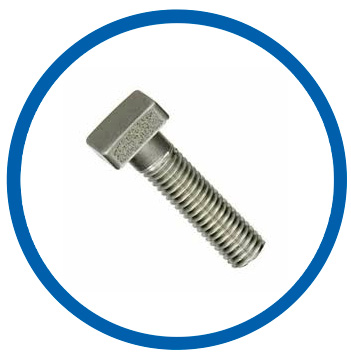

UNS S31703 square bolts

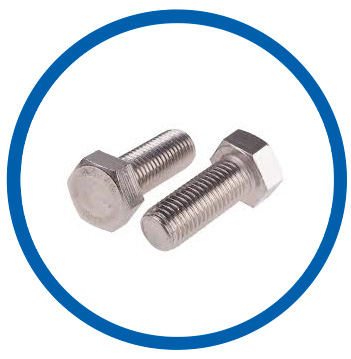

SS 317L heavy hex bolt

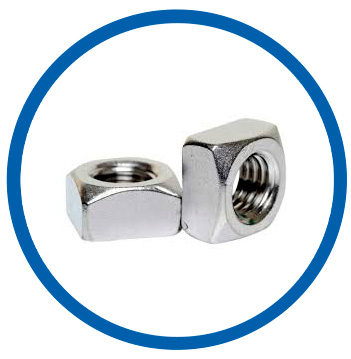

DIN 1.4449 square nut

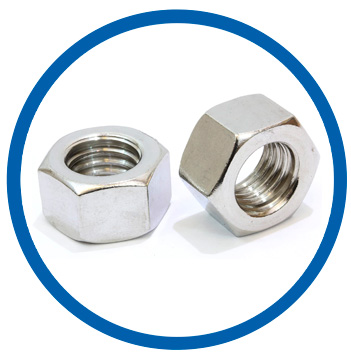

SS 317 hex nuts

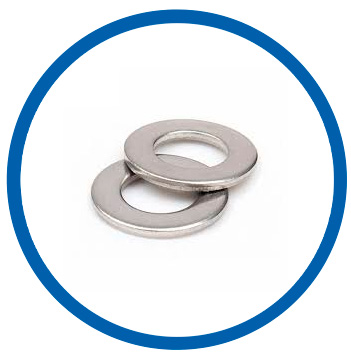

Stainless Steel 317L flat washer

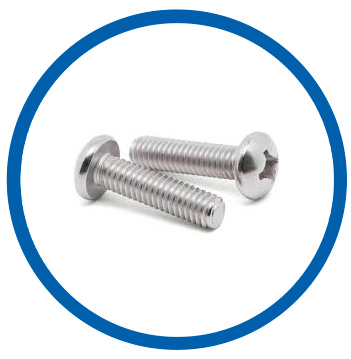

AISI 317L machine screws

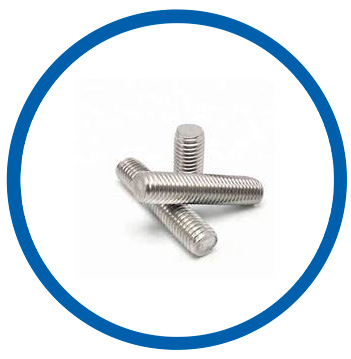

317 Stainless Steel stud bolt

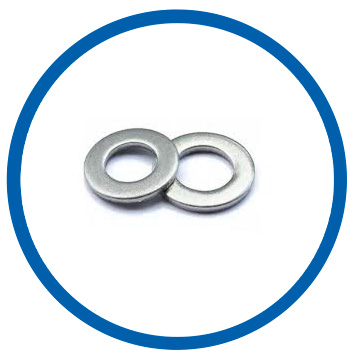

AISI 317 plain washer

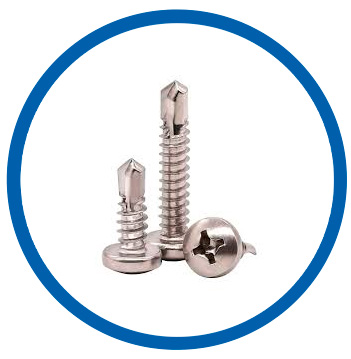

UNS S31700 self drilling screws

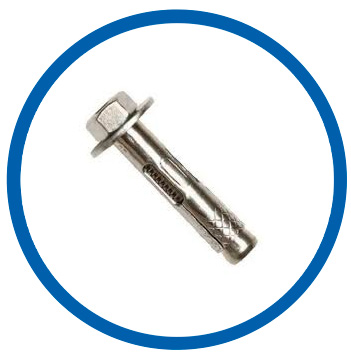

317 SS anchor bolts

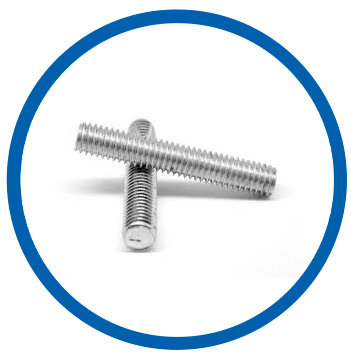

SUS 317 threaded rod

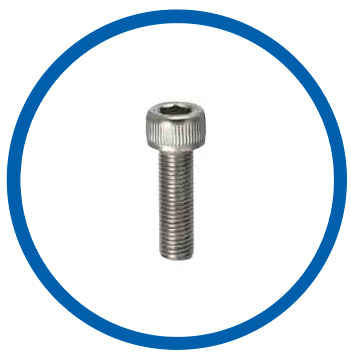

317L SS hex cap screws

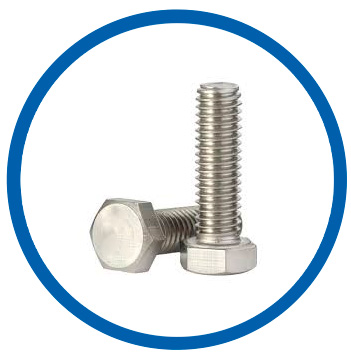

Stainless Steel 317 hex bolts

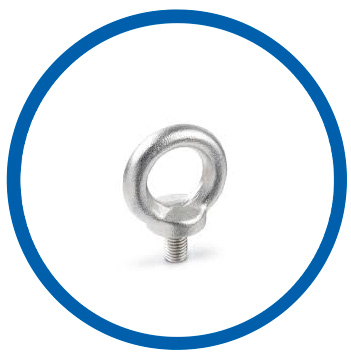

DIN 1.4438 eye bolts
Application of Stainless Steel 317L Fasteners
Thermal Properties of AISI 317L Bolts
| Properties | Metric |
|---|---|
| Thermal expansion co-efficient (@ 0-100°C/32-212°F) | 16 µm/m°C |
| Thermal conductivity (@ 100°C/212°F) | 16.3 W/mK |
| Annealing | 1010-1121°C |
|---|
