Stainless steel hex nut

SS Large hex nuts, 304 stainless steel hex nuts supplier in India.

Table of Content

Fasteners Types
Stainless steel hex nuts Manufacturers in India

Stainless steel hex nuts

large hex nuts Manufacturer in India

Large hex nuts

metric hex nuts manufacturers in India

Metric hex nuts

Stainless Steel Hex Nuts Specification

Product name Stainless Steel Hex Nuts
Place of Origin India
Stainless Steel Hex Nuts Size M2-M60, UNC:1/4”-4”
Stainless Steel Hex Nuts Length 6mm-500mm
Specialized manufacturer of Din934 Hex nut, DIN6923 Flange hex nut, DIN985 Nylon lock nut, DIN1587 Cup nut, DIN315 Wing nut, Main products are Stainless steel bolts and nuts, SS 304 bolts and nuts, 304 Nuts and bolts, 304 bolt nut, 304 nut bolt, 316 Bolts and nuts, 316 hex nuts, 316S31 bolts and nuts.
Standard DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563
Grade 4, 8, 10, AISI 2, AISI 5, AISI 8
Stainless Steel Hex Nuts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Stainless Steel Hex Nuts Material 18-8 Stainless Steel, Stainless steel 201, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Hex Nuts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Hex Nuts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Hex Nuts Specifications
  • SAE J995 Mechanical and material requirements for steel Hex Nuts.
  • ASTM A194 Carbon and alloy steel Hex Nuts for bolts for high pressure and high temperature service
  • ASTM A563 Standard specification for carbon and alloy steel Hex Nuts
  • ASTM F594 Stainless steel Hex Nuts
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel Hex Nuts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Specialized in SS Hex Finished Nuts ~ Hex Jam Nuts ~ Heavy Hex Nut ~ Hex Machine Screw Nuts ~ Stainless Steel Lock Nuts ~ Nylon Insert Lock Nuts ~ Serrated Flange Lock Nuts ~ Hex Nuts ~ Cap Nuts Stainless Steel ~ T Nuts ~ Hex Rod Coupling Nuts ~ Wing Nuts ~ Square Nuts

SS Hex Nuts Weight Chart

Size Finished Hex Heavy Hex Finished Jam Heavy Hex Jam Square Heavy Square
1/2″ 3.750 6.540 2.620 4.000 5.780 7.870
5/8″ 7.330 11.900 4.930 6.960 10.800 14.300
3/4″ 11.900 19.300 7.700 11.000 15.400 23.500
7/8″ 19.000 29.700 12.000 16.700 24.500 36.200
1″ 28.300 42.500 17.600 23.500 36.300 51.500
1-1/8″ 40.300 59.200 24.700 32.400 52.500 72.400
1-1/4″ 54.300 78.600 36.100 45.800 70.600 95.500
1-3/8″ 73.000 102.000 47.900 59.300 94.500 125.000
1-1/2″ 94.300 131.000 60.900 74.800 122.000 161.000
1-5/8″ 162.000 91.600
1-3/4″ 151.000 204.000 100.000 114.000
1-7/8″ 241.000 134.000
2″ 224.000 299.000 140.000 165.000
2-1/4″ 419.000 227.000
2-1/2″ 564.000 332.000
2-3/4″ 738.000 429.000
3″ 950.000 545.000
3-1/4″ 1194.000 651.000
3-1/2″ 1526.000 851.000
3-3/4″ 1812.000 1005.000
4″ 2180.000 1200.000

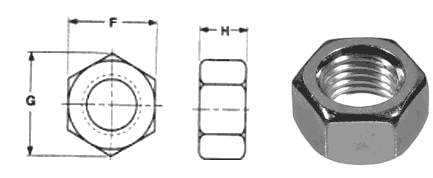

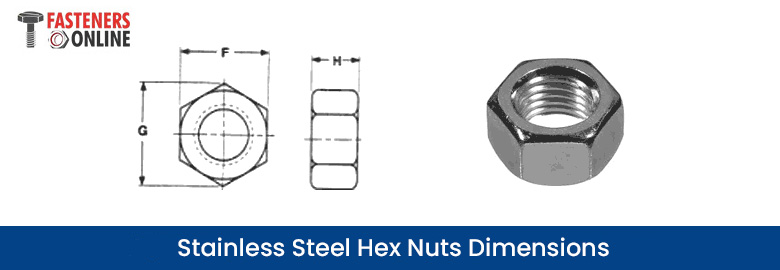

Stainless Steel Hex Nuts Dimensions

Stainless Steel Hex Nuts Dimensions
Nominal Size Thread
Pitch 		F G H
Width Across Flats
(Wrench Size) 		Width
Across
Corners 		Thickness
Max Min Min Max Min
M1.6 0.35 3.2 3.02 3.41 1.3 1.05
M2 0.4 4 3.82 4.32 1.6 1.35
M2.5 0.45 5 4.82 5.45 2 1.75
M3 0.5 5.5 5.32 6.01 2.4 2.15
M4 0.7 7 6.78 7.66 3.2 2.9
M5 0.8 8 7.78 8.79 4.7 4.4
M6 1 10 9.78 11.05 5.2 4.9
M8 1.25 13 12.73 14.38 6.8 6.44
M10 1.5 16 15.73 17.77 8.4 8.04
M12 1.75 18 17.73 20.03 10.8 10.37
M14 2 21 20.67 23.35 12.8 12.1
M16 2 24 23.67 26.75 14.8 14.1
M20 2.5 30 29.16 32.95 18 16.9
M24 3 36 35 39.55 21.5 20.2
M30 3.5 46 45 50.85 25.6 24.3
M36 4 55 53.8 60.78 31 29.4
M42 4.5 65 63.1 71.3 34 32.4
M48 5 75 73.1 82.6 38 36.4
M56 5.5 85 82.8 93.56 45 43.4
M64 6 95 92.8 104.86 51 49.1
Finished Hex Nuts
Bolt Dimensions
Diameter
Inches		 Across
Flats		 Thickness
1/4 7/16 7/32
5/16 1/2 17/64
3/8 9/16 21/64
7/16 11/16 3/8
1/2 3/4 7/16
9/16 7/8 31/64
5/8 15/16 35/64
3/4 1 /18 41/64
7/8 1-5/16 3/4
1 1-1/2 55/64
1-1/8 1-11/16 31/32
1-1/4 1-7/8 1-1/16
1-3/8 2-1/16 1-11/64
1-1/2 2-1/4 1-9/32
1-5/8 2-7/16 1-25/64
1-3/4 2-5/8 1-1/2
1-7/8 2-15/16 1-27/32
2 3 1-23/32
2-1/4 3-3/8 1-59/64
2-1/2 3-3/4 2-9/64
2-3/4 4-1/8 2-23/64
3 4-1/2 2-37/64
3-1/4
3-1/2
3-3/4
4
Heavy Hex Nuts
Bolt Dimensions
Diameter
Inches		 Across
Flats		 Thickness
1/4 1/2 15/64
5/16 9/16 19/64
3/8 11/16 23/64
7/16 3/4 27/64
1/2 7/8 31/64
9/16 15/16 35/64
5/8 1-1/16 39/64
3/4 1-1/4 47/64
7/8 1-7/16 55/64
1 1-5/8 63/64
1-1/8 1-13/16 1-7/64
1-1/4 2 1-7/32
1-3/8 2-3/16 1-11/32
1-1/2 2-3/8 1-15/32
1-5/8 2-9/16 1-19/32
1-3/4 2-3/4 1-23/32
1-7/8 2-15/16 1-27/32
2 3-1/8 1-31/32
2-1/4 3-1/2 2-13/64
2-1/2 3-7/8 2-29/64
2-3/4 4-1/4 2-45/64
3 4-5/8 2-61/64
3-1/4 5 3-3/16
3-1/2 5-3/8 3-7/16
3-3/4 5-3/4 3-11/16
4 6-1/8 3-15/16

International Steel Grades for Stainless Steel Hex Nuts

Grades European Number ASTM grade UNS British standard DIN
304 1.4301 ASTM A 193 Gr B8 S 30400 BS 970 X 5CrNi1810
304 L 1.4306 ASTM A 320 Ge B8 S 30403 BS 970 X 2CrNi1911
316 1.4401 ASTM A 193 Gr B8M S 31600 BS 970 X 5 CrNiMo 17 13 2
316 L 1.4404 ASTM A 320 Ge B8M S 31603 BS 970 X 2 CrNiMo 17 13 2
310 1.4841 ASTM A 479 S 31000 BS 970 X 12 CrNi 25 21
310 S 1.4845 S 31008 BS 970 X 12 CrNi 25 21
410 1.4006 S 41000 BS 970 X 10Cr13
431 1.4057 S 43100 BS 970 X 20CrNi172
316S31 1.4401 ASTM A 193 Gr B8M S 31600 BS 970 X 5 CrNiMo 17 12 2

Price List of Stainless Steel Hex Nuts

Product Price in USD
zinc plated stainless steel hex nuts US $0.56
Stainless steel M20 hex panel nut US $0.8
