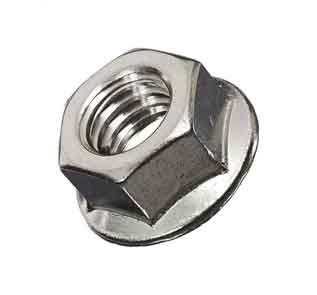

Stainless Steel Flange Nuts

Metric & exhaust manifold flange nuts suppliers

Flange nut is a type of nut that has a wide flange at one end acting as an integrated washer. The flange of stainless steel flange nuts serves in distributing the pressure of the nut over the part being secured, thus reducing the possibility of damage to the part. Metric flange nuts are less likely to loosen as a result of an uneven fastening surface. These nuts are mostly hexagonal in structure and are made up of hardened steel and usually coated with zinc.
We manufacture and supply highest quality exhaust manifold flange nuts, UNF flange nuts and other grades of flange nuts. In flange nuts, the flange is usually fixed, and turns with the nut. It may also be serrated to provide a locking action.

Table of Content

Fasteners Types
Stainless steel flange nuts Manufacturers in India

Stainless steel flange nuts

Metric flange nuts Manufacturer in India

Metric flange nuts

grade 8 flange nuts manufacturers in India

Grade 8 flange nuts

Stainless Steel Flange Nuts Specification

Product name Stainless Steel flange Nuts
Place of Origin India
Stainless Steel flange Nuts Size M2-M60, UNC:1/4”-4”
Stainless Steel flange Nuts Length 6mm-500mm
Specialized manufacturer of Din934 Hex nut, DIN6923 Flange hex nut, DIN985 Nylon lock nut, DIN1587 Cup nut, DIN315 Wing nut, Main products are Stainless steel bolts and nuts, SS 304 bolts and nuts, 304 Nuts and bolts, 304 bolt nut, 304 nut bolt, 316 Bolts and nuts, 316 hex nuts, 316S31 bolts and nuts.
Standard DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563
Grade 4, 8, 10, AISI 2, AISI 5, AISI 8
Stainless Steel flange Nuts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Stainless Steel flange Nuts Material 18-8 Stainless Steel, Stainless steel 201, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel flange Nuts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel flange Nuts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
flange Nuts Specifications
  • SAE J995 Mechanical and material requirements for steel flange Nuts.
  • ASTM A194 Carbon and alloy steel flange Nuts for bolts for high pressure and high temperature service
  • ASTM A563 Standard specification for carbon and alloy steel flange Nuts
  • ASTM F594 Stainless steel flange Nuts
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel flange Nuts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Specialized in SS Hex Finished Nuts ~ Hex Jam Nuts ~ Heavy Hex Nut ~ Hex Machine Screw Nuts ~ Stainless Steel Lock Nuts ~ Nylon Insert Lock Nuts ~ Serrated Flange Lock Nuts ~ flange Nuts ~ Cap Nuts Stainless Steel ~ T Nuts ~ Hex Rod Coupling Nuts ~ Wing Nuts ~ Square Nuts

SS Flange Nuts Weight Chart

Size Finished Hex Heavy Hex Finished Jam Heavy Hex Jam Square Heavy Square
1/2″ 3.750 6.540 2.620 4.000 5.780 7.870
5/8″ 7.330 11.900 4.930 6.960 10.800 14.300
3/4″ 11.900 19.300 7.700 11.000 15.400 23.500
7/8″ 19.000 29.700 12.000 16.700 24.500 36.200
1″ 28.300 42.500 17.600 23.500 36.300 51.500
1-1/8″ 40.300 59.200 24.700 32.400 52.500 72.400
1-1/4″ 54.300 78.600 36.100 45.800 70.600 95.500
1-3/8″ 73.000 102.000 47.900 59.300 94.500 125.000
1-1/2″ 94.300 131.000 60.900 74.800 122.000 161.000
1-5/8″ 162.000 91.600
1-3/4″ 151.000 204.000 100.000 114.000
1-7/8″ 241.000 134.000
2″ 224.000 299.000 140.000 165.000
2-1/4″ 419.000 227.000
2-1/2″ 564.000 332.000
2-3/4″ 738.000 429.000
3″ 950.000 545.000
3-1/4″ 1194.000 651.000
3-1/2″ 1526.000 851.000
3-3/4″ 1812.000 1005.000
4″ 2180.000 1200.000

Stainless Steel Flange Nuts Dimensions

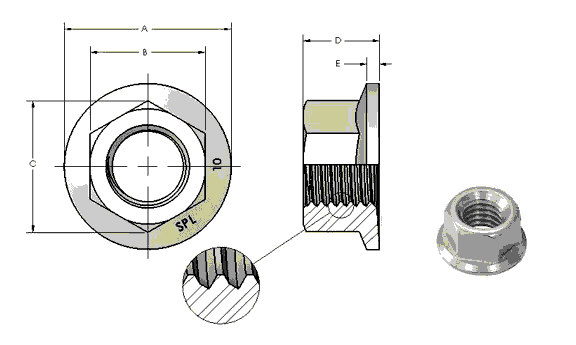

Stainless Steel Metric Flange Nuts Dimensions
Nominal Nut Size EDP # A
Flange Dia.		 B
Across Flats		 C
Across Corners		 D
Nut Thickness		 E
Minimum Flange Edge Thickness
M5 x 0.8 M05080M Max. Min. 11.81 7.77
8.00		 8.79
9.25		 4.70
5.00		 0.99
M6 x 1.0 M06100M Max. Min. 14.20 10.00 9.78 11.55
11.05		 6.00
5.70		 1.10
M8 x 1.00 M08100M Max. Min. 17.90 13.00 12.73 15.01
14.38		 8.00
7.60		 1.20
M8 x 1.25 M08125M
M10 x 1.25 M10125M Max. Min. 21.80 15.00 14.73 17.32
16.64		 10.00
9.60		 1.50
M10 x 1.50 M10150M
M12 x 1.25 M12125M Max. Min. 26.00 18.00 17.73 20.78
20.03		 12.00
11.60		 1.80
M12 x 1.75 M12175M
M14 x 1.25 M14125M Max. Min. 29.90 21.00 20.67 24.25
23.35		 14.00
13.30		 2.10
M14 x 1.50 M14150M
M14 x 2.00 M14200M
M16 x 1.50 M16150M Max. Min. 34.50 24.00 23.67 27.71
26.75		 16.00
15.30		 2.40
M16 x 2.00 M16200M
M20 x 1.50 M20150M Max. Min. 42.80 30.00 29.16 34.64
32.95		 20.00
18.90		 3.00
M20 x 2.50 M20250M
M24 x 2.00 M24200M Max. Min. 51.73 36.00 34.80 41.57
39.67		 24.00
22.86		 3.60
M24 x 3.00 M24300M

International Steel Grades for Flange Stainless Steel Nuts

Grades European Number ASTM grade UNS British standard DIN
304 1.4301 ASTM A 193 Gr B8 S 30400 BS 970 X 5CrNi1810
304 L 1.4306 ASTM A 320 Ge B8 S 30403 BS 970 X 2CrNi1911
316 1.4401 ASTM A 193 Gr B8M S 31600 BS 970 X 5 CrNiMo 17 13 2
316 L 1.4404 ASTM A 320 Ge B8M S 31603 BS 970 X 2 CrNiMo 17 13 2
310 1.4841 ASTM A 479 S 31000 BS 970 X 12 CrNi 25 21
310 S 1.4845 S 31008 BS 970 X 12 CrNi 25 21
410 1.4006 S 41000 BS 970 X 10Cr13
431 1.4057 S 43100 BS 970 X 20CrNi172
316S31 1.4401 ASTM A 193 Gr B8M S 31600 BS 970 X 5 CrNiMo 17 12 2

Price List of Stainless Steel Flange Nuts

Product Price in USD
DIN6923 metric flange nuts m6 US $0.4
stainless steel flange cap nut US $0.32

Stock list of Stainless Steel Flange Nuts

stainless steel flange nuts m10x1.25 flange nuts
stainless steel serrated flange nuts top lock flange nuts
m8 stainless steel flange nuts unf flange nuts
metric flange nuts unc flange nuts
exhaust flange nuts imperial flange nuts
grade 8 flange nuts black oxide flange nuts
exhaust manifold flange nuts plain flange nuts
wide flange nuts square flange nuts
wing flange nuts self locking flange nuts
extra large flange nuts swivel flange nuts
rotating flange nuts m8 flange nuts
tall flange nuts cylinder head flange nuts
threaded flange nuts use of flange nuts
spiralock flange nuts m10 flange nuts
