Stainless Steel T Nuts

Stainless steel T Nuts are also known as Tee Nuts or Rivet Nuts. These nuts are used to fasten a wood, composite materials workpiece or particle or, leaving a flush surface. M10 Tee Nuts has a long, thin body and a flange at one end, which resembles a T in profile.

Tee nuts provides better retention when used with wooden works as the bolts can be tighten from opposite sides. You can find more about Tee nuts in the page.

Table of Content

Fasteners Types
Stainless steel T nuts Manufacturers in India

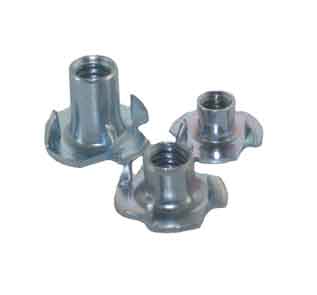

Stainless steel T nuts

M10 Tee nuts Manufacturer in India

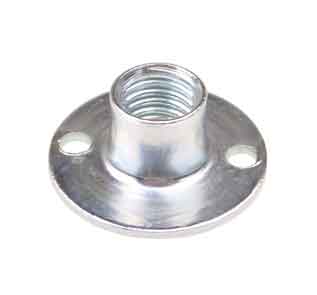

M10 Tee nuts

grade 316 stainless steel t nuts manufacturers in India

Grade 316 stainless steel t nuts

Stainless Steel T Nuts Specification

Product name Stainless Steel T Nuts
Place of Origin India
Stainless Steel T Nuts Size M2-M60, UNC:1/4”-4”
Stainless Steel T Nuts Length 6mm-500mm
Specialized manufacturer of Din934 Hex nut, DIN6923 T hex nut, DIN985 Nylon T nut, DIN1587 Cup nut, DIN315 Wing nut, Main products are Stainless steel bolts and nuts, SS 304 bolts and nuts, 304 Nuts and bolts, 304 bolt nut, 304 nut bolt, 316 Bolts and nuts, 316 hex nuts, 316S31 bolts and nuts.
Standard DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563
Grade 4, 8, 10, AISI 2, AISI 5, AISI 8
Stainless Steel T Nuts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Stainless Steel T Nuts Material 18-8 Stainless Steel, Stainless steel 201, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel T Nuts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel T Nuts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
T Nuts Specifications
  • SAE J995 Mechanical and material requirements for steel T Nuts.
  • ASTM A194 Carbon and alloy steel T Nuts for bolts for high pressure and high temperature service
  • ASTM A563 Standard specification for carbon and alloy steel T Nuts
  • ASTM F594 Stainless steel T Nuts
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel T Nuts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Specialized in SS Hex Finished Nuts ~ Hex Jam Nuts ~ Heavy Hex Nut ~ Hex Machine Screw Nuts ~ Stainless Steel T Nuts ~ Nylon Insert T Nuts ~ Serrated T T Nuts ~ T Nuts ~ Cap Nuts Stainless Steel ~ T Nuts ~ Hex Rod Coupling Nuts ~ Wing Nuts ~ Square Nuts

SS T Nuts Weight Chart

Size Finished Hex Heavy Hex Finished Jam Heavy Hex Jam Square Heavy Square
1/2″ 3.750 6.540 2.620 4.000 5.780 7.870
5/8″ 7.330 11.900 4.930 6.960 10.800 14.300
3/4″ 11.900 19.300 7.700 11.000 15.400 23.500
7/8″ 19.000 29.700 12.000 16.700 24.500 36.200
1″ 28.300 42.500 17.600 23.500 36.300 51.500
1-1/8″ 40.300 59.200 24.700 32.400 52.500 72.400
1-1/4″ 54.300 78.600 36.100 45.800 70.600 95.500
1-3/8″ 73.000 102.000 47.900 59.300 94.500 125.000
1-1/2″ 94.300 131.000 60.900 74.800 122.000 161.000
1-5/8″ 162.000 91.600
1-3/4″ 151.000 204.000 100.000 114.000
1-7/8″ 241.000 134.000
2″ 224.000 299.000 140.000 165.000
2-1/4″ 419.000 227.000
2-1/2″ 564.000 332.000
2-3/4″ 738.000 429.000
3″ 950.000 545.000
3-1/4″ 1194.000 651.000
3-1/2″ 1526.000 851.000
3-3/4″ 1812.000 1005.000
4″ 2180.000 1200.000

Stainless Steel T-Slot Nuts Metric Sizes

Stainless Steel Metric T-slot Nuts Dimensions

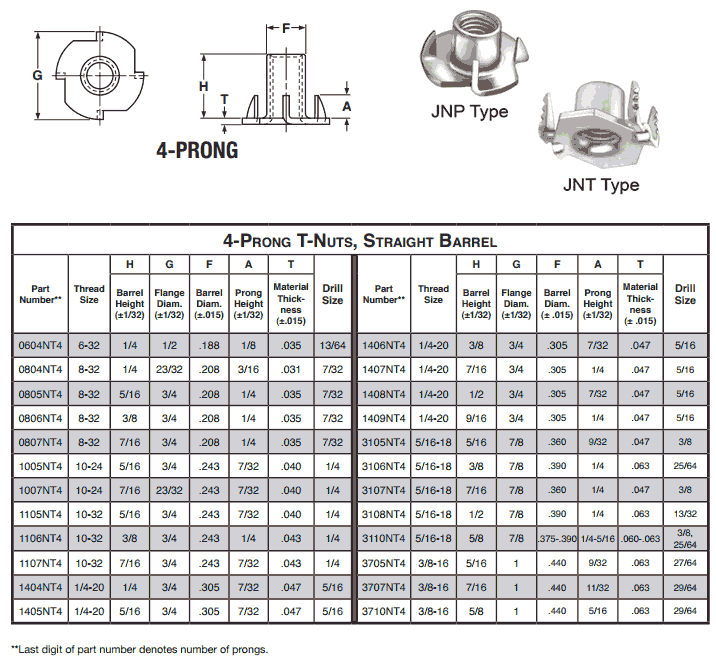

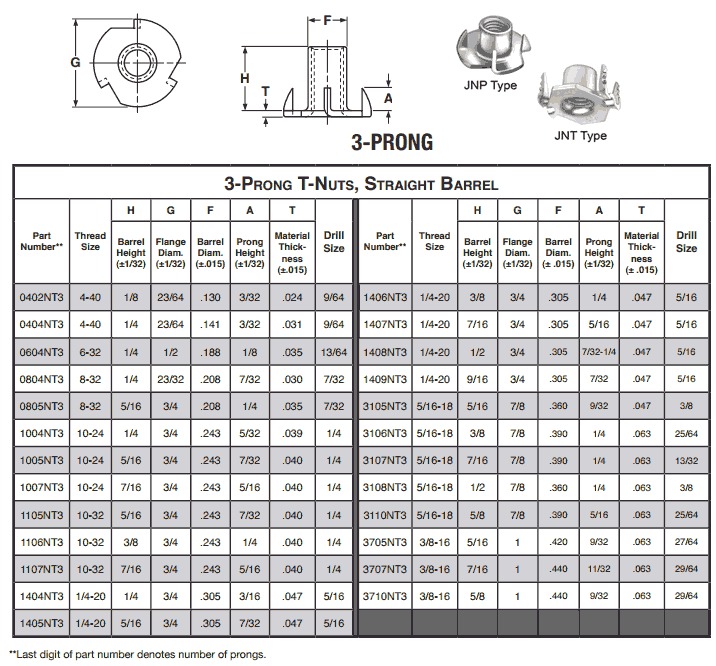

Stainless Steel Tee Nuts Dimensions

Stainless Steel Tee Nuts Dimensions Stainless Steel Metric Tee Nuts Dimensions

International Steel Grades for Stainless Steel T Nuts

Grades European Number ASTM grade UNS British standard DIN
304 1.4301 ASTM A 193 Gr B8 S 30400 BS 970 X 5CrNi1810
304 L 1.4306 ASTM A 320 Ge B8 S 30403 BS 970 X 2CrNi1911
316 1.4401 ASTM A 193 Gr B8M S 31600 BS 970 X 5 CrNiMo 17 13 2
316 L 1.4404 ASTM A 320 Ge B8M S 31603 BS 970 X 2 CrNiMo 17 13 2
310 1.4841 ASTM A 479 S 31000 BS 970 X 12 CrNi 25 21
310 S 1.4845 S 31008 BS 970 X 12 CrNi 25 21
410 1.4006 S 41000 BS 970 X 10Cr13
431 1.4057 S 43100 BS 970 X 20CrNi172
316S31 1.4401 ASTM A 193 Gr B8M S 31600 BS 970 X 5 CrNiMo 17 12 2

Price List of Stainless Steel T Nuts

Product Price in USD
4-Pronged Insert T nut DIN 1624 US $0.2
M32 Stainless Steel 4 Prongs T Nut US $1.75

Stock List of Stainless Steel T Nuts

Stainless steel t nuts roll in t nuts
316 stainless steel t nuts rhombus t nuts
stainless steel t nuts m6 roof rack t nuts
metric stainless steel tee nuts threaded t nuts
stainless steel pronged tee nuts type p type t nuts
stainless steel t-slot nuts non-threaded t nuts
stainless steel tee nuts imperial t nuts
1 4-20 stainless steel t-nuts industrial t nuts
10-24 stainless steel t nuts oval t nuts
stainless steel t nuts 5/16 precision t nuts
stainless steel t nuts climbing wall prong t nuts
stainless steel round base t-nuts economy t nuts
stainless steel t nuts 3/8 stainless steel t nuts for wood
m10 t nuts sliding t nuts
quarter turn t nuts small t nuts
quarter inch t nuts t nuts
quarter turn t slot nuts jaw t-nuts
weld t nuts chuck jaw t-nuts
encapsulated t nuts large flange t nuts
rhombus t nuts low profile t nuts
extrusion t nuts locking t nuts
round base t nuts fine thread t nuts
rock climbing t nuts flat t nuts
zip t slot nuts glue in t nuts
curved flange t-nuts heavy duty t nuts
vertex t nuts v slot t nuts
80/20 t nuts 10-32 stainless steel tee nuts
stainless steel brad hole tee nuts stainless steel 4 prong tee nut
