Stainless steel nyloc nuts manufacturers
Hex jam nylock lock nuts, DIN 985 nyloc nut supplier in India.
A2 nyloc nuts, stainless steel nylon insert self locking nut exporter in Mumbai.

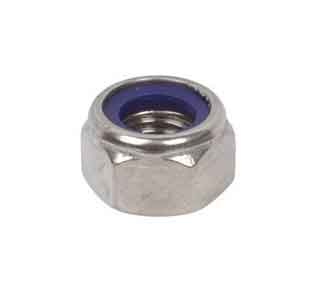

Stainless steel nyloc nuts

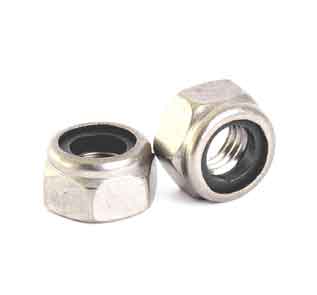

Hex jam nylock lock nuts

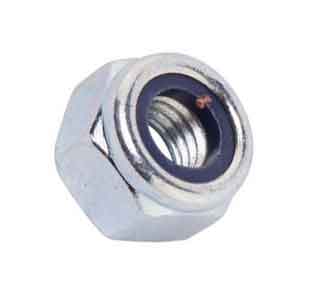

M10 stainless steel nyloc nuts
Contents
- Specification: Stainless Steel Nyloc Nuts
- Stainless Steel Nyloc Nuts Grades
- Stainless Steel Nyloc Nuts Weight Chart
- Dimensions of Stainless Steel Nyloc Nuts
- Stainless Steel Nyloc Nuts Price List
- Stainless Steel Nyloc Nuts in Stock
- Shipping locations & approx delivery time from India
- Weight Calculator
Check grades of assorted nyloc nuts, imperial nyloc nuts, high tensile nyloc nuts.
We are distinguished manufacturer and supplier of stainless steel nyloc nuts in India. It is also known as polymer-insert lock nut or elastic stop nut. It is a type of locknut with a nylon collar insert that resists turning. In M10 stainless steel nyloc nuts, the plastic insert is placed at the end of the nut, the inner diameter is slightly smaller than the major diameter of the screw. Nyloc nuts can retain their locking ability up to 250 °F which is around 121 °C.
Specification of Stainless Steel Nyloc Nuts
| Product name | Stainless Steel Nyloc Nuts |
|---|---|
| Place of Origin | India |
| Stainless Steel Nyloc Nuts Size | M2-M60, UNC:1/4”-4” |
| Stainless Steel Nyloc Nuts Length | 6mm-500mm |
| Specialized manufacturer of | Din934 Hex nut, DIN6923 Nyloc hex nut, DIN985 Nylon Nyloc nut, DIN1587 Cup nut, DIN315 Wing nut, Main products are Stainless steel bolts and nuts, SS 304 bolts and nuts, 304 Nuts and bolts, 304 bolt nut, 304 nut bolt, 316 Bolts and nuts, 316 hex nuts, 316S31 bolts and nuts. |
| Standard | DIN934 DIN936 DIN439 DIN555 A194 2H ASTM A563 |
| Grade | 4, 8, 10, AISI 2, AISI 5, AISI 8 |
| Stainless Steel Nyloc Nuts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Stainless Steel Nyloc Nuts Material | 18-8 Stainless Steel, Stainless steel 201, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Nyloc Nuts, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Nyloc Nuts |
|
| Nyloc Nuts Specifications |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Nyloc Nuts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Specialized in | SS Hex Finished Nuts ~ Hex Jam Nuts ~ Heavy Hex Nut ~ Hex Machine Screw Nuts ~ Stainless Steel Nyloc Nuts ~ Nylon Insert Nyloc Nuts ~ Serrated Nyloc Nyloc Nuts ~ Nyloc Nuts ~ Cap Nuts Stainless Steel ~ T Nuts ~ Hex Rod Coupling Nuts ~ Wing Nuts ~ Square Nuts |
Stainless Steel Nyloc Nuts Grades
- 316H Stainless Steel Nyloc Nuts
- 304L Stainless Steel Nyloc Nuts
- 904L Stainless Steel Nyloc Nuts
- 316L Stainless Steel Nyloc Nuts
- 304H Stainless Steel Nyloc Nuts
- 304 Stainless Steel Nyloc Nuts
- 18-8 Stainless Steel Nyloc Nuts
- 321 Stainless Steel Nyloc Nuts
- 310 Stainless Steel Nyloc Nuts
- 410 Stainless Steel Nyloc Nuts
- 347 Stainless Steel Nyloc Nuts
- 317L Stainless Steel Nyloc Nuts
- 316 Stainless Steel Nyloc Nuts
- 317 Stainless Steel Nyloc Nuts
Stainless Steel Nyloc Nuts Weight Chart
| Size | Finished Hex | Heavy Hex | Finished Jam | Heavy Hex Jam | Square | Heavy Square |
|---|---|---|---|---|---|---|
| 1/2″ | 3.750 | 6.540 | 2.620 | 4.000 | 5.780 | 7.870 |
| 5/8″ | 7.330 | 11.900 | 4.930 | 6.960 | 10.800 | 14.300 |
| 3/4″ | 11.900 | 19.300 | 7.700 | 11.000 | 15.400 | 23.500 |
| 7/8″ | 19.000 | 29.700 | 12.000 | 16.700 | 24.500 | 36.200 |
| 1″ | 28.300 | 42.500 | 17.600 | 23.500 | 36.300 | 51.500 |
| 1-1/8″ | 40.300 | 59.200 | 24.700 | 32.400 | 52.500 | 72.400 |
| 1-1/4″ | 54.300 | 78.600 | 36.100 | 45.800 | 70.600 | 95.500 |
| 1-3/8″ | 73.000 | 102.000 | 47.900 | 59.300 | 94.500 | 125.000 |
| 1-1/2″ | 94.300 | 131.000 | 60.900 | 74.800 | 122.000 | 161.000 |
| 1-5/8″ | 162.000 | 91.600 | ||||
| 1-3/4″ | 151.000 | 204.000 | 100.000 | 114.000 | ||
| 1-7/8″ | 241.000 | 134.000 | ||||
| 2″ | 224.000 | 299.000 | 140.000 | 165.000 | ||
| 2-1/4″ | 419.000 | 227.000 | ||||
| 2-1/2″ | 564.000 | 332.000 | ||||
| 2-3/4″ | 738.000 | 429.000 | ||||
| 3″ | 950.000 | 545.000 | ||||
| 3-1/4″ | 1194.000 | 651.000 | ||||
| 3-1/2″ | 1526.000 | 851.000 | ||||
| 3-3/4″ | 1812.000 | 1005.000 | ||||
| 4″ | 2180.000 | 1200.000 |

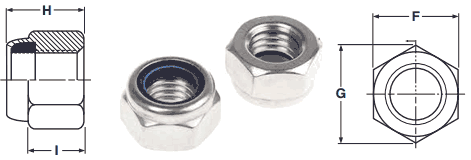

Stainless Steel Nyloc Nuts Dimensions
| METRIC – Nylon Insert Stop Nuts, Regular Pattern , Class 8 | DIN 985 | |||||
|---|---|---|---|---|---|---|
| F | G | H | I | |||
| Nominal Size | Width Across Flats | WidCtohr nAecrrsoss | Thickness | Wrenching Height | ||
| Max | Min | Min | Max | Min | Min | |
| M3 | 5.50 | 5.32 | 6.01 | 4 | 3.7 | 2.4 |
| M4 | 7.00 | 6.78 | 7.66 | 5 | 4.7 | 2.9 |
| M5 | 8.00 | 7.78 | 8.79 | 5 | 4.7 | 3.2 |
| M6 | 10.00 | 9.78 | 11.05 | 6 | 5.7 | 4 |
| M7 | 11.00 | 10.73 | 12.12 | 7.5 | 7.14 | 4.7 |
| M8 | 13.00 | 12.73 | 14.38 | 8 | 7.64 | 5.5 |
| M10 | 17.00 | 16.73 | 18.90 | 10 | 9.64 | 6.5 |
| M12 | 19.00 | 18.67 | 21.10 | 12 | 11.57 | 8 |
| M14 | 22.00 | 21.67 | 24.49 | 14 | 13.3 | 9.5 |
| M16 | 24.00 | 23.67 | 26.75 | 16 | 15.3 | 10.5 |
| M18 | 27.00 | 26.16 | 29.56 | 18 | 17.66 | 13 |
| M20 | 30.00 | 29.16 | 32.95 | 20 | 18.7 | 14 |
| Description | Hex nut with a metric thread pitch and a nylon-filled collar at its back end. When a screw reaches the collar, the threads andnylon form a tight, frictional fit, restricting movement of the screw when it is subjected to vibration. The nylon insert comes invarious colors. | |
|---|---|---|
| Applications/ Advantages |
Designed to be used with like-material machine screws and bolts. It is able to be reused more times than a two- way reversible nut. It is less expensive than a Grade-C automation lock nut. Nylon insert lock nuts are designed for use intemperatures from -73°C to +120°C. |
|
| Steel | Stainless | |
| Material | M3 – M16: AISI 1006, 1010, 1022 or equivalent steel M18 and larger: AISI 1035 or equivalent steel (Class 8, style 1 |
18-8: 18-8 Stainless Steel |
| nuts of a basic diameter greater than M16 are quenched andtempered). | A4: A4 Stainless Steel | |
| Hardness | Vickers HV 5: 302 maximumRockwell: C 30 maximum | |
| Proof Load | 800 N/mm2 | 18-8: 72,500 psi. A4-70: 101,570 psi. |
| Plating | DIN 985 nylon insert stop nuts are usually supplied zincplated. | |
| Standard Dimension | Description | Size | Threads | Finish | Material Grade |
|---|---|---|---|---|---|
| ISO 4032 | 12-Point Nuts | M-16 to M-100 | MM | Bright | SS 304, SS 316, SS 316L, 316S31 |
| DIN 934 | 12-Point Nuts | M-16 to M-100 | MM | Bright | SS 304, SS 316, SS 316L, 316S31 |
| ANSI B18.2.2 | 12-Point Nuts | 5/8″ to 4″ | Unc | Bright | ASTM A-194 8 , 8M, 8T |
| BS 1083 | 12-Point Nuts | 5/8″ to 4″ | BSW | Bright | ASTM A-194 8 , 8M, 8T |
| Fastener Type | Diameter | Grades | Grades | Grades | Grades |
|---|---|---|---|---|---|
| Hex nuts | M-30 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Hex Nyloc nuts | M-30 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Hex nyNyloc nuts | M-30 to M-64 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Hex castle nuts | M-12 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
| Heavy hex nuts | M-12 to M-72 | 304 / 304 L | 316 / 316 L | 310 / 310 S | 410 / 431 |
Comparision Chart: International Steel Grades for Stainless Steel Nyloc Nuts
| Grades | European Number | ASTM grade | UNS | British standard | DIN |
|---|---|---|---|---|---|
| 304 | 1.4301 | ASTM A 193 Gr B8 | S 30400 | BS 970 | X 5CrNi1810 |
| 304 L | 1.4306 | ASTM A 320 Ge B8 | S 30403 | BS 970 | X 2CrNi1911 |
| 316 | 1.4401 | ASTM A 193 Gr B8M | S 31600 | BS 970 | X 5 CrNiMo 17 13 2 |
| 316 L | 1.4404 | ASTM A 320 Ge B8M | S 31603 | BS 970 | X 2 CrNiMo 17 13 2 |
| 310 | 1.4841 | ASTM A 479 | S 31000 | BS 970 | X 12 CrNi 25 21 |
| 310 S | 1.4845 | S 31008 | BS 970 | X 12 CrNi 25 21 | |
| 410 | 1.4006 | S 41000 | BS 970 | X 10Cr13 | |
| 431 | 1.4057 | S 43100 | BS 970 | X 20CrNi172 | |
| 316S31 | 1.4401 | ASTM A 193 Gr B8M | S 31600 | BS 970 | X 5 CrNiMo 17 12 2 |
Price List of Stainless Steel Nyloc Nuts
Left hand thread nylock nuts, 5/16 bsf stainless steel nyloc nuts, short nylock nuts at cheapest price.
- SS304 DIN985 m2 nylon nut stainless steel nyloc nuts
Price: US $0.01-0.5 / Piece
1 Piece (Min. Order) - No China supplier stainless steel nyloc lock nut
Price: US $0.02-2 / Piece
5000 Pieces (Min. Order) - Stainless Steel Nyloc/Nylon Insert Locking Nuts
Price: US $0.001-0.05 / Pieces
1000 Pieces (Min. Order) - DIN 985 18-8 Stainless Steel plain Metric hex nyloc insert lock nuts
Price: US $0.02-5 / Piece
10000 Pieces (Min. Order) - carbon steel galvanized din982 din985 nyloc nut
Price: US $0.01-0.5 / Piece
1000 Pieces (Min. Order) - Made in Taiwan Bolt Base Stainless Steel Nyloc Colored Brass Domed Nut
Price: US $0.01-0.1 / Unit
10000 Units (Min. Order) - 2pcs DIN985 M18 Stainless Steel Nylon Insert Hex Lock Nuts A2 Hexagon Nyloc Self Locking Nut
Stainless Steel High Grade DIN982 Nyloc Nylon Insert Nuts
Price: US $0.01-0.5 / Piece
10000 Pieces (Min. Order) - M6 M8 M10 M12 M16 Nyloc Nylon Insert Nuts Stainless Steel High Grade , DIN982
Price: US $0.01-0.5 / Piece
10000 Pieces (Min. Order) - Carbon Steel HDG Nyloc Nut/Stainless Steel DIN985 Hex Nylon Lock Nuts for Industry Nylon Lock Hex Nut DIN985
Price: US $15.0 / Pieces
10000 Pieces (Min. Order) - high quality stainless steel nyloc nut
Price: US $600-1400 / Ton
0.5 Tons (Min. Order) - 50pcs DIN985 M8 Stainless Steel Nylon Insert Hex Lock Nuts A2 Hexagon Nyloc Self Locking Nut
500pcs DIN985 M4 Stainless Steel Nylon Insert Hex Lock Nuts A2 Hexagon Nyloc Self Locking Nut
Made in Taiwan Nylon Insert Lock Nut DIN 985 ISO 7040 ANSI B18 16 3M ASME B18 16 6 Nyloc Nut
Price: US $0.01-0.1 / Unit
10000 Units (Min. Order) - Wheel Locking Self-locking Nuts, Nyloc Nylock Nuts, Din 982 985 Insert Nylon Lock Nut Stainless Steel Nuts
Price: US $0.11-100 / Piece
1 Piece (Min. Order) - Made in Taiwan DIN 986 A2 Stainless Steel M8 Dome Nykic Nuts
Price: US $0.01-0.1 / Unit
10000 Units (Min. Order) - DIN985 Nylon Insert Lock Nuts M2-Stainless Steel
Price: US $0.02-0.5 / Piece
1000 Pieces (Min. Order) - nylon 304 stainless steel lock nut DIN985
Price: US $0.05-0.5 / Piece
1 Piece (Min. Order) - Din934 Screw Ss Nyloc Lock Hex A2-70 M3 Eye M6 Lifting Astm A194 Zinc Din 985 M12 Weld Din929 316 Stainless Steel Nut
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order) - Online Shopping Din929 Cage M6 Nylon Galvanized Hex Castle M10 Din985 Nyloc Decorative Cap Nut Din1587
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order) - Nylon Insert Lock Nyloc Galvanized Carbon Steel Hex Slotted Castle Din976 Astm A193 Gr B7 Stud A194 2h Heavy M8 Cage Nut
Price: US $0.001-10 / Piece
1000000 Pieces (Min. Order) - No China 10 grade 1 1/4′-18 nylon wheel nut
Price: US $0.001-0.06 / Piece
1000 Pieces (Min. Order) - Trustworthy China supplier din985 nyloc nut
Price: US $0.01-0.05 / Pieces
1000 Pieces (Min. Order) - No China wholesale low price best quality nyloc nut
Price: US $0.002-0.5 / Piece
100 Pieces (Min. Order) - nylock nut m5 left hand thread
Price: US $0.01-0.1 / Piece
100000 Pieces (Min. Order) - Nylon insert lock nut nyloc nut with good quality
Price: US $0.001-0.01 / Piece
1 Ton (Min. Order)
Great sale on Nyloc Stainless Steel Nuts
Stainless Steel Nyloc Nuts in Stock
stainless steel nyloc nuts |
left hand thread nylock nuts |
m10 stainless steel nyloc nuts |
thin nylock nuts |
m8 stainless steel nyloc nuts |
ss nylock nuts |
stainless steel flanged nyloc nuts |
short nylock nuts |
10mm stainless steel nyloc nuts |
torquing nylock nuts |
5/16 bsf stainless steel nyloc nuts |
high temperature nylock nuts |
m6 nyloc nuts |
hex jam nylock lock nuts |
square nyloc nuts |
high tensile nyloc nuts |
unf nyloc nuts |
nylock jam nuts |
unc nyloc nuts |
metric fine nyloc nuts |
imperial nyloc nuts |
m6 flanged nyloc nuts |
a2 nyloc nuts |
8mm flanged nyloc nuts |
assorted nyloc nuts |
flanged nyloc nuts |
High temperature nylock nuts, m10 stainless steel nyloc nuts, 8mm flanged nyloc nuts distributor.
