ASTM A194 2H Nuts

  • HOME
  • ASTM A194 2H Nuts
ASTM A194 2H Nuts

Refer SA 194 gr 2H Heavy Hex Nuts Price list and Dimensions

Table of Content

Fasteners Types

ASTM A194 2H Nuts Specification

Heavy Hex Nuts Standard

SA 194 gr 2H Nuts Standard

ASME B18.2.2

Hex Nuts Size

ASTM A 194 gr 2H Nuts Size

M3 – M56 | 3/6″ to 2″

Condition

ASTM A194 2H nuts Condition

Threading / Cold Drawn

Heat Treatment

A194 grade 2H Nuts Heat Treatment

Min 850 °F

Tensile Strength

ASTM A194 2H material Tensile Strength

Up to 860 MPa

Proof Load

SA 194 2H Heavy Hex Nuts Proof Load

24,830 lbf

Threads

ASTM A194 Grade 2H Coupling Nut Threads

UNF / BSW / BSF / METRIC / UNC

Standards

ASTM A194 grade 2H hex nuts Standards

DIN 931, 933, 934, 7991, 976, 125 / ASME B18.2.1, B18.3

Custom Sizes

Custom Sizes

We are Manufacturer of ASTM A194 2H Nuts in India in custom sizes

Manufacturing Technique

Manufacturing Technique

CNC Machined / Cold forging

Origin

Origin

Indian / Russian / Korean / European

Surface finish

A194 2H material Finish

Phosphating / Passivation / HDG

Packaging

Packaging

  • Wooden Pallet
  • Carton Box
  • Wooden Cases
  • Blister Packs

Certificate

Certificate

  • Raw Materials Certificate
  • EN 10204/3.1B
  • 100% Radiography Test
  • UT and PMI Test

Value Added Services

Value Added Services

  • Head Shank Drilling
  • Head Painting
  • Color Coding
  • Laser Etching

Manufacturing range of A194 2H Hex Nuts

Diameter Range Thread Coatings Heat Treatment Standards
¼″ to 4″ UNC
UN8
UNF
Metric		 Zinc plating
Hot dip galvanized
PTFE		 Quenched and tempered ASTM A194
ASME B18.2.2

ASTM A194 2H heavy hex nuts Price list

Product Price in USD
(Pcs)		 Price in Dirham
(Pcs)		 Price in Euro
(Pcs)
1 1/2" Heavy Hex Nuts, ASTM A194 Grade 2H, Black Oxide US $1.24 4.56 AED € 1.06
1/4" SA 194 2H Hex Nuts, Coarse Thread US $0.89 3.27 AED € 0.76

SA 194 gr 2H chemical composition

Carbon

0.15 (Max.)

Manganese

1.00 (Max.)

Phosphorus

0.04 (Max)

Sulfur

0.05

Silicon

0.40

ASTM A194 grade 2H mechanical properties

Tensile Strength

1207 MPa

Melting Point

1425–1540 °C

Thermal Conductivity

43–54 W/m·K

Poisson's Ratio

0.29

A194 2H material Hardness

Hardness 248 - 327 BHN

Types of ASTM A194 2H Nut

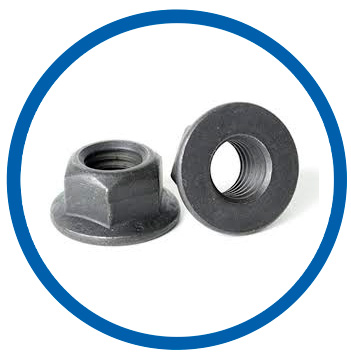

ASTM 194 2H Flange lock nut

ASTM 194 2H Flange lock nut

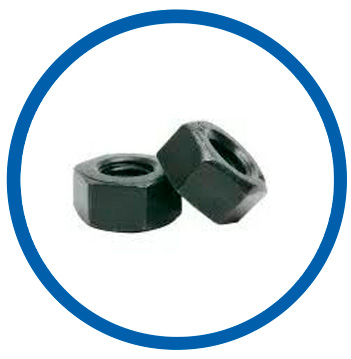

ASTM A 194 gr 2H Hex Nut

ASTM A 194 gr 2H Hex Nut

ASME SA194 2H Square nut

ASME SA194 2H Square nut

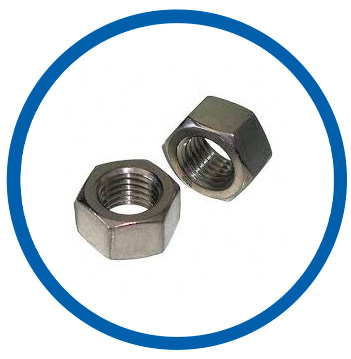

SA 194 2H Lock nut

SA 194 2H Lock nut

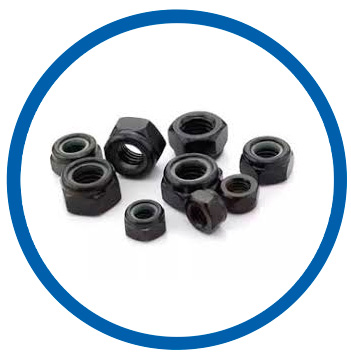

SA 194 gr 2H Nylon lock nuts

SA 194 gr 2H Nylon lock nuts

ASTM A194 2H Heavy Hex Nut

ASTM A194 2H Heavy Hex Nut

Proof Load of SA 194 gr 2H nut

Nominal Size, mm Stress Area mm² Threads Pitch Hex Nuts (kN) Heavy Hex Nuts (kN)
M6 20.1 1 20.8 29.2
M8 36.6 1.25 37.9 44.1
M10 58 1.5 60 69.9
M12 84.3 1.75 87.3 101.6
M14 84.3 2 119 138.6
M16 115 2 162.5 189.2
M20 245 2.5 253.6 295.2
M22 303 2.5 313.6 365.1
M24 353 3 365.4 425.4
M27 459 3 475.1 553.4
M30 561 3.5 580.6 676
M36 817 4 845.6 984.5

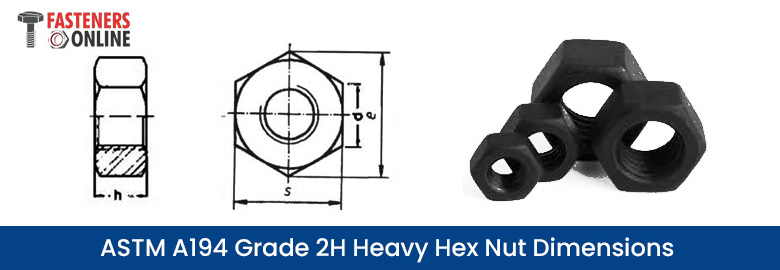

ASTM A194 grade 2H heavy hex nut dimensions

ASTM A194 grade 2H heavy hex nut dimensions
d h e min s Pitch
M12 10 23.91 22 1.75
M16 13 29.56 27 2
M20 16 35.03 32 2.5
M22 18 39.55 36 2.5
M24 19 45.2 41 3
M27 22 50.35 46 3
M30 24 55.37 50 3.5
M36 29 66.44 60 4

ASTM A194 grade 2H coupling nut Application

  • Oil & Gas Industry
  • Petroleum Industry
  • Offshore Industry
  • Aerospace Industry
  • Power Generation
  • Chemical Processing
  • Gas Turbines
  • Nuclear Industry
ASTM A194 grade 2H coupling nut Application

A194 gr 2H nuts Marking

Marking RSI "2H"
