Stainless Steel U Bolts

Long u bolts & square u bolts supplier

Table of Content

Fasteners Types
Stainless steel U bolts Manufacturers in India

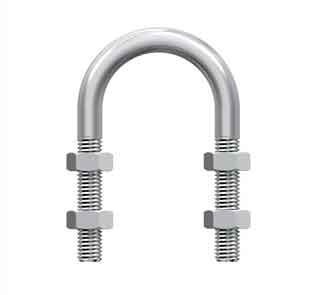

Stainless steel U bolts

Long U Bolts Manufacturer in India

Long U Bolts

Square U Bolts manufacturers in India

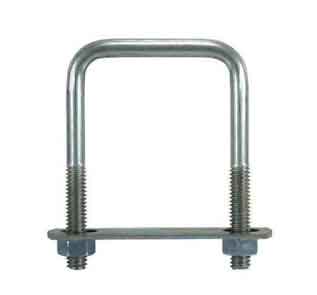

Square U Bolts

Specification of Stainless Steel U Bolts

Product name Stainless Steel U Bolts
Place of Origin India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
 Passivation /plain
Stainless Steel U Bolts Size M2 – M100
Stainless Steel U Bolts Diameter M3-M60
Stainless Steel U Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
Stainless Steel U Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel U Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, U; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel U Bolts, U: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel U Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel U Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

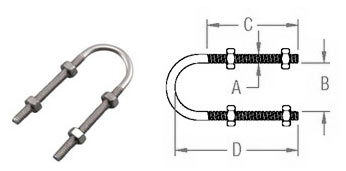

SS Long U Bolts Dimensions

Stainless Steel Long U-Bolt
A
(SIZE)		 THREAD B C D PIPE WLL
(LB)		 WT
(LB)
1/4″ 1/4″-20 0.88″ 2.50″ 2.94″ 1/2″ 435 0.10
1/4″ 1/4″-20 1.13″ 2.50″ 3.19″ 3/4″ 435 0.11
1/4″ 1/4″-20 1.38″ 2.50″ 3.44″ 1″ 435 0.11
3/8″ 3/8″-16 1.69″ 2.38″ 3.72″ 1-1/4″ 1,090 0.28
3/8″ 3/8″-16 2.00″ 2.50″ 4.00″ 1-1/2″ 1,090 0.30
3/8″ 3/8″-16 2.44″ 2.50″ 4.44″ 2″ 1,090 0.33
1/2″ 1/2″-13 2.94″ 3.00″ 5.22″ 2-1/2″ 2,020 0.73
1/2″ 1/2″-13 3.56″ 3.00″ 5.75″ 3″ 2,020 0.79
1/2″ 1/2″-13 4.06″ 3.00″ 6.25″ 3-1/2″ 2,020 0.85
1/2“ 1/2″-13 4.56″ 3.00″ 6.75″ 4″ 2,020 0.90
1/2″ 1/2″-13 5.63″ 3.00″ 7.81″ 5″ 2,020 1.03
5/8″ 5/8″-11 6.75″ 3.75″ 9.69″ 6″ 3,230 1.92
5/8″ 5/8″-11 8.75″ 3.75″ 11.50″ 8″ 3,230 2.22
3/4″ 3/4″-10 10.88″ 4.00″ 13.88″ 10″ 4,830 4.08
7/8″ 7/8″-9 12.88″ 4.25″ 16.13″ 12″ 6,730 5.70
7/8″ 7/8″-9 14.13″ 4.25″ 17.50″ 14″ 6,730 6.70
7/8″ 7/8″-9 16.13″ 4.25″ 19.25″ 16″ 6,730 7.50

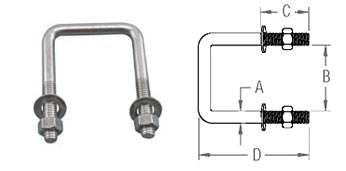

Square U Bolts Dimensions

Stainless Steel Square U Bolt

The SS Square U-Bolt is UNC thread and available in a 3/8″ size. Each u-bolt includes 2 nuts and 2 washers. Grade 304 stainless steel for corrosion durability and resistance, making it perfect for marine and industrial applications.

A
(SIZE)		 THREAD B C D WLL
(LB)		 WT
(LB)
3/8″ 3/8″-16 2.00″ 1.50″ 3.40″ 1,090 0.25
3/8″ 3/8″-16 2.00″ 3.00″ 5.40″ 1,090 0.35
3/8″ 3/8″-16 2.00″ 3.75″ 7.37″ 1,090 0.45
3/8″ 3/8″-16 4.00″ 1.50″ 3.37″ 1,090 0.30
3/8″ 3/8″-16 4.00″ 3.00″ 5.37″ 1,090 0.40
3/8″ 3/8″-16 4.00″ 3.75″ 7.37″ 1,090 0.50
3/8″ 3/8″-16 6.00″ 3.00″ 5.30″ 1,090 0.45
3/8″ 3/8″-16 6.00″ 3.75″ 7.37″ 1,090 0.55
3/8″ 3/8″-16 6.00″ 5.63″ 9.37″ 1,090 0.65

Trailer U Bolts Dimensions

Stainless Steel Trailer U Bolt

The SS Trailer U-Bolt is available in a 1/2″ size and includes 2 nuts and 2 washers. Grade 304 stainless steel for durability and corrosion resistance, making it ideal for replacing or upgrading trailer parts.

A
(SIZE)		 THREAD B C D WLL
(LB)		 WT
(LB)
1/2″ 1/2″-13 2.13″ 1.50″ 4.00″ 2,020 0.68
1/2″ 1/2″-13 3.13″ 1.50″ 3.00″ 2,020 0.65
1/2″ 1/2″-13 3.13″ 2.00″ 4.00″ 2,020 0.70
1/2″ 1/2″-13 3.13″ 3.00″ 5.00″ 2,020 0.75
1/2″ 1/2″-13 3.13″ 3.00″ 6.00″ 2,020 0.80
1/2″ 1/2″-13 4.13″ 1.50″ 3.00″ 2,020 0.70

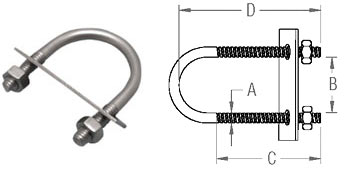

U Bolts with Plate Dimensions

Stainless Steel U Bolt w/ Plate

The SS U-Bolt with Plate is available in sizes ranging from 1/4″ to 1/2″ and includes 2 nuts. This U-bolt is UNC thread. It is made from grade 304 stainless steel for durability and corrosion resistance, making it perfect for marine and industrial applications. Custom sizes are available.

A
(SIZE)		 THREAD B C D PIPE WLL
(LB)		 WT
(LB)
1/4″ 1/4″-20 0.75″ 0.63″ 1.25″ 3/8″ 435 0.07
1/4″ 1/4″-20 1.00″ 1.00″ 1.75″ 1/2″ 435 0.09
1/4″ 1/4″-20 1.13″ 1.00″ 2.00″ 3/4″ 435 0.10
1/4″ 1/4″-20 1.50″ 1.38″ 2.75″ 1″ 435 0.12
1/4″ 1/4″-20 1.75″ 1.38″ 3.00″ 1-1/4″ 435 0.13
1/4″ 1/4″-20 2.00″ 1.38″ 3.25″ 1-1/2″ 435 0.14
5/16″ 5/16″-18 1.00″ 1.38″ 2.19″ 1/2″ 610 0.14
5/16″ 5/16″-18 1.50″ 1.00″ 2.19″ 1″ 610 0.15
5/16″ 5/16″-18 1.75″ 1.13″ 2.69″ 1-1/4″ 610 0.18
5/16″ 5/16″-18 2.00″ 1.00″ 2.69″ 1-1/2″ 610 0.20
5/16″ 5/16″-18 2.50″ 1.00″ 3.19″ 2″ 610 0.22
5/16″ 5/16″-18 3.00″ 1.00″ 3.69″ 2-1/2″ 610 0.25
3/8″ 3/8″-16 1.00″ 1.25″ 2.25″ 1/2″ 1,090 0.20
3/8″ 3/8″-16 1.25″ 1.25″ 2.25″ 3/4″ 1,090 0.21
3/8″ 3/8″-16 1.50″ 1.25″ 2.50″ 1″ 1,090 0.23
3/8″ 3/8″-16 1.75″ 1.25″ 2.75″ 1-1/4″ 1,090 0.25
3/8″ 3/8″-16 2.00″ 1.25″ 2.63″ 1-1/2″ 1,090 0.26
3/8″ 3/8″-16 2.50″ 1.25″ 3.13″ 2″ 1,090 0.30
3/8″ 3/8″-16 3.00″ 1.25″ 3.63″ 2-1/2″ 1,090 0.33
3/8″ 3/8″-16 3.50″ 1.25″ 4.13″ 3″ 1,090 0.38
1/2″ 1/2″-13 3.00″ 1.63″ 4.50″ 2-1/2″ 2,020 0.70
1/2″ 1/2″-13 3.50″ 1.50″ 5.00″ 3″ 2,020 0.74
1/2″ 1/2″-13 4.00″ 1.50″ 5.50″ 3-1/2″ 2,020 0.82
1/2″ 1/2″-13 4.50″ 1.50″ 6.00″ 4″ 2,020 0.90
1/2″ 1/2″-13 5.63″ 2.00″ 7.25″ 5″ 2,020 1.06
1/2″ 1/2″-13 6.75″ 2.00″ 8.38″ 6″ 2,020 1.18
1/2″ 1/2″-13 8.75″ 2.00″ 10.38 8″ 2,020 1.44

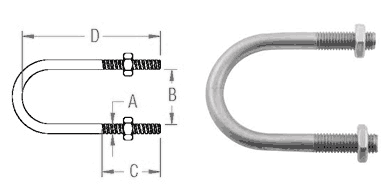

Stainless Steel U Bolts Weight Chart

Stainless steel U-Bolt Weight
A
(SIZE)		 THREAD B C D PIPE WLL
(LB)		 WT
(LB)
1/4″ 1/4″-20 0.75″ 0.63″ 1.25″ 3/8″ 435 0.05
1/4″ 1/4″-20 1.00″ 1.00″ 1.75″ 1/2″ 435 0.06
1/4″ 1/4″-20 1.13″ 1.00″ 2.00″ 3/4″ 435 0.07
1/4″ 1/4″-20 1.50″ 1.38″ 2.75″ 1″ 435 0.08
1/4″ 1/4″-20 1.75″ 1.38″ 3.00″ 1-1/4″ 435 0.09
1/4″ 1/4″-20 2.00″ 1.38″ 3.25″ 1-1/2″ 435 0.10
5/16″ 5/16″-18 1.00″ 1.38″ 2.19″ 1/2″ 610 0.11
5/16″ 5/16″-18 1.50″ 1.00″ 2.19″ 1″ 610 0.12
5/16″ 5/16″-18 1.75″ 1.13″ 2.69″ 1-1/4″ 610 0.14
5/16″ 5/16″-18 2.00″ 1.00″ 2.69″ 1-1/2″ 610 0.15
5/16″ 5/16″-18 2.50″ 1.00″ 3.19″ 2″ 610 0.16
5/16″ 5/16″-18 3.00″ 1.00″ 3.69″ 2-1/2″ 610 0.18
3/8″ 3/8″-16 1.00″ 1.25″ 2.25″ 1/2″ 1,090 0.17
3/8″ 3/8″-16 1.25″ 1.25″ 2.25″ 3/4″ 1,090 0.17
3/8″ 3/8″-16 1.50″ 1.25″ 2.50″ 1″ 1,090 0.18
3/8″ 3/8″-16 1.75″ 1.25″ 2.75″ 1-1/4″ 1,090 0.20
3/8″ 3/8″-16 2.00″ 1.25″ 2.63″ 1-1/2″ 1,090 0.20
3/8″ 3/8″-16 2.50″ 1.25″ 3.13″ 2″ 1,090 0.23
3/8″ 3/8″-16 3.00″ 1.25″ 3.63″ 2-1/2″ 1,090 0.27
3/8″ 3/8″-16 3.50″ 1.25″ 4.13″ 3″ 1,090 0.30
1/2″ 1/2″-13 3.00″ 1.63″ 4.50″ 2-1/2″ 2,020 0.59
1/2″ 1/2″-13 3.50″ 1.50″ 5.00″ 3″ 2,020 0.65
1/2″ 1/2″-13 4.00″ 1.50″ 5.50″ 3-1/2″ 2,020 0.69
1/2″ 1/2″-13 4.50″ 1.50″ 6.00″ 4″ 2,020 0.76
1/2″ 1/2″-13 5.63″ 2.00″ 7.25″ 5″ 2,020 0.93
1/2″ 1/2″-13 6.75″ 2.00″ 8.38″ 6″ 2,020 1.04
1/2″ 1/2″-13 8.75″ 2.00″ 10.38″ 8″ 2,020 1.27

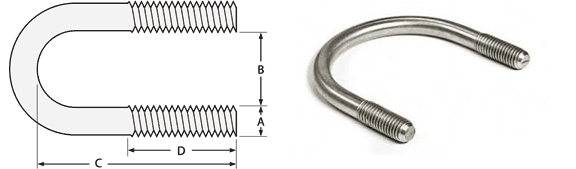

Round Bend U-Bolt Dimensions

Stainless steel Round Bend U-Bolt Dimensions
Size
(B x C)		 Thread Length
(D)		 Fits Pipe Size
1/4″-20 (A)
9/16″ x 1-3/8″ 3/4″ 1/4″
3/4″ x 1-1/4″ 3/4″ 3/8″
3/4″ x 1-3/4″ 1″ 3/8″
3/4″ x 2-3/4″ 2″ 3/8″
3/4″ x 4-3/4″ 4″ 3/8″
1″ x 1-3/4″ 1″ 1/2″
1-1/8″ x 2-1/4″ 1-1/4″ 3/4″
1-1/8″ x 3-1/2″ 2-3/4″ 3/4″
1-3/8″ x 2-3/4″ 1-3/4″ 1″
1-3/4″ x 2-3/4″ 1-1/4″ 1-1/4″
2″ x 3-1/2″ 1-3/4″ 1-1/2″
5/16″-18 (A)
1-3/8″ x 2-1/2″ 1-1/4″ 1″
1-3/8″ x 3-3/4″ 2-1/8″ 1″
1-3/4″ x 3″ 1-1/2″ 1-1/4″
1-3/4″ x 4-1/4″ 2-1/2″ 1-1/4″
2″ x 3-1/4″ 1-1/2″ 1-1/2″
2″ x 3-11/16″ 2″ 1-1/2″
2″ x 4-11/16″ 2-3/4″ 1-1/2″
2-1/2″ x 3-1/2″ 1-1/2″ 2″
2-1/2″ x 4-3/16″ 2-1/4″ 2″
2-1/2″ x 5-3/16″ 3″ 2″
3/8″-16 (A)
2″ x 3-1/8″ 1-1/2″ 1-1/2″
2-1/2″ x 3-5/8″ 1-3/4″ 2″
3″ x 4-1/8″ 1-3/4″ 2-1/2″
3-1/2″ x 4-5/8″ 2″ 3″
3-1/2″ x 6-1/2″ 3″ 3″
1/2″-13 (A)
3″ x 5″ 2-1/2″ 2-1/2″
3-1/2″ x 5-1/2″ 2-1/2″ 3″
4″ x 6″ 2-1/2″ 3-1/2″
4-1/2″ x 6-1/2″ 2-1/2″ 4″

Price List of Stainless Steel U Bolts

Product Price in USD
316 stainless steel u bolts clamp US $0.63
U type bolt stainless steel 304 US $0.8
