Stainless Steel Round Head Bolts

Flat round head bolts & round head structural bolts supplier

Table of Content

Fasteners Types
Stainless steel round head bolt Manufacturers in India

Stainless steel round head bolt

round head structural bolts Manufacturer in India

Round head structural bolts

5/16 round head bolts grades manufacturers in India

5/16 round head bolts grades

Stainless Steel Round Head Bolts Specification

Product name Stainless Steel Round Head Bolts
Place of Origin India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
 Passivation /plain
Stainless Steel Round Head Bolts Size M2 – M100
Stainless Steel Round Head Bolts Diameter M3-M60
Stainless Steel Round Head Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
Stainless Steel Round Head Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Round Head Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Round Head Bolts, Round Head: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Round Head Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel Round Head Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

SS Round Head Bolts Weight Chart

HIGH STRENGTH Round Head STRUCTURAL BOLTS AS PER IS 3757
APPROXIMATE WEIGHT IN KGS FOR 100NOS
LENGTHDIAMETER
M16 M20 M22 M24 M27 M30 M36
40 10.28
45 11.07 180.30
50 11.86 19.25 25.20
55 12.65 20.50 26.69 33.74
60 13.44 21.73 28.18 35.22 48.09
65 14.23 22.96 29.67 37.29 50.34
70 15.02 24.19 31.16 39.07 52.58 67.25
75 15.81 25.43 32.66 40.84 54.83 70.03 108.91
80 16.60 26.66 34.15 42.62 57.08 72.80 112.90
85 17.39 27.89 35.64 44.39 59.33 75.58 116.90
90 18.17 29.13 37.13 46.17 61.57 78.35 120.89
95 18.96 30.36 38.62 47.94 63.82 81.13 124.89
100 19.75 31.59 40.12 49.72 66.07 83.90 128.88
110 21.14 33.77 42.78 52.85 68.56 88.84 136.20
120 22.72 36.24 45.77 56.41 73.06 94.39 144.19
130 24.30 38.70 48.75 59.96 77.55 99.94 152.18
140 25.88 41.17 51.73 63.51 82.05 105.49 160.17
150 27.46 43.93 54.72 67.06 86.54 111.04 168.16
160 29.03 46.10 57.70 70.61 91.04 116.59 176.15
170 30.61 48.57 60.69 74.16 95.53 122.14 184.14
180 32.19 51.03 63.67 77.71 100.03 127.69 192.13
190 33.77 53.50 66.65 81.26 104.52 133.24 200.12
200 35.35 55.96 69.44 84.82 109.02 138.79 208.11
210 113.52 144.34 216.10
220 118.01 149.89 224.09
230 122.51 155.44 232.08
240 127.00 160.99 240.07
250 131.50 166.54 248.06
260 135.99 172.09 256.05
270 140.49 177.64 264.04
280 144.98 183.19 272.03
290 149.48 188.74 280.02
300 153.97 194.29 288.01

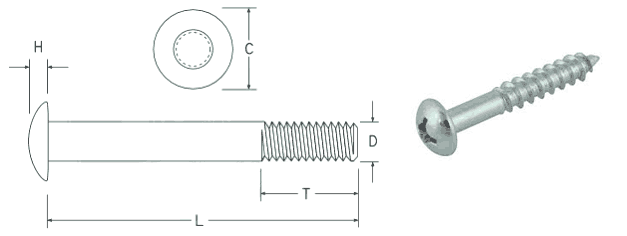

Stainless Steel Round Head Bolts Dimensions

  • Bolt lengths ≤ 6": Thread length = (2 X diameter) + 1⁄4”
  • Bolt lengths > 6": Thread length = (2 X diameter) + 1⁄2”
Stainless steel round head bolts dimension
Bolt Diameter C H
Head Diameter Head Height
Max Min Max Min
1⁄2 1.094 1.032 0.270 0.250
5⁄8 1.344 1.219 0.344 0.313
3⁄4 1.594 1.469 0.406 0.375
7⁄8 1.844 1.719 0.469 0.438
1 2.094 1.969 0.531 0.500
11⁄4 2.850 0.531 0.500

*Dimensions per ASME B18.5 1990 (R 1998) cover diameters up to 1″. Bolts over 1″ use custom head dimensions.

Price List of SS Round Head Bolt

Product Price in USD
Stainless Steel Round Head Bolt US $0.2
M6 Stainless Steel round head Bolt US $0.35

Stainless Steel Round Head Bolts in Stock

Stainless steel round head bolts round head bolts suppliers
stainless steel button head bolts round head fender bolts
flat round head bolts round head fin neck bolts
large round head bolts hex socket round head bolts
5/16 round head bolts metric round head square neck bolts
slotted round head bolts rounded hex head bolts
round head toggle bolts round head structural bolts
round head allen bolts round head stove bolts
slotted round head bolts smooth round head bolts
