Stainless Steel Eye Bolts

Reliable stockist and supplier of DIN 580 Eye Bolts

Table of Content

Fasteners Types

Stainless Steel Eye Bolts Specification

Product name Stainless Steel Eye Bolts
Place of Origin India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
 Passivation /plain
Stainless Steel Eye Bolts Size M2 – M100
Stainless Steel Eye Bolts Diameter M3-M60
Stainless Steel Eye Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
Stainless Steel Eye Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Eye Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Eye Bolts, Eye: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Eye Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel Eye Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

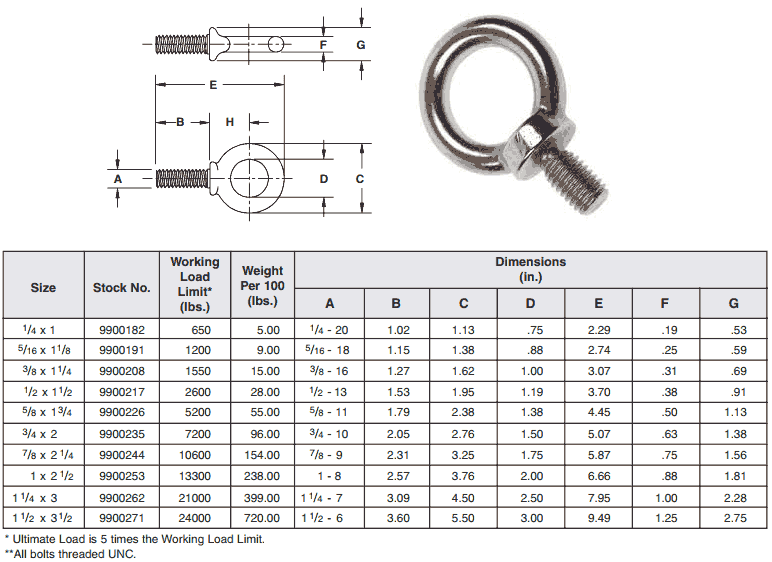

Regular Nut Eye Bolts Weight Chart

Regular Nut Eye Bolts Weight Chart

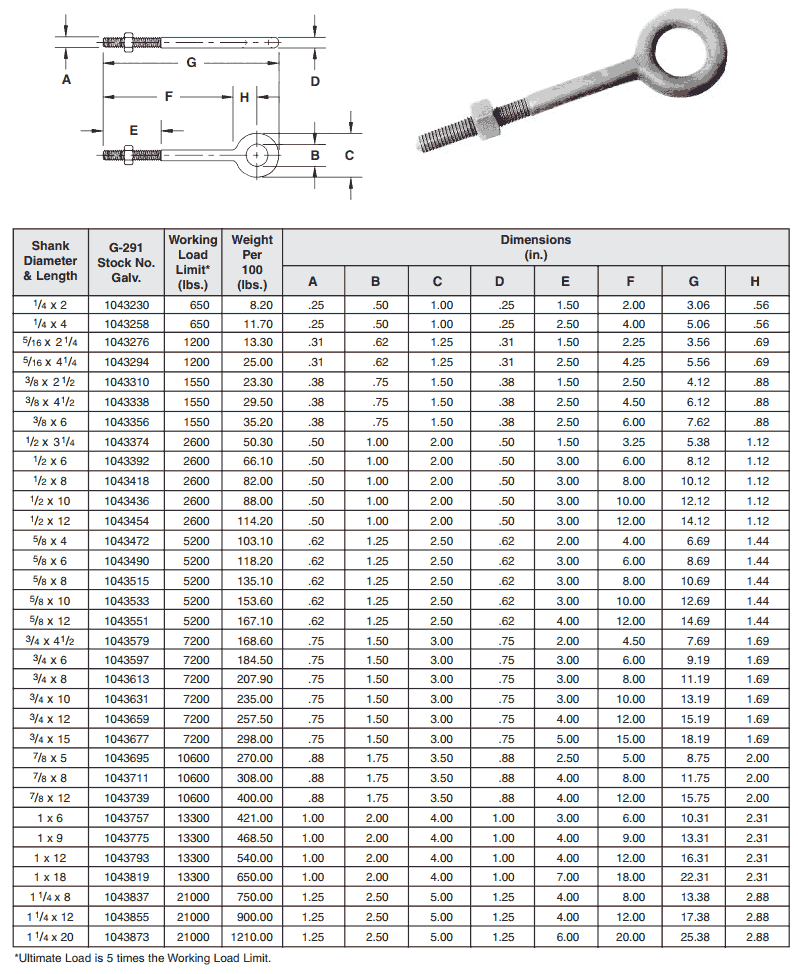

SS Shoulder Nut Eye Bolts Weight Chart

SS Shoulder Nut Eye Bolts Weight Chart

Stainless Steel Screw Eye Bolts Weight Chart

Stainless Steel Screw Eye Bolts Weight Chart

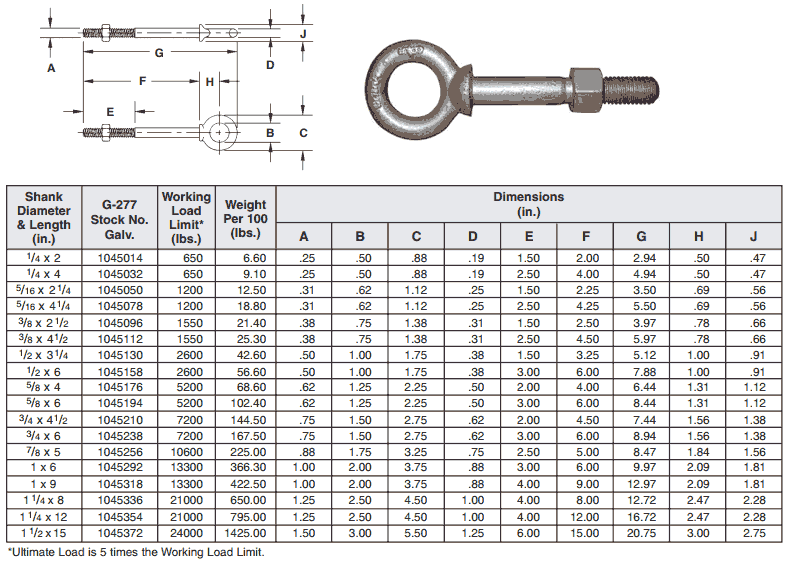

Shoulder Type Machinery Eye Bolts Weight Chart

Shoulder Type Machinery Eye Bolts Weight Chart

Weights for DIN 580 Eye Bolts

Size Weight in kg per piece
M8 0.06
M10 0.11
M12 0.18
M16 0.28
M20 0.45
M24 0.74
M30 1.66
M36 2.65
M42 4.03
M48 6.38
M56 8.80
M64 12.4
M72 23.3
M80 34.2
M100 49.1

Weights for DIN 582 Eye Bolts

Approximate weight in kgs. per 1,000 pcs. unless otherwise specified.

Size Weight in kg per piece
M8 0.05
M10 0.09
M12 0.16
M16 0.24
M20 0.36
M24 0.72
M30 1.32
M36 2.08
M42 3.11
M48 5.02
M56 6.69
M64 9.30
M72 18.5
M80 27.3
M100 36.4

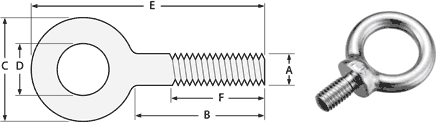

Stainless Steel Eye Bolts Dimensions

Length
(B)		 Outside Eye Diameter
(C)		 Inside Eye Diameter
(D)		 Overall Length*
(E)		 Thread Length*
(F)
1/4″-20 (A)
2″ 1″ 1/2″ 3-7/32″ 1-1/2″
3″ 1″ 1/2″ 4-7/32″ 1-1/2″
4″ 1″ 1/2″ 5-7/32″ 2″
5″ 1″ 1/2″ 6-7/32″ 2-1/2″
6″ 1″ 1/2″ 7-7/32″ 3″
5/16″-18 (A)
2-1/4″ 1-1/4″ 5/8″ 3-23/32″ 1-1/2″
3-1/4″ 1-1/4″ 5/8″ 4-23/32″ 1-1/2″
4-1/4″ 1-1/4″ 5/8″ 5-23/32″ 2-1/2″
5″ 1-1/4″ 5/8″ 6-15/32″ 2-1/2″
6″ 1-1/4″ 5/8″ 7-15/32″ 3″
3/8″-16 (A)
2-1/2″ 1-1/2″ 3/4″ 4-1/4″ 1-1/2″
3″ 1-1/2″ 3/4″ 4-3/4″ 1-1/2″
4″ 1-1/2″ 3/4″ 5-3/4″ 2″
4-1/4″ 1-1/2″ 3/4″ 6″ 2″
4-1/2″ 1-1/2″ 3/4″ 6-1/4″ 3″
5″ 1-1/2″ 3/4″ 6-3/4″ 3″
6″ 1-1/2″ 3/4″ 7-3/4″ 3″
8″ 1-1/2″ 3/4″ 9-3/4″ 4″
10″ 1-1/2″ 3/4″ 11-3/4″ 4″
1/2″-13 (A)
2″ 2″ 1″ 4-3/16″ 1-5/8″
3-1/4″ 2″ 1″ 5-7/16″ 2″
4″ 2″ 1″ 6-3/16″ 3″
4-1/2″ 2″ 1″ 6-11/16″ 3″
6″ 2″ 1″ 8-3/16″ 3″
8″ 2″ 1″ 10-3/16″ 4″
10″ 2″ 1″ 12-3/16″ 4″
12″ 2″ 1″ 14-3/16″ 4″
5/8″-11 (A)
4″ 2-1/2″ 1-3/8″ 6-5/8″ 3″
4-1/2″ 2-1/2″ 1-3/8″ 7-1/8″ 3″
6″ 2-1/2″ 1-3/8″ 8-5/8″ 3″
8″ 2-1/2″ 1-3/8″ 10-5/8″ 4″
10″ 2-1/2″ 1-3/8″ 12-5/8″ 4″
12″ 2-1/2″ 1-3/8″ 14-5/8″ 4″
15″ 2-1/2″ 1-3/8″ 17-5/8″ 6″
18″ 2-1/2″ 1-3/8″ 20-5/8″ 6″
24″ 2-1/2″ 1-3/8″ 26-5/8″ 6″
3/4″-10 (A)
4″ 2-13/16″ 1-1/2″ 6-7/8″ 3″
4-1/2″ 2-13/16″ 1-1/2″ 7-3/8″ 3″
6″ 2-13/16″ 1-1/2″ 8-7/8″ 3″
8″ 2-13/16″ 1-1/2″ 10-7/8″ 4″
10″ 2-13/16″ 1-1/2″ 12-7/8″ 4″
12″ 2-13/16″ 1-1/2″ 14-7/8″ 4″
15″ 2-13/16″ 1-1/2″ 17-7/8″ 6″
18″ 2-13/16″ 1-1/2″ 20-7/8″ 6″
24″ 2-13/16″ 1-1/2″ 26-7/8″ 6″
7/8″-9 (A)
5″ 3-1/2″ 1-3/4″ 8-1/4″ 3″
6″ 3-1/2″ 1-3/4″ 9-1/4″ 3″
8″ 3-1/2″ 1-3/4″ 11-1/4″ 4″
10″ 3-1/2″ 1-3/4″ 13-1/4″ 4″
12″ 3-1/2″ 1-3/4″ 15-1/4″ 4″
18″ 3-1/2″ 1-3/4″ 21-1/4″ 6″
24″ 3-1/2″ 1-3/4″ 27-1/4″ 6″
1″-8 (A)
6″ 4″ 2″ 9-5/8″ 3″
8″ 4″ 2″ 11-5/8″ 4″
10″ 4″ 2″ 13-5/8″ 4″
12″ 4″ 2″ 15-5/8″ 4″
15″ 4″ 2″ 18-5/8″ 6″
18″ 4″ 2″ 21-5/8″ 6″
24″ 4″ 2″ 27-5/8″ 6″
1-1/4″-7 (A)
6″ 4-7/16″ 2-3/16″ 10-1/2″ 3″
8″ 4-7/16″ 2-3/16″ 12-1/2″ 4″
12″ 4-7/16″ 2-3/16″ 16-1/2″ 4″
18″ 4-7/16″ 2-3/16″ 22-1/2″ 6″
24″ 4-7/16″ 2-3/16″ 28-1/2″ 6″
1-1/2″-6 (A)
6″ 5-3/16″ 2-1/2″ 11-1/4″ 3″
12″ 5-3/16″ 2-1/2″ 17-1/4″ 4″
18″ 5-3/16″ 2-1/2″ 23-1/4″ 6″
24″ 5-3/16″ 2-1/2″ 29-1/4″ 6″
2″-4-1/2 (A)
12″ 6-7/8″ 3-1/4″ 19″ 4″
* This is approximate length and thread length of imported eye bolts. Values may differ from those listed in this table.

NOMINAL SIZE (D) BODY DIAMETER HEAD THICKNESS ACROSS THE FLATS ACROSS CORNERS
D (MAX) D (MIN) H (MAX) H (MIN) F (MAX) F (MIN) C (MAX) C (MIN)
m10 10.00 9.78 6.63 6.17 17.00 15.73 18.48 17.77
m12 12.00 11.73 7.76 4.24 19.00 17.73 20.78 20.03
m14 14.00 13.73 9.09 8.51 22.00 20.67 24.25 23.35
m16 16.00 15.73 10.32 9.68 24.00 23.67 27.71 26.75
m20 20.00 19.67 12.88 12.12 30.00 29.16 34.64 32.95
m24 24.00 23.67 15.44 14.56 36.00 35.00 41.57 39.55
m30 30.00 29.67 19.48 17.92 46.00 45.00 53.12 50.85
m36 36.00 35.61 23.38 21.63 55.00 53.80 63.51 60.79
m42 42.00 41.38 26.97 25.03 65.00 62.90 75.06 71.71
m48 48.00 47.38 31.07 28.93 75.00 72.60 86.60 82.76
m56 56.00 55.26 36.2 33.80 85.00 82.20 98.15 93.71
m64 64.00 63.26 41.32 38.68 95.00 91.80 109.70 104.65
m72 72.00 71.26 46.45 43.55 105.00 101.40 121.24 115.60
m80 80.00 79.26 51.58 48.42 115.00 111.00 132.72 126.54
m90 90.00 89.13 57.74 54.26 130.00 125.50 150.11 143.07
m100 90.00 99.13 63.9 60.10 145.00 140.00 167.43 159.60

Price list of Stainless Steel Eye Bolts

Product Price in USD
(Pcs)		 Price in Dirham
(Pcs)		 Price in Euro
(Pcs)
12MM EYE BOLTS X 100MM SS 304 US $1.32 4.85 AED € 1.13
16MM EYE BOLTS X 100MM AISI 304L US $2.14 7.86 AED € 1.84
EYE BOLT M 10 Stainless Steel 316 US $3.95 14.51 AED € 3.39
