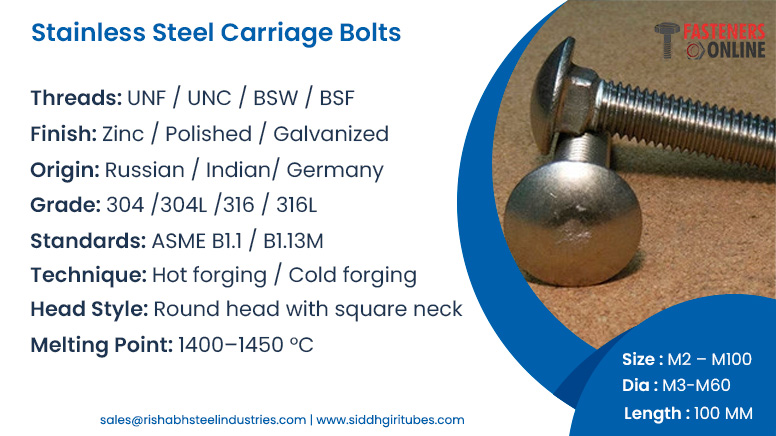

Specification of Stainless Steel Carriage Bolts
Product name Stainless Steel Carriage Bolts
Place of Origin India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
 Passivation /plain
Stainless Steel Carriage Bolts Size M2 – M100
Stainless Steel Carriage Bolts Diameter M3-M60
Stainless Steel Carriage Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
Stainless Steel Carriage Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Carriage Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Carriage Bolts, Carriage Bolts: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Carriage Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel Carriage Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Stainless Steel Carriage Bolts Grades
  • 317L Stainless Steel Carriage Bolts
  • 904L Stainless Steel Carriage Bolts
  • 316H Stainless Steel Carriage Bolts
  • 304L Stainless Steel Carriage Bolts
  • 317 Stainless Steel Carriage Bolts
  • 410 Stainless Steel Carriage Bolts
  • 347 Stainless Steel Carriage Bolts
  • 316 Stainless Steel Carriage Bolts
  • 316L Stainless Steel Carriage Bolts
  • 304H Stainless Steel Carriage Bolts
  • 18-8 Stainless Steel Carriage Bolts
  • 321 Stainless Steel Carriage Bolts
  • 310 Stainless Steel Carriage Bolts
  • 304 Stainless Steel Carriage Bolts
Stainless Steel Carriage Bolts Weight Chart

M.S. ROUND HEAD SQUARE NECK CARRIAGE BOLTS WITH SQUARE NUTS

APPROXIMATE WEIGHT IN KGS FOR 100 NOS

LENGTH

DIAMETER

1/4″

5/16″

3/8″

7/16″

1/2″

1″

1.070

1.859

2.844

4.322

6.165

1.1/4″

1.243

2.050

3.125

4.708

6.667

1.1/2″

1.397

2.335

3.492

5.102

7.163

1.3/4″

1.551

2.581

3.846

5.631

7.776

2″

1.706

2.825

4.198

6.112

8.432

2.1/4″

1.864

3.071

4.554

6.588

9.058

2.1/2″

2.023

3.316

4.907

7.072

9.671

2.3/4″

2.182

3.561

5.258

7.564

10.309

3″

2.340

3.805

5.612

8.039

10.941

3.1/2″

2.653

4.296

6.274

8.993

12.225

4″

2.971

4.785

7.022

9.960

13.477

4.1/2″

3.287

5.274

7.728

10.917

14.706

5″

3.605

5.767

8.446

11.905

15.974

5.1/2″

3.922

6.258

9.158

12.853

17.241

6″

4.241

6.748

9.862

13.812

18.519

7″

15.674

20.921

8″

17.606

23.364

DIN 603 Carriage Bolt Weight (KG/1000pcs)

l\d M5 M6 M8 M10 M12 M16 M20
16 4 6.9
20 4.5 7.6 13.8 22.7
25 5.1 8.5 15.4 25.2
30 5.9 9.6 17 27.7 45.7
35 6.7 10.7 19 30.2 49.4
40 7.5 11.8 21 32.7 53.1
45 8.3 12.9 23 35.8 56.8
50 9.1 14 25 38.9 61.2 119
55 9.9 15.1 26.9 42 65.6 126
60 10.7 16.2 28.9 45.1 70 133
65 11.5 17.3 30.9 48.2 74.4 141
70 12.3 18.4 32.9 51.3 78.8 149 247
80 13.9 20.6 36.8 57.5 87 165 272
90 22.8 40.8 63.7 96 181 297
100 25 44.8 69.9 105 197 322
110 27.2 48.8 76.1 114 213 347
120 29.4 52.8 82.3 123 229 372
130 31.6 56.8 88.5 132 245 397
140 32.8 60.8 95 141 261 422
150 35 64.8 101 150 277 447
160 107 159 293 497
180 119 177 325 547
200 131 195 357 597
Stainless Steel Carriage Bolts Dimensions
Stainless steel carriage bolts dimensions

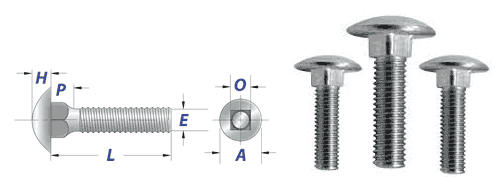

Carriage Bolts: Round Head, Square Neck (ASME B18.5-1990)

Basic Bolt Diameter

 Body Diameter (E) Head Diameter (A) Head Height (H) Square Width (O) Square Depth (P)
Max Min Max Min Max Min Max Min Max Min
8 .1640 .157 .328 .298 .102 .083 .169 .155 .108 .078
10 .1900 .182 .436 .436 .114 .094 .199 .185 .125 .094
12 .2160 .206 .500 .468 .149 .125 .215 .197 .135 .105
1/4 .2500 .237 .594 .563 .145 .125 .260 .245 .156 .125
5/16 .3125 .298 .719 .688 .176 .156 .324 .307 .187 .156
3/8 .3750 .360 .844 .782 .208 .188 .388 .368 .219 .188
7/16 .4375 .421 .969 .907 .239 .219 .452 .431 .250 .219
1/2 .5000 .483 1.094 1.032 .270 .250 .515 .492 .281 .250
5/8 .6250 .605 1.344 1.219 .344 .313 .642 .616 .344 .313
3/4 .7500 .729 1.594 1.469 .406 .375 .768 .741 .406 .375
Carriage Bolts: Round Head, Square Neck: Tolerance on Length
Nominal Bolt Size
 Nominal Bolt Length
Up to 1″ Over 1″ – 2-1/2″ Over 2-1/2″ – 4″ Over 4″ – 6″ Longer than 6″
No. 8 – 3/8 +.02, -.03 +.02, -.04 +.04, -.06 +.06, -.10 +.10, -.18
7/16 & 1/2 +.02, -.03 +.04, -.05 +.06, -.08 +.08, -.10 +.12, -.18
9/16 – 3/4 +.02, -.03 +.06, -.08 +.08, -.10 +.10, -.10 +.14, -.18
Carriage Bolts: Round Head Short Neck
Stainless steel carriage bolts dimensions

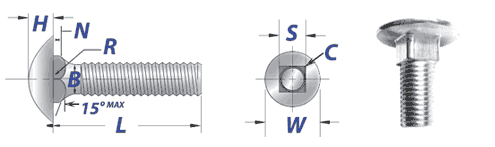

Carriage Bolts: Round Head, Short Neck (ANSI/ASME B18.5)

Nominal Size or Basic Bolt Diameter

 Body Diameter (B) Head Diameter (W) Head Height (H) Square Width (S) Square Depth (N) Corner Radius on Square (C) Fillet Radius (R)
Max Min Max Min Max Min Max Min Max Min Max Max
1/4 .2500 .260 .213 .594 .563 .145 .125 .260 .245 .124 .093 .031 .031
5/16 .3125 .324 .272 .719 .688 .176 .156 .324 .307 .124 .093 .031 .031
3/8 .3750 .388 .329 .844 .782 .208 .188 .388 .368 .156 .125 .047 .031
7/16 .4375 .452 .385 .969 .907 .239 .219 .452 .431 .156 .125 .047 .031
1/2 .5000 .515 .444 1.094 1.032 .270 .250 .515 .492 .156 .125 .047 .031
5/8 .6250 .642 .559 1.344 1.219 .344 .313 .642 .616 .218 .187 .078 .062
3/4 .7500 .768 .678 1.594 1.469 .406 .375 .768 .741 .218 .187 .078 .062
Carriage Bolts: Round Head, Short Neck: Tolerance on Length
Nominal Bolt Size
 Nominal Bolt Length
Up to 1″ Over 1″ – 2-1/2″ Over 2-1/2″ – 4″ Over 4″ – 6″ Longer than 6″
No. 10 – 3/8 +.02, -.03 +.02, -.04 +.04, -.06 +.06, -.10 +.10, -.18
7/16 & 1/2 +.02, -.03 +.04, -.05 +.06, -.08 +.08, -.10 +.12, -.18
9/16 – 3/4 +.02, -.03 +.06, -.08 +.08, -.10 +.10, -.10 +.14, -.18
7/8 & 1 +.08, -.10 +.10, -.14 +.12, -.16 +.16, -.20
1-1/8 – 1-1/2 +.12, -.12 +.16, -.16 +.18, -.18 +.22, -.22
Carriage Bolts: Round Head, Ribbed Neck
Stainless steel carriage bolts dimensions

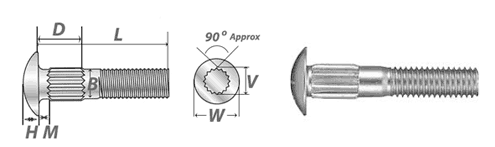

Carriage Bolts: Round Head, Ribbed Neck (ASME B18.5-1998)

Nominal Size or Basic Bolt Diameter

 Body Diameter (B) Head Diameter (W) Head Height (H) Head to Ribs (M) Number of Ribs Diameter Over Ribs (V) Depth Over Ribs (D) Fillet Radius (R)
Max Min Max Min Max Min Up to 7/8″ Length 1″+ Length Approx. Min Up to 7/8″ Length 1″ & 1-1/8″ Length 1-1/4″+ Length Max
No 10 .1900 .199 .182 .469 .438 .114 .094 .031 .063 9 .210 .250 .407 .594 .031
1/4 .2500 .260 .237 .594 .563 .145 .125 .031 .063 10 .274 .250 .407 .594 .031
5/16 .3125 .324 .298 .719 .688 .176 .156 .031 .063 12 .340 .250 .407 .594 .031
3/8 .3750 .388 .360 .844 .782 .208 .188 .031 .063 12 .405 .250 .407 .594 .031
7/16 .4375 .425 .421 .969 .907 .239 .219 .031 .063 14 .470 .250 .407 .594 .031
1/2 .5000 .515 .483 1.094 1.032 .270 .250 .031 .063 16 .534 .250 .407 .594 .031
5/8 .6250 .642 .605 1.344 1.219 .344 .313 .094 .094 19 .660 .313 .438 .625 .062
3/4 .7500 .768 .729 1.594 1.469 .406 .375 .094 .094 22 .785 .313 .438 .625 .062
Carriage Bolts: Round Head, Ribbed Neck: Tolerance on Length
Nominal Bolt Size
 Nominal Bolt Length
Up to 1″ Over 1″ – 2-1/2″ Over 2-1/2″ – 4″ Over 4″ – 6″ Longer than 6″
No. 10 – 3/8 +.02, -.03 +.02, -.04 +.04, -.06 +.06, -.10 +.10, -.18
7/16 & 1/2 +.02, -.03 +.04, -.05 +.06, -.08 +.08, -.10 +.12, -.18
9/16 – 3/4 +.02, -.03 +.06, -.08 +.08, -.10 +.10, -.10 +.14, -.18
7/8 & 1 +.08, -.10 +.10, -.14 +.12, -.16 +.16, -.20
1-1/8 – 1-1/2 +.12, -.12 +.16, -.16 +.18, -.18 +.22, -.22
Stainless Steel Carriage Bolts: Fin Neck
Stainless steel carriage bolts dimensions

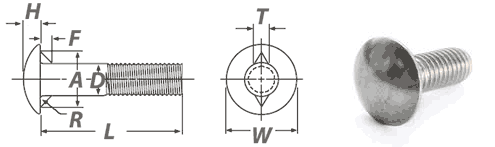

Carriage Bolts: Fin Neck (ASME B18.5-1990)

Nominal Size or Basic Bolt Diameter

 Body Diameter (D) Head Diameter (W) Head Height (H) Fin Thickness (T) Distance Across Fins (A)
 Fin Depth (F) Fillet Radius (R)
Max Min Max Min Max Min Max Min Max Min Max Min Max Min
No 10 .1900 .199 .182 .469 .438 .114 .094 .098 .078 .395 .375 .088 .076 .031 .015
1/4 .2500 .260 .237 .594 .563 .145 .125 .114 .094 .458 .438 .104 .094 .031 .015
5/16 .3125 .324 .298 .719 .688 .176 .156 .145 .125 .551 .531 .135 .125 .031 .015
3/8 .3750 .388 .360 .844 .782 .208 .188 .161 .141 .645 .625 .151 .141 .031 .015
7/16 .4375 .452 .421 .969 .907 .239 .219 .192 .172 .739 .719 .182 .172 .031 .015
1/2 .5000 .515 .483 1.094 1.032 .270 .250 .208 .188 .833 .813 .198 .188 .031 .015
Stainless Steel Carriage Bolts: Flat Head, Square Neck
Stainless steel carriage bolts dimensions

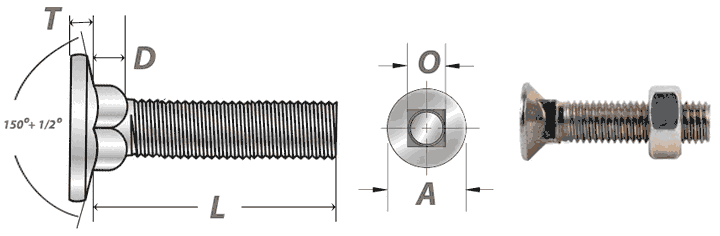

Carriage Bolts: Flat Head, Square Neck

Bolt Diameter & Thread Pitch

 Head Diameter (A) Head Height (T) Square Width (O) Square Depth (D)
Max Min Max Min Max Min Max Min
1/4-20 .640 .590 .098 .078 .260 .245 .156 .125
Stainless steel carriage bolt
  • Standard DIN 603,
  • Used in predrilled holes,
  • Also known as Carriage Bolts,
  • Do Not confuse Coach Bolts with Coach Screws,
  • Dome head for visually pleasing joints,
  • Square under neck to prevent rotating of bolt during tightning,
  • Low load carrying joints,
Price List of Stainless Steel Carriage Bolts
Check price of 1/4-20 stainless steel carriage bolts, cup head bolts grade 8.8.

M6 X 20 G304

$2.8818

M6 X 20 G316

$3.6194

M6 X 25 G304

$3.1822

M6 X 25 G316

$4.2749

M6 X 30 G316

$4.4388

M6 X 40 G316

$4.6983

M6 X 50 G304

$5.1080

M6 X 50 G316

$8.9186

M6 X 60 G304

$6.8426

M6 X 60 G316

$7.1703

M6 X 70 G304

$8.4679

M6 X 70 G316

$7.9626

M6 X 80 G316

$7.6894

M6 X 100 G316

$16.7168

M8 X 20 G316

$6.5012

M8 X 25 G316

$10.3254

M8 X 30 G316

$7.3343

M8 X 40 G316

$11.0629

M8 X 50 G316

$9.0143

M8 X 60 G316

$7.3753

M8 X 70 G316

$10.1888

M8 X 80 G316

$18.9743

M10 X 30 G316

$14.0642

M10 X 40 G316

$10.5848

M10 X 50 G304

$9.4103

M10 X 50 G316

$13.3983

M10 X 60 G316

$11.6375

M10 X 70 G316

$17.8456

M10 X 80 G304

$19.1098

M10 X 80 G316

$24.5616

M10 X 90 G316

$18.9179

M10 X 100 G316

$26.4918

M10 X 110 G316

$30.4199

M10 X 120 G316

$37.7906

M10 X 140 G316

$47.1931

M10 X 150 G316

$52.6337

M12 X 50 G316S

$24.6293

M12 X 60 G316

$29.9006

M12 X 80 G316

$26.8756

M12 X 90 G316

$29.6523

M12 X 100 G316

$31.0181

M12 X 110 G316

$37.3504

M12 X 120 G316

$37.9260

M12 X 130 G316

$40.0142

M12 X 150 G316

$55.5910

M12 X 160 G316

$61.3137

M12 X 180 G316

$83.9113

M12 X 200 G316

$85.6496

M12 X 220 G316

$92.0045

M12 X 280 G316

$167.9354

M12 X 360 G316

$244.3857

Stainless Steel Carriage Bolts at cheapest price

Stainless Steel Carriage Bolts in Stock

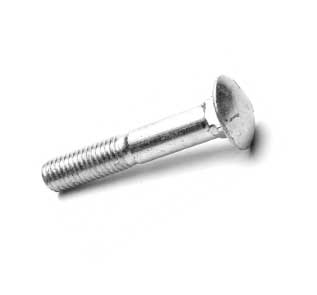

Stainless steel carriage bolts

treated pine cup head bolts

10-24 stainless steel carriage bolts

long carriage bolts

316 stainless steel carriage bolts

large carriage bolts

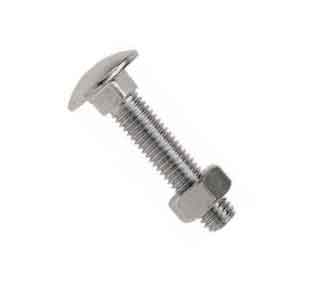

cup head bolts

left hand thread carriage bolts

polished stainless steel carriage bolts

countersunk carriage bolts

1/4-20 stainless steel carriage bolts

chain link fence carriage bolts

7/16 stainless steel carriage bolts

very small carriage bolts

metric stainless steel carriage bolts

5/16 x 3/4 carriage bolts

1/4 x 2 stainless steel carriage bolts

1/2 x 10 carriage bolts

extra long carriage bolts

custom carriage bolts

exterior carriage bolts

metric carriage bolts

oval head carriage bolts

m4 carriage bolts

decorative carriage bolts

m6 carriage bolts

fine thread carriage bolts

m5 carriage bolts

flat head carriage bolts

m8 carriage bolts

fin neck carriage bolts

cheap carriage bolts

flat head garage door carriage bolts

cup head bolts grade 8.8

grade 8 carriage bolts

high tensile cup head bolts

hardened carriage bolts

m10 cup head bolts

m16 cup head bolts

m16 cup head bolts
Renown stockist of metric stainless steel carriage bolts, flat head carriage bolts, m16 cup head bolts, oval head carriage bolts.

Screws Types

Industrial Products

LOOKING FOR TRUSTED AND RELIABLE MANUFACTURER OF FASTENERS

Buy in Bulk & Save on All Orders

Contact Us Today With Our Online Form

CALL US NOW +91 9819659324
ENQUIRE NOW
