Stainless Steel Hanger Bolts

Fitting hanger bolts & metric hanger bolts supplier

Table of Content

Fasteners Types
Stainless Steel Hanger Bolts Manufacturers in India

Stainless Steel Hanger Bolts

metric hanger bolts Manufacturer in India

Metric hanger bolts

316 stainless steel hanger bolts manufacturers in India

316 stainless steel hanger bolts

Stainless Steel Hanger Bolts Specification

Product name Stainless Steel Hanger Bolts
Place of Ori India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
 Passivation /pl
Stainless Steel Hanger Bolts Size M2 – M100
Stainless Steel Hanger Bolts Diameter M3-M60
Stainless Steel Hanger Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
Stainless Steel Hanger Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Hanger Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Hanger Bolts, Hanger: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Hanger Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel Hanger Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

Fully Threaded Hanger Bolts Sizes

Diameter Length Thread Machine Lag #/m
6-32 5/8 Full 1/4 3/8 2.0
6-32 3/4 Full 3/8 3/8 2.0
6-32 7/8 Full 1/4 5/8 3.0
6-32 1 Full 3/8 5/8 3.0
6-32 1 1/4 Full 5/8 5/8 4.0
6-32 1 1/2 Full 7/8 5/8 5.0
6-32 2 1/2 Full 1 1/2 1 7.0
8-32 5/8 Full 1/4 3/8 3.0
8-32 3/4 Full 3/8 3/8 3.0
8-32 7/8 Full 1/4 5/8 4.0
8-32 1 Full 3/8 5/8 4.0
8-32 1 1/4 Full 5/8 5/8 5.0
8-32 1 1/2 Full 5/8 7/8 6.0
8-32 1 3/4 Full 3/4 1 7.0
8-32 2 Full 1 1 8.0
8-32 2 1/2 Full 1 1 1/2 11.0
10-24 7/8 Full 1/4 5/8 4.0
10-24 1 Full 3/8 5/8 6.0
10-24 1 1/4 Full 5/8 5/8 7.0
10-24 1 1/2 Full 5/8 7/8 8.0
10-24 1 3/4 Full 3/4 1 9.0
10-24 2 Full 1 1 11.0
10-24 2 1/2 Full 1 1 1/2 13.0
10-24 3 Full 1 1/2 1 1/2 16.0
10-24 3 1/2 Full 1 1/2 2 19.0
10-32 3/4 Full 3/8 3/8 6.0
10-32 1 Full 3/8 5/8 6.0
10-32 1 1/4 Full 5/8 5/8 8.0
10-32 1 1/2 Full 5/8 7/8 9.0
10-32 1 3/4 Full 3/4 1 9.0
10-32 2 Full 1 1 11.0
10-32 2 1/2 Full 1 1 1/2 13.0
10-32 3 Full 1 1/2 1 1/2 16.0
10-32 3 1/2 Full 1 1/2 2 19.0
1/4-20 1 Full 3/8 5/8 9.0
1/4-20 1 1/4 Full 5/8 5/8 12.0
1/4-20 1 1/2 Full 5/8 7/8 14.0
1/4-20 1 3/4 Full 3/4 1 16.0
1/4-20 2 Full 1 1 19.0
1/4-20 2 1/4 Full 1 1 1/4 21.0
1/4-20 2 1/2 Full 1 1 1/2 24.0
1/4-20 2 3/4 Full 1 1/4 1 1/2 25.0
1/4-20 3 Full 1 1/2 1 1/2 29.0
1/4-20 3 1/2 Full 1 1/2 2 34.0
1/4-20 4 Full 2 2 39.0
1/4-20 4 1/2 Full 1 1/2 3 44.0
1/4-20 5 Full 2 3 49.0
1/4-20 5 1/2 Full 2 1/2 3 54.0
1/4-20 6 Full 3 3 59.0
5/16-18 1 1/4 Full 1/2 3/4 19.0
5/16-18 1 1/2 Full 5/8 7/8 26.0
5/16-18 1 3/4 Full 3/4 1 26.0
5/16-18 2 Full 1 1 31.0
5/16-18 2 1/4 Full 1 1 1/4 35.0
5/16-18 2 1/2 Full 1 1 1/2 39.0
5/16-18 2 3/4 Full 1 1/4 1 1/2 43.0
5/16-18 3 Full 1 1/2 1 1/2 47.0
5/16-18 3 1/4 Full 1 1/4 2 54.0
5/16-18 3 1/2 Full 1 1/2 2 54.0
5/16-18 3 3/4 Full 1 3/4 2 59.0
5/16-18 4 Full 2 2 65.0
5/16-18 4 1/2 Full 1 1/2 3 71.0
5/16-18 5 Full 2 3 79.0
5/16-18 5 1/2 Full 2 1/2 3 88.0
5/16-18 6 Full 3 3 98.0
3/8-16 1 1/2 Full 1/2 1 35.0
3/8-16 2 Full 1 1 45.0
3/8-16 2 1/4 Full 1 1 1/4 51.0
3/8-16 2 1/2 Full 1 1 1/2 56.0
3/8-16 3 Full 1 1/2 1 1/2 70.0
3/8-16 3 1/2 Full 1 1/2 2 82.0
3/8-16 4 Full 2 2 94.0
3/8-16 4 1/2 Full 1 1/2 3 108.0
3/8-16 5 Full 2 3 118.0
3/8-16 5 1/2 Full 2 1/2 3 130.0
3/8-16 6 Full 3 3 140.0
1/2-13 3 Full 1 2 130.0
1/2-13 3 1/2 Full 1 1/2 2 153.0
1/2-13 4 Full 2 2 165.0
1/2-13 4 1/2 Full 2 3 209.0
5/16-18 3 1/2 Partial 1 1/2 2 54.0
5/16-18 5 Partial 1 1/4 3 79.0
5/16-18 3 Full 1 1/2 1 1/2 47.0
5/16-18 3 1/2 Full 1 1/2 2 54.0
5/16-18 4 1/2 Partial 1 1/2 2 71.0
5/16-18 6 Partial 1 1/2 3 96.0

Stainless Steel Plain Center Hanger Bolts Sizes

Diameter (in Inch) Length (in Inch) Machine (in Inch) Lag (in Inch) #/m (in Inch)
8-32 1 1/2 3/8 7/8 6.0
8-32 1 3/4 1/2 1 7.0
8-32 2 5/8 1 8.0
8-32 2 1/4 1 1/4 1 3/4 9.0
8-32 2 1/2 5/8 1 1/2 11.0
8-32 2 3/4 7/8 1 1/2 12.0
8-32 3 7/8 1 1/2 12.0
10-24 1 1/2 3/8 7/8 8.0
10-24 1 3/4 1/2 1 9.0
10-24 2 5/8 1 11.0
10-24 2 1/2 5/8 1 1/2 13.0
10-24 3 7/8 1 1/2 16.0
10-24 3 1/2 7/8 2 19.0
10-24 4 1 1/8 2 23.0
10-24 4 1/2 1 1/8 3 26.0
1/4-20 1 1/2 3/8 7/8 14.0
1/4-20 1 3/4 1/2 1 16.0
1/4-20 2 5/8 1 19.0
1/4-20 2 1/4 5/8 1 1/4 21.0
1/4-20 2 1/2 5/8 1 1/2 24.0
1/4-20 2 3/4 7/8 1 1/2 25.0
1/4-20 3 7/8 1 1/2 29.0
1/4-20 3 1/2 7/8 2 34.0
1/4-20 4 1 1/8 2 39.0
1/4-20 4 1/2 1 1/8 3 44.0
1/4-20 5 1 3/8 3 49.0
1/4-20 5 1/2 1 1/2 3 54.0
1/4-20 6 1 1/2 3 59.0
1/4-20 6 1/2 1 1/2 3 64.0
1/4-20 7 2 1/2 3 72.0
1/4-20 7 1/2 2 1/2 3 76.0
1/4-20 8 2 1/2 3 79.0
1/4-20 8 1/2 2 1/2 3 84.0
1/4-20 9 2 1/2 N/A 92.0
1/4-20 9 1/2 2 1/2 3 96.0
1/4-20 10 2 1/2 3 102.0
1/4-20 12 2 1/2 3 124.0
5/16-18 1 1/4 3/8 5/8 20.0
5/16-18 1 1/2 3/8 7/8 22.0
5/16-18 1 3/4 1/2 1 26.0
5/16-18 2 5/8 1 31.0
5/16-18 2 1/4 5/8 1 1/4 35.0
5/16-18 2 1/2 5/8 1 1/2 39.0
5/16-18 2 3/4 7/8 1 1/2 43.0
5/16-18 3 7/8 1 1/2 47.0
5/16-18 3 1/4 7/8 1 1/2 51.0
5/16-18 3 1/2 7/8 2 54.0
5/16-18 3 3/4 1 1/8 2 59.0
5/16-18 4 1 1/8 2 65.0
5/16-18 4 1/2 1 1/8 3 71.0
5/16-18 5 1 3/8 3 79.0
5/16-18 5 1/2 1 1/2 3 88.0
5/16-18 6 1 1/2 3 98.0
3/8-16 2 5/8 1 45.0
3/8-16 2 1/4 5/8 1 1/4 51.0
3/8-16 2 1/2 5/8 1 1/2 56.0
3/8-16 3 7/8 1 1/2 70.0
3/8-16 3 1/2 7/8 2 82.0
3/8-16 4 1 1/8 2 94.0
3/8-16 4 1/2 1 1/8 3 108.0
3/8-16 5 1 3/8 3 118.0
3/8-16 5 1/2 1 1/2 3 130.0
3/8-16 6 1 1/2 3 140.0
3/8-16 7 2 1/2 3 166.0
3/8-16 8 2 1/2 3 190.0
3/8-16 9 2 1/2 3 215.0
3/8-16 10 2 1/2 3 238.0
3/8-16 11 2 1/2 3 262.0
3/8-16 12 2 1/2 3 286.0
3/8-16 14 2 1/2 3 336.0
1/2-13 6 2 1/2 3 253.0
1/2-13 7 2 1/2 3 297.0
1/2-13 8 2 1/2 3 348.0
1/2-13 10 2 1/2 3 429.0
1/2-13 12 2 1/2 3 521.0

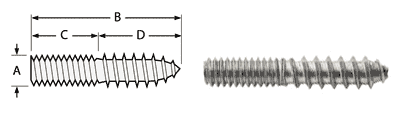

SS Hanger Bolts Dimensions

Stainless steel hanger bolts dimension
Length
(B)		 Machine Thread Length
(C)		 Wood Thread Length
(D)
1/4″-20 (A)
2″ 1″ 1″
2-1/2″ 1″ 1-1/2″
3″ 1-1/2″ 1-1/2″
3-1/2″ 1-1/2″ 2″
4″ 2″ 2″
5/16″-18 (A)
2″ 1″ 1″
2-1/2″ 1″ 1-1/2″
3″ 1-1/2″ 1-1/2″
3-1/2″ 1-1/2″ 2″
4″ 2″ 2″
3/8″-16 (A)
3″ 1-1/2″ 1-1/2″
3-1/2″ 1-1/2″ 2″
4″ 2″ 2″
5″ 2-1/2″ 2-1/2″
6″ 2-1/2″ 3-1/2″
1/2″-13 (A)
3″ 1″ 2″
3-1/2″ 1-1/2″ 2″
4″ 2″ 2″
6″ 2-1/2″ 3-1/2″

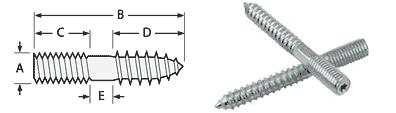

Plain Steel Hanger Bolt Dimensions

Stainless steel hanger bolts dimension
Length
(B)		 Machine Thread Length
(C)		 Wood Thread Length
(D)		 Shank Length
(E)
6-32 (A)
5/8 1/4 3/8 –
3/4 5/16 7/16 –
1 5/16 11/16 –
8-32 (A)
1 3/8 5/8 –
1-1/4 5/8 5/8 –
1-1/2 9/16 7/8 1/16
2 1 1 –
10-24 (A)
1-1/2 11/16 9/16 1/4
2 1 1 –
2-1/2 7/8 1-1/8 1/4
3 1-1/16 1-1/2 7/16
3-1/2 1-1/8 1-1/2 3/8
1/4-20 (A)
1-1/2 1/2 3/4 1/4
1-3/4 5/8 7/8 1/4
2 3/4 1 1/4
2-1/2 1 1-1/2 –
3 1-1/2 1-1/2 –
3-1/2 1 1-7/8 5/8
4 1 2 1
4-1/2 7/8 2-5/8 1
5 1 2-5/8 1-3/8
5/16-18 (A)
1-1/2 3/8 7/8 1/4
1-3/4 1/2 1 1/4
2 3/4 1 1/4
2-1/2 7/8 1-1/4 3/8
3 1-1/2 1-1/2 –
3-1/2 1 1-7/8 5/8
4 2 2 –
4-1/2 1-1/4 2-1/2 3/4
5 1-1/2 2-3/4 3/4
6 2 2-3/4 1-1/4
3/8-16 (A)
2 3/4 1 1/4
2-1/2 7/8 1-3/8 1/4
3 1-1/8 1-1/2 3/8
3-1/2 1-1/4 1-1/2 3/4
4 2 1-7/8 1/8
4-1/2 1-1/4 2-1/2 3/4
5 1-3/8 2-3/4 7/8
6 1-5/8 2-7/8 1-3/4

Hanger Bolts Technical Information

Stainless steel hanger bolts dimension
Hanger Bolts: Dimensions

Diameter & Thread Pitch

 Standard Length (C) Machine Thread Length (A) Lag Thread Length (B) Center Space (D)
6-32 5/8 1/4 3/8 –
3/4 3/8 3/8 –
7/8 1/4 5/8 –
1 3/8 5/8 –
8-32 5/8 1/4 3/8 –
3/4 3/8 3/8 –
7/8 1/4 5/8 –
1 3/8 5/8 –
1-1/4 5/8 5/8 –
1-1/2 5/8 7/8 –
1-3/4 3/4 1 –
2 1 1 –
10-24 1 3/8 5/8 –
1-1/4 5/8 5/8 –
1-1/2 5/8 7/8 –
1-3/4 3/4 1 –
2 1 1 –
2-1/2 1 1-1/2 –
3 1-1/2 1-1/2 –
3-1/2 1-1/2 2 –
1/4-20 1 3/8 5/8 –
1-1/4 5/8 5/8 –
1-1/2 5/8 7/8 –
1-3/4 3/4 1 –
2 1 1 –
2-1/4 1 1-1/4 –
2-1/2 1 1-1/2 –
2-3/4 1-1/4 1-1/2 –
3 1-1/2 1-1/2 –
3-1/2 1-1/2 2 –
4 2 2 –
4-1/2 1-1/8 3 3/8
5 1-3/8 3 5/8
6 1-1/2 3 1-1/2
5/16-18 1-1/2 5/8 7/8 –
1-3/4 3/4 1 –
2 1 1 –
2-1/4 1 1-1/4 –
2-1/2 1 1-1/2 –
2-3/4 1-1/4 1-1/2 –
3 1-1/2 1-1/2 –
3-1/2 1-1/2 2 –
3-3/4 1-3/4 2 –
4 2 2 –
4-1/2 1-1/8 3 3/8
5 1-3/8 3 5/8
5-1/2 1-1/2 3 1
6 1-1/2 3 1-1/2
3/8-16 1-1/2 1/2 1 –
2 1 1 –
2-1/2 1 1-1/2 –
3 1-1/2 1-1/2 –
3-1/2 1-1/2 2 –
4 2 2 –
4-1/2 1-1/8 3 3/8
5 1-3/8 3 5/8
5-1/2 1-1/2 3 1
6 1-1/4 3 1-3/4
8 2-1/2 3 2-1/2
10 2-1/2 3 4-1/2
12 2-1/2 3 6-1/2
14 2-1/2 3 8-1/2
1/2-13 3 1 2 –
3-1/2 1-1/2 2 –
4 2 2 –
5 2 3 –
6 2-1/2 3 1/2
8 2-1/2 3 2-1/2
10 2-1/2 3 4-1/2
12 2-1/2 3 6-1/2

Price List of Stainless Steel Hanger Bolts

Product Price in USD
stainless steel hanger bolts US $0.12
M10x1.25 stainless steel standard hanger fix bolt US $0.15
