Stainless steel anchor bolts manufacturers in India
Threaded expansion anchor & hex head anchor bolt supplier
Table of Content
Stainless steel anchor bolts
Hex head anchor bolt
M12 anchor bolts
Stainless Steel Anchor Bolts Specification
| Product name | Stainless Steel Anchor Bolts |
|---|---|
| Place of Origin | India |
| Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
| DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
| Stainless Steel Anchor Bolts Size | M2 – M100 |
| Stainless Steel Anchor Bolts Diameter | M3-M60 |
| Stainless Steel Anchor Bolts Length | 6mm-500mm |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc |
| Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
| Stainless Steel Anchor Bolts Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Anchor Bolts Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Anchor Bolts, Anchor: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Anchor Bolts |
|
| Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Tolerance of stainless steel Anchor Bolts | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |

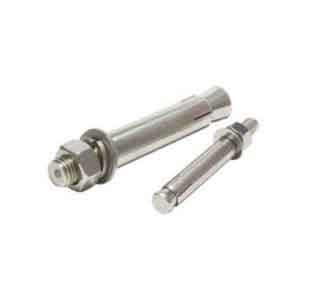

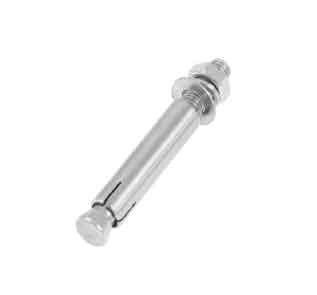

Stainless steel hex head anchor bolts
Stainless steel 316 hex head anchor bolts
Heavy hex head anchor bolts

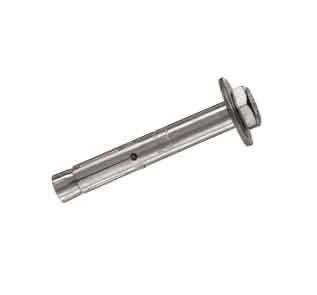

High Performance Anchor Bolt – With Hex Head

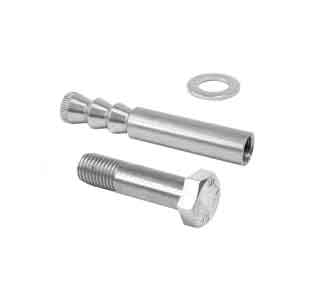

High performance anchor bolts
High performance hex anchor bolts
High performance heavy hex head anchor bolts
Interior use
| Options | Grade | Ø (mm) |
L (mm) |
Price (inc VAT) |
|---|---|---|---|---|
| Zinc Plated – 85mm | Zinc | 12 | 85 | £2.28 |
| Zinc Plated – 105mm | Zinc | 12 | 105 | £2.40 |
Exterior use
| Options | Grade | Ø (mm) |
L (mm) |
Price (inc VAT) |
|---|---|---|---|---|
| Stainless Steel – 85mm | 316 | 12 | 85 | £10.32 |
| Stainless Steel – 105mm | 316 | 12 | 105 | £10.92 |
Anchor Bolt – M12 Inside Thread
| Options | Grade | L (mm) |
Thread | Price (inc VAT) |
|---|---|---|---|---|
| 94mm x M12 Anchor | 316 | 94 | M12 | £24.06 |
| 109mm x M12 Anchor | 316 | 109 | M12 | £26.82 |
| 130mm x M12 Anchor | 316 | 130 | M12 | £29.58 |
Anchor Bolt – M16 Inside Thread
| Options | Grade | Thread | Length (mm) |
Price (inc VAT) |
|---|---|---|---|---|
| Anchor Bolt M16 x 120mm | 316 | M16 | 120 | £36.54 |

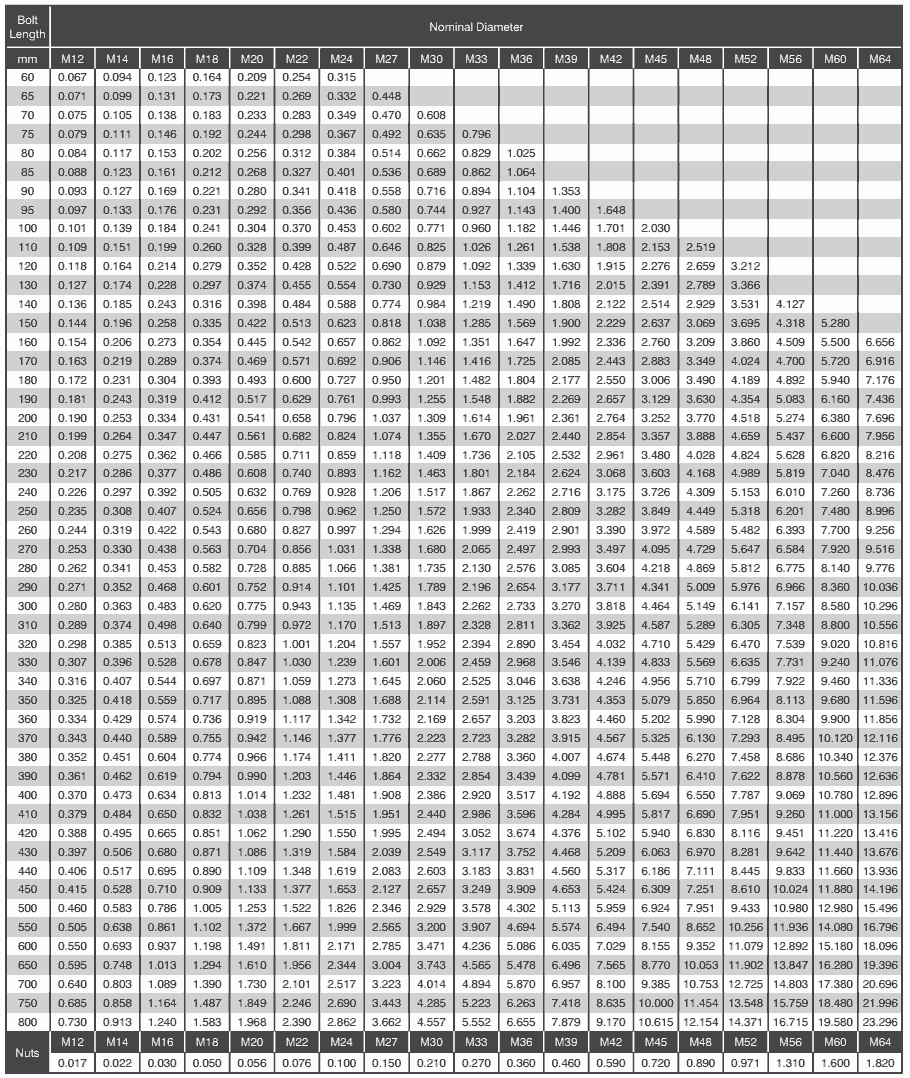

Stainless Steel Anchor Bolts Weight Chart
Stainless Steel Anchor Bolts Dimensions
| BAR SIZE DESIGNATION | WEIGHT POUNDS PER FOOT | NOMINAL DIMENSIONS—ROUND SECTIONS | ||
|---|---|---|---|---|
| DIAMETER INCHES | CROSS-SECTIONAL AREA–SQ. INCHES | PERIMETER INCHES | ||
| #3 | .376 | .375 | .11 | 1.178 |
| #4 | .668 | .500 | .20 | 1.571 |
| #5 | 1.043 | .625 | .31 | 1.963 |
| #6 | 1.502 | .750 | .44 | 2.356 |
| #7 | 2.044 | .875 | .60 | 2.749 |
| #8 | 2.670 | 1.000 | .79 | 3.142 |
| #9 | 3.400 | 1.128 | 1.00 | 3.544 |
| #10 | 4.303 | 1.270 | 1.27 | 3.990 |
| #11 | 5.313 | 1.410 | 1.56 | 4.430 |
| #14 | 7.650 | 1.693 | 2.25 | 5.320 |
| #18 | 13.600 | 2.257 | 4.00 | 7.090 |
| DESCRIPTION | D | L | T1 | T2 | G |
| 2.250" –4 UNR 2A x 14" + 6" (#18x 72") FULL GALV | 2 1/4" | 72" | 14" | 6" | FULL |
| 2.250" –4 UNR 2A x 14" + 6" (#18x 84") FULL GALV | 2 1/4" | 84" | 14" | 6" | FULL |
| 2.250" –4 UNR 2A x 14" + 6" (#18x 96") FULL GALV | 2 1/4" | 96" | 14" | 6" | FULL |
| Product | Price in USD |
|---|---|
| Stainless Steel Chemical Anchor Bolt | US $0.5 |
| Stainless steel hexagon head expansion anchor bolt | US $0.7 |
Stainless Steel Anchor Bolts in Stock
| 1/2 stainless steel anchor bolts | masonry anchor bolts |
| 316 stainless steel anchor bolts | toilet anchor bolts |
| 3/4 stainless steel anchor bolts | u shaped anchor bolts |
| m10 stainless steel anchor bolts | undercut anchor bolts |
| countersunk stainless steel anchor bolts | grade 55 anchor bolts |
| Type 316 stainless steel anchor bolts | Grade 36 anchor bolts |
| 304 stainless steel anchor bolts | leaf chain anchor bolts |
| 1 stainless steel anchor bolts | Long anchor bolts |
| stainless steel wedge anchor bolts | 1/2 x 12 anchor bolts |
| stainless steel l anchor bolts | 5/8 x 12 anchor bolts |
| stainless steel bent anchor bolts | 3/4 x 12 anchor bolts |
| stainless steel sleeve anchor bolts | countersunk anchor bolts |
| stainless steel j anchor bolts | brick anchor bolts |
| stainless steel shield anchor bolts | boat seat anchor bolts |
| wall anchor bolts |
