Stainless steel stud bolt manufacturers

316 stainless steel stud bolts, B7 stud bolts suppliers in India.

Stainless steel 304 stud bolts & metric stud bolts shipper in Mumbai.

Stainless steel stud bolts Manufacturers in India

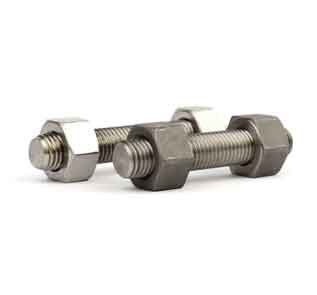

Stainless steel stud bolts

316 stainless steel stud bolts Manufacturer in India

316 stainless steel stud bolts

B7 stud bolts manufacturers in India

B7 stud bolts

Contents

Perfect grades of metric stud bolts, low temp stud bolts & exhaust stud bolts.

Specification of Stainless Steel Stud Bolts
Product name Stainless Steel Stud Bolts
Place of Origin India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
 Passivation /plain
Stainless Steel Stud Bolts Size M2 – M100
Stainless Steel Stud Bolts Diameter M3-M60
Stainless Steel Stud Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
Stainless Steel Stud Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Stud Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Stud Bolts, Stud: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Stud Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel Stud Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Stainless Steel Stud Bolts Grades
  • 904L Stainless Steel Stud Bolts
  • 316L Stainless Steel Stud Bolts
  • 304H Stainless Steel Stud Bolts
  • 18-8 Stainless Steel Stud Bolts
  • 321 Stainless Steel Stud Bolts
  • 310 Stainless Steel Stud Bolts
  • 316H Stainless Steel Stud Bolts
  • 304L Stainless Steel Stud Bolts
  • 317 Stainless Steel Stud Bolts
  • 410 Stainless Steel Stud Bolts
  • 347 Stainless Steel Stud Bolts
  • 317L Stainless Steel Stud Bolts
  • 316 Stainless Steel Stud Bolts
  • 304 Stainless Steel Stud Bolts
Stainless Steel Stud Bolts Weight Chart
Diameter
Length 1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
3″ 0.13 0.21 0.30 0.42 0.55 0.72 0.90 1.10 1.33
3-1/4″ 0.14 0.22 0.33 0.46 0.60 0.78 0.97 1.19 1.44
3-1/2″ 0.15 0.24 0.35 0.49 0.65 0.84 1.05 1.29 1.55
3-3/4″ 0.16 0.26 0.38 0.53 0.69 0.90 1.12 1.38 1.66
4″ 0.17 0.28 0.40 0.56 0.74 0.96 1.20 1.47 1.77
4-1/4″ 0.18 0.29 0.43 0.60 0.79 1.02 1.27 1.56 1.88
4-1/2″ 0.19 0.31 0.45 0.63 0.83 1.08 1.35 1.66 1.99
4-3/4″ 0.20 0.33 0.48 0.67 0.88 1.14 1.42 1.75 2.10
5″ 0.22 0.35 0.51 0.71 0.93 1.20 1.50 1.84 2.22
5-1/4″ 0.23 0.36 0.53 0.74 0.97 1.26 1.58 1.93 2.33
5-1/2″ 0.24 0.38 0.56 0.78 1.02 1.32 1.65 2.02 2.44
5-3/4″ 0.25 0.40 0.58 0.81 1.06 1.38 1.73 2.12 2.55
6″ 0.26 0.42 0.61 0.85 1.11 1.44 1.80 2.21 2.66
6-1/4″ 0.27 0.43 0.63 0.88 1.16 1.50 1.88 2.30 2.77
6-1/2″ 0.28 0.45 0.66 0.92 1.20 1.56 1.95 2.39 2.88
6-3/4″ 0.29 0.47 0.68 0.95 1.25 1.62 2.03 2.49 2.99
7″ 0.30 0.49 0.71 0.99 1.30 1.68 2.10 2.58 3.10
7-1/4″ 0.31 0.50 0.73 1.02 1.34 1.74 2.18 2.67 3.21
7-1/2″ 0.33 0.52 0.76 1.06 1.39 1.80 2.25 2.76 3.33
7-3/4″ 0.34 0.54 0.79 1.10 1.44 1.86 2.33 2.85 3.44
8″ 0.35 0.56 0.81 1.13 1.48 1.92 2.40 2.95 3.55
8-1/4″ 0.36 0.57 0.84 1.17 1.53 1.98 2.48 3.04 3.66
8-1/2″ 0.37 0.59 0.86 1.20 1.58 2.04 2.55 3.13 3.77
8-3/4″ 0.38 0.61 0.91 1.24 1.62 2.10 2.63 3.22 3.88
9″ 0.39 0.63 0.94 1.27 1.67 2.16 2.70 3.32 3.99
9-1/4″ 0.40 0.64 0.95 1.31 1.72 2.22 2.78 3.41 4.10
9-1/2″ 0.41 0.66 0.96 1.34 1.76 2.28 2.85 3.50 4.21
9-3/4″ 0.42 0.68 0.99 1.38 1.81 2.34 2.93 3.59 4.32
10″ 0.44 0.70 1.02 1.42 1.86 2.40 3.01 3.69 4.44
10-1/4″ 0.45 0.71 1.04 1.45 1.90 2.46 3.08 3.78 4.55
10-1/2″ 0.46 0.73 1.07 1.49 1.95 2.52 3.16 3.87 4.66
10-3/4″ 0.47 0.75 1.09 1.52 1.99 2.58 3.23 3.96 4.77
11″ 0.48 0.77 1.12 1.56 2.04 2.64 3.31 4.05 4.88
11-1/2″ 0.50 0.80 1.17 1.63 2.13 2.76 3.46 4.24 5.10
12″ 0.52 0.84 1.22 1.70 2.23 2.88 3.61 4.42 5.32
12-1/2″ 0.55 0.87 1.27 1.77 2.32 3.00 3.76 4.61 5.55
13″ 0.57 0.91 1.32 1.84 2.41 3.12 3.91 4.79 5.75
13-1/2″ 0.59 0.94 1.37 1.91 2.51 3.24 4.06 4.98 5.99
14″ 0.61 0.98 1.42 1.98 2.6 3.36 4.21 5.16 6.21
Weight Per Inch .044 .070 .102 .142 .186 .240 .301 .369 .444
Weight Per Foot 0.52 0.84 1.22 1.70 2.23 2.88 3.61 4.42 5.32
2 Hvy Hex Nuts Add 0.13 0.24 0.39 0.60 0.85 1.19 1.57 2.04 2.62
2 Finished Hex Nuts Add 0.08 0.14 0.24 0.36 0.53 0.80 1.04 1.46 1.76

METRIC STUD BOLTS WITH 2 NUTS (WEIGHT IN KGS / 100 PIECES)

DIAMETER LENGHT mm M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39
60 5,6 8,1 12 15,6
70 6,1 8,9 13 16,9 23,7
80 6,6 9,6 14 18,2 25,4 32,5
90 7,1 10,3 15 19,6 27,1 34,5 45,5
100 7,6 11 16 21 28,8 36,7 47,2 54,2
110 8,1 11,7 17 22,2 30,4 38,7 48,3 58,2 80
120 8,6 12,4 18 23,6 32,1 40,7 50,9 60,2 84,7 107
130 9,1 13,2 19 24,9 33,7 42,8 53,4 63,2 88,6 111 141
140 9,6 14,2 20 26,2 35,4 44,9 55,9 66,2 92,4 116 147 185
150 10,1 14,9 20,8 27,5 36,9 46,9 58,5 69,2 96,3 121 153 192 237
160 10,6 15,6 21,8 29,1 38,6 49 61 72,2 100,1 126 159 199 245
170 16,4 22,8 30,4 40,2 51,1 63,5 75,2 104 130 165 206 253
180 23,8 31,8 41,9 52,3 66,1 78,1 108 135 171 213 261
190 33,1 43,5 54,4 68,4 81,1 112 140 176 219 269
200 34,5 45,2 56,2 71 84 116 144 182 226 278
210 35,8 46,8 58,5 73,5 88,4 120 149 188 233 286
220 37,1 48,4 60,6 76,1 91,4 124 154 194 240 294
230 38,5 50,1 62,6 78,6 94,4 127 159 201 247 302
240 39,8 51,7 64,7 81,2 97,4 130,9 164 208 253 310
250 41,1 53,4 66,8 83,7 100,4 134,8 172 214 260 319
260 55 68,8 86,3 103,4 138,6 177 220 267 327
270 56,6 70,9 88,8 106,4 142,5 182 224 274 335
280 58,3 73 91,4 109,4 146,3 187 230 281 343
290 75 93,9 112,4 150,1 192 236 291 360
300 77,1 96,5 115,4 154 196 241 298 368
320 101,6 121,3 161,7 206 253 312 380
340 127,3 169,4 215 265 326 395
360 133,3 177,1 224 276 340 411
380 184,8 234 288 353 428
400 192,5 243 299 367 444
420 252 311 381 460
440 262 322 394 477
460 271 334 408 493
480 281 345 422 509
500 290 357 436 526

METRIC STUD BOLTS WITH 2 NUTS (WEIGHT IN KGS / 100 PIECES)

DIAMETER in. LENGHT mm 1/2 5/8 3/4 7/8 1 1.1/8 1.1/4 1.3/8 1.1/2 1.5/8 1.3/4 1.7/8
2.1/2 10.8
2.3/4 11.6 19.8
3.1/4 12.4 21 32.4
3.1/2 13.2 22.2 34.3 50
4 14 23.4 36.2 52.6 71.8
4.1/2 14.8 24.6 38.1 55.2 75.2 102
4.3/4 15.6 25.8 40 57.8 78.6 106 137
5 16.4 27 41.9 60.4 82 111 142 179
5.1/2 17.2 28.2 43.8 63 85.4 115 147 186 234
6 18 29.4 45.7 65.6 88.8 119 153 193 242 289
6.1/4 18.8 30.6 47.6 68.2 92.2 123 158 200 250 298 263
6.1/2 19.6 32.3 49.5 70.8 95.6 128 164 206 258 308 374 437
7 20.4 33.5 50.8 73.4 99 132 169 213 266 317 385 449
7.1/2 21.2 34.8 52.7 75.5 103 136 174 220 275 326 396 462
8 22 36.1 54.5 78 106 141 180 226 283 336 407 475
8.1/4 37.3 56.3 80.5 108 145 185 233 291 345 418 488
8.3/4 38.6 58.1 83.1 112 149 191 240 299 354 429 500
9 39.8 60 85.6 115 153 196 246 307 364 440 513
9.1/2 41.1 61.8 88.2 118 158 201 253 316 373 451 526
10 63.7 90.7 122 162 206 260 324 382 463 538
10/1.4 93.3 125 166 212 267 332 391 474 551
1.0.1/2 128 171 217 273 340 401 485 564
11 132 175 223 279 345 410 496 576
11.1/2 135 179 228 285 350 419 507 589
12 138 184 233 292 358 429 518 602
Stainless Steel Stud Bolts Dimensions
Specification Class Material Nominal Size
Range (in.)		 Mechanical Properties
Yield Strength,
min, 0.2
% offset,
ksi		 Tensile
Strength,
min, ksi		 Elongation
in 4 D,
min %		 Reduction
of Area,
min %		 Hardness,
max
ASTM A193
Grade B8		 Class 1
Class 1A		 AISI 304 All diameter 30 75 30 50 223HB
or
96HRBC
ASTM A193
Grade B8M		 AISI 316
ASTM A193
Grade B8T		 AISI 321
ASTM A193
Grade B8		 Class 2 AISI 304 Strain Hardened 3/4 and under 100 125 12 35 321HB
or
35HRC
3/4 to 1 incl 80 115 15
1 to 1-1/4 incl 65 105 20
1-1/4 to 1-1/2 incl 50 100 28 45
ASTM A193
Grade B8M		 3/4 and under 95 110 15
3/4 to 1 incl 80 100 20
1 to 1-1/4 incl 65 95 25
1-1/4 to 1-1/2 incl 50 90 30
ASTM A193
Grade B8T		 AISI 321 Strain Hardened 3/4 and under 100 125 12 35
3/4 to 1 incl 80 115 15
1 to 1-1/4 incl 65 105 20
1-1/4 to 1-1/2 incl 50 100 28 45
ASTM A193
Grade B8M		 Class 2B AISI 316 Strain Hardened 2 and under 75 95 25 40
2 to 2-1/2 incl 65 90 30
2-1/2 to 3 incl 55 80
Class 2C 2 and under 65 85 60
Over 2 60
Specification Material Class Nominal Size (In.) Proof Load Stress (ksi) Hardness Rockwell Nut Type
Min Max
ASTM A194 Grade 8 AISI 304 Class 1 All diameter 80 B60 C32 Heavy hex nut
Hex thin nut
Hex nut
ASTM A194 Grade 8M AISI 316 Class 1
Class 2		 110
ASTM A194 Grade 8T AISI 321 110

Colour coding

As an alternative to marking as in subclause 6.1, stud bolts may be marked at one end with a colour code as in table 3. The marking shall not impair proper use of the bolt.

Colour codes for stud bolts

Steel stud bolts
Property class 4.8 stud bolts Marking not required.
Property class 5.6 stud bolts Brown
Property class 5.8 stud bolts Blue
Property class 8.8 stud bolts Yellow
Property class 10.9 stud bolts White
Property class 12.9 stud bolts Black
Stainless steel stud bolts
A2-70 stud bolts Green
A4-70 stud bolts Red
Price List of Stainless Steel Stud Bolts
M16 stainless steel stud bolts, tap end stud bolts & grade 8 stud bolts at affordable price.
  • Best Price Metal Processing Custom Anchor Nut Stud Bolt with Hole
    FOB Price: US $ 0.1-5 / Piece
    Min. Order: 1000 Pieces
  • Competitive Price Threaded Rod/Stud Bolt, Stainless Steel
    FOB Price: US $ 0.01-0.015 / Piece
    Min. Order: 1000 Pieces
  • ASTM A193 B7 Stud Bolt with A194 2h Heavy Hex Nut
    FOB Price: US $ 0.01-0.5 / Piece
    Min. Order: 5000 Pieces
  • Stud Bolts (ASTM A193 Gr. B7)
    FOB Price: US $ 0.01 / Piece
    Min. Order: 1 Piece
  • Hex Bolt, Eye Bolt, Stud Bolt, Chemical Stud, U Bolt, Stainless Steel Bolt
    FOB Price: US $ 1-10 / Piece
    Min. Order: 1 Piece
  • Stud Bolts ASTM A193 B16
    FOB Price: US $ 0.3 / Piece
    Min. Order: 500 Pieces
  • Stainless Steel A2 A4 Double End Stud Bolt with ISO Certificate
    FOB Price: US $ 0.01-0.5 / Piece
    Min. Order: 5000 Pieces
  • Stud Screw Dowel Screw Expansion Anchor Bolt Wedge Anchor Bolt
    FOB Price: US $ 0.01-1 / Piece
    Min. Order: 100 Pieces
  • DIN 976 Threaded Stud Full Thread Stud Bolt
    Min. Order: 100 Pieces
  • Stud Bolt, High Strength Steel, ASTM A193,
    FOB Price: US $ 0.1 / Piece
    Min. Order: 1000 Pieces
  • B7 L7 L7m Black Stud Bolt and 2h Nut Stainless Steel ASTM A193 B8 B8m Ss304 Ss316 Stud Bolt with Heavy Hex Nut (M4-M100)
    FOB Price: US $ 700-1000 / Ton
    Min. Order: 1 Ton
  • Alloy Steel / Steel Thread Rod Stud Bolt Thread Bolt B7 B7m
    FOB Price: US $ 0.086-0.09 / Piece
    Min. Order: 10000 Pieces
  • Double End Stud Bolt B7 B7m L7
    FOB Price: US $ 0.15 / Piece
    Min. Order: 1000 Pieces
    SS304/316 Fastener Full Thread Stud Bolt
    FOB Price: US $ 0.0114-27.2394 / Piece
    Min. Order: 1000 Pieces
  • Fasteners Double End Stud Bolt
    Min. Order: 100 Pieces
  • High Quality A2-70 Stainless Steel SS304 Double Thread End Stud Bolt
    FOB Price: US $ 0.06-0.5 / Piece
    Min. Order: 500 Pieces
  • High Quality Carbon Steel Double Ended/B7 Black Stud Bolt
    FOB Price: US $ 0.01 / Piece
    Min. Order: 1000 Pieces
  • Heavy Hex Bolts & Stud Bolts (ASTM A193 B7)
    FOB Price: US $ 0.1 / Piece
    Min. Order: 5000 Pieces
  • High Quality Exotic Alloy Incoloy 825 Stud Bolt
    FOB Price: US $ 1 / Piece
    Min. Order: 1000 Pieces
  • ASTM A193 B7 Heavy Hex Nuts Stud Bolts
    FOB Price: US $ 0.02 / Piece
    Min. Order: 1000 Pieces
  • Ss304 Fastener Bolt Full Thread Stud Bolt
    FOB Price: US $ 0.0114-27.2394 / Piece
    Min. Order: 1000 Pieces
  • Stud Bolts DIN975/DIN934
    Min. Order: 1 Ton
  • Carbon Steel HDG Double End Bolt / Stud Bolt M16
    FOB Price: US $ 0.01 / Piece
    Min. Order: 100 Pieces
  • 2015 Iking British Standard Arc Welding Stud Bolt
    FOB Price: US $ 0.1 / Piece
    Min. Order: 100000 Pieces
  • Nickle Alloy Stud Bolt with Nut and Washer
    FOB Price: US $ 10 / Piece
    Min. Order: 100 Pieces
  • China Supplier Ts16949 Stud Bolt with Blue PTFE Coating
    FOB Price: US $ 2800 / Ton
    Min. Order: 1 Ton
  • Galvanized Stud Bolt in Carbon Steel
    Min. Order: 10000 Pieces
  • Stainless Steel Double Ended Stud Bolt
    FOB Price: US $ 0.5-2 / Piece
    Min. Order: 5000 Pieces
  • Carbon Steel 16mm to 48mm Stud Bolt
    FOB Price: US $ 0.38-0.5 / Piece
    Min. Order: 5000 Pieces
  • Stainless Steel A2-70 A4-80 Full Thread Bolt, Stud Bolt
    FOB Price: US $ 0.5 / Piece
    Min. Order: 1000 Pieces

Great sale on Stainless Steel Stud Bolts

Stainless Steel Stud Bolts in Stock

stainless steel stud bolts

m20 stud bolts

stainless steel 304 stud bolts

m42 stud bolts

316 stainless steel stud bolts

tap end stud bolts

316l stainless steel stud bolts

triple fast stud bolts

m16 stainless steel stud bolts

unc stud bolts

b7 stud bolts

imperial stud bolts

double end threaded stud bolts

automotive stud bolts

metric stud bolts

serrated stud bolts

wheel stud bolts

steadfast stud bolts

welded stud bolts

grade 8.8 stud bolts

wellhead flange stud bolts

grade 8 stud bolts

exhaust stud bolts

grade 5 stud bolts

exhaust manifold stud bolts

head stud bolts

extended stud bolts

k stud bolts

engine stud bolts

l stud bolts

low temp stud bolts

custom stud bolts

large diameter stud bolts

b16 stud bolts

long stud bolts

b8m stud bolts

metric threaded stud bolts

metric stud bolts
No. 1 retailer extended stud bolts, wellhead flange stud bolts, low temp stud bolts & serrated stud bolts.
