Stainless Steel J Bolts

M10 J bolts and 316 stainless steel j bolts supplier

Table of Content

Fasteners Types
Stainless steel J bolts Manufacturers in India

Stainless steel J bolts

M10 j bolts Manufacturer in India

M10 J bolts

Grade 8 j bolts manufacturers in India

Grade 8 J bolts

Stainless Steel J Bolts Specification

Product name Stainless Steel J Bolts
Place of Origin India
Standard ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS
DIN Standard B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923
Surface treatment
 Passivation /plain
Stainless Steel J Bolts Size M2 – M100
Stainless Steel J Bolts Diameter M3-M60
Stainless Steel J Bolts Length 6mm-500mm
Head Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc
Neck type Hex, Square, Triangular, Oval & Knurled etc
Drive type Phil, Slotted, Hex socket, Torx & square slot etc
Stainless Steel J Bolts Application Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel J Bolts Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel J Bolts, J: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel J Bolts
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Coatings Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Tolerance of stainless steel J Bolts +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

Stainless Steel J Bolts Grades

18-8 304L
904L 317
316L 410
304H 347
321 317L
310 316
316H 304

SS J Bolts Weight Chart

HIGH STRENGTH STRUCTURAL BOLTS (ONLY) AS PER IS 3757

APPROXIMATE WEIGHT IN KGS FOR 100NOS

LENGTH

DIAMETER

M16

M20

M22

M24

M27

M30

M36

40

10.28

45

11.07

180.30

50

11.86

19.25

25.20

55

12.65

20.50

26.69

33.74

60

13.44

21.73

28.18

35.22

48.09

65

14.23

22.96

29.67

37.29

50.34

70

15.02

24.19

31.16

39.07

52.58

67.25

75

15.81

25.43

32.66

40.84

54.83

70.03

108.91

80

16.60

26.66

34.15

42.62

57.08

72.80

112.90

85

17.39

27.89

35.64

44.39

59.33

75.58

116.90

90

18.17

29.13

37.13

46.17

61.57

78.35

120.89

95

18.96

30.36

38.62

47.94

63.82

81.13

124.89

100

19.75

31.59

40.12

49.72

66.07

83.90

128.88

110

21.14

33.77

42.78

52.85

68.56

88.84

136.20

120

22.72

36.24

45.77

56.41

73.06

94.39

144.19

130

24.30

38.70

48.75

59.96

77.55

99.94

152.18

140

25.88

41.17

51.73

63.51

82.05

105.49

160.17

150

27.46

43.93

54.72

67.06

86.54

111.04

168.16

160

29.03

46.10

57.70

70.61

91.04

116.59

176.15

170

30.61

48.57

60.69

74.16

95.53

122.14

184.14

180

32.19

51.03

63.67

77.71

100.03

127.69

192.13

190

33.77

53.50

66.65

81.26

104.52

133.24

200.12

200

35.35

55.96

69.44

84.82

109.02

138.79

208.11

210

113.52

144.34

216.10

220

118.01

149.89

224.09

230

122.51

155.44

232.08

240

127.00

160.99

240.07

250

131.50

166.54

248.06

260

135.99

172.09

256.05

270

140.49

177.64

264.04

280

144.98

183.19

272.03

290

149.48

188.74

280.02

300

153.97

194.29

288.01

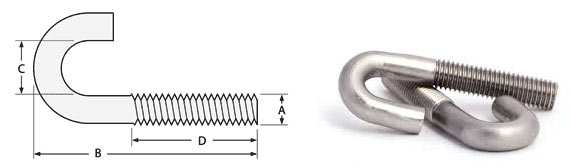

Stainless Steel J Bolts Dimensions

Stainless steel Hex Bolts style
Size
(A x B)		 Inside Hook Diameter
(C)		 Thread Length
(D)
#8-32 x 1-7/8″ 5/16″ 1-1/4″
#10-24 x 2-1/8″ 3/8″ 1-1/4″
1/4″-20 x 2-5/16″ 7/16″ 1-1/2″
1/4″-20 x 4″ 1/2″ 2″
1/4″-20 x 6″ 5/8″ 2-1/2″
5/16″-18 x 3″ 1/2″ 2″
5/16″-18 x 5″ 5/8″ 2-1/2″
5/16″-18 x 7″ 5/8″ 3-7/8″
3/8″-16 x 3-3/4″ 5/8″ 2-1/4″
3/8″-16 x 5″ 5/8″ 2-1/4″
3/8″-16 x 7″ 5/8″ 2-1/4″
1/2″-13 x 6″ 1″ 3″
Stainless steel Hex Bolts style
a b c d f r
M12 124.00 110.00 72.00 66.00 30.00
M16 167.00 115.00 80.00 88.00 40.00
M20 225.00 120.00 100.00 110.00 50.00
M24 428.00 125.00 124.00 123.00 50.00
M30 472.00 130.00 180.00 135.00 75.00
M36 640.00 150.00 186.00 183.00 75.00

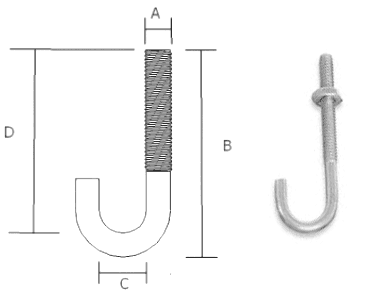

Stainless steel Hex Bolts style
J-Bolt “A” Dimension “B” Dimension “C” Dimension “D” Dimension Thread Length
1/4-20 X 2 1/4” 2-1/4” 3/4” 2” 1”
3/8-16 X 2 3/8” 2-3/8” 3/4” 2” 1”
1/4-20 X 3 1/4” 3-1/4” 3/4” 3” 2”
3/8-16 X 3 3/8” 3-3/8” 3/4” 3” 2”
1/2-13 X 3 1/2” 3-1/2” 3/4” 3” 2”
1/4-20 X 4 1/4” 4-1/4” 3/4” 4” 3”
3/8-16 X 4 3/8” 4-3/8” 3/4” 4” 3”
1/2-13 X 4 1/2” 4-1/2” 3/4” 4” 3”
3/8-16 X 5 3/8” 5-3/8” 3/4” 5” 4”
1/2-13 X 5 1/2” 5-1/2” 3/4” 5” 4”
3/8-16 X 6 3/8” 6-3/8” 3/4” 6” 5”
1/2-13 X 6 1/2” 6-1/2” 3/4” 6” 5”

Price list of Stainless Steel J Bolt

Product Price in USD
Stainless Steel J type anchor bolts US $0.2
SS304 J shape foundation anchor bolt US $0.87

Stock list of SS J Bolts

stainless steel j bolts grade 8 j bolts
316 stainless steel j bolts garage roof j bolts
1/2 stainless steel j bolts 1/2 x 8 j bolts
1/4 stainless steel j-bolts 3/4 x 24 j bolts
3/8 stainless steel j bolts 1/2 x 12 j bolts
5/16 stainless steel j bolts 5/8 x 10 j bolts
back rack j bolts custom j bolts
battery hold down j-bolts m10 j bolts
threaded j bolts m12 j bolts
powers j bolts foundation j bolts
square j bolts fuel tank strap j bolts
small j bolts long j bolts
light pole j bolts large j bolts
