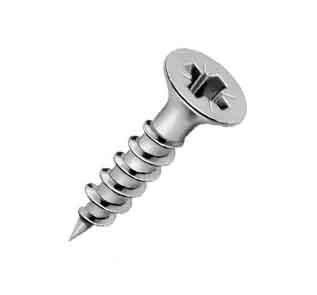

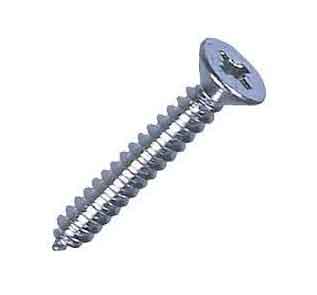

Stainless Steel Wood Screws

316 SS wood screws, structural wood screws supplier

Table of Content

Fasteners Types
Stainless steel wood screws Manufacturers in India

Stainless steel wood screws

#16 ss flat head wood screws Manufacturer in India

SS flat head wood screws

Marine ss wood screws manufacturers in India

Marine ss wood screws

Stainless Steel Wood Screws Specification

Product name Stainless Steel Wood Screws
Place of Origin India
Standard ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB
Surface treatment
 Passivation /plain
Stainless Steel Wood Screws Size M2 M100
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, hex head, phillips head
Stainless Steel Wood Screws Usage Electric Heating, Machine
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Wood Screws Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Wood Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Specialized in Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Wood Screws
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Tolerance of stainless steel Wood Screws +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

SS Wood Screws Weight Chart

Screw Size (Gauge) #2 #3 #4 #5 #6 #7 #8 #9 #10 #12 #14 #16 #18
Head Bore Size Actual Head Size 11/64 13/64 15/64 1/4 9/32 5/16 11/32 23/64 25/64 7/16 1/2 35/64 39/64
Min. Counterbore Dia. 1/4 1/4 1/4 1/4 5/16 5/16 3/8 3/8 7/16 7/16 1/2 9/16 5/8
Recommended Size 1/4 5/16 5/16 3/8 3/8 3/8 3/8 3/8 1/2 1/2 1/2 5/8 5/8
Screw Shank – Hole Size 3/32 7/64 7/64 1/8 9/64 5/32 11/64 3/16 13/64 7/32 1/4 9/32 5/16
Straight Pilot Drill Size Hardwood 1/16 5/64 5/64 3/32 7/64 7/64 1/8 9/64 9/64 5/32 11/64 3/16 7/32
Softwood 1/16 1/16 1/16 5/64 3/32 3/32 7/64 1/8 1/8 9/64 5/32 11/64 13/64
Tapered Pilot Drill Size Hardwood 3/32 7/64 7/64 1/8 9/64 5/32 11/64 3/16 13/64 7/32 1/4 9/32 5/16
Softwood 5/64 3/32 3/32 7/64 1/8 9/64 5/32 11/64 3/16 13/64 15/64 17/64 19/64
Recommended Countersink Number C3 C4 C4 C5 C6 C7 C8 C9 C102 C12 C14 C169 C18
Drill Length Recommendations for Countersink/Taper Point Drill Combos
Screw Size (Gauge) #2 #3 #4 #5 #6 #7 #8 #9 #10 #12 #14 #16 #18
Tapered Drill Size 3/32 7/64 7/64 1/8 9/64 5/32 11/64 3/16 13/64 7/32 1/4 9/32 5/16
Short Length Drill Min. Screw Length 1/4 5/16 5/16 3/8 7/16 1/2 5/8 11/16 3/4 7/8 3/4 13/16 7/8
Max. Screw Length * 5/8 11/16 11/16 5/8 11/16 13/16 7/8 15/16 1 1-1/8 1-1/4 1-7/16 1-9/16
Regular Length Drill Min. Screw Length 3/8 7/16 7/16 1/2 9/16 5/8 3/4 13/16 15/16 1 1-1/8 1-1/4 1-3/8
Max. Screw Length ** 1 1-1/2 1-3/8 1-3/8 1-1/2 1-3/4 1-7/8 2-1/8 2-1/4 2-3/8 2-5/8 2-5/16 2-11/16
Long Length Drill Min. Screw Length 9/16 9/16 9/16 5/8 11/16 3/4 7/8 15/16 1-1/16 1-1/8 1-5/16 1-7/16 1-9/16
Max. Screw Length*** 1-3/4 2 1-7/8 2-1/8 2-3/8 2-3/8 2-3/4 2-3/4 3 3 3-1/8 3-1/16 3-3/16
8” Long Drills Min. Screw Length N/A N/A N/A 3/4 13/16 1 1-1/16 1-3/16 1-1/4 1-1/4 1-1/2 1-5/8 1-3/4
Max. Screw Length*** N/A N/A N/A 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4 4-11/16 4-11/16
* = 1/2” to 3/4” of shank for chucking ** = 3/4” to 1” of shank for chucking*** = Set screws positioned at end of twist

Stainless Steel Wood Screws Dimensions

Size Major Thread Diameter*
Decimal Nearest Fractional Measurement
#0 .060″ 1/16″
#1 .073″ 5/64″
#2 .086″ 3/32″
#3 .099″ 7/64″
#4 .112″ 7/64″
#5 .125″ 1/8″
#6 .138″ 9/64″
#7 .151″ 5/32″
#8 .164″ 5/32″
#9 .177″ 11/64″
#10 .190″ 3/16″
#11 .203″ 13/64″
#12 .216″ 7/32″
#14 .242″ 1/4″
#16 .268″ 17/64″
#18 .294″ 19/64″
#20 .320″ 5/16″

Price List of SS Wood Screws

M2 x 12mm, A2 , Pack 100 €19.00/£16.72
M2 x 16mm, A2 , Pack 100 €20.50/£18.04
M3 x 6mm, A4 , Pack 100 €5.00/£4.40
M2 x 6mm, A2 , Pack 100 €13.10/£11.53
M2 x 10mm, A2 , Pack 100 €16.50/£14.52
M4 x 8mm, A4 , Pack 100 €10.50/£9.24
M4 x 12mm, A4 , Pack 10 €2.50/£2.20
M5 x 12mm, A4 , Pack 100 €6.33/£5.57
M5 x 12mm, A2 , Pack 15 €2.50/£2.20
M6 x 12mm, A4 , Pack 100 €10.28/£9.05
M6 x 16mm, A4 , Pack 100 €12.05/£10.60
