Stainless Steel Countersunk Screws
M4 SS raised countersunk screw manufacturer in India.
M2, M3, M5 raised countersunk screw & black japanned countersunk screws for metal.
Stainless steel countersunk screws
Flat head cap countersunk screws
M5 raised countersunk screw
Contents
- Specification: Stainless Steel Countersunk Screws
- SS Countersunk Screws Grades
- Stainless Steel Countersunk Screws Weight Chart
- Dimensions of SS Countersunk Screws
- Stainless Steel Countersunk Screws Price List
- Stainless Steel Countersunk Screws in Stock
- Shipping locations & approx delivery time from India
Quality grade socket head countersunk screws for wood, metal and steel application.
Stainless steel countersunk screws sits flush with the surface of the material it occupies. M5 raised countersunk screw can be covered easily with screw cap or piece of wood. These screws are used in applications where protruding is restricted so that other objects can rest upon it stably, or to fasten it deeper to another object. The typical angle of a countersunk screw head is about 82 degrees; however, this may vary depending upon the application.
Specification of Stainless steel countersunk screws
| Product name | Stainless Steel Countersunk Screws |
|---|---|
| Place of Origin | India |
| Standard | ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB |
|
Passivation /plain |
| Stainless Steel Countersunk Screws Size | M2 – M100 |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Stainless Steel Countersunk Screws Usage | Electric Heating, Machine |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Countersunk Screws Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Countersunk Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Specialized in | Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Countersunk Screws |
|
| Tolerance of stainless steel Countersunk Screws | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
Stainless Steel Countersunk Screws Grades
- 304L Stainless Steel Countersunk Screws
- 321 Stainless Steel Countersunk Screws
- 904L Stainless Steel Countersunk Screws
- 317L Stainless Steel Countersunk Screws
- 410 Stainless Steel Countersunk Screws
- 316 Stainless Steel Countersunk Screws
- 304 Stainless Steel Countersunk Screws
- 316L Stainless Steel Countersunk Screws
- 18-8 Stainless Steel Countersunk Screws
- 310 Stainless Steel Countersunk Screws
- 304H Stainless Steel Countersunk Screws
- 347 Stainless Steel Countersunk Screws
- 316H Stainless Steel Countersunk Screws
- 317 Stainless Steel Countersunk Screws
Stainless Steel Countersunk Cap Screws Grades Weight Chart
STAINLESS STEEL MACHINE CAP COUNTERSUNK SCREWS & TYPE 1, 23, F AND G LBS PER 1000 PIECES
|
LENGTHS
|
#2
|
#3
|
#4
|
#5
|
#6
|
#8
|
#10
|
#12
|
1/4″
|
5/16″
|
3/8″
|
|
1/8
|
0.40 | 0.55 | 0.70 | 1.1 | 1.4 | — | — | — | — | — | — |
|
3/16
|
0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | — | — | — | — |
|
1/4
|
0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | — | — |
|
5/16
|
0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | — |
|
3/8
|
0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
|
7/16
|
0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
|
1/2
|
0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
|
9/16
|
0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
|
5/8
|
1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
|
3/4
|
1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
|
7/8
|
1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
|
1″
|
1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
|
1-1/8″
|
1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
|
1-1/4″
|
1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
|
1-1/2″
|
1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
|
1-3/4″
|
2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
|
2″
|
2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
|
2-1/4″
|
2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
|
2-1/2″
|
2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
|
2-3/4″
|
3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
|
3″
|
3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
|
* Weights above are approximate and are based on countersunk pan head machine screws
|
|||||||||||

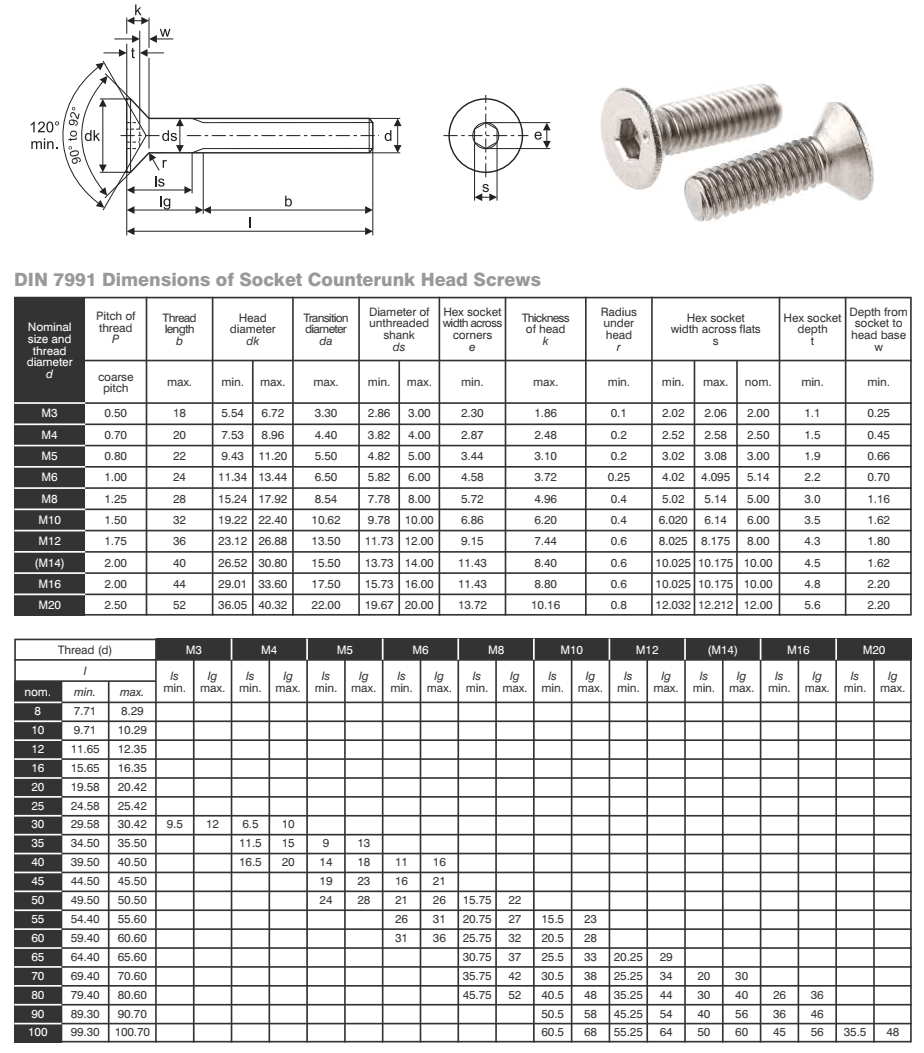

Dimensions of Stainless Steel Countersunk Screws

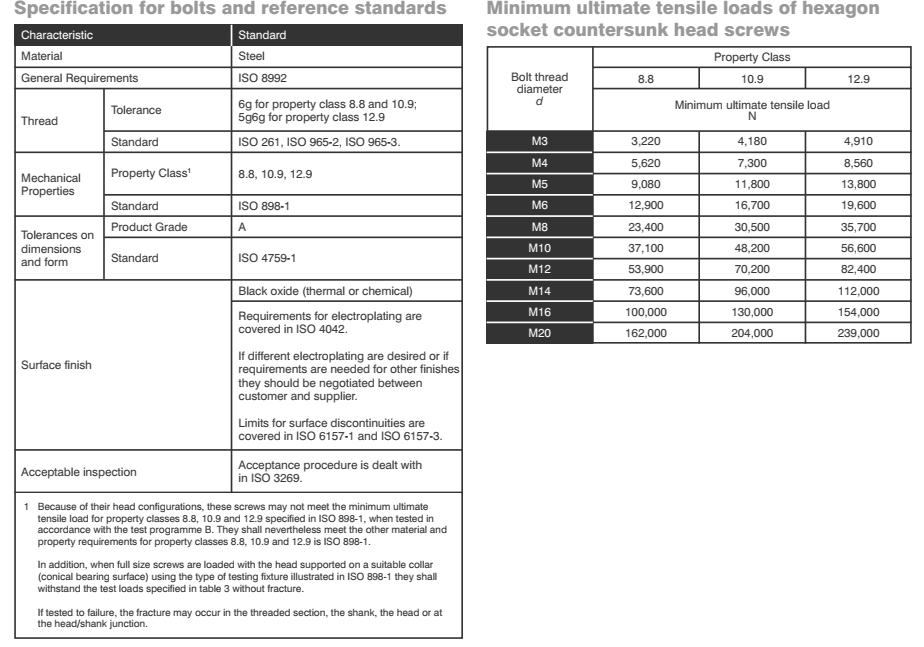

Countersunk Hexagon Socket Head Screws
EN ISO 10642 Grade 10.9 (DIN 7991)
Price List of Stainless Steel Countersunk Screws
Self countersunk screws, socket countersunk screws, round head countersunk screws price chart.
| M2 x 10mm, A2 Stainless Steel Screws, Countersunk Screws, DIN 7997, Pack 100 | €16.50/£14.52 |
| M2 x 12mm, A2 , Pack 100 | €19.00/£16.72 |
| M2 x 6mm, A2 , Pack 100 | €13.10/£11.53 |
| M2 x 16mm, A2 , Pack 100 | €20.50/£18.04 |
| M3 x 6mm, A4 , Pack 100 | €5.00/£4.40 |
| M4 x 8mm, A4 , Pack 100 | €10.50/£9.24 |
| M4 x 12mm, A4 , Pack 10 | €2.50/£2.20 |
| M5 x 12mm, A4 , Pack 100 | €6.33/£5.57 |
| M5 x 12mm, A2 , Pack 15 | €2.50/£2.20 |
| M6 x 12mm, A4 , Pack 100 | €10.28/£9.05 |
| M6 x 16mm, A4 , Pack 100 | €12.05/£10.60 |
| M6 x 16mm, A2 , Pack 200 | €12.86/£11.32 |
| M6 x 20mm, A4 , Pack 100 | €11.66/£10.26 |
| M6 x 20mm, A2 , Pack 100 | €8.30/£7.30 |
| M6 x 25mm, A4 , Pack 5 | €2.50/£2.20 |
| M8 x 20mm, A2 , Pack 100 | €13.90/£12.23 |
| M6 x 25mm, A4 , Pack 100 | €15.67/£13.79 |
| M6 x 25mm, A2 , Pack 10 | €2.50/£2.20 |
| M6 x 25mm, A2 , Pack 100 | €8.90/£7.83 |
| M8 x 12mm, A4 , Pack 50 | €11.54/£10.16 |
| M8 x 16mm, A4 , Pack 50 | €12.00/£10.56 |
| M8 x 16mm, A2 , Pack 100 | €14.33/£12.61 |
| M8 x 20mm, A4 , Pack 50 | €14.74/£12.97 |
Amazing deals on stainless steel countersunk screws.
Large reserve of Countersunk Screws
|
stainless steel countersunk screws |
countersunk screws manufacturer in india |
|
black countersunk screws |
round head countersunk screws |
|
black japanned countersunk screws |
countersunk screws for metal |
|
M5 raised countersunk screw |
countersink screws for wood |
|
raised countersunk screws |
countersunk screws for steel |
|
socket countersunk screws |
socket head countersunk screws |
|
self countersunk screws |
M2, m3, m4, m5, m6, m8 countersunk screw |
|
small head countersunk screws |
ss countersunk screw |
|
small countersunk screws |
countersunk socket screw suppliers |
|
m4 countersunk screws |
countersunk structural screws |
Famous stockist of SS countersunk screw: Countersunk structural screws in Mumbai, India.
