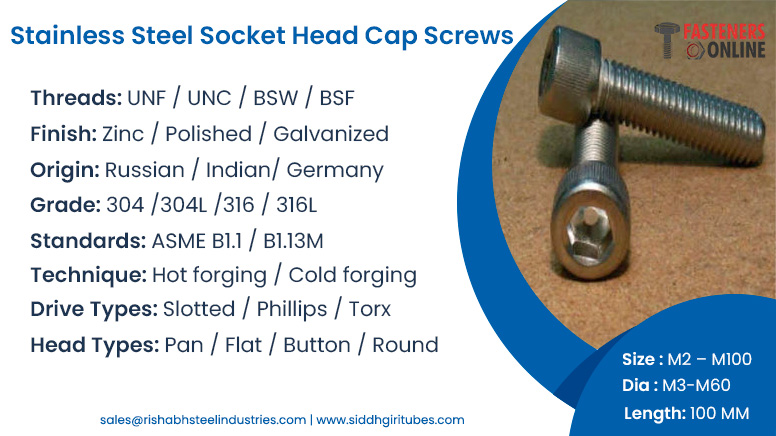

Stainless Steel Socket Head Cap Screws Manufacturers

316 SS socket head cap screw, SS flat socket head cap screw suppliers in India.

Metric torx, fully threaded & stainless metric socket head cap screws shipper in Mumbai.

Stainless steel socket head screws Manufacturers in India

Stainless steel socket head screws

flat socket head cap screw Manufacturer in India

flat socket head cap screw

Grade 8 socket head cap screws manufacturers in India

Grade 8 socket head cap screws

Contents

Grade 8 socket head cap screws, special & self sealing socket head cap screws

Stainless Steel Socket Head Cap Screws are also known as a socket head capscrew or Allen bolt. Flat socket head cap screw is a type of cap screw with a hexagonal drive hole and cylindrical head. The term socket head capscrew usually refers to a type of threaded fastener whose head diameter is usually 1.5 times that of the screw shank diameter, with a head height equal to the shank diameter. We produce and supply high quality ultra low profile socket head cap screws and m6 socket head cap screw.

Specification of Stainless steel Socket Head Cap screws
Product name Stainless Steel Socket Head Cap Screws
Place of Origin India
Standard ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB
Surface treatment
 Passivation /plain
Stainless Steel Socket Head Cap Screws Size M2 – M100
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, hex head, phillips head
Stainless Steel Socket Head Cap Screws Usage Electric Heating, Machine
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Socket Head Cap Screws Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Socket Head Cap Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Specialized in Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Socket Head Cap Screws
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Tolerance of stainless steel Socket Head Cap Screws +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Stainless Steel Socket Head Cap Screws Grades
  • 317 Stainless Steel Socket Head Cap Screw
  • 316H Stainless Steel Socket Head Cap Screw
  • 304L Stainless Steel Socket Head Cap Screw
  • 321 Stainless Steel Socket Head Cap Screw
  • 904L Stainless Steel Socket Head Cap Screw
  • 347 Stainless Steel Socket Head Cap Screw
  • 316 Stainless Steel Socket Head Cap Screws
  • 317L Stainless Steel Socket Head Cap Screws
  • 310 Stainless Steel Socket Head Cap Screws
  • 18-8 Stainless Steel Socket Head Cap Screws
  • 304 Stainless Steel Socket Head Cap Screws
  • 316L Stainless Steel Socket Head Cap Screws
  • 410 Stainless Steel Socket Head Cap Screws
  • 304H Stainless Steel Socket Head Cap Screws
Stainless Steel Socket Head Cap Screws Grades Weight Chart

HEXAGONAL SOCKET HEAD CAP SCREWS TO IS 2269/2006 ISO 4762 : 2004

LENGTH\DIA M2 M3 M4 M5 M6 M8 M10 M12 M14 M16 M20 M24 M30 M36 M42 M48 M56 M64
3 0.0155
4 0.0175
5 0.0195 0.067
6 0.0215 0.071 0.150
8 0.0255 0.080 0.165 0.245
10 0.0295 0.088 0.180 0.270 0.470
12 0.0355 0.096 0.195 0.295 0.507 1.09
16 0.0415 0.116 0.225 0.345 0.575 1.21 2.09
20 0.0495 0.136 0.265 0.401 0.653 1.34 2.29 3.21
25 0.161 0.315 0.478 0.759 1.50 2.54 3.57 4.80 7.13
30 0.186 0.365 0.555 0.830 1.69 2.79 3.93 5.30 7.78 12.8
35 0.415 0.632 0.991 1.89 3.04 4.29 5.80 8.44 13.9
40 0.465 0.709 1.100 2.09 3.29 4.65 6.30 9.10 15.0 27.0
45 0.786 1.210 2.29 3.61 5.01 6.80 9.76 16.1 28.5 50.0
50 0.863 1.320 2.49 3.93 5.45 7.30 10.60 17.2 30.0 52.7
55 1.430 2.69 4.25 5.89 7.80 11.40 18.3 31.6 55.4 87
60 1.540 2.89 4.57 6.34 8.40 12.20 19.4 33.0 58.1 91 137
65 3.10 4.89 6.78 9.00 13.00 20.5 34.5 60.8 95 142
70 3.30 5.21 7.13 9.60 13.80 21.6 36.3 63.5 99 147 204
80 3.70 5.85 8.02 10.80 15.40 24.1 39.9 69.0 107 158 218 334
90 6.49 8.91 12.00 17.00 26.6 43.5 74.5 115 168 232 353 522
100 7.12 9.80 13.20 18.6. 29.1 47.1 80.0 123 179 246 372 547
110 10.70 14.40 20.20 31.6 50.7 85.5 131 189 260 392 573
120 11.60 15.60 21.80 34.1 54.3 91.0 139 200 274 411 598
130 16.80 23.40 36.6 57.9 96.5 147 210 288 430 623
140 18.00 25.00 39.1 61.5 102 155 221 302 449 649
150 26.60 41.6 65.1 108 163 232 316 468 674
160 28.20 44.1 68.7 113 171 242 330 488 690
180 49.1 75.9 124 187 264 359 527 725
200 54.1 83.1 135 203 286 387 565 775
220 90.3 146 219 308 415 604 825
240 97.5 157 225 330 443 642 875
260 168 241 352 471 681 926
280 179 257 374 499 720 976
300 190 273 396 527 758 1030

SOCKET HEAD HEXAGONAL SET SCREWS - cup point TO IS 6094(PART 4)2006, ISO 4029 : 2003 (DIN 916) APPROXIMATE WEIGHT IN KGS FOR 100 NOS

LENGTH\DIA M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16 M20 M24
2 0.0019 0.0029
2.5 0.0025 0.0037 0.0063
3 0.0029 0.0044 0.0075 0.010
4 0.0037 0.0059 0.0100 0.014 0.023
5 0.0046 0.0074 0.0125 0.018 0.0305 0.042
6 0.0054 0.0089 0.0150 0.022 0.038 0.054 0.074
8 0.0070 0.0119 0.0199 0.030 0.053 0.078 0.109 0.188
10 0.0148 0.0249 0.038 0.068 0.102 0.144 0.251 0.372
12 0.0299 0.046 0.083 0.126 0.179 0.314 0.473 0.67
16 0.062 0.113 0.174 0.249 0.440 0.673 0.95 1.57
20 0.140 0.222 0.319 0.566 0.872 1.23 2.09 3.13
25 0.282 0.407 0.724 1.120 1.58 2.74 4.14 5.52
30 0.494 0.881 1.370 1.93 3.39 5.17 7.03
35 1.040 1.620 2.27 4.04 6.20 8.53
40 1.200 1.870 2.62 4.69 7.23 10.00
45 2.120 2.97 5.33 8.26 11.50
50 2.360 3.32 5.98 9.26 13.00
55 3.66 6.63 10.30 14.50
60 4.01 7.28 11.40 16.00
Stainless Steel Socket Head Cap Screws Dimensions

8.8 Grade Stainless Steel

  • DIN 912
  • ISO 4762
  • ANSI B18.3.1M
  • S001- 912-8.8 Bare Steel
  • S002- 912-8.8 Zinc Plated
Stainless Steel socket head cap screw dimensions
Diameter d1 M3 M4 M5 M6 M8
t min. 1.3 2 2.5 3 4
s 2.5 3 4 5 6
k max. 3 4 5 6 8
d2 5.5 7 8.5 10 13
Length (mm) Bare Zinc Bare Zinc Bare Zinc Bare Zinc Bare Zinc
S001 S002 S001 S002 S001 S002 S001 S002 S001 S002
4 100
5 100
6 100 100 100
8 100 100 100 100 100
10 100 100 100 100 100 100 100 100 100
12 100 100 100 100 100 100 100 100
14 100 100 100 100 100 100 100 100 100
16 100 100 100 100 100 100 100 100
18 100 100 100 100 100 100 100 100
20 100 100 100 100 100 100 100 100 100
22 100 100
25 100 100 100 100 100 100 100 100
30 100 100 100 100 100 100 100 100
35 100 100 100 100 100 100 100 100
40 100 100 100 100 100 100 100 100
45 100 100 100 100 100 100 100 100
50 100 100 100 100 100 100 100 100
55 100 100 100 100 100 100
60 100 100 100 100 100 100
65 100 100 100 100
70 100 100 100 100 100 100
75 100 100
80 100 100 100 100 100 100
85 100
90 100 100 100 100 100
100 100 100 100 100 100
110 100 100 100
120 100 100
Order Number -> 912.8.8 Bare 4×20 = S001-004-0020 | 912-8.8 Zinc 4×50 = S002-004-0050
Diameter d1 M10 M12 M14 M16 M20
t min. 5 6 7 8 10
s 8 10 12 14 17
k max. 10 12 14 16 20
d2 16 18 21 24 30
Length (mm) Bare Zinc Bare Zinc Bare Zinc Bare Zinc Bare Zinc
S001 S002 S001 S002 S001 S002 S001 S002 S001 S002
16 100 100
20 100 100 50 50 25
25 100 100 50 50 50 25
30 100 100 50 50 50 25 25
35 100 100 50 50 50 50 25 25 25
40 100 100 50 50 50 50 25 25 25 25
45 50 50 50 50 50 50 25 25 25
50 50 50 50 50 50 50 25 25 25 25
55 50 50 50 50 50 50 25 25
60 50 50 50 50 25 25 25 25 25 25
65 50 50 50 25 25
70 50 50 25 25 25 25 25 25 25 25
75 50 50 25
80 50 50 25 25 25 25 25 25 25 25
90 50 50 25 25 25 25 25 25 25
100 50 50 25 25 25 25 25 25 25 25
110 50 50 25
120 50
130 25 25
140 25
Order Number -> 912-8.8 Bare 12×20 = S001-012-0020 | 912-8.8 Zinc 14×130 = S002-014-0130
Price List of Stainless Steel Socket head Cap Screws
Check hexagon flat & metric flat head socket cap screws price and offers.
Description Price per 100 Pack
M1.4 X 2 $31.43 25
M1.4 X 3 $32.31 25
M1.4 X 4 $33.07 25
M1.4 X 5 $33.70 25
M1.4 X 6 $34.40 25
M1.4 X 8 $35.03 25
M1.4 X 10 $36.29 25
M1.4 X 12 $36.97 25
M1.4 X 16 $39.06 25
M1.6 X 3 $7.56 100
M1.6 X 4 $6.96 100
M1.6 X 5 $7.18 100
M1.6 X 6 $7.18 100
M1.6 X 8 $7.66 100
M1.6 X 10 $8.50 100
M1.6 X 12 $8.86 100
M1.6 X 14 $13.26 100
M1.6 X 16 $9.76 50
M1.6 X 18 $21.00 50
M1.6 X 20 $34.16 50
M2 X 3 $4.62 100
M2 X 4 $4.10 100
M2 X 5 $4.52 100
M2 X 6 $4.98 100
M2 X 7 $51.80 100
M2 X 8 $5.64 100
M2 X 10 $4.93 100
M2 X 12 $5.49 100
M2 X 14 $6.31 100
M2 X 16 $6.57 100
M2 X 18 $10.16 100
M2 X 20 $7.39 100

Eye catching deals on stainless steel socket head cap screws

Large reserve of SS Socket Head Cap Screws
