Flat head socket screws manufacturer in India.

Non standard socket screws, special socket screws & small socket screws distributor.

Stainless steel socket screws Manufacturers in India

Stainless steel socket screws

flat head electrical socket screws Manufacturer in India

Flat head electrical socket screws

Non standard socket screws manufacturers in India

Non standard socket screws

Contents

Stainless steel countersunk socket screws dimensions & types.

Fasteners Online is a leading manufacturer and supplier of Stainless steel socket screws. We’re renown exporter of flat head electrical socket screws. Special socket screws are best for limited space application, i.e. application in structures or materials with very less spacing. Stainless steel countersunk socket screws are often used with a wood or a screw cap.

Specification of Stainless steel Socket screws
Product name Stainless Steel Socket Screws
Place of Origin India
Standard ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB
Surface treatment
 Passivation /plain
Stainless Steel Socket Screws Size M2 – M100
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, hex head, phillips head
Stainless Steel Socket Screws Usage Electric Heating, Machine
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Socket Screws Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Socket Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Specialized in Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Socket Screws
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Tolerance of stainless steel Socket Screws +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Stainless Steel Socket Screws Grades
  • 321 Stainless Steel Socket Screws
  • 317 Stainless Steel Socket Screws
  • 304L Stainless Steel Socket Screws
  • 316L Stainless Steel Socket Screws
  • 304H Stainless Steel Socket Screws
  • 904L Stainless Steel Socket Screws
  • 347 Stainless Steel Socket Screws
  • 316 Stainless Steel Socket Screws
  • 317L Stainless Steel Socket Screws
  • 310 Stainless Steel Socket Screws
  • 304 Stainless Steel Socket Screws
  • 18-8 Stainless Steel Socket Screws
  • 316H Stainless Steel Socket Screws
  • 410 Stainless Steel Socket Screws
Stainless Steel Socket Screws Grades Weight Chart

HEXAGONAL SOCKET SCREWS TO IS 2269/2006 ISO 4762 : 2004

LENGTH\DIA M2 M3 M4 M5 M6 M8 M10 M12 M14 M16 M20 M24 M30 M36 M42 M48 M56 M64
3 0.0155
4 0.0175
5 0.0195 0.067
6 0.0215 0.071 0.150
8 0.0255 0.080 0.165 0.245
10 0.0295 0.088 0.180 0.270 0.470
12 0.0355 0.096 0.195 0.295 0.507 1.09
16 0.0415 0.116 0.225 0.345 0.575 1.21 2.09
20 0.0495 0.136 0.265 0.401 0.653 1.34 2.29 3.21
25 0.161 0.315 0.478 0.759 1.50 2.54 3.57 4.80 7.13
30 0.186 0.365 0.555 0.830 1.69 2.79 3.93 5.30 7.78 12.8
35 0.415 0.632 0.991 1.89 3.04 4.29 5.80 8.44 13.9
40 0.465 0.709 1.100 2.09 3.29 4.65 6.30 9.10 15.0 27.0
45 0.786 1.210 2.29 3.61 5.01 6.80 9.76 16.1 28.5 50.0
50 0.863 1.320 2.49 3.93 5.45 7.30 10.60 17.2 30.0 52.7
55 1.430 2.69 4.25 5.89 7.80 11.40 18.3 31.6 55.4 87
60 1.540 2.89 4.57 6.34 8.40 12.20 19.4 33.0 58.1 91 137
65 3.10 4.89 6.78 9.00 13.00 20.5 34.5 60.8 95 142
70 3.30 5.21 7.13 9.60 13.80 21.6 36.3 63.5 99 147 204
80 3.70 5.85 8.02 10.80 15.40 24.1 39.9 69.0 107 158 218 334
90 6.49 8.91 12.00 17.00 26.6 43.5 74.5 115 168 232 353 522
100 7.12 9.80 13.20 18.6. 29.1 47.1 80.0 123 179 246 372 547
110 10.70 14.40 20.20 31.6 50.7 85.5 131 189 260 392 573
120 11.60 15.60 21.80 34.1 54.3 91.0 139 200 274 411 598
130 16.80 23.40 36.6 57.9 96.5 147 210 288 430 623
140 18.00 25.00 39.1 61.5 102 155 221 302 449 649
150 26.60 41.6 65.1 108 163 232 316 468 674
160 28.20 44.1 68.7 113 171 242 330 488 690
180 49.1 75.9 124 187 264 359 527 725
200 54.1 83.1 135 203 286 387 565 775
220 90.3 146 219 308 415 604 825
240 97.5 157 225 330 443 642 875
260 168 241 352 471 681 926
280 179 257 374 499 720 976
300 190 273 396 527 758 1030

SOCKET HEAD HEXAGONAL SET SCREWS - cup point TO IS 6094(PART 4)2006, ISO 4029 : 2003 (DIN 916) APPROXIMATE WEIGHT IN KGS FOR 100 NOS

LENGTH\DIA M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16 M20 M24
2 0.0019 0.0029
2.5 0.0025 0.0037 0.0063
3 0.0029 0.0044 0.0075 0.010
4 0.0037 0.0059 0.0100 0.014 0.023
5 0.0046 0.0074 0.0125 0.018 0.0305 0.042
6 0.0054 0.0089 0.0150 0.022 0.038 0.054 0.074
8 0.0070 0.0119 0.0199 0.030 0.053 0.078 0.109 0.188
10 0.0148 0.0249 0.038 0.068 0.102 0.144 0.251 0.372
12 0.0299 0.046 0.083 0.126 0.179 0.314 0.473 0.67
16 0.062 0.113 0.174 0.249 0.440 0.673 0.95 1.57
20 0.140 0.222 0.319 0.566 0.872 1.23 2.09 3.13
25 0.282 0.407 0.724 1.120 1.58 2.74 4.14 5.52
30 0.494 0.881 1.370 1.93 3.39 5.17 7.03
35 1.040 1.620 2.27 4.04 6.20 8.53
40 1.200 1.870 2.62 4.69 7.23 10.00
45 2.120 2.97 5.33 8.26 11.50
50 2.360 3.32 5.98 9.26 13.00
55 3.66 6.63 10.30 14.50
60 4.01 7.28 11.40 16.00

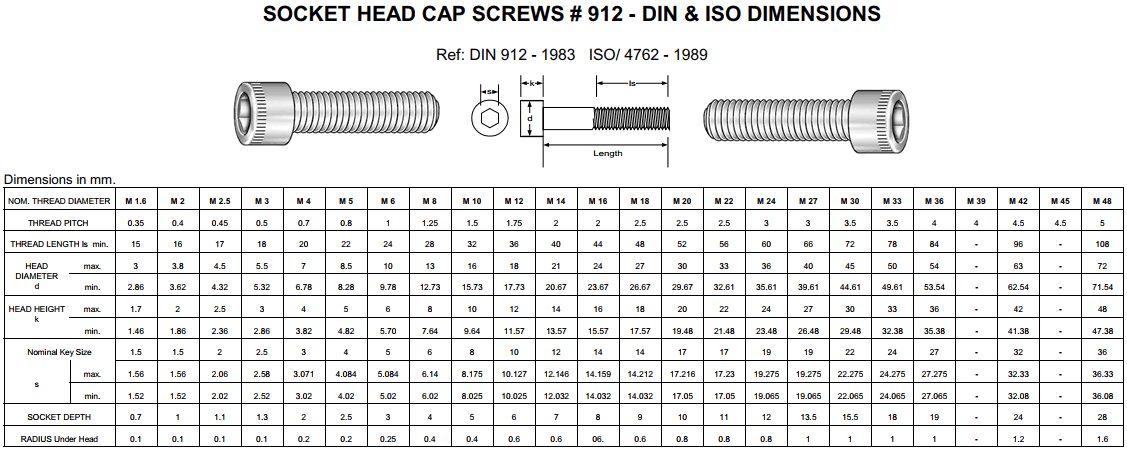

Stainless Steel Socket Screws Dimensions
Stainless Steel socket screw dimensions
Price List of Stainless Steel Socket Screws
Stainless steel socket screws price list & size chart.
Description Price Each (ex VAT)
8 UNF x 1/4″ A2 Socket Screws £0.06
8 UNF x 3/8″ A2 Socket Screws £0.07
8 UNF x 1/2″ A2 Socket Screws £0.07
8 UNF x 3/4″ A2 Socket Screws £0.09
8 UNF x 7/8″ A2 Socket Screws £0.09
8 UNF x 1″ A2 Socket Screws £0.10
8 UNF x 1.1/4″ A2 Socket Screws £0.13
8 UNF x 1.1/2″ A2 Socket Screws £0.13
10 UNF x 1/4″ A2 Socket Screws £0.07
10 UNF x 3/8″ A2 Socket Screws £0.07
10 UNF x 1/2″ A2 Socket Screws £0.08
10 UNF x 5/8″ A2 Socket Screws £0.08
10 UNF x 3/4″ A2 Socket Screws
10 UNF x 3/4″ A2 Socket Screws £0.10
1/4 UNF x 3/8″ A2 Socket Screws
1/4 UNF x 3/8″ A2 Socket Screws £0.12
1/4 UNF x 1/2″ A2 Socket Screws
1/4 UNF x 1/2″ A2 Socket Screws £0.12
1/4 UNF x 3/4″ A2 Socket Screws
1/4 UNF x 3/4″ A2 Socket Screws £0.13
1/4 UNF x 1″ A2 Socket Screws
1/4 UNF x 1″ A2 Socket Screws £0.14
1/4 UNF x 1.1/2″ A2 Socket Screws £0.19
1/4 UNF x 2″ A2 Socket Screws £0.29
5/16 UNF x 1/2″ A2 Socket Screws £0.23
5/16 UNF x 5/8″ A2 Socket Screws £0.27
5/16 UNF x 3/4″ A2 Socket Screws £0.21
5/16 UNF x 7/8″ A2 Socket Screws £0.29
5/16 UNF x 1″ A2 Socket Screws £0.29
5/16 UNF x 1.1/4″ A2 Socket Screws £0.33
5/16 UNF x 1.1/2″ A2 Socket Screws £0.34
5/16 UNF x 2″ A2 Socket Screws £0.49
3/8 UNF x 3/4″ A2 Socket Screws £0.29
3/8 UNF x 1″ A2 Socket Screws £0.34
3/8 UNF x 2″ A2 Socket Screws £0.72
7/16 UNF x 3/4″ A2 Socket Screws £0.77
7/16 UNF x 1″ A2 Socket Screws £0.82
7/16 UNF x1.1/4″ A2 Socket Screws £0.95
7/16 UNF x 1.1/2″ A2 Socket Screws £1.08

Fresh deals on stainless steel socket screws.

Large reserve of SS Screws
DIN 933 Sz – Hexagon Cap Screws With Slot DIN 404 – Slotted Drilled Fillister Head Screws
DIN 960 – Hex Cap Screws, Metric Fine Thread – Part Thread DIN 417 – Slotted set screws with full dog point
DIN 961 – Hex Cap Screws, Metric Fine Thread – Full Thread DIN 427 – Slotted Headless Screws
DIN 963 A- Slotted Flat Head Machine Screws DIN 438 – Slotted set screws with cup point
DIN 966 A – Cross Recessed Oval Head Machine Screws DIN 553 – Slotted Set Screws With Cone Point
DIN 6332 – Grub screws with thrust point DIN 571 – Hexagon Lag Screws
DIN 6911 – Hexagon Socket Screw Keys With Pilot DIN 653 – Flat Knurled Thumb Screws
DIN 6912 – Low Head Socket Cap Screws With Pilot DIN 908 – Hexagon Socket Screw Plugs
DIN 933 – Hexagon Cap Screws Fully Threaded DIN 316 – Wing Screws
DIN 964 A- Slotted Oval Head Machine Screws DIN 464 – Knurled Thumb Screws
DIN 7985 Z1 – Cr. Rec. Pan Head Screws w/captive Flt. Washer DIN 920 – Slotted Pan Head Screws, Small Head
DIN 7985 Z4 – Cr. Rec. Pan Head Screws w/captive l/washer DIN 921 – Slotted pan head screws with large head
DIN 7991 – Flat Socket Screws DIN 923 – Slotted Pan Head Screws With Shoulder
DIN 7998 – Threads and Thread Ends for Wood Screws DIN 927 – Slotted Shoulder Screws
DIN 965 A – Cross Recessed Flat Head Machine Screws DIN 551 – Slotted Set Screws With Flat Point
DIN 7504 – N P K head Socket screws DIN 910 – Hexagon Head Screw Plugs
DIN 7970 – Tapping screw threads DIN 911 – Hexagon Socket Screw Keys
DIN 7981 B(BZ) – Cross Recessed Pan Head Tapping Screws DIN 912 – Socket Screws
DIN 7982 B – Cross Rec. Flat hd Tapping Screws, hd Angle 80 DIN 913 – Socket Set Screws With Flat Point
DIN 7983 B – Cross Rec. Oval hd Tapping Screw, hd Angle 80 DIN 914 – Socket Set Screws With Cone Point
DIN 7984 – Socket Low Screws DIN 915 – Socket Set Screws With Dog Point
DIN 7985 A – Cross Recessed Pan Head Machine Screws DIN 916 – Socket Set Screws With Cup Point
DIN 7505 – Chipboard screws DIN 931 – Hexagon Cap Screws Partially Threaded
Brushed stainless steel socket screws, square socket screws, socket screw supplies & socket screw manufacturers.
