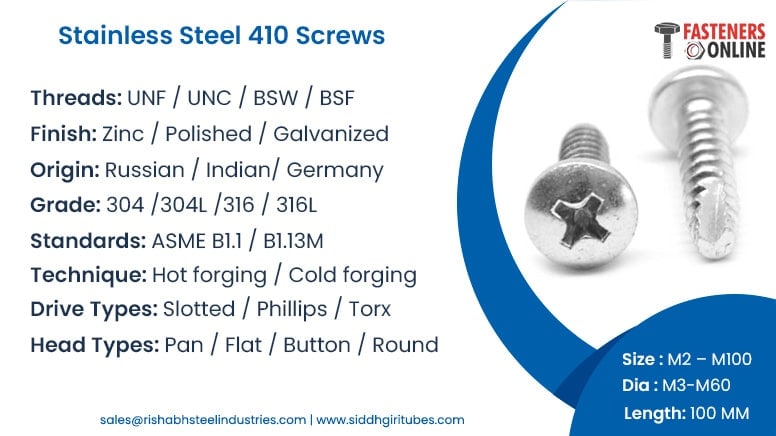

Stainless steel 410 screws
SS 410 stainless self-drilling screws & 410 grub screw supplier
Table of Content
410 stainless hex cap screw
410 Stainless Steel Screws
410 Stainless Steel Machine Screws
Stainless steel 410 screws Screws
| Product name | Stainless Steel 410 Screws |
|---|---|
| Place of Origin | India |
| Standard | ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB |
|
Passivation /plain |
| Stainless Steel Wood Screws Size | M2 M100 |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Stainless Steel Wood Screws Usage | Electric Heating, Machine |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Drive Style | Type I |
| Stainless Steel Wood Screws Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80 |
| Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
| Finish | Per ASTM A380/A380M |
| Finishing | Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
| Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Wood Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
| Specialized in | Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw |
| Production technology | Cold Forged |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| MOQ | 10 pieces |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Others | OEM, ODM, ±0.03MM tolerance |
| Surface treatment of stainless steel Wood Screws |
|
| Tolerance of stainless steel Wood Screws | +/-0.01mm to +/-0.05mm |
| Samples | Yes |
| Production Capacity | 2,700,000 pieces per month |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
Manufacturing Range of SS 410 grub screw
| Diameters | Length | Thread Types | Standards | Manufacturing Process |
|---|---|---|---|---|
| M5 – M72 | 3 mm – 200 mm | Metric coarse/fine UNC UNF BSW BSF |
ASME B18.2.3.6M DIN 6914 |
Cold or hot forging CNC machining |
Properties of 410 Stainless steel screws
-
Heat Treatment
Galvanizing: Heats slowly to 1500 -1650°F, cool down to 1100°F in furnace, air cool. Process Galvanizing: Heats up to 1350 -1450°F, air cool. Hardening: Heats up to 1700 – 1850°F, air cool or oil quench followed by temper or stress-relief. Stress Relieving: Heats at 300 – 800°F for 1-2 hours, air cool.
-
Forming
410 Stainless Steel has cold working properties allowing it to be temperately drawn and structured in the galvanized condition.
-
Fabrication
SS 410 screws offer unique hardening properties which makes them difficult to be welded using conventional techniques. They must first be pre-heated, followed by a post-weld galvanizing treatment to alleviate cracking.
UNS S41000 Set Screws Chemical composition
Carbon
0.15 (Max.)
Silicon
1 (Max.)
Manganese
1.0 (Max)
Phosphorus
0.04
Chromium
11.5 To 13.5
Sulfur
0.03 (Max.)
Nickel
0.75
SS 410 hex cap screw Mechanical properties
Tensile Strength
480 MPa
Yield Strength
275 MPa
Hardness
400 Max HB
Elongation
16 % Min
DIN 1.4006 wood screws Equivalent
| Grade | UNS No | Euronorm | Old British | Japanese JIS | Swedish SS | ||
|---|---|---|---|---|---|---|---|
| No | Name | BS | En | ||||
| 410 | S41000 | 1.4006 | X12Cr13 | 410S21 | 56A | SUS 410 | 2302 |
|
LENGTHS
|
#2
|
#3
|
#4
|
#5
|
#6
|
#8
|
#10
|
#12
|
1/4″
|
5/16″
|
3/8″
|
|
1/8
|
0.40 | 0.55 | 0.70 | 1.1 | 1.4 | — | — | — | — | — | — |
|
3/16
|
0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | — | — | — | — |
|
1/4
|
0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | — | — |
|
5/16
|
0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | — |
|
3/8
|
0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
|
7/16
|
0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
|
1/2
|
0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
|
9/16
|
0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
|
5/8
|
1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
|
3/4
|
1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
|
7/8
|
1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
|
1″
|
1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
|
1-1/8″
|
1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
|
1-1/4″
|
1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
|
1-1/2″
|
1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
|
1-3/4″
|
2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
|
2″
|
2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
|
2-1/4″
|
2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
|
2-1/2″
|
2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
|
2-3/4″
|
3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
|
3″
|
3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
|
* Above are approximate weights and are based on pan head machine screws
|
|||||||||||
410 SS pan head screws dimensions
Price List of 410 Stainless Steel Screws
| M2 x 6, Pack 100 | €13.11/£11.53 |
| M2 x 16, Pack 100 | €20.45/£18.04 |
| M3 x 6, Pack 100 | €4.99/£4.40 |
| M2 x 12, Pack 100 | €18.99/£16.70 |
| M4 x 8, Pack 100 | €10.45/£9.25 |
