Stainless Steel Lag Screws

Spax lag screws & flat head lag screws manufacturer

Table of Content

Fasteners Types
Stainless steel lag screws Manufacturers in India

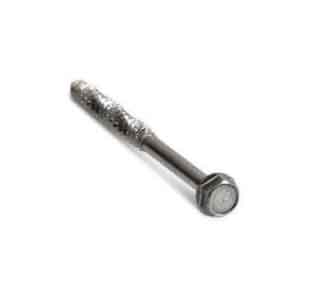

Stainless steel lag screws

Flat head lag screws Manufacturer in India

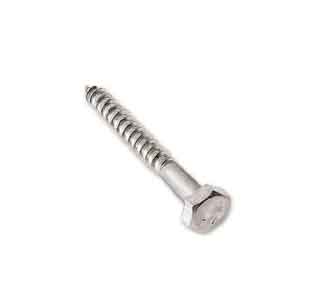

Flat head lag screws

Spax lag screws manufacturers in India

Spax lag screws

Specification of Stainless steel lag screws

Product name Stainless Steel Lag Screws
Place of Origin India
Standard ISO 7380, DIN, ASTM, ANSI, JIS, EN, AS, GB
Surface treatment
 Passivation /plain
Stainless Steel Lag Screws Size M2 – M100
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, hex head, phillips head
Stainless Steel Lag Screws Usage Electric Heating, Machine
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Stainless Steel Lag Screws Material 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70, A4-80
Thread Requirements ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Finishing Zinc Plated(Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test
Stock Products Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Lag Screws, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912
Specialized in Stainless steel CSK philip screw, CSK socket screw, Pan head Ph screw, Pan head socket screw, Socket cap head screw, set screw, Pan head torx screw, CSK head trox screw, Wood screw
Production technology Cold Forged
Manufacturing Process Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
MOQ 10 pieces
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Others OEM, ODM, ±0.03MM tolerance
Surface treatment of stainless steel Lag Screws
  • Passivation
  • Polish
  • Anodizing
  • Sand blasting
  • Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
  • Black oxide coating
  • Heat-disposing
  • Hot-dip galvanizing
  • Rust preventive oil
Tolerance of stainless steel Lag Screws +/-0.01mm to +/-0.05mm
Samples Yes
Production Capacity 2,700,000 pieces per month
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

Stainless steel machine lag screws Weight Chart

LENGTHS
#2
#3
#4
#5
#6
#8
#10
#12
1/4″
5/16″
3/8″
1/8
 0.40 0.55 0.70 1.1 1.4 — — — — — —
3/16
 0.50 0.70 0.90 1.2 1.5 2.5 3.9 — — — —
1/4
 0.60 0.80 1.00 1.4 1.7 2.8 4.3 5.6 8.5 — —
5/16
 0.60 0.90 1.20 1.5 1.9 3.1 4.6 6.1 9.1 16.7 —
3/8
 0.70 0.90 1.30 1.7 2.1 3.4 5.0 6.5 9.8 17.7 29.2
7/16
 0.80 1.00 1.50 1.9 2.2 3.6 5.4 6.9 10.4 18.8 30.7
1/2
 0.80 1.10 1.60 2.0 2.4 3.9 5.8 7.4 11.1 19.8 32.2
9/16
 0.90 1.20 1.70 2.2 2.6 4.2 6.2 7.8 11.7 20.9 33.6
5/8
 1.00 1.30 1.80 2.3 2.8 4.5 6.6 8.3 12.4 21.9 35.1
3/4
 1.10 1.50 2.10 2.6 3.2 5.0 7.3 9.2 13.6 24.0 38.0
7/8
 1.30 1.70 2.30 3.0 3.5 5.6 8.1 10.1 14.9 26.1 41.0
1″
 1.40 1.90 2.50 3.4 3.9 6.2 8.9 11.0 16.1 28.8 44.0
1-1/8″
 1.50 2.00 2.80 3.8 4.3 6.7 9.6 11.9 17.4 30.2 47.0
1-1/4″
 1.60 2.20 3.00 4.1 4.6 7.3 10.4 12.8 18.7 32.3 49.8
1-1/2″
 1.80 2.50 3.50 4.7 5.3 8.3 11.9 14.7 21.2 36.5 55.8
1-3/4″
 2.10 2.90 4.00 5.3 6.1 9.4 13.5 16.5 23.7 40.7 61.7
2″
 2.40 3.30 4.50 6.0 6.8 10.6 15.0 18.3 26.2 44.8 67.6
2-1/4″
 2.60 3.60 5.00 6.7 7.6 11.8 16.6 20.1 28.8 19.0 73.5
2-1/2″
 2.80 3.90 5.50 7.3 8.3 12.9 18.1 22.0 31.3 53.2 79.5
2-3/4″
 3.10 4.30 6.00 7.9 9.1 13.9 19.7 23.8 33.9 57.3 85.3
3″
 3.40 4.70 6.50 8.6 9.8 15.0 21.2 25.6 36.4 61.5 91.3
* Weights above are approximate and are based on pan head machine lag screws

Dimensions of SS Lag Screws

Stainless Steel Lag Screw dimensions
Dimensions: SS Hex Lag Screws (ASME B18.2.1-1996)
Basic Product Diameter Threads Per Inch Body or Shoulder Diameter (E) Width Across Flats (F) Width Across Corners (G) Head Height (H) Shoulder Length (S)
Max Min Basic Max Min Max Min Basic Max Min Min
#10 .1900 11 .199 .178 9/32 .281 .271 .323 .309 1/8 .140 .110 .094
1/4 .2500 10 .260 .237 7/16 .438 .425 .505 .484 11/64 .188 .150 .094
5/16 .3125 9 .324 .298 1/2 .500 .484 .577 .552 7/32 .235 .195 .125
3/8 .3750 7 .388 .360 9/16 .562 .544 .650 .620 1/4 .268 .226 .125
7/16 .4375 7 .452 .421 5/8 .625 .603 .722 .687 19/64 .316 .272 .156
1/2 .5000 6 .515 .482 3/4 .750 .725 .866 .826 11/32 .364 .302 .156
5/8 .6250 5 .642 .605 15/16 .938 .906 1.083 1.033 27/64 .444 .378 .312
3/4 .7500 4-1/2 .768 .729 1-1/8 1.125 1.088 1.299 1.240 1/2 .524 .455 .375
7/8 .8750 4 .895 .852 1-5/16 1.312 1.269 1.516 1.447 37/64 .604 .531 .375

Tolerance of Lag Screws

Lag Screws: Tolerance on Length
Nominal Screw Size Nominal Screw Length
Up to 6 in Over 6 in
1/2 and smaller
 +/- 0.12 +/- 0.25
Over 1/2 +/- 0.25 +/- 0.25

Performance & Mechanical Specs of Lag Screws

Description A full-bodied bolt with spaced threads, hex head and a gimlet point.
Applications Electro-plated Zinc, Steel: For aqpplication in wood in non-corrosive environments

Hot-dip Galvanized, Steel : For application in corrosive environments

Stainless Steel: It has better corrosion resistance to galvanized steel bolts.
Material Steel: AISI 1006-1022 or equivalent steel

Stainless Steel: 18-8 stainless
Heat Treatment Stainless: The austenitic alloys gain their strength through hardening during the manufacturing process, as shown in the below hardness properties. Annealing is the only heat treatment available normally on austentic stainless alloys. It is done at approximately 1900 Degrees (F) to a dead soft condition. It is not normally thermally reversible.
Hardness Steel: Rockwell B70-B100

Stainless Steel: 100,000 – 125,000 psi
Minimum Length of Thread Minimum length of thread should be equal to 1/2 of the nominal screw length + 0.50 inches, or 5.00 inches, whichever is shorter. Screws which are too short for the formula ssould be threaded as close to the head as practicable.

Price List of Stainless Steel Lag Screws

M3 x 6mm, A4, Pack 100 €5.00/£4.40
M2 x 12mm, A2, Pack 100 €19.00/£16.72
M4 x 8mm, A4, Pack 100 €10.50/£9.24
M4 x 12mm, A4, Pack 10 €2.50/£2.20
M2 x 6mm, A2, Pack 100 €13.10/£11.53
M2 x 10mm, A2, Pack 100 €16.50/£14.52
M2 x 16mm, A2, Pack 100 €20.50/£18.04
M5 x 12mm, A4, Pack 100 €6.33/£5.57
