ASTM A325 Bolts | SA 325 Type 1 Bolt and Nuts Sizes

Leading SA 325 Type 1 Bolt and Nuts manufacturer in India

Table of Content

ASTM A325 bolts specifications
Different types of ASME SA325 Bolt
ASTM A325 bolts price list
SA 325 Grade Types
ASTM A325 threaded rod chemical properties
ASTM A325 nuts mechanical properties
Connection Types of A325 type 1 Hex Bolt
ASTM A193 vs A325

ASTM A194 vs A325
ASTM A325 bolt dimensions
ASME SA325 type 1 bolts sizes
ASTM A325 high strength bolts torque chart
ASTM A325M type 1 head markings
SA325 type 3 bolts weight chart
Recommended Nuts & Washers for A325 Bolts

ASTM A325 bolts specifications

Bolt Size

SA325 Bolt Sizes

M2 to M24

A325 Nuts Size

M3 – M56 | 3/6″ to 2″

ISO Standard

ISO 898‑1

ASME SA325 fasteners Length

3 mm to 200 mm

A325 type 1 hex bolts Melting Point

1425–1540 °C

A325 stud bolt Specific Heat

480 J/kg·K

ASTM A325M type 1 square nut Threads

UNF / BSW / BSF / METRIC / UNC

SA325 type 3 anchor bolts Standards

DIN 931, 933, 934, 7991, 976, 125 / ASME B18.2.1, B18.3

Custom Sizes

Trusted ASTM A325 Bolts Manufacturer in India in ½″ to 1½″ Diameter range.

A325 Studs Type

Tap-End / Fully or Fine threaded / Double-End

Origin

Indian / Russian / Korean / European

ASTM A325 eye bolts Condition

Threading / Cold Drawn

Manufacturing Technique

CNC Machined / Hot forging / Cold forging

SA325 type 3 Bolts Thread Pitch

Coarse Threads / Fine Threads

A325 type 1 hex bolts Finish

Phosphating / Passivation / HDG

ASTM A325 Bolt Drive Style

Cross
Truss
Torx
Round
Hex
Oval
Pan

ASME SA325 hex head bolts Head Types

Phillips Drive
Button head
Slotted Drive
Socket cap head
Flat
Hex washer head
Slotted hex washer

A325 type 1 hex nuts Thread Class

3G
4G
2G
5 ONF
Class 2A (Medium fit)
Class 3A (Tight fit)
Class 1A (Loose fit)

Packaging

Wooden Pallet
Carton Box
Wooden Cases
Blister Packs

Certificate

Raw Materials Certificate
EN 10204/3.1B
100% Radiography Test
UT and PMI Test

Value Added Services

Head Shank Drilling
Head Painting
Color Coding
Laser Etching

Refer A325 anchor bolt specifications, stockist of ASTM A325 type 2 Nuts in diameter range of 1/2" to 4"

Different types of ASME SA325 Bolt

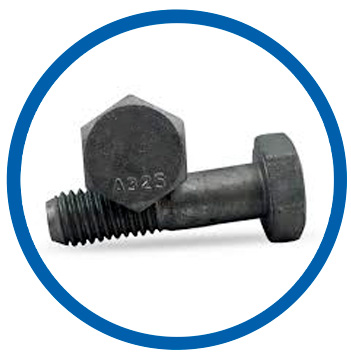

ASTM A325 heavy hex bolt

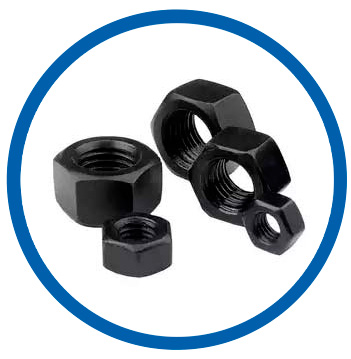

ASME SA325 hex nuts

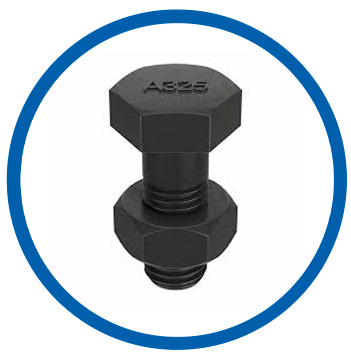

A325 type 1 hex bolts

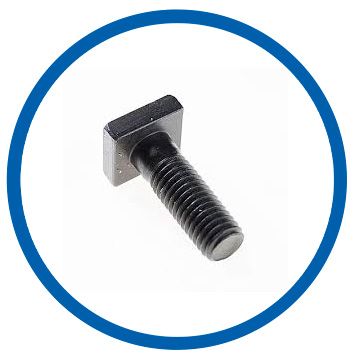

ASME SA325 type 1 square bolts

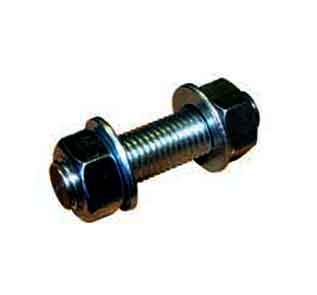

A325 stud bolt

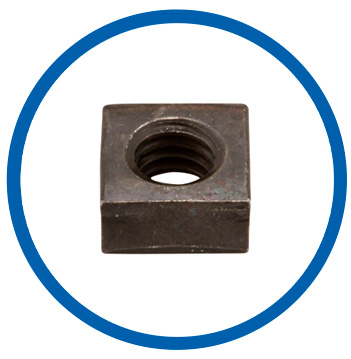

ASTM A325M type 1 square nut

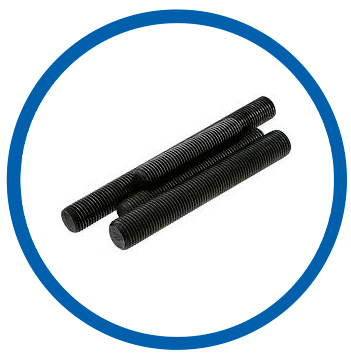

SA 325 threaded rod

SA325 type 3 anchor bolts

ASTM A325 bolts price list

Product	Price in USD	Price in Dirham	Price in Euro

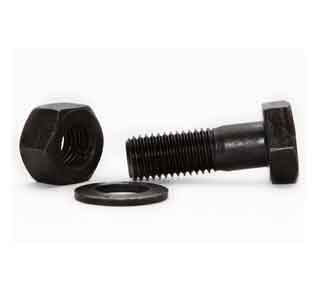

1/2 X 3.25 A325 structural bolt, ASME B18.2.1	US $4.37	16.05 AED	€ 3.72
5/8 X 85MM ASTM A325 Stud Bolt, UNC	US $4.64	17.04 AED	€ 3.94

View A325 fasteners torque chart, we supply ASTM A325 high strength bolts in different finishes and sizes

SA 325 Grade Types

Types	Feature
TYPE 1	Medium carbon
TYPE 3	Weathering steel.
M	Metric A325
T	Fully threaded A325

ASTM A325 is standard for high strength structural bolts, We manufacture A325 type 3 u bolt in custom sizes on demand

ASTM A325 threaded rod chemical properties

Carbon

0.30 – 0.52

Manganese

0.60 min

Phosphorus

0.035 max

Sulfur

0.035 max

Sulfur

0.040 max

Silicon

0.15 – 0.30

Boron

0.003 max

Check yield and tensile strength of A325 heavy hex bolts, ASTM A325 lock washer are widely used in structural steel applications

ASTM A325 nuts mechanical properties

Size	Yield, ksi	Tensile, ksi	RA %, min	Elong. %, min
1⁄2 - 1	92 min	120 min	35	14
1 1⁄8 - 1 1⁄2	81 min	105 min	35	14

Connection Types of A325 type 1 Hex Bolt

Type	Details
SC	Slip critical connection
X	Bearing-type connection with threads excluded from the shear plane
N	Bearing type connection with threads included in the shear plane

ASTM A193 vs A325

Feature	ASTM A193	ASTM A325
Tensile Strength	75–150+ ksi	105–120 ksi
Heat Treatment	Required	Quenched & tempered
Corrosion Resistance	High	Moderate
Applicable Nuts	A194	A563
Application	High-temp & pressure	Structural bolting

ASTM A194 vs A325

Feature	ASTM A194	ASTM A325
Material Type	Carbon, alloy, or stainless steel	Medium carbon steel
Corrosion Resistance	High	Limited
Applies To	Nuts	Bolts
Applications	High-pressure, high-temp, or corrosive service	Structural bolting

ASTM A325 bolt dimensions

Bolt Size	D	C (min)	B	A (max)	F Thread Length for Bolt Length		E
Bolt Size	D	C (min)	B	A (max)	6 and shorter	over 6	max	min
1/4	11/64	0.484	7/16	0.26	0.75	1	0.03	0.01
5/16	7/32	0.552	1/2	0.324	0.875	1.125	0.03	0.01
3/8	1/4	0.62	9/16	0.388	1	1.25	0.03	0.01
7/16	19/64	0.687	5/8	0.452	1.125	1.375	0.03	0.01
1/2	11/32	0.826	3/4	0.515	1.25	1.5	0.03	0.01
5/8	27/64	1.033	15/16	0.642	1.5	1.75	0.06	0.02
3/4	1/2	1.24	1-1/8	0.768	1.75	2	0.06	0.02
7/8	37/64	1.447	1-5/16	0.895	2	2.25	0.06	0.02
1	43/64	1.653	1-1/2	1.022	2.25	2.5	0.09	0.03
1-1/8	3/4	1.859	1-11/16	1.149	2.5	2.75	0.09	0.03
1-1/4	27/32	2.066	1-7/8	1.277	2.75	3	0.09	0.03
1-3/8	29/32	2.273	2-1/16	1.404	3	3.25	0.09	0.03
1-1/2	1	2.48	2-1/4	1.531	3.25	3.5	0.09	0.03
1-3/4	1-5/32	2.893	2-5/8	1.785	3.75	4	0.12	0.04
2	1-11/32	3.306	3	2.039	4.25	4.5	0.12	0.04
2-1/4	1-1/2	3.719	3-3/8	2.305	4.75	5	0.19	0.06
2-1/2	1-21/32	4.133	3-3/4	2.559	5.25	5.5	0.19	0.06
2-3/4	1-13/16	4.546	4-1/8	2.837	5.75	6	0.19	0.06
3	2	4.959	4-1/2	3.081	6.25	6.5	0.19	0.06
3-1/4	2-3/16	5.372	4-7/8	3.335	6.75	7	0.19	0.06
3-1/2	2-5/16	5.786	5-1/4	3.589	7.25	7.5	0.19	0.06
3-3/4	2-1/2	6.198	5-5/8	3.858	7.75	8	0.19	0.06
4	2-11/16	6.612	6	4.111	8.25	8.5	0.19	0.06

ASME SA325 type 1 bolts sizes

Bolt Size	Bolt Dia. [in]
#0	0.06
#2	0.086
#4	0.112
#5	0.125
#6	0.138
#8	0.164
#10	0.19
1/4"	0.25
5/16"	0.3125
3/8"	0.375
7/16"	0.4375
1/2"	0.5
5/8"	0.625
3/4"	0.75
7/8"	0.875
1"	1
1-1/8"	1.125
1-1/4"	1.25
1-3/8"	1.375
1-1/2"	1.5

ASTM A325 high strength bolts torque chart

Bolt Size	TPI	Tension		Tightening Torque Range (ft lbs) (Min - Max)
Bolt Size	TPI	Min	Max	Plain	Galv+Waxed
1 1⁄2	6	118000	143000	2,950 - 3,575	1,475 - 1,788
1 3⁄8	6	97000	117000	2,223 - 2,681	1,111 - 1,341
1 1⁄4	7	81000	98000	1,687 - 2,042	844 - 1,021
1 1⁄8	7	64000	77000	1,200 - 1,444	600 - 722
1	8	51000	61000	850 - 1,017	425 - 508
7⁄8	9	39000	47000	569 - 685	284 - 343
3⁄4	10	28000	34000	350 - 425	175 - 213
5⁄8	11	19000	23000	198 - 240	99 - 120
1⁄2	13	12000	14000	100 - 117	50 - 58

ASTM A325M type 1 head markings

Grade	Marking Details
Type 1	Type 1 bolts shall me marked "A325M" and "8S"

SA325 type 3 bolts weight chart

LENGTH	DIAMETER
LENGTH	M 5	M 6	M 8	M 10	M 12	M 14	M 16	M 18	M 20	M 22
60mm		1.67	3.27	5.774	8.183	12.255	15.244	20	25.126	32.051
55mm		1.56	3.071	5.464	7.74	11.628	14.409	18.868	23.81	30.12
50mm	1.03	1.45	2.87	5.155	7.299	11.261	13.624	17.857	22.727	28.409
45mm	0.958	1.34	2.671	4.84	6.859	10.504	12.821	17.241	21.739
40mm	0.881	1.23	2.47	4.533	6.41	10.288	12.107	16.667	20.747
35mm	0.804	1.12	2.271	4.223	5.974	10	11.416	16.026	19.608
30mm	0.737	1.01	2.07	3.912	5.574	9.69	10.707		18.657
25mm	0.66	0.897	1.871	3.66	5.252	8.17
20mm	0.598	0.812	1.711	3.411	4.892
16mm	0.448	0.743	1.59	3.211

Recommended Nuts & Washers for A325 Bolts

Nuts			Washers
Type 1		Type 3	Type 1	Type 3
Plain	Galvanized	Plain	Type 1	Type 3
A563C, C3, D, DH, DH3	A563DH	A563C3, DH3	F436-1	F436-3
