ASTM F1554 Anchor Bolt

Reliable ASME SF1554 Bolt Manufacturer in India

Table of Content

Fasteners Types

ASTM F1554 anchor bolt specification

Bolt Size

ASTM F1554 Bolt Sizes

M2 to M24

Hex Nuts Size

F1554 Nuts Size

M3 – M56 | 3/6″ to 2″

Screw Size

F1554 gr 55 Screw Size

3/6″ to 2″

Washers Size

ASME SF1554 Washers Size

M3 – M56 | 3/6″ to 2″

Machine Screws Size

F1554 grade 105 Machine Screws Size

M1.6 – M12

ISO Standard

ISO Standard

ISO 3506-1

Length

ASTM F1554 fasteners Length

3 mm to 200 mm

Weldability

ASME SF1554 hex cap screws Weldability

Excellent

Specific Heat

ASTM F1554 eye bolts Specific Heat

500 J/kg·K

Condition

F1554 grade 55 flat washer Condition

Threading / Cold Drawn

Studs Type

ASTM F1554 Studs Type

Tap-End / Fully or Fine threaded / Double-End

Origin

Origin

Indian / Russian / Korean / European

Standards

F1554 grade 55 heavy hex bolt Standards

DIN 934, 931, 7991, 933, 976, 125 / ASME B18.2.1, B18.3

Threads

F1554 gr 55 socket head cap screw Threads

METRIC / BSW / UNF / BSF / UNC

Custom Sizes

Custom Sizes

We are Manufacturer of ASTM F1554 anchor bolt in custom sizes

Manufacturing Technique

Manufacturing Technique

Hot forging / Cold forging / CNC Machined

Surface finish

SF1554 square nut Finish

Passivation / HDG / Phosphating

Thread Pitch

ASTM F1554 gr 36 Screws Thread Pitch

Coarse Threads / Fine Threads

Packaging

Packaging

  • Blister Packs
  • Wooden Pallet
  • Carton Box
  • Wooden Cases

Value Added Services

Value Added Services

  • Color Coding
  • Laser Etching
  • Head Shank Drilling
  • Head Painting

Certificate

Certificate

  • UT and PMI Test
  • EN 10204/3.1B
  • 100% Radiography Test
  • Raw Materials Certificate

Head Types

SF1554 hex head bolts Head Types

  • Socket cap head
  • Slotted Drive
  • Phillips Drive
  • Button head
  • Hex washer head
  • Slotted hex washer
  • Flat

Drive Style

F1554 grade 105 Bolt Drive Style

  • Hex
  • Pan
  • Cross
  • Truss
  • Torx
  • Round
  • Oval

Bolt Size

ASME SF1554 screws Thread Class

  • Class 1A (Loose fit)
  • 5 ONF
  • Class 2A (Medium fit)
  • 2G
  • 3G
  • 4G
  • Class 3A (Tight fit)

ASME SF1554 Bolt Price list

Product Price in USD
(Pcs)		 Price in Dirham
(Pcs)		 Price in Euro
(Pcs)
M42 X 385 ASME SF1554 Hex Bolts, HDG, UNC US $1.24 4.56 AED € 1.06
M27 X 285 ASTM F1554 Stud Bolts, Plain US $2.51 9.22 AED € 2.14

Types of ASTM F1554 Bolt

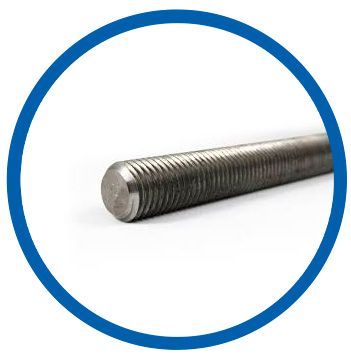

ASTM F1554 gr 105 stud bolt

ASTM F1554 gr 105 stud bolt

ASTM F1554 grade 36 threaded rod

ASTM F1554 grade 36 threaded rod

ASTM F1554 gr 55 machine screws

ASTM F1554 gr 55 machine screws

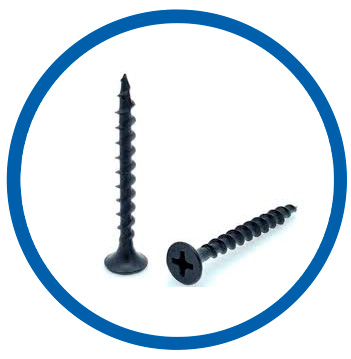

ASTM F1554 grade 55 self drilling screws

ASTM F1554 grade 55 self drilling screws

F1554 grade 55 heavy hex bolt

F1554 grade 55 heavy hex bolt

ASTM F1554 gr 36 hex nuts

ASTM F1554 gr 36 hex nuts

ASTM F1554 grade 105 hex bolts

ASTM F1554 grade 105 hex bolts

F1554 gr 55 socket head cap screw

F1554 gr 55 socket head cap screw

ASTM F1554 grade 55 square bolts

ASTM F1554 grade 55 square bolts

ASME SF1554 hex cap screws

ASME SF1554 hex cap screws

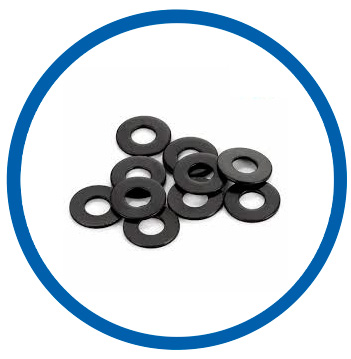

ASTM F1554 grade 105 plain washer

ASTM F1554 grade 105 plain washer

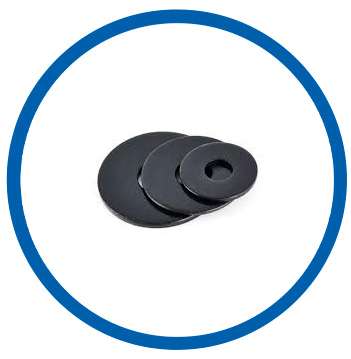

F1554 grade 55 flat washer

F1554 grade 55 flat washer

ASTM F1554 gr 36 anchor bolts

ASTM F1554 gr 36 anchor bolts

ASTM F1554 eye bolts

ASTM F1554 eye bolts

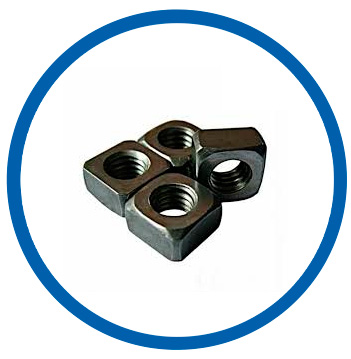

SF1554 square nut

SF1554 square nut

F1554 grade 105 bolts

F1554 grade 105 bolts

ASTM F1554 Grades

Grade Property
F1554 grade 36 36 ksi Yield Strength
F1554 grade 55 55 ksi Yield Strength
F1554 grade 105 105 ksi Yield Strength

SF1554 bolts chemical composition

Carbon

0.25 - 0.28

Phosphorus

0.04 - 0.05

Sulfur

0.05 - 0.06

Copper

0.20

ASTM F1554 threaded rod Mechanical properties

Property Grade 36 Grade 55 Grade 105
Tensile Strength, ksi 58 - 80 75 - 95 125 - 150
Elongation in 2 inch, min, % [Note A] 23 21 15
Yield Strength, min, ksi (0.2% Offset) 36 55 105
Reduction of Area, min, % 40 30 45

ASTM F1554 vs ASTM A325

Feature ASTM F1554 ASTM A325
Type Anchor bolts Structural bolts
Grades Grade 36, Grade 55, Grade 105 A325
Material Strength 36 ksi to 105 ksi 120 ksi
Welding Grades 36 & 55 can be welded Not recommended

ASTM F1554 grade 36 vs 55

Feature ASTM F1554 grade 36 ASTM F1554 Grade 55
Yield Strength 36 ksi 55 ksi
Tensile Strength 58 ksi 75 ksi
Color Code Blue Yellow
Weldability Yes Maybe
Cost Typically lower Slightly more expensive

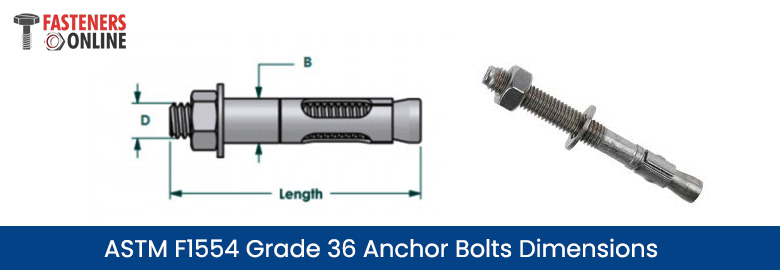

ASTM F1554 grade 36 anchor bolts dimensions

ASTM F1554 grade 36 anchor bolts dimensions
Diameter D B Length
M6.5 - 35
M6.5 - 55
M8 10 40
M8 10 65
M8 10 80
M10 12 50
M10 12 75
M10 12 100
M12 15 60
M12 15 75
M12 15 100

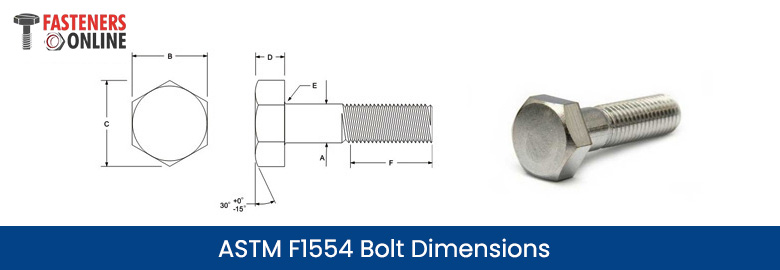

ASTM F1554 bolt dimensions

ASTM F1554 bolt dimensions
Bolt Size D C (min) B A (max) F
Thread Length
for Bolt Length
 E
6 and
shorter		 over 6 max min
1/4 11/64 0.484 7/16 0.26 0.75 1 0.03 0.01
5/16 7/32 0.552 1/2 0.324 0.875 1.125 0.03 0.01
3/8 1/4 0.62 9/16 0.388 1 1.25 0.03 0.01
7/16 19/64 0.687 5/8 0.452 1.125 1.375 0.03 0.01
1/2 11/32 0.826 3/4 0.515 1.25 1.5 0.03 0.01
5/8 27/64 1.033 15/16 0.642 1.5 1.75 0.06 0.02
3/4 1/2 1.24 1-1/8 0.768 1.75 2 0.06 0.02
7/8 37/64 1.447 1-5/16 0.895 2 2.25 0.06 0.02
1 43/64 1.653 1-1/2 1.022 2.25 2.5 0.09 0.03
1-1/8 3/4 1.859 1-11/16 1.149 2.5 2.75 0.09 0.03
1-1/4 27/32 2.066 1-7/8 1.277 2.75 3 0.09 0.03
1-3/8 29/32 2.273 2-1/16 1.404 3 3.25 0.09 0.03
1-1/2 1 2.48 2-1/4 1.531 3.25 3.5 0.09 0.03
1-3/4 1-5/32 2.893 2-5/8 1.785 3.75 4 0.12 0.04
2 1-11/32 3.306 3 2.039 4.25 4.5 0.12 0.04
2-1/4 1-1/2 3.719 3-3/8 2.305 4.75 5 0.19 0.06
2-1/2 1-21/32 4.133 3-3/4 2.559 5.25 5.5 0.19 0.06
2-3/4 1-13/16 4.546 4-1/8 2.837 5.75 6 0.19 0.06
3 2 4.959 4-1/2 3.081 6.25 6.5 0.19 0.06
3-1/4 2-3/16 5.372 4-7/8 3.335 6.75 7 0.19 0.06
3-1/2 2-5/16 5.786 5-1/4 3.589 7.25 7.5 0.19 0.06
3-3/4 2-1/2 6.198 5-5/8 3.858 7.75 8 0.19 0.06
4 2-11/16 6.612 6 4.111 8.25 8.5 0.19 0.06

Tolerance of ASTM F1554 36 Bolts

Bolt Length Tolerance1 ± 1" for lengths over 24"
± 1/2" for lengths 24" or less
Hook Length Tolerance ± 10% or ± 1/2" whichever is greater
Thread Series Unified Coarse Thread Series per ANSI/ASME B 1.1
Bend Angle ± 5°
Thread Length Tolerance +1", -0"
Thread Tolerance Class 2A

Coatings of ASTM F1554 grade 105 anchor bolt

Coatings of ASTM F1554 grade 105 anchor bolt
  • Hot Dip Galvanized
  • Mechanical Galvanizing
  • Zinc Plating
  • Uncoated
  • PTFE Coating
  • Duplex Coating
  • Fusion Bonded Coating
  • Epoxy Coating

Testing requirement of ASTM F1554 grade 36 bolt

  • Salt Spray Testing
  • Tensile Testing
  • Ultrasonic Testing
  • PMI Testing
  • Hardness Testing
  • Fatigue Testing
  • Impact Testing
  • Corrosion Test
Testing requirement of ASTM F1554 grade 36 bolt
