SAE J429 Grade 5 Bolts

Reliable J429 gr 5 Threaded rod manufacturer in India

What is SAE J429 Grade 5?

SAE J429 Grade 5 bolts are manufactured from quenched and tempered carbon steel. These are widely used in automotive and structural applications. It has good strength and toughness. We can't use Grade 5 fasteners in high temperature application.

Table of Content

Fasteners Types

SAE J429 Grade 5 Fastener specification

Bolt Size

J429 gr 5 Bolt Sizes

M2 to M24

Hex Nuts Size

Grade 5 Nuts Size

M3 – M56 | 3/6″ to 2″

Screw Size

SAE J429 gr 5 Screw Size

3/6″ to 2″

Machine Screws Size

SAE J429 gr 5 Machine Screws Size

M1.6 – M12

Washers Size

Zinc plated grade 5 Washers Size

M3 – M56 | 3/6″ to 2″

ISO Standard

Gr 5 flange bolts Thermal Conductivity

50 W/m·K

Length

Grade 5 fasteners Length

3 mm to 200 mm

Melting Point

J429 gr 5 Hex Nuts Melting Point

1425–1540°C

Specific Heat

SAE J429 grade 5 Material Specific Heat

0.46 J/g·K

Standards

SAE J429 gr 5 Hex Nuts Standards

DIN 976, 931, 7991, 933, 125, 934 / ASME B18.2.1, B18.3

Threads

Grade 5 heavy hex bolt Threads

METRIC / BSF / BSW / UNF / UNC

Custom Sizes

Custom Sizes

Trusted Manufacturer of SAE J429 Grade 5 Bolts in custom sizes and finishes

Studs Type

J429 gr 5 Studs Type

Fully or Fine threaded / Double-End / Tap-End

Condition

SAE J429 grade 5 material Condition

Threading / Cold Drawn

Origin

Origin

Korean / Indian / Russian / European

Manufacturing Technique

Manufacturing Technique

Cold forging / CNC Machined / Hot forging

Surface finish

Grade 5 zinc plated bolts Finish

Passivation / Phosphating / HDG

Thread Pitch

SAE J429 grade 5 Screws Thread Pitch

Coarse Threads / Fine Threads

Head Types

J429 grade 5 hex head bolts Head Types

  • Flat
  • Button head
  • Slotted hex washer
  • Socket cap head
  • Hex washer head
  • Slotted Drive
  • Phillips Drive

Drive Style

SAE J429 gr 5 Bolt Drive Style

  • Pan
  • Cross
  • Round
  • Hex
  • Truss
  • Torx
  • Oval

Bolt Size

Gr 5 screws Thread Class

  • 5 ONF
  • 3G
  • Class 2A (Medium fit)
  • 2G
  • Class 1A (Loose fit)
  • Class 3A (Tight fit)
  • 4G

Packaging

Packaging

  • Carton Box
  • Wooden Pallet
  • Blister Packs
  • Wooden Cases

Value Added Services

Value Added Services

  • Laser Etching
  • Head Shank Drilling
  • Color Coding
  • Head Painting

Certificate

Certificate

  • Raw Materials Certificate
  • UT and PMI Test
  • 100% Radiography Test
  • EN 10204/3.1B

Purchase Grade 5 Carbon Steel Machine Bolt in different sizes and diameter

Types of SAE J429 gr 5 Fasteners

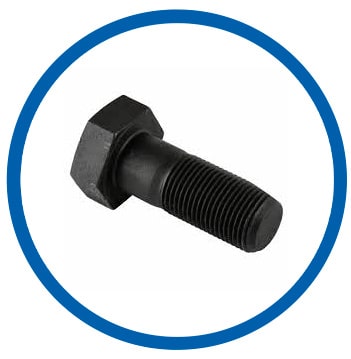

SAE J429 grade 5 heavy hex bolt

SAE J429 grade 5 heavy hex bolt

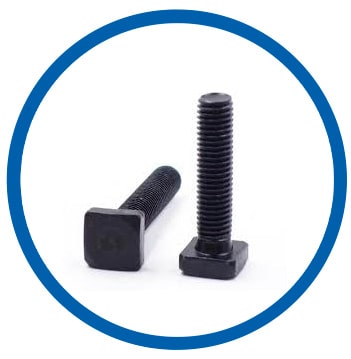

SAE J429 gr 5 square bolts

SAE J429 gr 5 square bolts

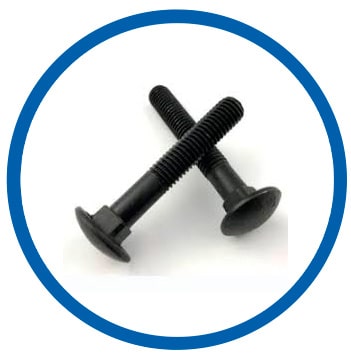

Grade 5 carriage bolt

Grade 5 carriage bolt

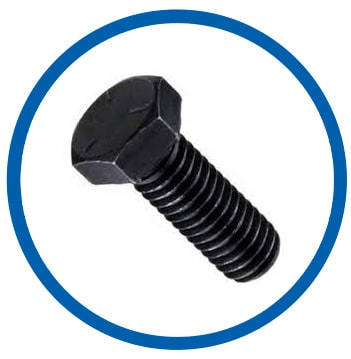

gr 5 machine bolt

gr 5 machine bolt

Zinc plated grade 5 threaded rod

Zinc plated grade 5 threaded rod

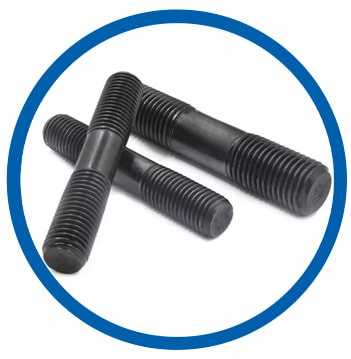

Grade 5 studs

Grade 5 studs

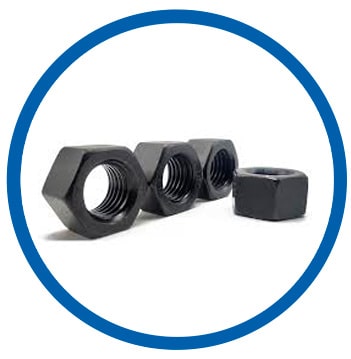

SAE J429 gr 5 heavy hex nut

SAE J429 gr 5 heavy hex nut

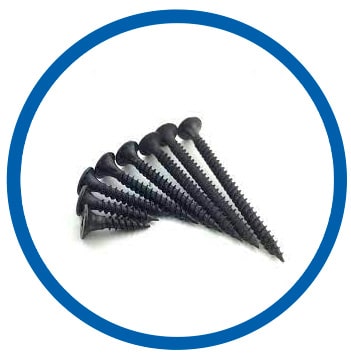

Medium carbon steel grade 5 screws

Medium carbon steel grade 5 screws

Leading supplier of Sae Grade 5 Fasteners in Mumbai, Refer Grade 5 Carriage Bolt Chemical composition

J429 Grade 5 chemical composition

Carbon

0.15 – 0.40

Sulfur

0.025 max

Boron

0.003

Phosphorus

0.025 max

J429 gr 5 stud mechanical properties

Yield Strength

80,000 PSI

Tensile Strength

100,000 PSI

Hardness

C25

Elongation

35 % Min

Check Sae J429 Gr5 hex head bolt and J429 Gr 5 Cap Screws dimensions and torque chart

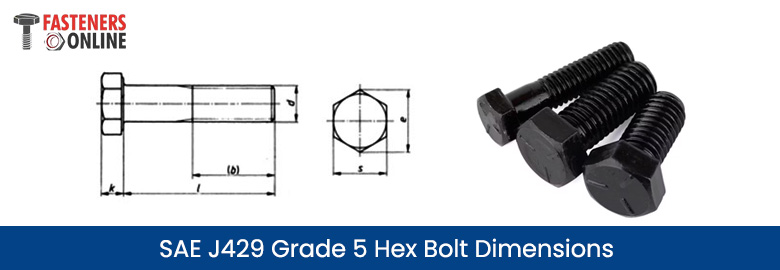

SAE J429 Grade 5 Hex Bolt Dimensions

SAE J429 Grade 5 Hex Bolt Dimensions
D1 E K S
M6 10.89 4 10
M8 14.2 5.3 13
M10 18.72 6.4 17
M12 20.88 7.5 19
M16 26.17 10 24
M20 32.95 12.5 30

Grade 5 bolt identification

Identification - 3 Radial Lines Grade 5 bolt identification
Refer SAE J429 grade 5 Lag Screws temperature and proof load, manufacturer of J429 gr 5 Structural Bolt in size range of M2 to M100

Grade 5 galvanized bolts Temperature range

Temperature range –50°C to ~200°C

Proof load of Zinc plated grade 5 Stud Bolts

Nominal Dia Stress Area, in2 Grade 5 (Proof Load, lb)
1/4-20 0.0318 3,800
5/16-18 0.0524 6,300
3/8-16 0.0775 9,300
7/16-14 0.1063 12,800
1/2-13 0.1419 17,000
9/16-12 0.182 21,800
5/8-11 0.226 27,100
3/4-10 0.334 40,100
7/8-9 0.462 55,400
1-8 0.606 72,700
1-1/8-7 0.763 80,100
1-1/4-7 0.969 1,01,700
1-3/8-6 1.155 1,21,300
1-1/2-6 1,405 1,47,500

Application of Grade 5 lag bolts

  • Construction
  • Wooden Bridges
  • Decking Systems
  • Agricultural Structures
  • Furniture
  • Solar Installations
  • Equipment Mounting
  • Pole and Utility Mounts
Application of Grade 5 lag bolts

Grade 5 Vs Grade 8 Bolts

Feature Grade 5 Grade 8
Tensile Strength 120,000 psi 150,000 psi
Bolt Head Marking 3 radial lines 6 radial lines
Shear Strength 75,000 psi 90,000 psi
Ductility Better Lower
Cost Lower Higher
Application General purpose High stress, critical application
