H13 Fasteners

Table of Content

Fasteners Types

H13 Fasteners Specification

Bolt Size

Steel H13 Bolt Sizes

M2 to M24

Hex Nuts Size

H13 Steel Nuts Size

M3 – M56 | 3/6″ to 2″

Screw Size

DIN 1.2344 Screw Size

3/6″ to 2″

Machine Screws Size

AISI H13 Tool Steel Machine Screws Size

M1.6 – M12

Washers Size

Tool Steel H13 Washers Size

M3 – M56 | 3/6″ to 2″

ISO Standard

ISO Standard

ISO 3506-1

Length

Steel H13 fasteners Length

3 mm to 200 mm

Melting Point

WNR 1.2344 square nut Melting Point

1415–1450°C

Working Temp

Steel H13 stud bolt Working Temp

600°C

Origin

Origin

Indian / Russian / Korean / European

Condition

H13 Steel hex bolts Condition

Threading / Cold Drawn

Studs Type

DIN 1.2344 Studs Type

Tap-End / Fully or Fine threaded / Double-End

Custom Sizes

Custom Sizes

We are Manufacturer of H13 Fasteners in custom sizes

Standards

AISI H13 self drilling screws Standards

DIN 933, 7991, 931, 934, 976, 125 / ASME B18.2.1, B18.3

Threads

Steel H13 heavy hex bolt Threads

METRIC / BSW / UNF / BSF / UNC

Manufacturing Technique

Manufacturing Technique

Cold forging / Hot forging / CNC Machined

Surface finish

Steel H11 Heavy Hex Nut Finish

Passivation / HDG / Phosphating

Thread Pitch

WNR 1.2344 Screws Thread Pitch

Coarse Threads / Fine Threads

Packaging

Packaging

  • Blister Packs
  • Wooden Pallet
  • Wooden Cases
  • Carton Box

Value Added Services

Value Added Services

  • Color Coding
  • Laser Etching
  • Head Shank Drilling
  • Head Painting

Certificate

Certificate

  • UT and PMI Test
  • EN 10204/3.1B
  • 100% Radiography Test
  • Raw Materials Certificate

Head Types

H13 hex head bolts Head Types

  • Button head
  • Hex washer head
  • Slotted Drive
  • Flat
  • Socket cap head
  • Phillips Drive
  • Slotted hex washer

Drive Style

AISI H13 Tool Steel Bolt Drive Style

  • Torx
  • Round
  • Hex
  • Cross
  • Truss
  • Pan
  • Oval

Bolt Size

Steel H11 screws Thread Class

  • Class 2A (Medium fit)
  • 3G
  • 2G
  • Class 3A (Tight fit)
  • 5 ONF
  • 4G
  • Class 1A (Loose fit)

Tool Steel H13 Bolts Price list

Product Price in USD
(Pcs)		 Price in Dirham
(Pcs)		 Price in Euro
(Pcs)
HEX NUT, Tool Steel H13 Zinc Plated, 3/4 10 UNC US $1.19 4.37 AED € 1.02
M36 HEAVY HEX NUT, DIN 1.2344 US $1.37 5.03 AED € 1.17

H13 Aerospace Bolts Chemical comsposition

Chromium

4.75-5.50

Molybdenum

1.10-1.75

Silicon

0.80-1.20

Vanadium

0.80-1.20

Carbon

0.32-0.45

Nickel

0.3 (Max.)

Copper

0.25

Manganese

0.20-0.50

Phosphorus

0.03

Sulfur

0.03

Mechanical Properties of H13 screw

Tensile Strength

1990 MPa

Yield Strength

1650 MPa

Hardness

51 – 53 Max HB

Elongation

9 % Min

H13 Steel Studs Physical properties

Density Modulus of Elasticity Bulk Modulus Shear Modulus Heat Capacity
7.8 g/cc 210 Gpa 140 GPa 81 GPa 0.46 J/g-°C

Equivalent of DIN 1.2344 Threaded Rod

Grade DIN EN JIS
H13 1.2344 X40CrMoV5-1 SKD61

Thermal properties of AISI H13 Tool Steel Hex Nuts

Thermal expansion Thermal conductivity
10.4 x 10-6/ºC 28.6 W/mK

Different types of H13 Steel Fasteners

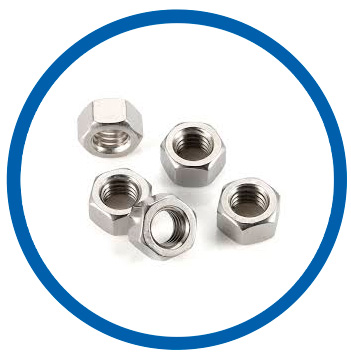

Tool Steel H13 hex nuts

Tool Steel H13 hex nuts

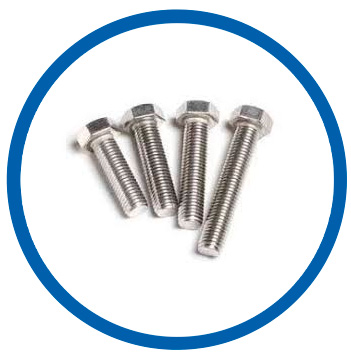

H13 Steel hex bolts

H13 Steel hex bolts

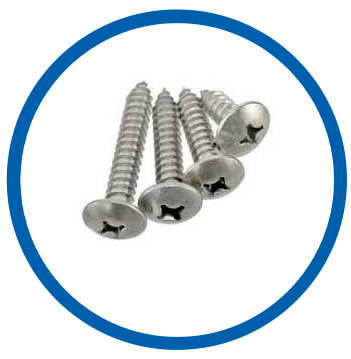

WNR 1.2344 machine screws

WNR 1.2344 machine screws

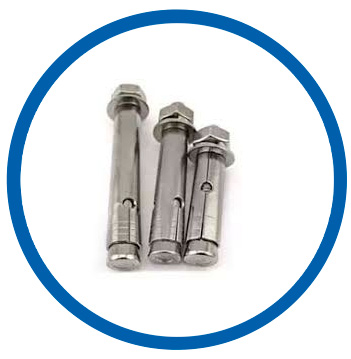

Steel H13 anchor bolts

Steel H13 anchor bolts

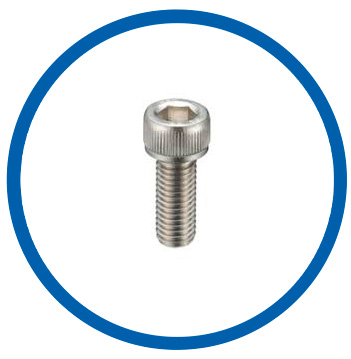

H13 Tool Steel hex cap screws

H13 Tool Steel hex cap screws

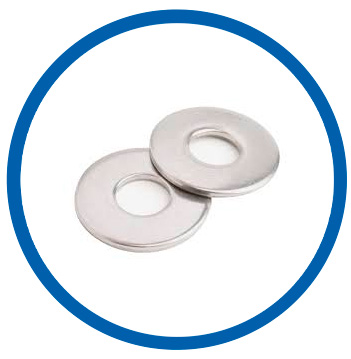

DIN 1.2344 flat washer

DIN 1.2344 flat washer

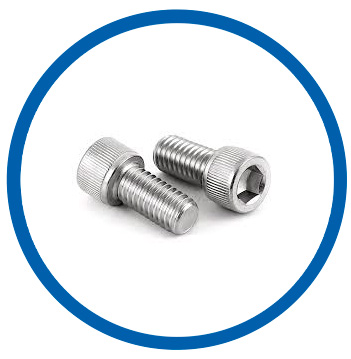

H13 Steel socket head cap screw

H13 Steel socket head cap screw

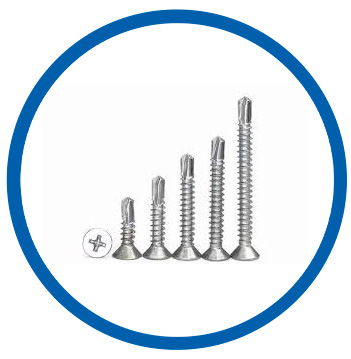

AISI H13 Tool Steel self drilling screws

AISI H13 Tool Steel self drilling screws

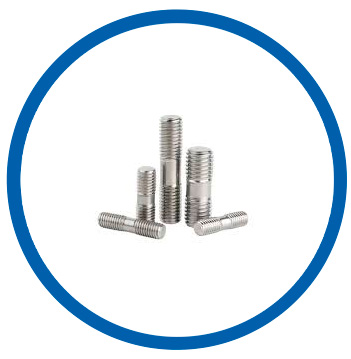

Tool Steel H13 threaded rod

Tool Steel H13 threaded rod

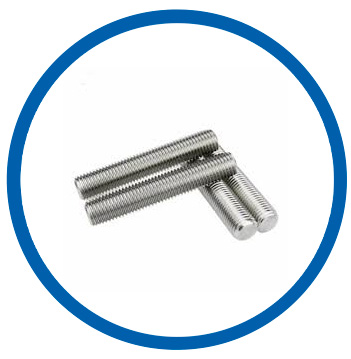

Steel H13 stud bolt

Steel H13 stud bolt

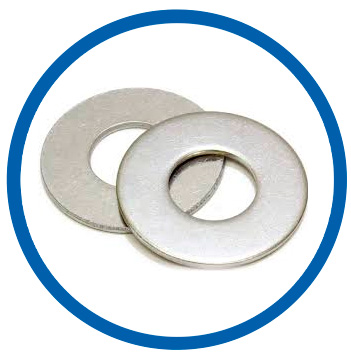

AISI H13 Tool Steel plain washer

AISI H13 Tool Steel plain washer

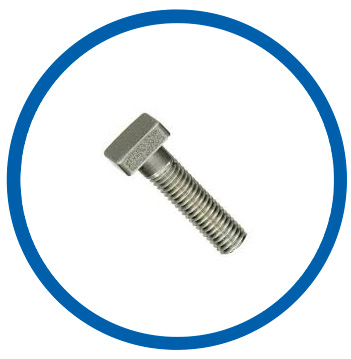

H13 Steel square bolts

H13 Steel square bolts

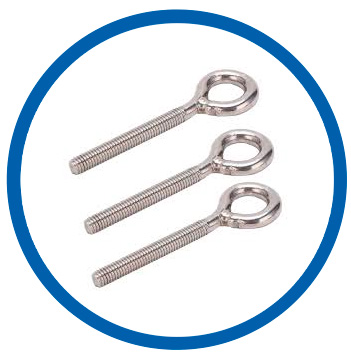

H13 Tool Steel eye bolts

H13 Tool Steel eye bolts

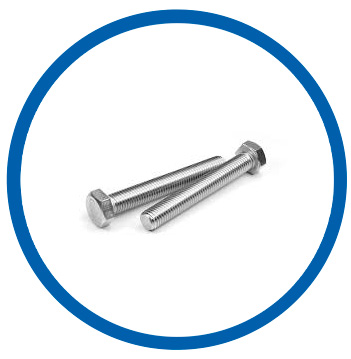

Steel H13 heavy hex bolt

Steel H13 heavy hex bolt

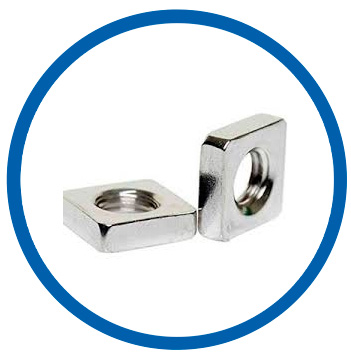

WNR 1.2344 square nut

WNR 1.2344 square nut

Steel H13 Heavy Hex Bolts Tolerance

Nominal Dia Tolerance Zone in mm
over to m6 h6 h8 h10 h11 h13 h14 h15 h16
0 1 +0.002
+0.008		 0
-0.006		 0
-0.014		 0
-0.040		 0
-0.060		 0
-0.14
1 3 +0.002
+0.008		 0
-0.006		 0
-0.014		 0
-0.040		 0
-0.060		 0
-0.14		 0
-0.25		 0
-0.40		 0
-0.60
3 6 +0.004
+0.012		 0
-0.008		 0
-0.018		 0
-0.048		 0
-0.075		 0
-0.18		 0
-0.30		 0
-0.48		 0
-0.75
6 10 +0.006
+0.015		 0
-0.009		 0
-0.022		 0
-0.058		 0
-0.090		 0
-0.22		 0
-0.36		 0
-0.58		 0
-0.90
10 18 +0.007
+0.018		 0
-0.011		 0
-0.027		 0
-0.070		 0
-0.110		 0
-0.27		 0
-0.43		 0
-0.70		 0
-1.10
18 30 +0.008
+0.021		 0
-0.030		 0
-0.033		 0
-0.084		 0
-0.130		 0
-0.33		 0
-0.52		 0
-0.84		 0
-1.30
30 50 0
-0.39		 0
-0.62		 0
-1.00		 0
-1.60
50 80 0
-0.46		 0
-0.74		 0
-1.20		 0
-1.90
80 120 0
-0.54		 0
-0.87		 0
-1.40		 0
-2.20

Tempering Hardness of H13 Material

Tempering°C 500°C 550°C 600°C
HRC HRC56 HRC54 HRC50

Annealing and Stress Relieving Temperature of Steel H13 Washer

Annealing Stress Relieving
1550°-1650°F 1050°-1250°F
