H11 Fasteners
Table of Content
Steel H11 Bolt Sizes
M2 to M24
H11 Steel Nuts Size
M3 – M56 | 3/6″ to 2″
DIN 1.2343 Screw Size
3/6″ to 2″
JIS G4404 Machine Screws Size
M1.6 – M12
H11 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 3506-1
H11 Steel fasteners Length
3 mm to 200 mm
H11 hex nuts Melting Point
1425–1510°C
JIS G4404 stud bolt Working Temperature
540°C
Origin
Russian / Korean / Indian / European
UNS T20811 Hex Nuts Condition
Threading / Cold Drawn
H11 Steel Studs Type
Fully or Fine threaded / Tap-End / Double-End
Custom Sizes
We are Manufacturer of H11 Fasteners in custom sizes and threads
1.2343 eye bolts Standards
DIN 7991, 931, 934, 933, 976, 125 / ASME B18.2.1, B18.3
H11 self drilling screws Threads
BSW / UNF / METRIC / BSF / UNC
Manufacturing Technique
Hot forging / Cold forging / CNC Machined
Steel H11 flat washer Finish
Passivation / HDG / Phosphating
JIS G4404 Screws Thread Pitch
Coarse Threads / Fine Threads
Packaging
- Wooden Pallet
- Blister Packs
- Wooden Cases
- Carton Box
Value Added Services
- Laser Etching
- Head Shank Drilling
- Color Coding
- Head Painting
Certificate
- EN 10204/3.1B
- 100% Radiography Test
- UT and PMI Test
- Raw Materials Certificate
JIS G4404 hex head bolts Head Types
- Socket cap head
- Button head
- Hex washer head
- Slotted Drive
- Flat
- Phillips Drive
- Slotted hex washer
AISI H11 Tool Steel Bolt Drive Style
- Cross
- Truss
- Torx
- Round
- Hex
- Pan
- Oval
DIN 1.2343 screws Thread Class
- Class 2A (Medium fit)
- 3G
- 4G
- Class 1A (Loose fit)
- 2G
- Class 3A (Tight fit)
- 5 ONF
H11 steel is high chromium hot worked steel, Its known for high temperature strength, exceptional toughness and resistance to thermal fatigue.
Price list of H11 Steel Fasteners
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| 5/16-24 Heavy Hex Nut, Tool Steel H11, UNF | US $0.92 | 3.38 AED | € 0.79 |
| Heavy HEX NUT, 5/8, Steel H11, HDG | US $1.09 | 4.01 AED | € 0.93 |
H11 tool steel Bolts chemical composition
Carbon
0.33-0.43
Manganese
0.20-0.50
Silicon
0.80-1.20
Chromium
4.75-5.50
Nickel
0.3
Molybdenum
1.10-1.60
Vanadium
0.30-0.60
Copper
0.25 (Max.)
Phosphorous
0.3
Sulfur
0.03
AISI H11 Nuts mechanical properties
Tensile Strength
275–310 ksi
Yield Strength
235–260 ksi
Hardness
56 Max HB
Elongation
10–15 %
Steel H11 Stud Bolts Physical properties
| Density | Melting point | Modulus of elasticity | Poisson's ratio |
|---|---|---|---|
| 7.81 g/cm3 | 1427°C | 207 GPa | 0.27-0.30 |
| Grade | UNS | DIN | EN | JIS |
|---|---|---|---|---|
| H11 | T20811 | 1.2343 | X37CrMoV5-1 | SKD6 |
Thermal Properties of DIN 1.2343 Threaded Rod
| Properties | Metric |
|---|---|
| Thermal expansion (@20-100ºC/68-212ºF) | 11.9 x 10-6/ºC |
| Thermal conductivity (@100ºC/212ºF) | 42.2 W/mK |
Machinability of JIS G4404 Heavy Hex Nuts
| Machinability | 75% |
|---|
H11 Material Temperature range
| Temperature range | 537–593°C |
|---|

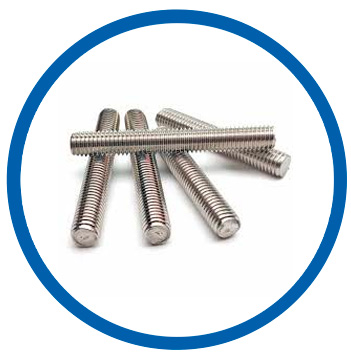

JIS G4404 threaded rod

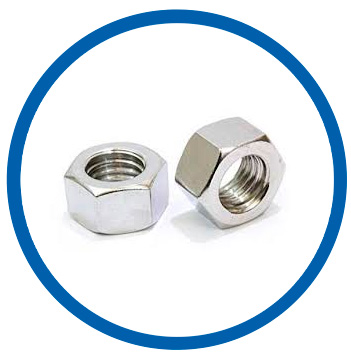

H11 hex nuts

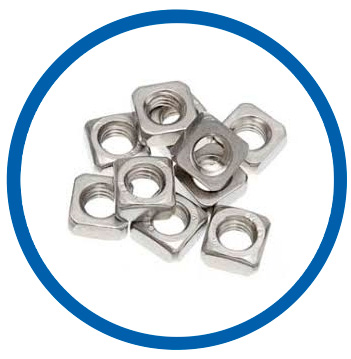

Steel H11 square nut

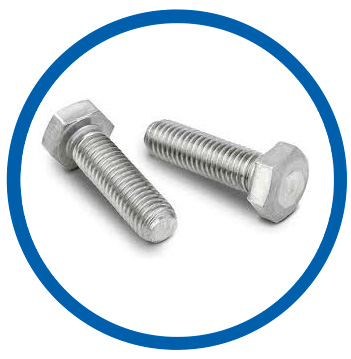

1.2343 machine screws

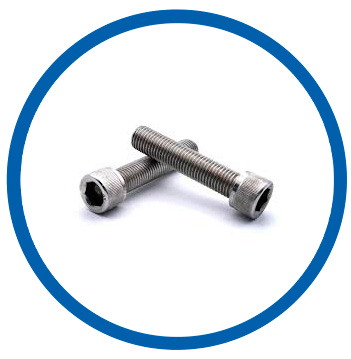

H11 Steel hex cap screws

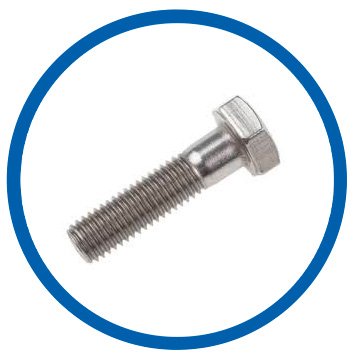

AISI H11 Tool Steel heavy hex bolt

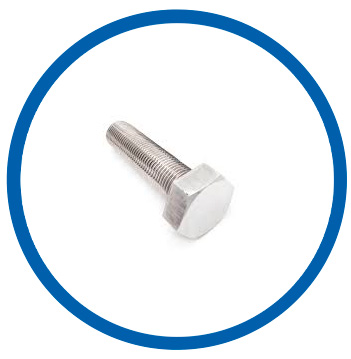

Steel H11 hex bolts

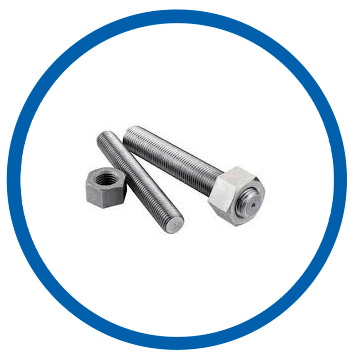

JIS G4404 stud bolt

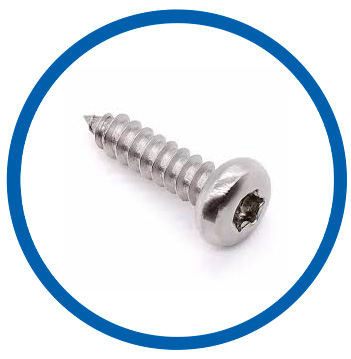

H11 self drilling screws

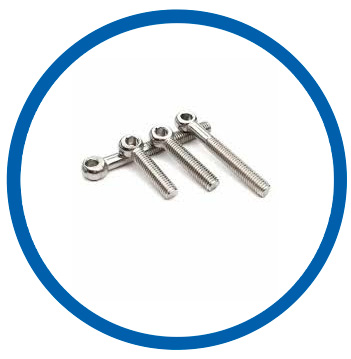

1.2343 eye bolts

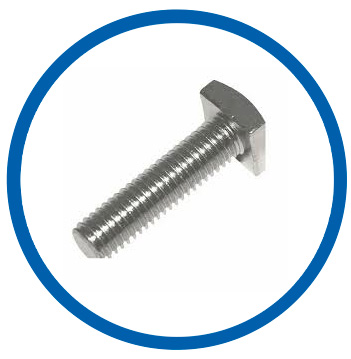

AISI H11 Tool Steel square bolts

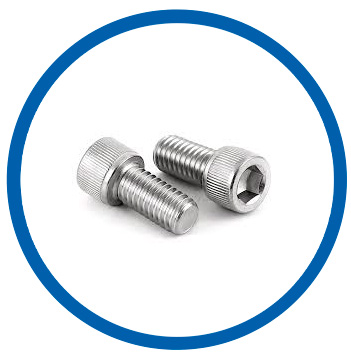

H11 Steel socket head cap screw

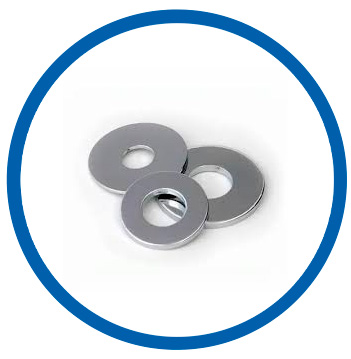

1.2343 plain washer

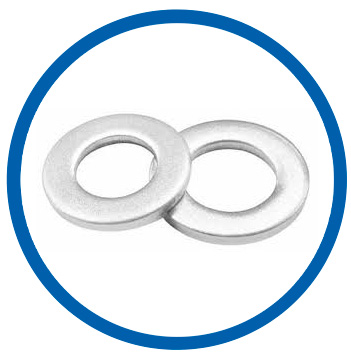

Steel H11 flat washer

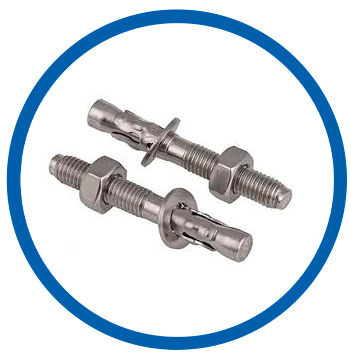

JIS G4404 anchor bolts
Benefits of H11 Aerospace Bolts
Tooling of AISI H11 Tool Steel Washer
