Grade 10.9 Fasteners
Grade 10.9 Hex Bolts Manufacturer in India
Table of Content
Grade 10.9 Fasteners Specification
Grade 10.9 Bolt Sizes
M2 to M24
Class 10.9 Screw Size
3/6″ to 2″
10.9 grade Nuts Size
M3 – M56 | 3/6″ to 2″
Steel grade 10.9 Machine Screws Size
M1.6 – M12
Grade 10.9 Washers Size
M3 – M56 | 3/6″ to 2″
ISO Standard
ISO 3506-1
10.9 grade allen bolt Magnetic
Yes
Class 10.9 fasteners Length
3 mm to 200 mm
Grade 10.9 cap screw Proof Load
830 MPa
Grade 10.9 socket head cap screws Standards
DIN 934, 931, 7991, 933, 976, 125 / ASME B18.2.1, B18.3
DIN 6914 grade 10.9 Hex Bolts Threads
BSF / UNF / METRIC / BSW / UNC
Custom Sizes
We are Manufacturer of Grade 10.9 Fasteners in custom sizes
Origin
Russian / Indian / Korean / European
10.9 Steel Studs Type
Fully or Fine threaded / Tap-End / Double-End
Grade 10.9 flange bolts Condition
Threading / Cold Drawn
Manufacturing Technique
Hot forging / CNC Machined / Cold forging
Class 10.9 Screws Thread Pitch
Coarse Threads / Fine Threads
DIN 931 grade 10.9 Washer Finish
Passivation / Phosphating / HDG
Class 10.9 Bolt Drive Style
- Pan
- Cross
- Round
- Hex
- Oval
- Truss
- Torx
Grade 10.9 hex head bolts Head Types
- Hex washer head
- Slotted hex washer
- Socket cap head
- Flat
- Phillips Drive
- Button head
- Slotted Drive
10.9 grade alloy screws Thread Class
- Class 1A (Loose fit)
- 3G
- 2G
- Class 2A (Medium fit)
- 4G
- Class 3A (Tight fit)
- 5 ONF
Packaging
- Carton Box
- Wooden Cases
- Wooden Pallet
- Blister Packs
Certificate
- 100% Radiography Test
- UT and PMI Test
- Raw Materials Certificate
- EN 10204/3.1B
Value Added Services
- Color Coding
- Laser Etching
- Head Shank Drilling
- Head Painting
10.9 grade bolt is high strength bolt which is known for its high tensile strength properties. It is widely used in application where resistance to high tension and shear forces are required. They are manufactured in size range of M5 to M16 in various lengths as per demand.
Manufacturing standards of 10.9 grade alloy Studs
| Property | Grade 8 | Grade 10.9 |
|---|---|---|
| System | SAE | ISO |
| Material | Medium carbon alloy steel | Alloy steel |
| Markings | 6 radial lines | Number "10.9" |
| Yield Strength | 895 MPa | 940 MPa |
Grade 10.9 Fasteners Price list
| Product | Price in USD (Pcs) |
Price in Dirham (Pcs) |
Price in Euro (Pcs) |
|---|---|---|---|
| M16x80 Grade 10.9 Hex Bolt, Zinc Plated, DIN 931 | US $1.8 | 6.61 AED | € 1.53 |
| Grade 10 Hex Nut, M16, DIN 934 | US $1.37 | 5.03 AED | € 1.17 |
Chemical composition of Grade 10.9 cap screw
Carbon
0.20-0.55
Phosphorus
0.025
Sulphur
0.025
10.9 grade allen bolt Mechanical properties
Tensile Strength
1040 MPa
Yield Strength
940 MPa
Hardness
32-39 HRC
Elongation
9 % Min
High tensile grade 10.9 Nuts Hardness
| Vickers hardness, HV F ≥98 N |
Rockwell hardness, HRC | Brinell hardness, HBW F = 30 D2 |
Surface hardness, HV 0,3 |
|||
|---|---|---|---|---|---|---|
| min. | max. | min. | max. | min. | max. | max. |
| 320 | 380 | 32 | 39 | 316 | 375 | 390 |
Impact Properties of Class 10.9 Fasteners
| Room Temp. (16mm and Over) | 27 J |
|---|
Coatings & Finishes of Grade 10.9 countersunk bolts
Benefits Of Using 10.9 Grade Bolt
Are Grade 10.9 fasteners corrosion-resistant?
To some extent they are corrosion resistant but its always recommended to use coated or galvanized 10.9 bolts to prevent from corrosion.
Different types of Grade 10.9 Fasteners

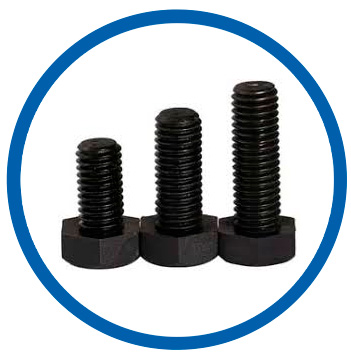

Steel grade 10.9 heavy hex bolt

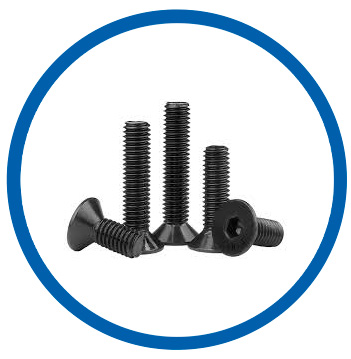

Grade 10.9 countersunk bolts

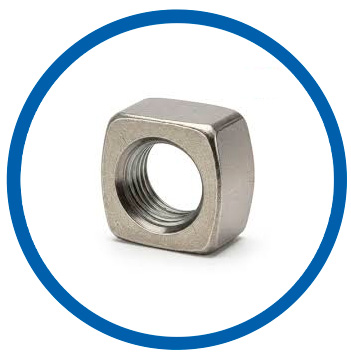

10.9 grade alloy square nut

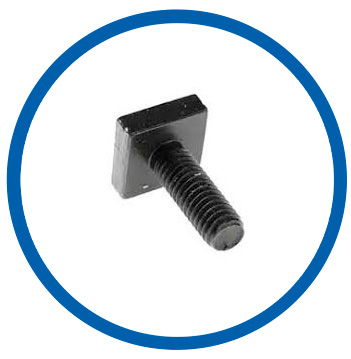

High tensile grade 10.9 square bolts

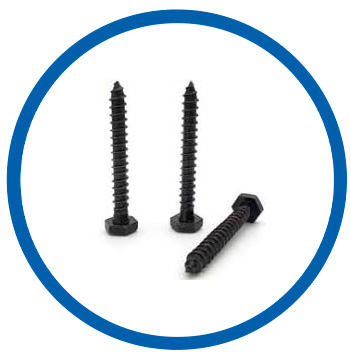

Grade 10.9 machine screws

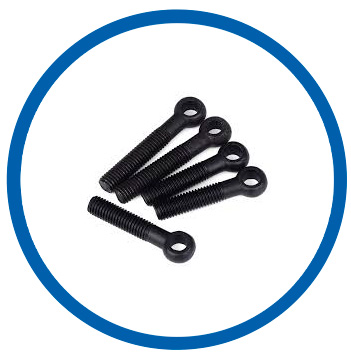

Steel grade 10.9 eye bolts

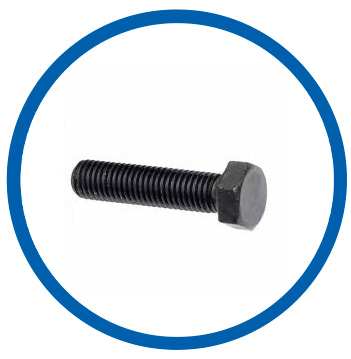

10.9 grade alloy hex bolts

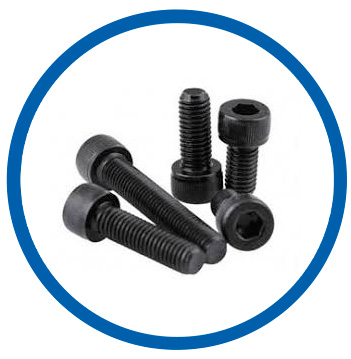

Grade 10.9 cap screw

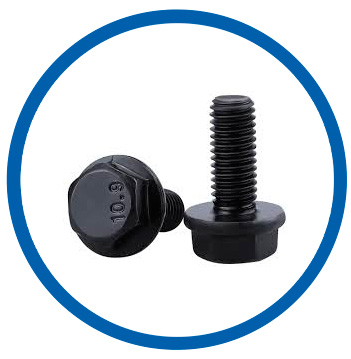

Grade 10.9 flange bolts

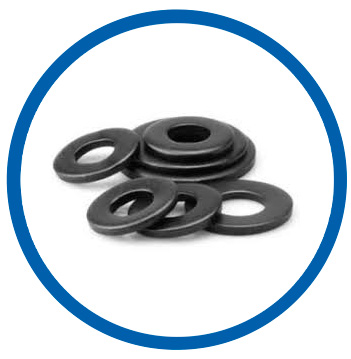

High tensile steel grade 10.9 flat washer

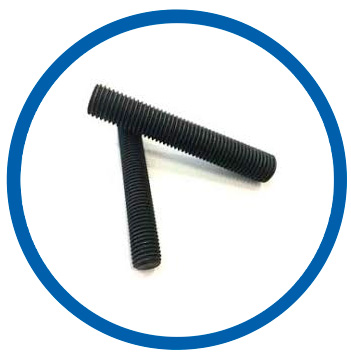

Class 10.9 threaded rod

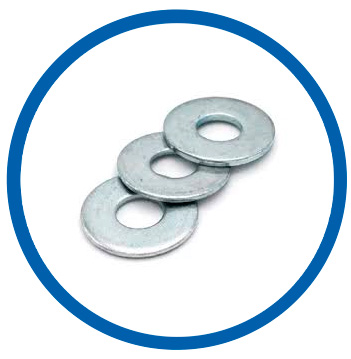

10.9 grade alloy plain washer

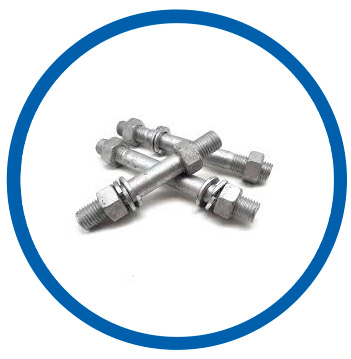

High tensile steel grade 10.9 anchor bolts

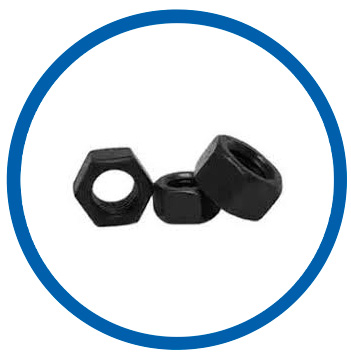

Class 10.9 hex nuts

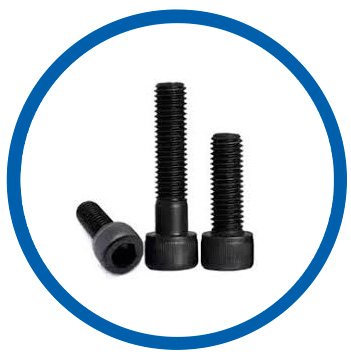

High tensile grade 10.9 socket head cap screw

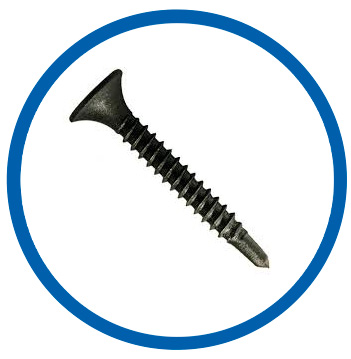

Steel grade 10.9 self drilling screws

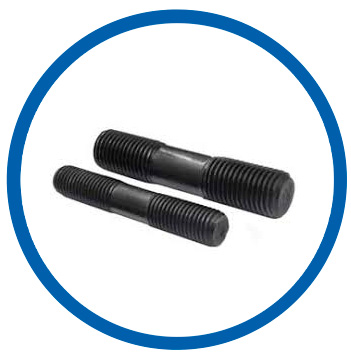

Grade 10.9 stud bolt

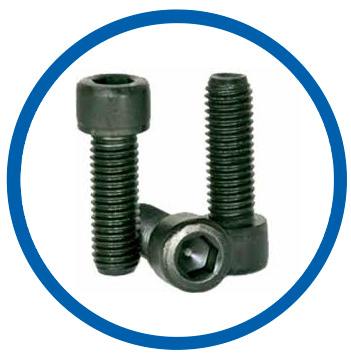

Grade 10.9 hex cap screws
High Tensile Steel Grade 10.9 Hex Bolts Marking
| Marking | "10.9" |
|---|
Application of Grade 10.9 flange bolts
